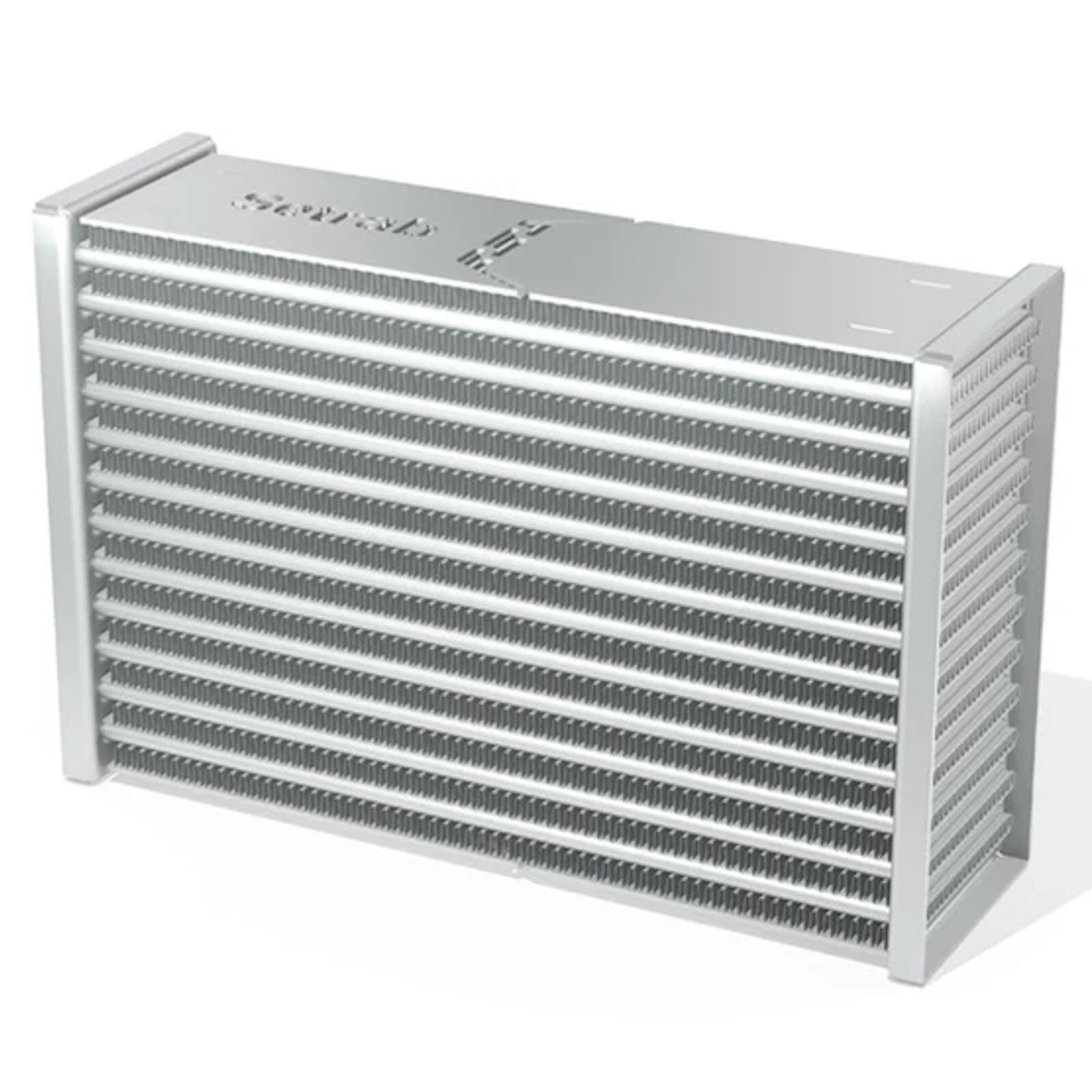

Setrab ProLine high-performance intercooler core
580 x 329 x 70mm aluminum intercooler core with turbulators
Universal intercooler core from Setrab
Setrab high-performance aluminum intercooler core with turbulators.

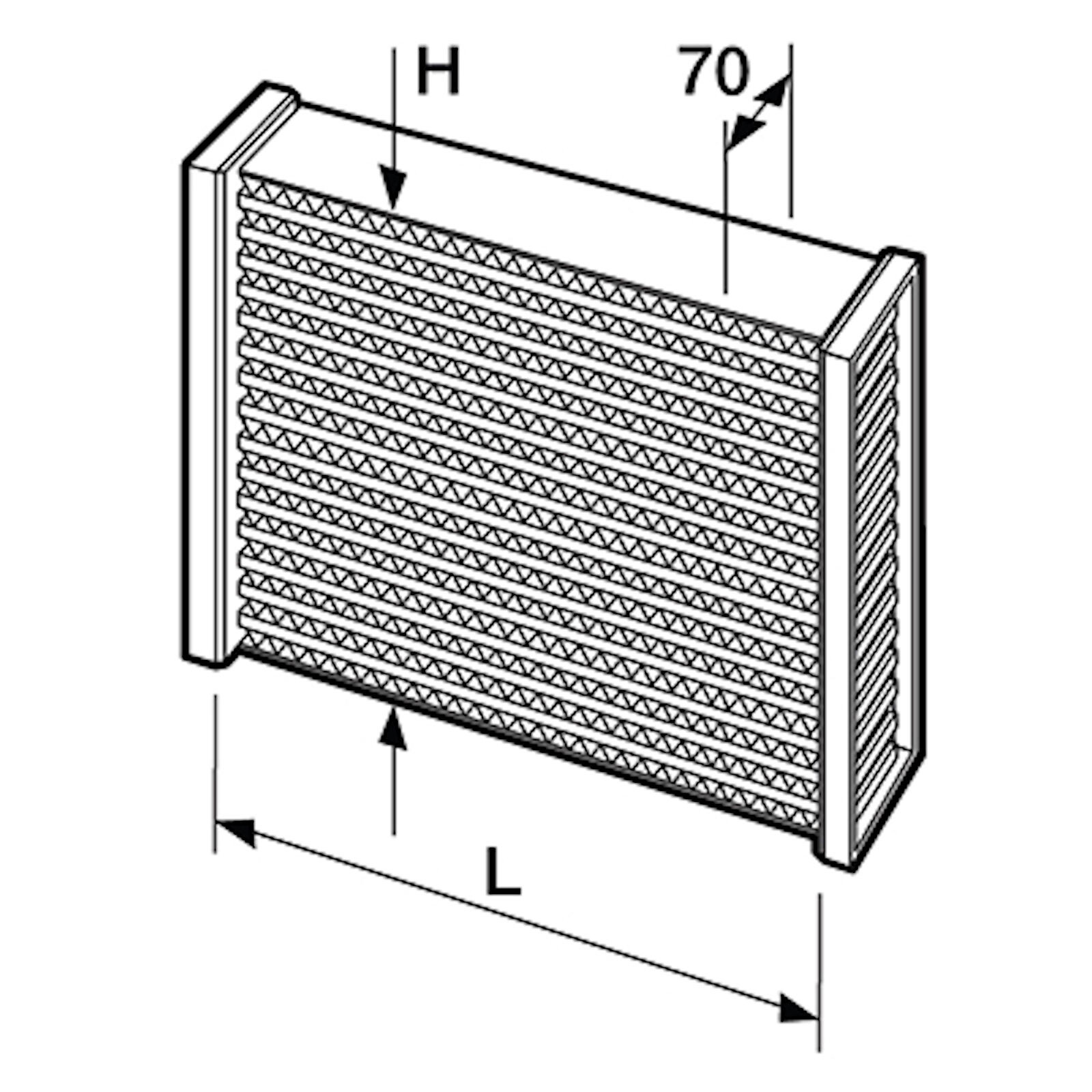

- Dimensions (Length x Height x Depth): 580 x 329 x 70mm
- Tubes: 24 (Charge Air Tubes)
- Operating Pressure: max. 4 bar
- End Tank (Box Width): approx. 82mm
- Extremely Low Weight: 4.9 KG
- Maximum Heat Dissipation with Minimal Pressure Loss
- Extremely Corrosion-Resistant
- High-Quality Manufacturing
| Technical Data | |
|---|---|
| Operating Pressure | 0 to 2.5 bar dynamic |
| Pressure Cycle Test | 100,000 Pulsations, 0-3 bar, 0.5-1 Hz, 200 °C Air Temperature |
| Max Pressure | 4 bar |
| Burst Pressure | 6 bar |
| Leakage Test | 1.5 bar (Core) |
| Operating Temperature Range | -40 °C to 220 °C |
| Salt Spray Test | 20 Days SWAAT G85-94 A3 960h ISO 9227 NSS |
| Internal Cleanliness | ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10 mg total contamination |
| General Dimensional Tolerances | ISO 2768-v |
| Material | Aluminum |
Features
- Tuning Part: Intercooler
- Availability: to order
