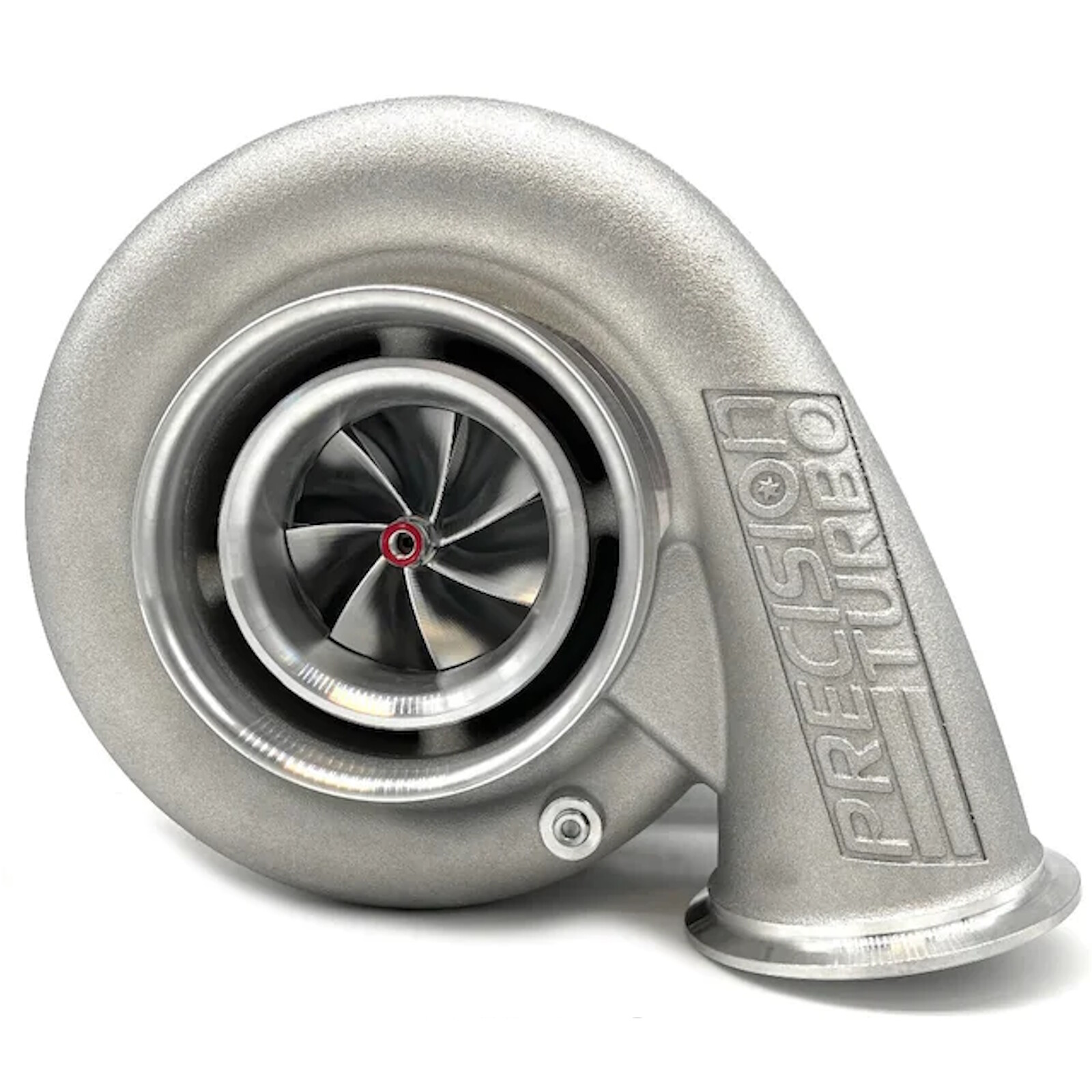

Precision Turbo PT 7485 NEXT GEN R turbocharger / ball bearing / V-Band 1.00 A/R / ext. WG / V-Band outlet / SPORTSMAN-COVER / up to 1450 HP

Precision turbocharger PT7485 1450 HP CLASS LEGAL with ball bearing and air-cooled CHRA

Precision Turbo NEXT GEN Turbochargers for fastest transient response, maximum efficiency and highest boost pressure levels

Application: CLASS LEGAL
Horsepower: 1450 HP
Product group: turbocharger
Model: PT 7485
Generation: NEXT GEN R
Bearing type: ball bearing
CHRA cooling: air-cooled
Rotation: STANDARD

Compressor cover type: SPORTSMAN-COVER
Compressor ported style: ported
Compressor inlet: 5.0"
Compressor outlet: 4.2"
Compressor wheel inducer: 73.9 mm
Compressor wheel exducer: 104.9 mm

Turbine inlet flange: V-Band
Wastegate: ext. WG
Downpipe flange: V-Band
A/R: 1.00 A/R
Turbine wheel exducer: 90.0 mm
Turbine wheel inducer: 85.0 mm
Material turbine housing: stainless

Precision Turbo and Engine understands your desire to excel both on and off the track. Whether you're a dedicated racer or simply seeking to enhance your daily driver's performance, PTE has got you covered. With their commitment to delivering outstanding power and cutting-edge technology at an affordable price, Precision Turbo and Engine is your ultimate destination for turbochargers tailored to your specific needs. Unlock exceptional performance with PTE - where power meets precision. All-New 67.9 Next Gen R Class Legal Sportsman Turbocharger. With the success of PTE'S 73.9 Next Gen R on the xFWD, Super Street, and Mean Street classes and with the success of PTE's current 67.9/85 Next Gen on the GT-R 68mm classes it was time to implement the “R" technology to the 67.9 turbo. This new turbo features an updated compressor wheel and updated compressor cover technology allowing over 10% increase in horsepower and it’s capable and already proven to run 7.7s on your B Series Honda and 6sec on your VR38 GT-R on a twin setup. The new Mean Street class for World Cup Finals will allow EVOs and Subarus to run a 68mm turbocharger and this is the turbo for you guys. Contact your local PTE dealer a call now to place your order today! Comes in T4 Divided 1.12 A/R & 1.28 A/R or Stainless-Steel V-Band In/Out 1.28 A/

Precision Turbo NEXT GEN 6785 Turbochargers features:

• All new compressor cover design with flow enhancements and advanced machining techniques providing more airflow and greater efficiency at higher pressure ratios
• Higher efficiency and faster transient response for maximum power and performance
• Exclusive Next Gen R CEA® (Competition Engineered Aerodynamics) 67,9mm Compressor Wheel Machined from a 2618-Aluminum Forging
• Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity
• Compressor Cover Includes Machined Speed Sensor port (sensor not included)
• High Flow 85mm CEA® turbine wheel design featuring high temperature resistant Alloy
• Class Legal for several racing sanctions. Contact us for any class legal consultation
• A wide range of different turbine housing options


• K-TH0794 / T4 / 0.98 A/R / V-Band discharge / ext. WG / 80.0 mm / Cast Iron
• K-TH0724 / T4 / 1.12 A/R / V-Band discharge / ext. WG / 80.0 mm / Cast Iron
• K-TH0784 / T4 / 1.28 A/R / V-Band discharge / ext. WG / 80.0 mm / Cast Iron

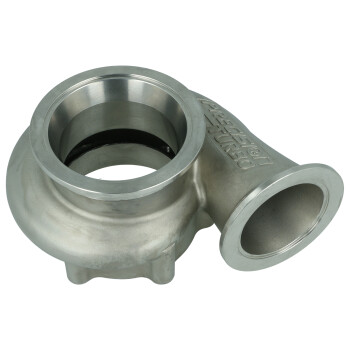

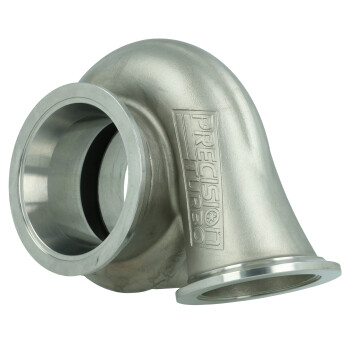

• K-10330-00-80 / V-Band / 1.00 A/R / V-Band discharge / ext. WG / 80.0 mm / Stainless
• K-10330-15-80 / V-Band / 1.15 A/R / V-Band discharge / ext. WG / 80.0 mm / Stainless
• K-10330-28-80 / V-Band / 1.28 A/R / V-Band discharge / ext. WG / 80.0 mm / Stainless


• If available, also with either a Hydrodynamic 360 thrust bearing system, or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Precision Turbo NEXT GEN:
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the NEXT GEN CEA® series offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the NEXT GEN CEA® series are the perfect choice for those wanting to make more power without changing their current system. Exclusive NEXT GEN CEA® (Competition Engineered Aerodynamics) compressor wheels machined from a 2618-aluminum forging and CEA® turbine wheel, Precision's NEXT GEN CEA® Turbocharger is rated to support up to 2400 horsepower. PTE's technologically advanced CEA® wheels are known for their unparalleled performance, greater efficiency at higher pressure ratios, less turbo lag, ability to handle higher boost, and offer massive power gains over older wheel designs of similar sizes.

Racing is easy - it's winning that can be the challenge. With 119 world championships and set over 256 world records since 2008, Precision Turbo and Engine has a longstanding history of building Turbochargers that win. We know what it takes to put together the perfect unit to boost you ahead of the competition. Success doesn't come from a standard off-the-shelf Turbocharger it comes from years of dedicated research, development and real-world racing experience. You can trust PTE to get you where you want to be. We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, we can help you find the perfect Turbocharger for your unique setup.
