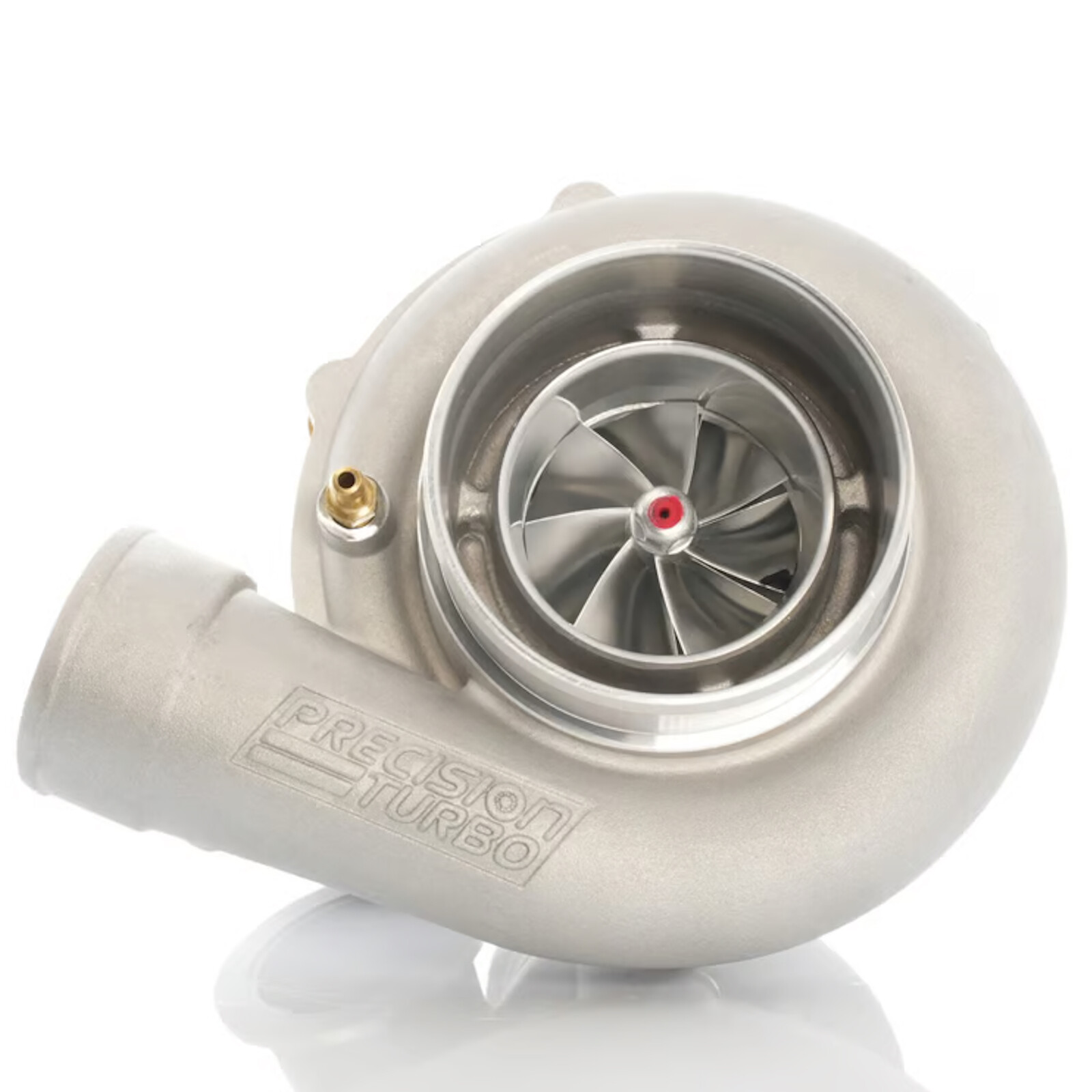

Precision Turbo PT 6062 NEXT GEN Turbocharger up to 840 HP

PTE Turbocharger PT6062 840 HP STREET & RACE with ball bearing and air-cooled CHRA

Precision Turbo NEXT GEN Turbochargers for fastest transient response, maximum efficiency and highest boost pressure levels

Application: STREET & RACE
Horsepower: 840 HP
Product group: Turbocharger
Model: PT 6062
Generation: NEXT GEN
Bearing type: ball bearing
CHRA cooling: air-cooled
Rotation: STANDARD

Compressor cover type: see drop-down menu
Compressor ported style: ported
Compressor inlet: see drop-down menu
Compressor outlet: see drop-down menu
Compressor wheel inducer: 60.35 mm
Compressor wheel exducer: 86.0 mm

Turbine inlet flange: see drop-down menu
Wastegate: -
Downpipe flange: see drop-down menu
A/R: see drop-down menu
Turbine wheel exducer: 62.0 mm
Turbine wheel inducer: 71.0 mm
Material turbine housing: see drop-down menu
Turbine wheel Generation: GEN 2

The 60mm GEN 2 turbocharger has provided exceptional performance throughout previous years and has stood the test of time. With the success of our industry leading the NEXT GEN lineup of turbochargers, it was time to apply the NEXT GEN technology to our 60mm turbochargers. Our new NEXT GEN 60mm turbocharger is set to outpace and outperform featuring a state-of-the-art 60mm NEXT GEN CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Available exclusively in standard rotation and outfitted with our 62mm turbine wheel, the all-new NEXT GEN 60 is proven to provide a substantial improvement over the GEN 2 lineup.

• PFT047-3039 recommended oil feed fitting
• PTP074-2108 recommended oil drain flange
• PTP074-1008/1011/1030 turbine housing inlet flange
• PTP071-1027 turbine housing inlet clamp
• PTP074-3005/3007/3008/3012/3014/3036/3050 turbine housing outlet flange
• PTP071-1026/1029 turbine housing outlet clamp
• *Clamps & flanges sold separately

Racing is easy - it's winning that can be the challenge. With 119 world championships and set over 256 world records since 2008, Precision Turbo and Engine has a longstanding history of building Turbochargers that win. We know what it takes to put together the perfect unit to boost you ahead of the competition. Success doesn't come from a standard off-the-shelf Turbocharger it comes from years of dedicated research, development and real-world racing experience. You can trust PTE to get you where you want to be. We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driver's performance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, we can help you find the perfect Turbocharger for your unique setup.

Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers

Higher efficiency and faster transient response for maximum power and performance

Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging

Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability

Available in an All-New SP compressor cover w/ 4" inlet and 2-1/2"outlet

High flow / highly efficient exclusive CEA® (Competition Engineered Aerodynamics) turbine wheel

A wide range of different turbine housing options

• K-THV4-62 / V-Band / 0.64 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-THV2-62 / V-Band / 0.82 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-THV4S-62 / V-Band / 0.64 A/R / V-Band discharge / ext. WG / 62.0 mm / Stainless Steel
• K-THV2S-62 / V-Band / 0.82 A/R / V-Band discharge / ext. WG / 62.0 mm / Stainless Steel
• K-THV5S-62 / V-Band / 1.05 A/R / V-Band discharge / ext. WG / 62.0 mm / Stainless Steel
• K-THGT3-62 / T3 / 0.63 A/R / 4-Bolt discharge / ext. WG / 62.0 mm / Cast iron
• K-THGT3-62V / T3 / 0.63 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-THGT2-62 / T3 / 0.82 A/R / 4-Bolt discharge / ext. WG / 62.0 mm / Cast iron
• K-THGT2-62V / T3 / 0.82 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-THF3-62 / T3 / 0.63 A/R / 5-Bolt discharge / ext. WG / 62.0 mm / Cast iron
• K-THF3-62W / T3 / 0.63 A/R / 5-Bolt discharge / für int. WG / 62.0 mm / Cast iron
• K-TH5862A / T4 / 0.58 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-TH6862A / T4 / 0.68 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-TH8162A / T4 / 0.81 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-TH70D-62 / T4 Twinscroll / 0.70 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-TH84D-62 / T4 Twinscroll / 0.84 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron
• K-TH10D-62 / T4 Twinscroll / 1.00 A/R / V-Band discharge / ext. WG / 62.0 mm / Cast iron

If available, also with either a Hydrodynamic 360 thrust bearing system, or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Precision Turbo NEXT GEN:
Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the NEXT GEN CEA® series offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering substantially more horsepower over similarly sized turbos, the NEXT GEN CEA® series are the perfect choice for those wanting to make more power without changing their current system. Exclusive NEXT GEN CEA® (Competition Engineered Aerodynamics) compressor wheels machined from a 2618-aluminum forging and CEA® turbine wheel, Precision's NEXT GEN CEA® Turbocharger is rated to support up to 2400 horsepower. PTE's technologically advanced CEA® wheels are known for their unparalleled performance, greater efficiency at higher pressure ratios, less turbo lag, ability to handle higher boost, and offer massive power gains over older wheel designs of similar sizes.
