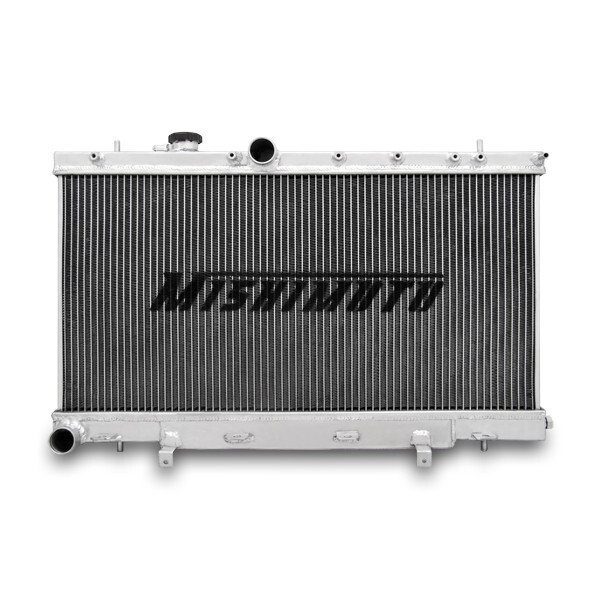

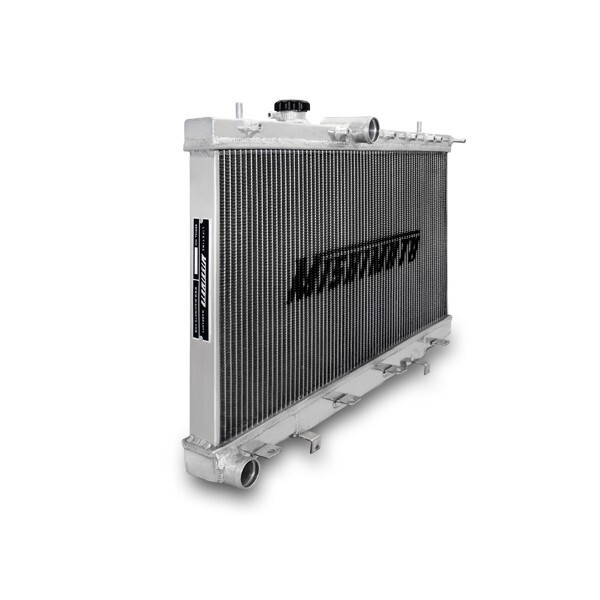

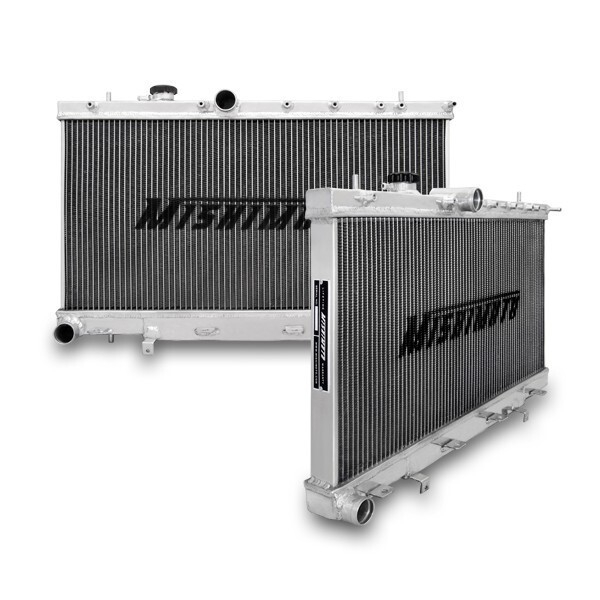

Radiator Mishimoto for Subaru WRX and STI / 01-07

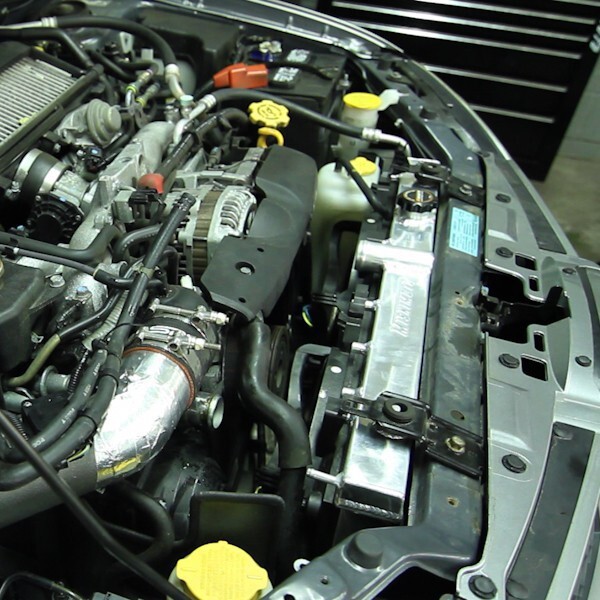

Whether you drive a stock STI daily or a modified WRX, an efficient cooling system is the key to extending the life of your four-cylinder engine. The plastic end tanks of the stock radiator are particularly prone to cracking after years of constant temperature fluctuations. A failure of the radiator can lead to overheating, a blown head gasket, and other engine damages, which could quickly spell the end of a great day at the track. Protect your automotive investment with the Mishimoto Performance Radiator, specially designed for the Subaru WRX/STI. After the radiator was identified as a weak point in these vehicles, Mishimoto developers set out to create an efficient, durable radiator that withstands the high demands of racing while providing the reliability necessary for daily drivers. The Mishimoto Subaru radiator is fully constructed from aluminum, which increases heat and pressure tolerance, improves heat dissipation, and enhances cooling efficiency. The 100% brazed aluminum core and TIG-welded end tanks ensure optimal durability and years of efficient, reliable operation. This aluminum radiator is a direct fit and replaces the factory radiator without any modifications needed to your Subaru. The Mishimoto Subaru Performance Radiator includes a 1.3 bar Mishimoto high-pressure radiator cap. This radiator cap raises the coolant boiling point, providing a higher threshold for acceptable temperatures, and creates a safer, more efficient cooling system. This radiator offers a significant increase in coolant capacity, making active driving possible while maintaining safe coolant temperatures. Keep your Subaru on the road and out of the shop with the Mishimoto Subaru WRX and STI Performance Aluminum Radiator.

Note: This product is for manual transmission vehicles. Please purchase the Mishimoto Universal Radiator Kit for vehicles with automatic transmissions. For Subaru WRX models built before 7/2002, remove the cap nut from the filler neck and replace it with 1/16"

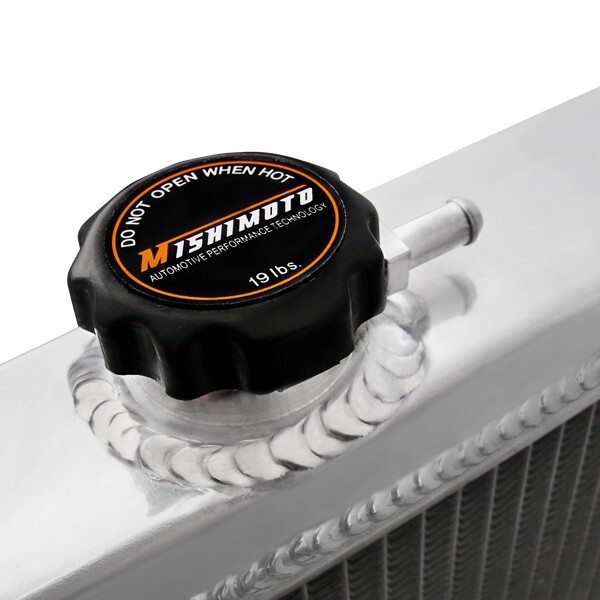

Radiator Cap:
The included Mishimoto radiator cap should be used to replace the factory cap on the tank extension. The factory radiator cap that is connected to the radiator should be used for the Mishimoto Performance Radiator. The Mishimoto radiator cap features a two-way valve, while the factory radiator cap has a one-way valve. Because of this design difference, the Mishimoto radiator cap cannot be used with this radiator. Using the Mishimoto radiator cap with the radiator could lead to overheating.

Warning:
It is the installer's responsibility to check all thermostat connections, NPT connections, hose fittings, and other connections to ensure they are fully tightened before the vehicle is used. Mishimoto recommends that all connections be checked at regular intervals, especially after the first few miles post-installation. Please contact us with any further technical questions.

Technical Specifications:
Overall Height: 721mm
Overall Length: 436mm
Overall Width: 54mm
Core Height: 691mm
Core Length: 343mm
Core Depth: 41mm
Core Size: 343mm x 691mm
Rows: 2
Inlet: 1.5
Outlet: 1.5
Wall Thickness: 2mm
Fill Neck: 1.25
Drain Plug Thread Size: (M16) .06
Drain Plug Length: 0.047
DPI: 2703
Engine Code:
- EJ205
- EJ255
- EJ257
Chassis Number:
- GD

Purchase Includes:
- Mishimoto Radiator
- Mishimoto Radiator Cap
- 1/16" NPT Plug
- Fan Mounting Brackets
- Magnetic Drain Plug
