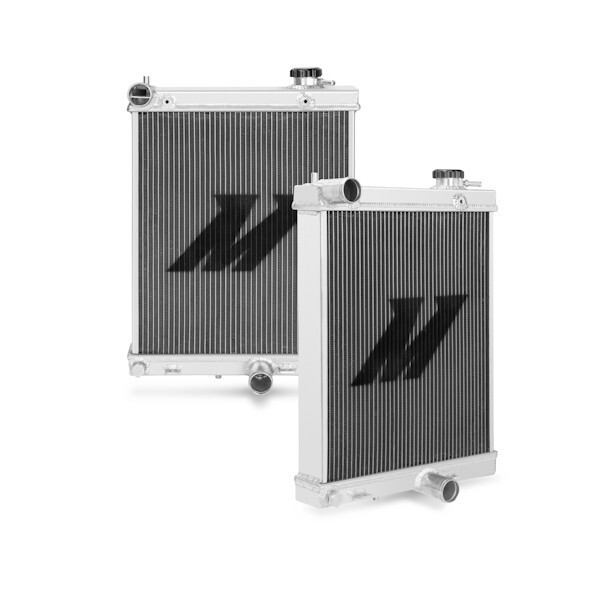

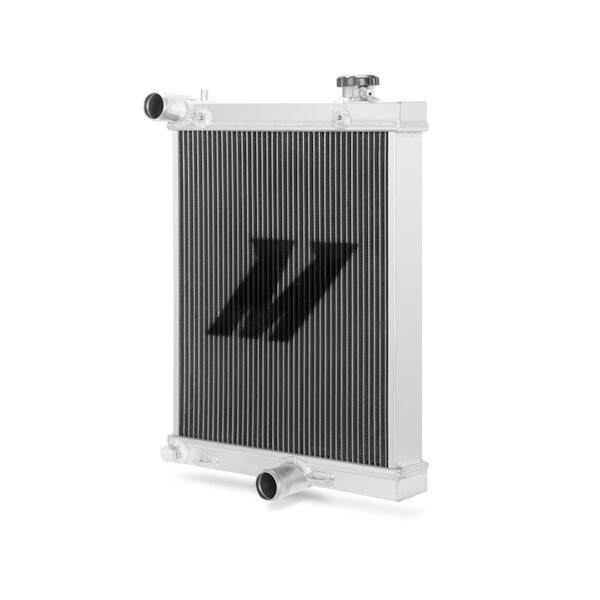

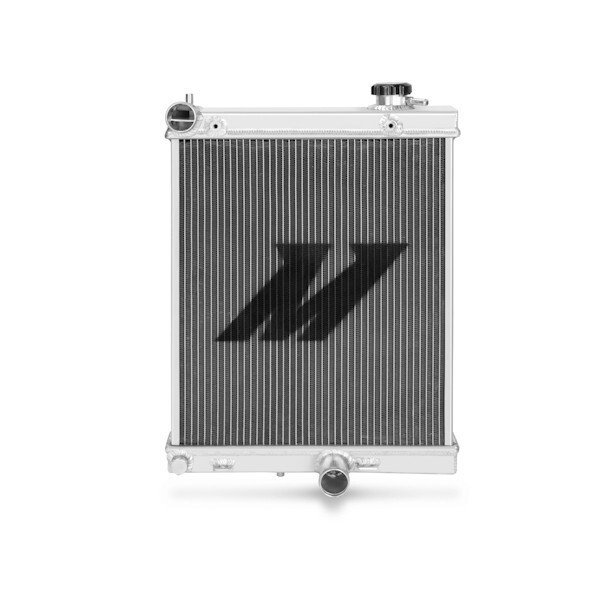

Radiator Mishimoto Mitsubishi Lancer Evolution 7/8/9 / 01-07 / Half-Size

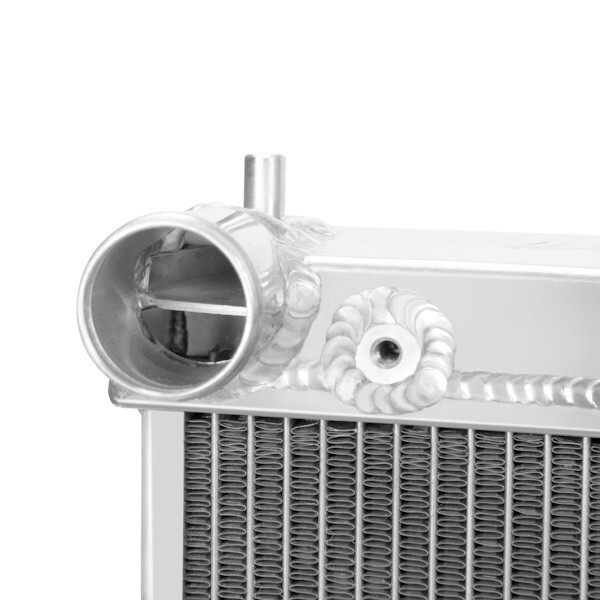

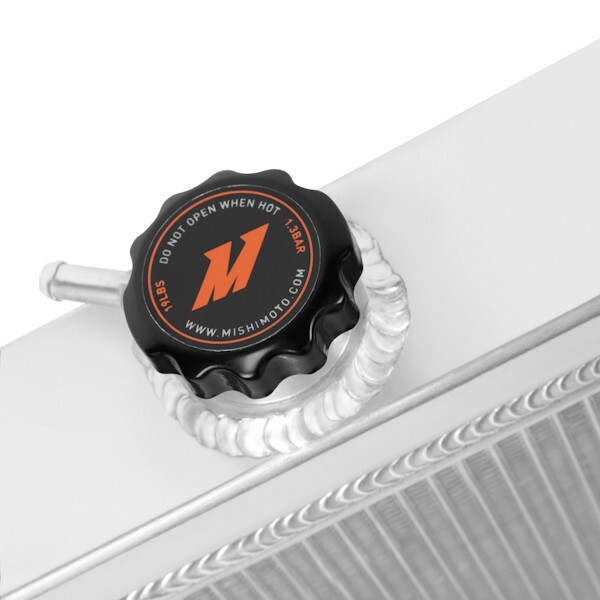

Freeing up engine bay space for a front-facing or large turbocharger can be a challenge in the Mitsubishi Lancer Evolution. Keep your high-horsepower Evo cool with the Mishimoto Lancer Evolution 7/8/9 Half-Size Performance Aluminum Radiator. This radiator features full-aluminum construction with precision TIG-welded end tanks for superior heat dissipation and durability. The large 52mm thick brazed aluminum core provides clearance for upgraded turbocharger setups while maintaining optimal coolant temperatures for runs at the drag strip or through the autocross course. This radiator features a unique internal baffle that provides superior fluid dispersion resulting in lower coolant temperatures. Included with this radiator is a Mishimoto Magnetic Oil Drain Plug, M12 x 1.5 with high-quality dowty seal for removal of any metal fragments in your cooling system. The radiator also includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Lancer Evolution Half-Size Performance Aluminum Radiator works perfectly with factory coolant hoses or a Mishimoto Silicone Radiator Hose Kit and includes an upper radiator stay, making this a hassle-free, bolt-on installation. Installing a capable fan solution is easy with the Mishimoto radiator thanks to the incorporated stock shroud-mounting points. Optionally a slim fan can be installed for improved clearance.

Note: This item is for race vehicles only, with limited street use only when necessary. Not suitable for daily driven vehicles.

Tech Specs:
Overall Height: 356mm
Overall Length: 495mm
Overall Width: 111mm
Core Thickness: 52mm
Core Length: 340mm
Core Height: 386mm
Core Size: 340 x 386mm
Rows: 3
Fill Neck: 38mm
Drain Plug Thread Size: M12
Drain Plug Length: 1.5mm

Engine Codes:
- 4G63

Chassis Codes:
- CT9-A

Purchase includes:
- Mishimoto Radiator
- Mishimoto Radiator Cap
- Magnetic Drain Plug
- Upper Radiator Aluminum Stay
