P3 Gauges LC-2 Digital Wideband O2 Sensor Kit

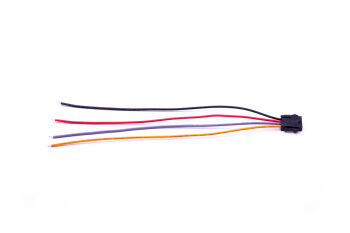

Can be tied directly into P3 Multi-Gauge using analog input

P3 Gauges provides high-precision OBD2 / Analog gauges with a lot of options for measuring any type of sensors

Need to keep an eye on your Air/Fuel Ratio but your vehicle doesn't have a factory wideband? No problem!

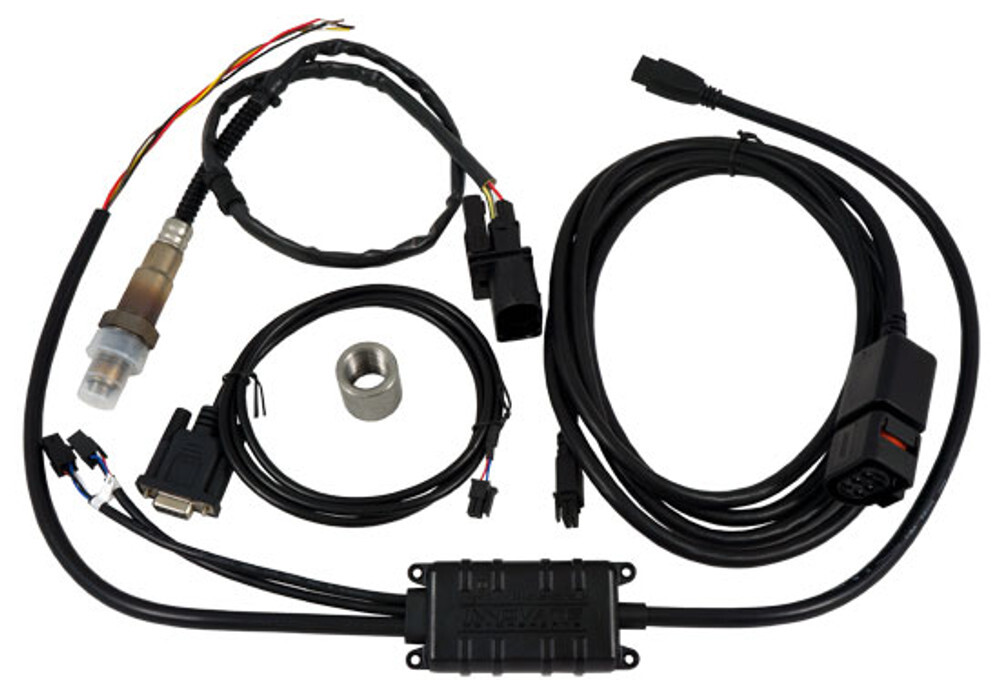

The Innovate Motorsports LC-2 wideband kit comes with everything you need to read AFR right on your Multi-Gauge. This is the easiest way to keep an eye on your AFR without adding clutter to your interior. The LC-2 utilizes 100% digital wideband air/fuel ratio technology. With it's patented award-winning DirectDigital™ signal processing technology, the LC-2 can show exactly how rich or lean an engine is running at any load. The LC-2’s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analog outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges.

KEY FEATURES

• Can be tied directly into P3 Multi-Gauge using analog input
• Uses Bosch LSU 4.9 sensor
• Patented DirectDigital™ Wideband Technology
• Wideband O² Compatible with ALL fuel types
• Ability to calibrate O² sensor for maximum accuracy

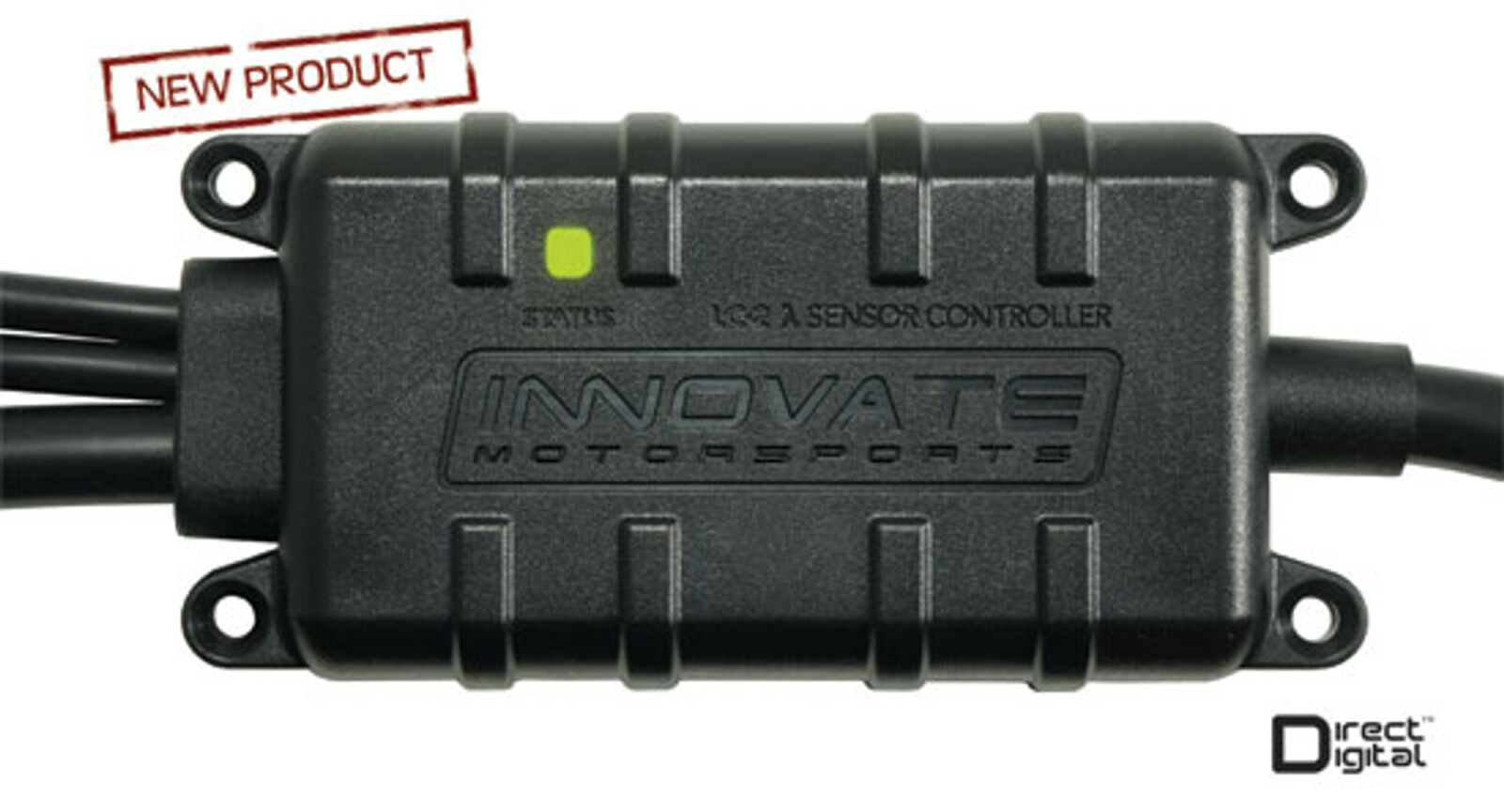

• Integrated dual-color status LED (Green/Red)
• *2-Configurable linear 0-5v analog outputs
• 8ft sensor cable
• Positive lock connectors for all connections
• Innovate MTS serial in/out
• Serial connection to your PC

Real-time display data on screen and/or with powerful LogWorks software

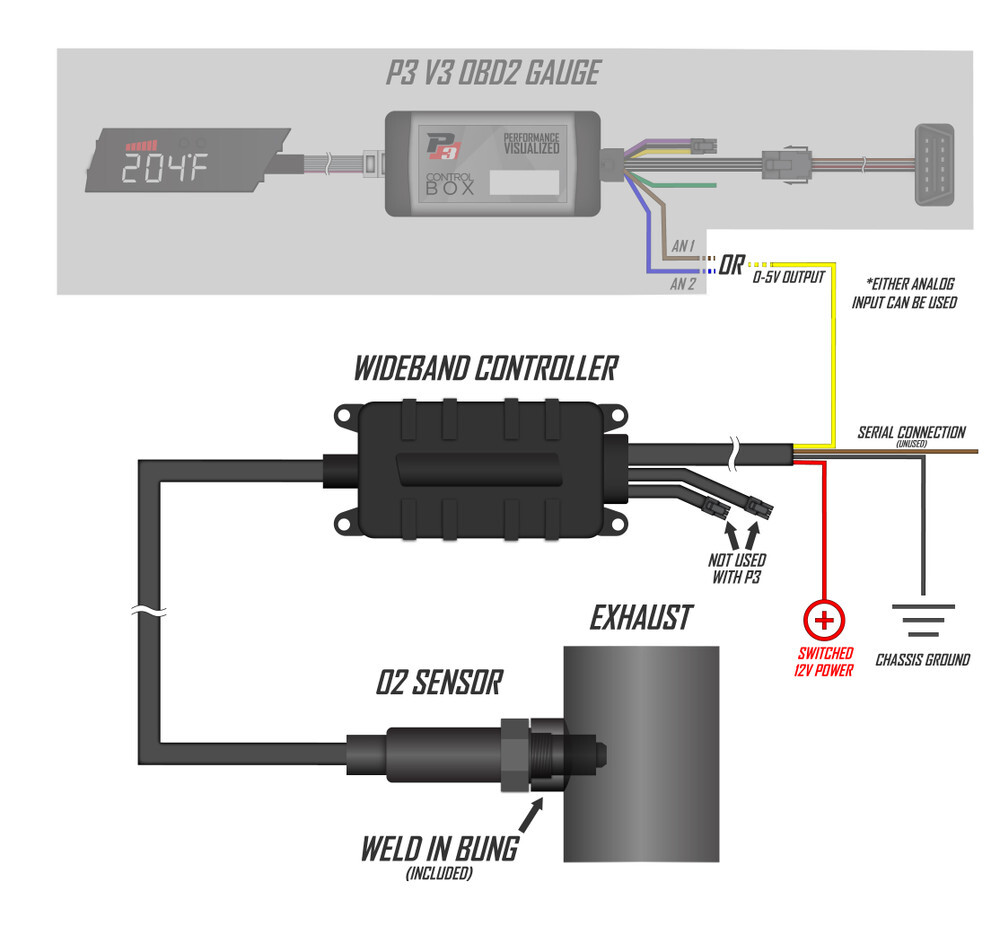

*Two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs.

DEFAULT OUTPUT CONFIGURATION

• Analog Output 1- (Yellow wire) 0 volt = 7.35 AFR (.5 Lambda) 5 volts = 22.39 AFR (1.52 Lambda)
• Analog Output 2- (Brown wire) 1.1 volt = 14 AFR .1 volt = 15 AFR

With the provided LM Programmer software these analog outputs may also be configured by the user.
*Program Cable (Only needed for Datalogging and to change the Fuel Type Setting), Manual, LogWorks Software (Free Download).

Power

• Operating Voltage: 9.8V to 16V DC
• Input Current, O² heater initial warm-up: 2.0A nominal, 3A max
• Input Current, O² normal operation: 0.8A nominal, 1.1A max

Environmental

• Operating ambient temperature: 0° to 140° F (-17.78° to 60° C)
• Storage ambient temperature: -40° to 185° F (-40° to 85° C)
• Water resistance:: Splash resistant, non-submersible

Sensors

• Compatible Types: Bosch™ LSU4.2 & Bosch™ LSU 4.9
• Bosch™ Heater Control: Digital PID via pump-cell impedance

Measurements

• Lambda .5 to 1.52
• Air/Fuel Ratio 7.35 to 22.39

Accuracy

• For Lambda: Accurate to +/- .007 (.1 AFR)

Response Time

• Free Air to Lambda: < 100 mS ( < 25 mS typical)

Inputs

• Serial: 1- Innovate MTS Compatible

Outputs

• Analog: 2- 0-5VDC, 10 bit resolution, programmable
• Serial: 1- Innovate MTS Compatible

Communication

• Serial: MTS (Innovate Modular Tuning System) compatible
