Oil / water temperature sensor - Type-K - Ferrules

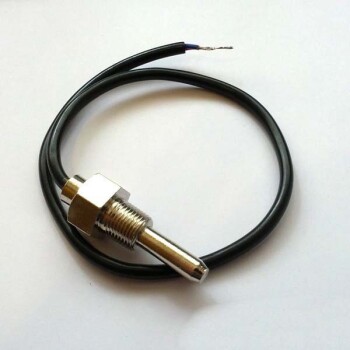

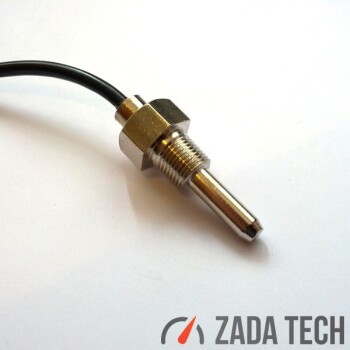

Screw-in sensor M8x1 Type-K for gasoline, oil or water temperatures
Temperature Sensor for our Type-K Converters with CANchecked Displays or Zada-Tech Gauges
These Type-K screw-in sensors with M8 x 1mm threads are ideal for measuring temperatures of liquid media such as fuel, engine oil, transmission oil or water. Type-K sensors measure with high precision and are more resistant than NTC sensors. Especially with turbo engines the monitoring of the temperatures are extremely important!
These type-K sensors come with conductor ferrules. They fit to our Type-K controllers (e.g. 6510780004) and can therefore be used with our CANchecked displays and come with connectors. Thanks to the core sleeves at the end of the cable, you have no open cable ends, but a fixed sleeve. These can be soldered or crimped well with a connection cable.
Technical data:
Thread: M8 x 1mm with 17mm sensor length
Thermocouple: NiCr-Ni type K
Material: V4A 1.4571
Protection: IP54
Max. Operating temperature: -50 to +350° C
Connecting cable: 3m long thermo cable with stainless steel sheath 2 x 0.22mm²
- Suitable for various Type-K converters, e.g. our 6510780004, so it can be used for CANchecked, Zada Tech, EMU, etc ...
- 1.0mm probe for quick response
- 1m long
- With conductor ferrules
- Can be bent once
- Gauge Value: Oil TemperatureTemperature variouswater temperature
- Availability: available in 3-5 days
- Model: universal & digital
