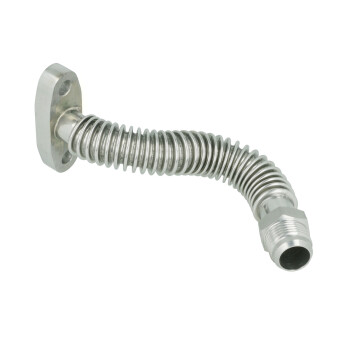

Oil return flange T3 / T4 pipe flexible long
Return flange with flexible pipe
Complete stainless steel pipe with flexible part, flange and Dash 10 male thread
Our innovative oil return flange is the solution for every problem which occur regarding the oil return. It combines a solid pipe which is essential in hot areas but also gives the flexibility which usually only provides a hydraulic line. Once bend it stays in position and needn't be fixed in a complicated way. Vibrations and engine movements are no problem for this pipe. At the end is a Dash 10 outer thread which offers the possibility to continue adjustable with hydraulic connections or hydraulic lines. You need another extension of the solid pipe? Because the complete set up is made of stainless steel you can cut the Dash 10 thread and weld on another stainless steel pipe. Due of the long bores a certain flexibility for other turbochargers with a similar flange connection is given. The profile of the return bore is in the right size for the necessary return of the oil.
Material: Stainless steel 1.4301 / SS304
Thread fitting: Dash 10 / -10 AN
Inside diameter of tube: 15,2mm
Full size of flange: 70mm x 26mm
Bore distance: 50mm
Bore diameter: 9mm
Total length: 240mm
Length flexible part: 63mm
For / fits with:
Garrett T-Turbocharger or large GT (e.g. GT42)
Garrett T3
Garrett T3/T4
Garrett GT32
Garrett T4 , T04
Garrett GT37R
Garrett GT40 , GT42 , GT45 , GT47
Garrett GTX40, GTX42, GTX45, GTX47
Garrett GT4082
Garrett GT4088, GT4088R, GTX4088R
Garrett GT4708, GT4708R
Garrett GT4718 , GT4788
Garrett GT40R , GT4088R
Garrett GT40/42R , GT4042R , GT4094R , GTX4094R
Garrett GT42, GT4294, GT4202, GT4294R, GT4202R, GTX4202R
Garrett GT45R , GT4508R , GTX4508R
Garrett GT47R , GT4780R , GT4708R
Garrett GT47R , GT4788R , GT4718R
BorgWarner AirWerks S200, S200SX
BorgWarner AirWerks S300, S300SX3
BorgWarner AirWerks S400, S400SX3, S400SX4
BorgWarner AirWerks S500, S500SX
BorgWarner AirWerks S510
some BorgWarner KKK Turbocharger like K24 K26 K27.
