Oil Return Flange - Pipe Flexible Version
Oil-return flange with flexible function

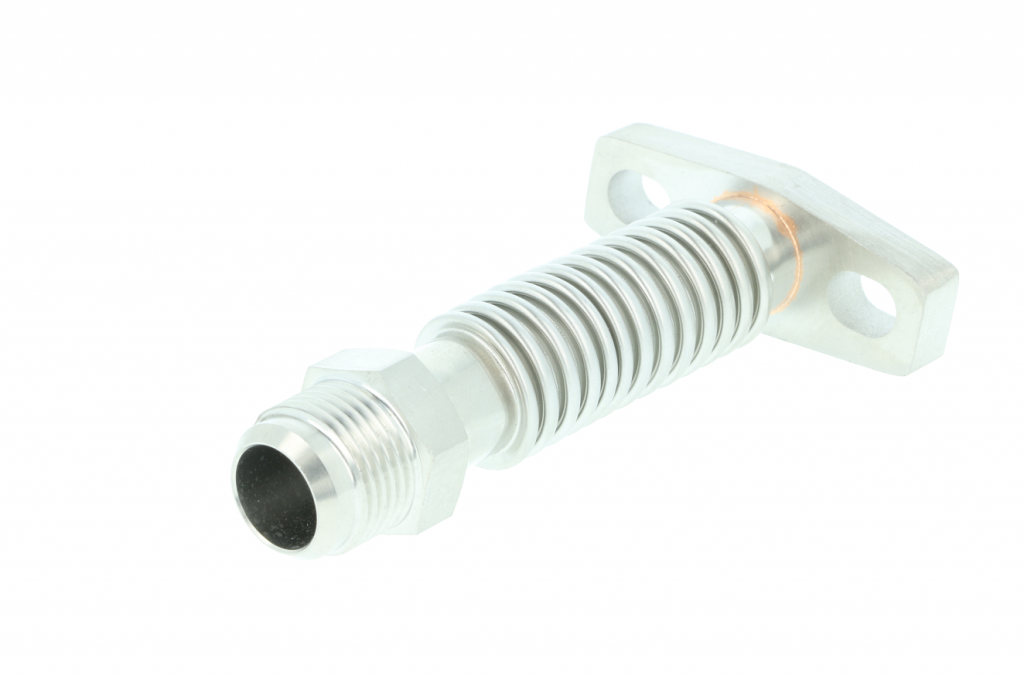

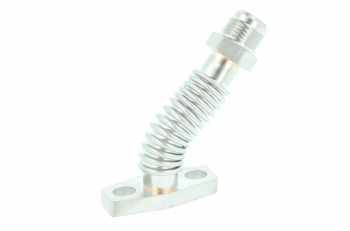

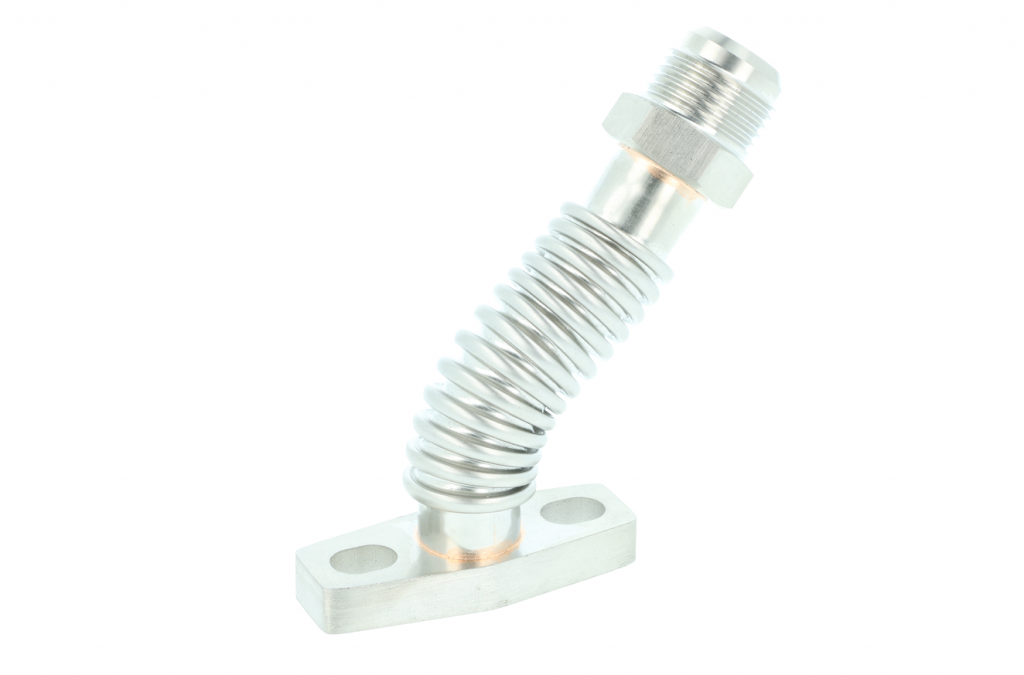

Complete stainless steel pipe with flexible part, flange and Dash 10 male thread

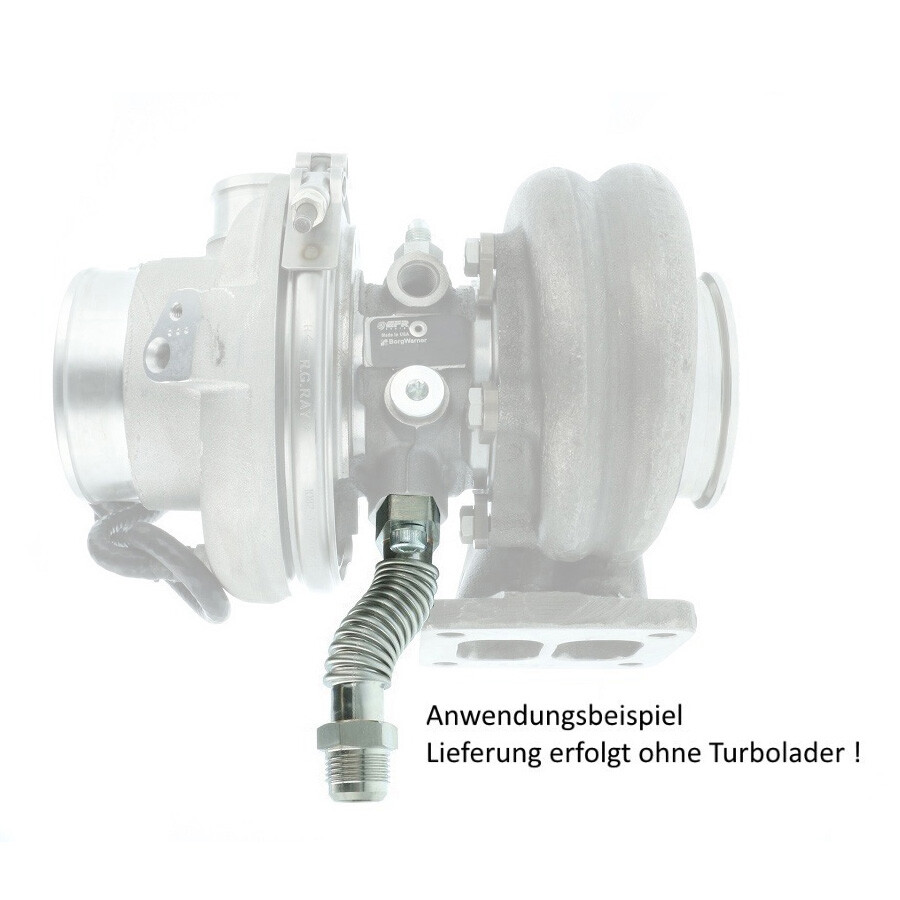

Our innovative oil return flange is the solution for every problem which occur regarding the oil return. It combines a solid pipe which is essential in hot areas but also gives the flexibility which usually only provides a hydraulic line. Once bend it stays in position and needn't be fixed in a complicated way. Vibrations and engine movements are no problem for this pipe. At the end is a Dash 10 outer thread which offers the possibility to continue adjustable with hydraulic connections or hydraulic lines. You need another extension of the solid pipe? Because the complete set up is made of stainless steel you can cut the Dash 10 thread and weld on another stainless steel pipe. Due of the long bores a certain flexibility for other turbochargers with a similar flange connection is given. The profile of the return bore is in the right size for the necessary return of the oil.
Material: Stainless steel 1.4301 / SS304
Thread fitting: Dash 10 / -10 AN
Inside diameter of tube: 15,2mm
Flange size: see drop-down menu
Bore distance: see drop-down menu
Bore diameter: see drop-down menu
Total length: see drop-down menu
Length flexible part: see drop-down menu
For / fits with:
see drop-down menu
Please make sure:
For a supply line choose minimum a Dash 4 line. The oil return line must have a minimum inner diameter of 16mm or Dash 10!






- Availability: to order
