OLED 0.96" digital single transmission temperature gauge (Fahrenheit)

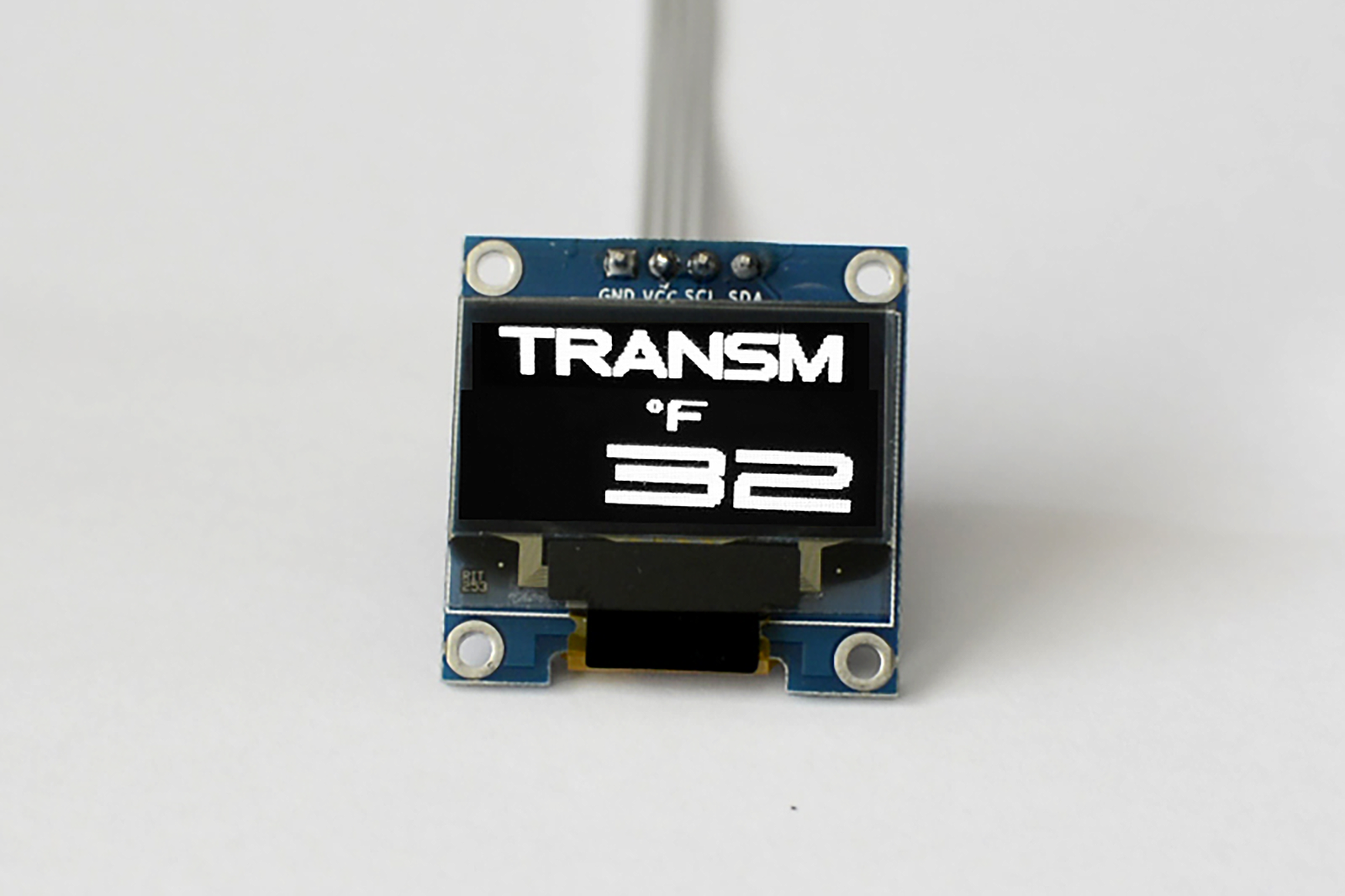

OLED digital gauge with extra large digits
Original Zada Tech Product
0.96" inch display with extra large numbers/letters. These are significantly larger than the normal 0.96" display digits.
This is our smallest and yet most affordable OLED single gauge that we have ever designed and produced.
Designed on a 0.96" OLED screen makes it very small, yet visible. it can be mounted almost anywhere. It even has peak temperature hold. Fully sun-readable and wide viewing angle.

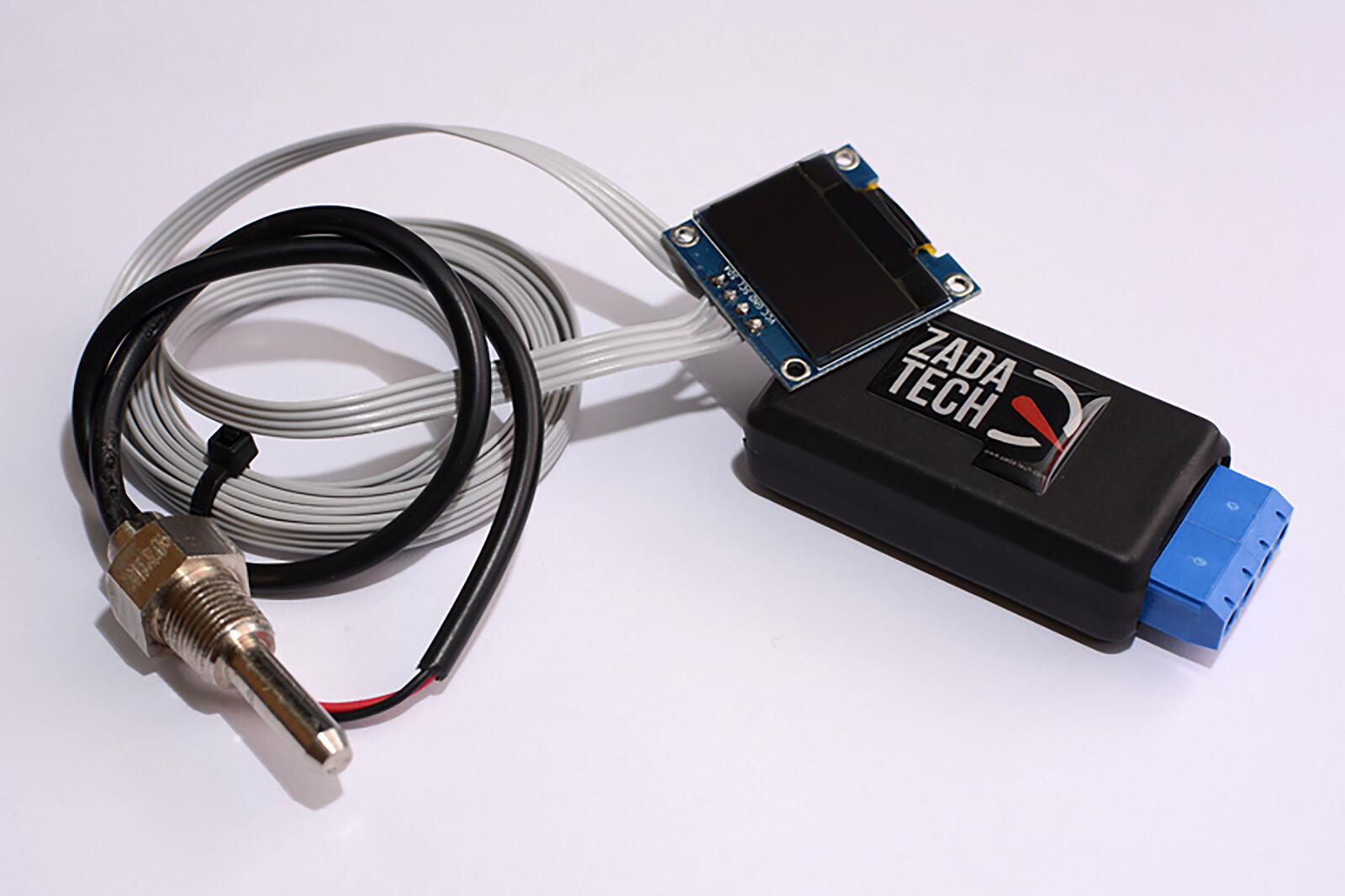

Comes complete with a transmission temperature sensor.
Transmission temperature sensor
R (Ohm) | temp (C) | Temp (F) |
27400 | 0 | 32 |
18000 | 10 | 50 |
12100 | 20 | 68 |
8310 | 30 | 86 |
5830 | 40 | 104 |
4160 | 50 | 122 |
3020 | 60 | 140 |
2230 | 70 | 158 |
1670 | 80 | 176 |
1268 | 90 | 194 |
975 | 100 | 212 |
760 | 110 | 230 |
599 | 120 | 248 |
478 | 130 | 266 |
386 | 140 | 284 |
316 | 150 | 302 |
Temperature range: 32 - 302°F
PLEASE NOTE: The display only shows the temperature in Fahrenheit.

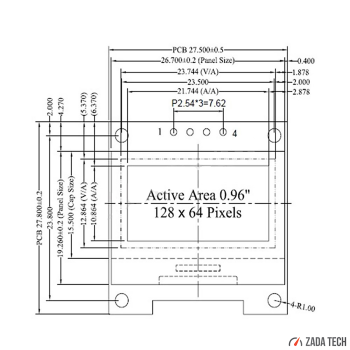

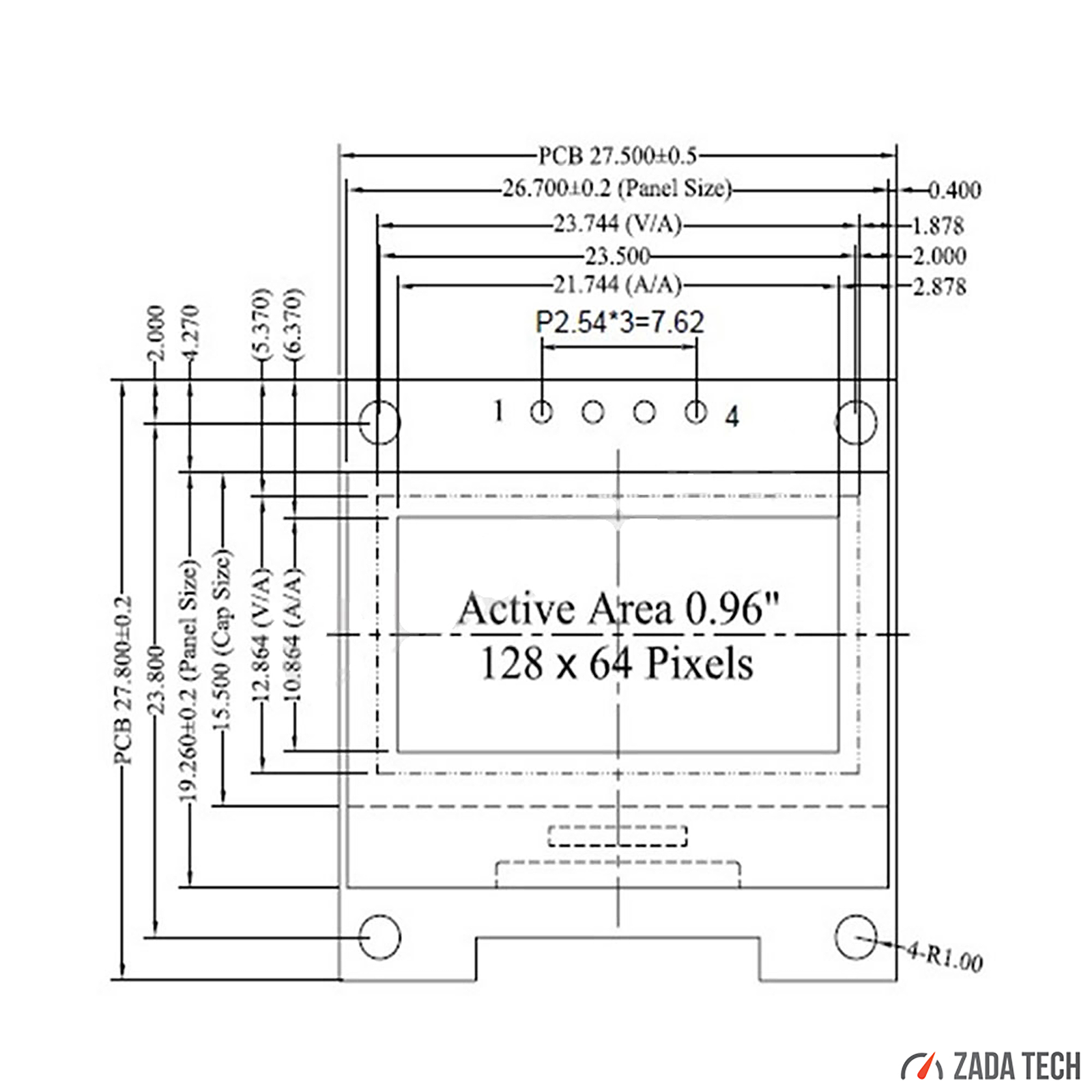

Check out the dimensions of the 0.96" OLED screen shown in the picture.
About Zada Tech
Zada Tech designs and manufactures custom displays. The Company is specialized in digital displays, including color LCD and OLED based displays and fully digital HD LCD dashboards for vehicles. Proud to have the most unique and accurate displays on the market. The head office is in the UK and everything has been designed and manufactured locally.
