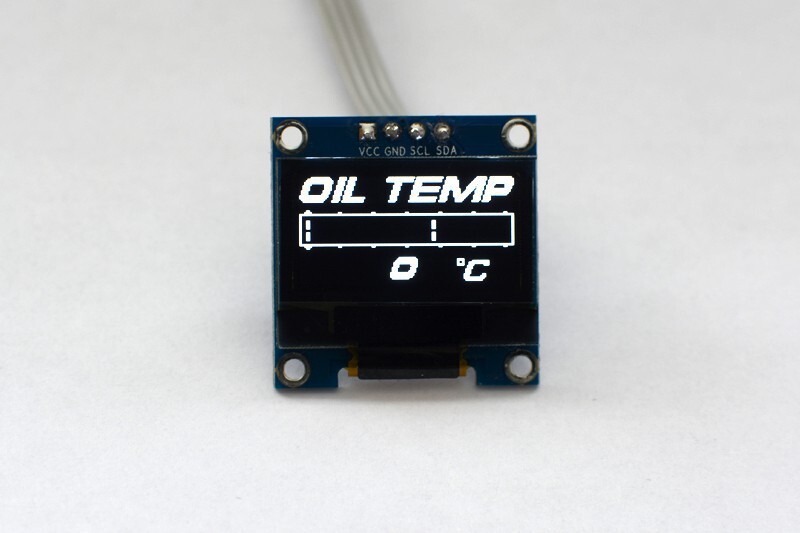

OLED 1.3" single oil temperature gauge (Celsius)
1.3 inches OLED oil temperature gauge
Single digital oil temperature gauge (celsius) display with sensor
This is one of the smallest and yet most affordable OLED single gauge that Zada Tech has ever designed and produced.
Designed on a 1.3" OLED screen makes it very small, yet visible. it can be mounted almost anywhere. It even has peak temperature hold. Fully sun-readable and wide viewing angle.

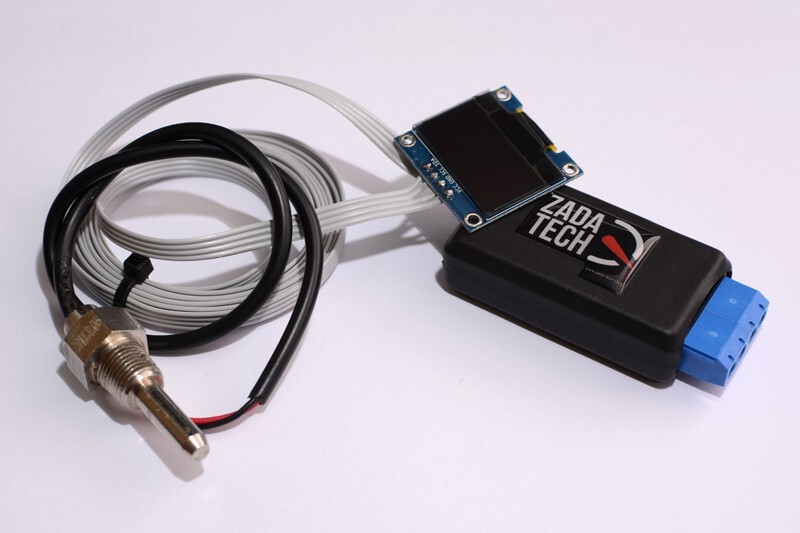

Comes complete with an oil temperature sensor.
Oil temperature sensor
R (Ohm) | temp (C) |
192000 | -40 |
113000 | -30 |
68600 | -20 |
42800 | -10 |
27400 | 0 |
18000 | 10 |
12100 | 20 |
8310 | 30 |
5830 | 40 |
4160 | 50 |
3020 | 60 |
2230 | 70 |
1670 | 80 |
1268 | 90 |
975 | 100 |
760 | 110 |
599 | 120 |
478 | 130 |
386 | 140 |
316 | 150 |
Temperature range: 0 - 150°C
sensor thread size: 1/8 NPT
PLEASE NOTE: The display only shows the temperature in Celsius. If you want the temperature in Fahrenheit, please use 2507000055

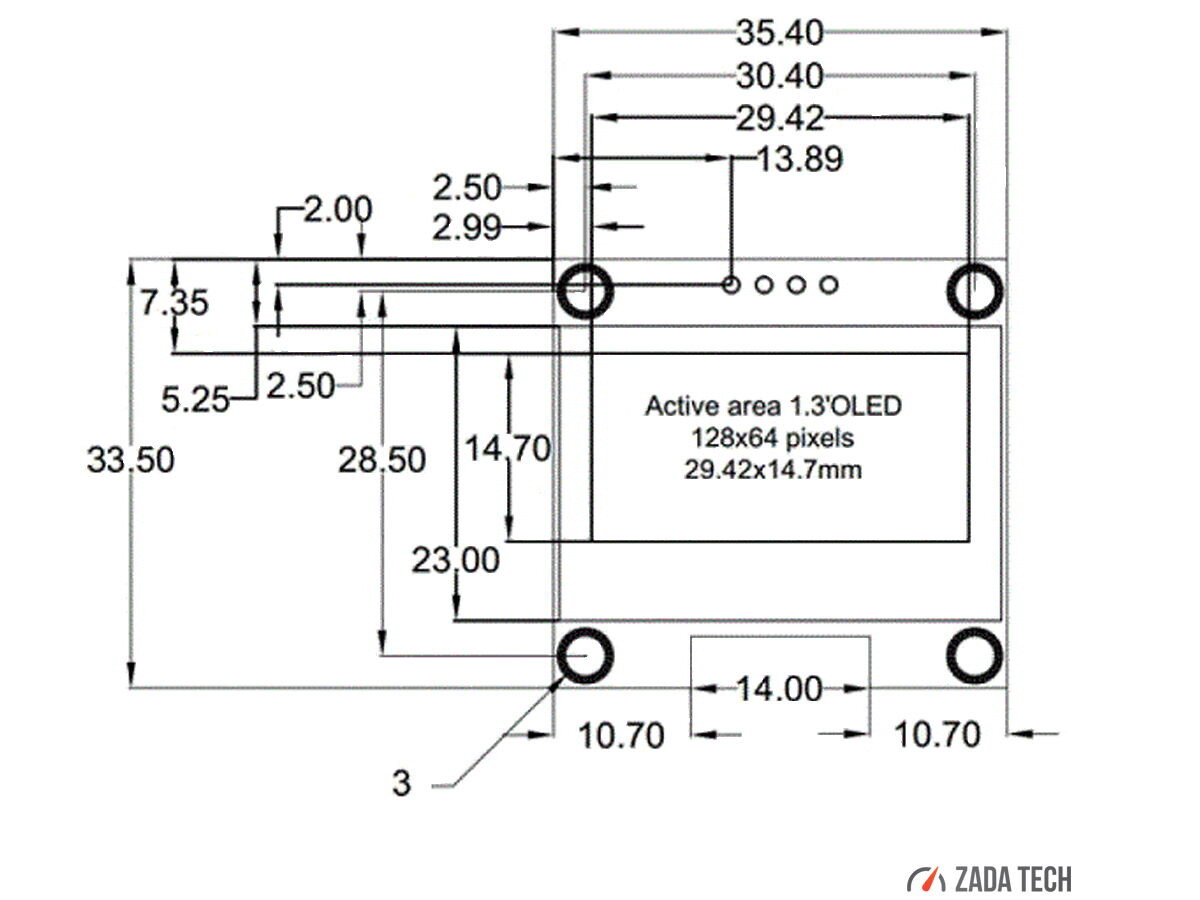

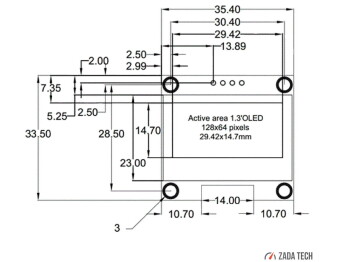

Check out the dimensions of the 1.3" OLED screen shown in the picture.
About Zada Tech
Zada Tech designs and manufactures custom displays. The Company is specialized in digital displays, including color LCD and OLED based displays and fully digital HD LCD dashboards for vehicles. Proud to have the most unique and accurate displays on the market. The head office is in the UK and everything has been designed and manufactured locally.
- Gauge Value: Oil Temperature
- Display design: Digital
- Availability: available in 3-5 days
