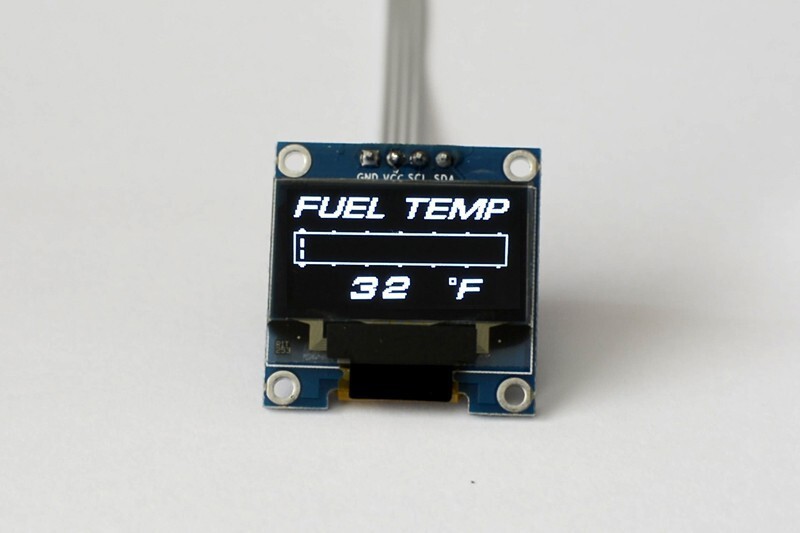

OLED 1.3" single fuel temperature gauge (Fahrenheit)
1.3 inches OLED fuell-temperature gauge
Single digital fuel temperature gauge (fahrenheit) display with sensor
This is one of the smallest and yet most affordable OLED single gauge that Zada Tech has ever designed and produced.
Designed on a 1.3" OLED screen makes it very small, yet visible. it can be mounted almost anywhere. It even has peak temperature hold. Fully sun-readable and wide viewing angle.

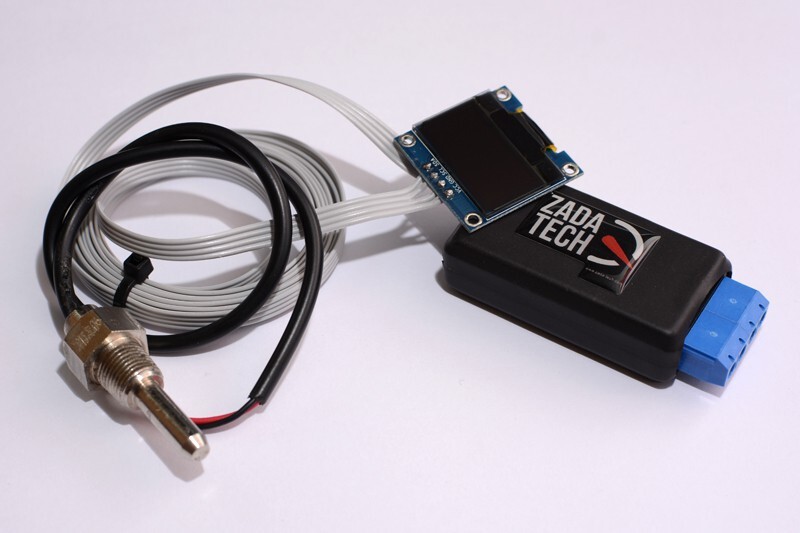

Comes complete with a fuel temperature sensor.
Fuel temperature sensor
R (Ohm) | temp (C) | Temp (F) |
27400 | 0 | 32 |
18000 | 10 | 50 |
12100 | 20 | 68 |
8310 | 30 | 86 |
5830 | 40 | 104 |
4160 | 50 | 122 |
3020 | 60 | 140 |
2230 | 70 | 158 |
1670 | 80 | 176 |
1268 | 90 | 194 |
975 | 100 | 212 |
760 | 110 | 230 |
599 | 120 | 248 |
478 | 130 | 266 |
386 | 140 | 284 |
316 | 150 | 302 |
Temperature range: 32 - 302°F

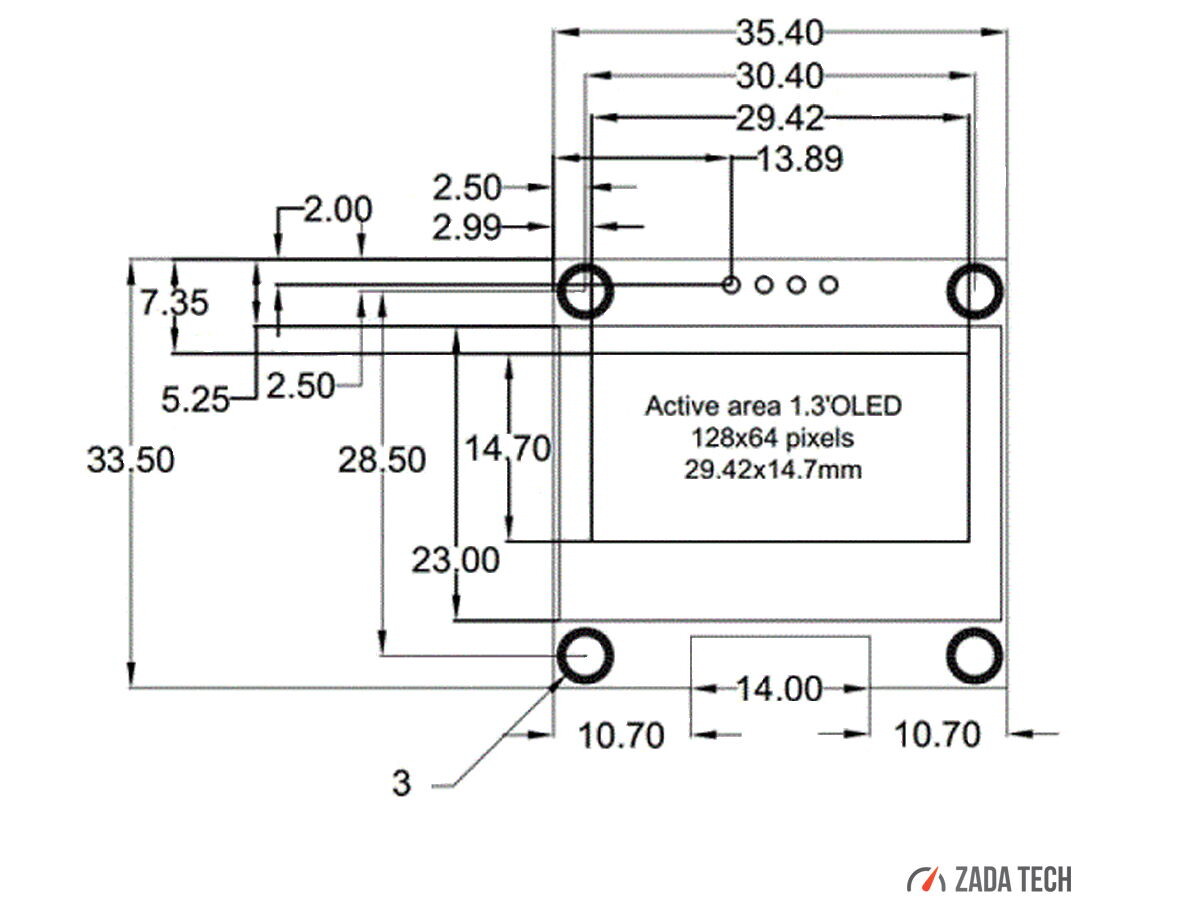

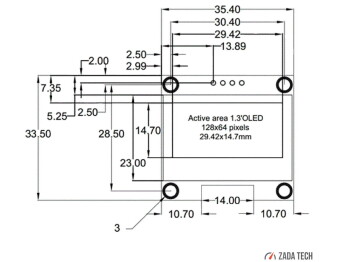

Check out the dimensions of the 1.3" OLED screen shown in the picture.
PLEASE NOTE: The display only shows the temperature in Fahrenheit.
About Zada Tech
Zada Tech designs and manufactures custom displays. The Company is specialized in digital displays, including color LCD and OLED based displays and fully digital HD LCD dashboards for vehicles. Proud to have the most unique and accurate displays on the market. The head office is in the UK and everything has been designed and manufactured locally.
- Gauge Value: Temperature various
- Display design: Digital
- Availability: to order
