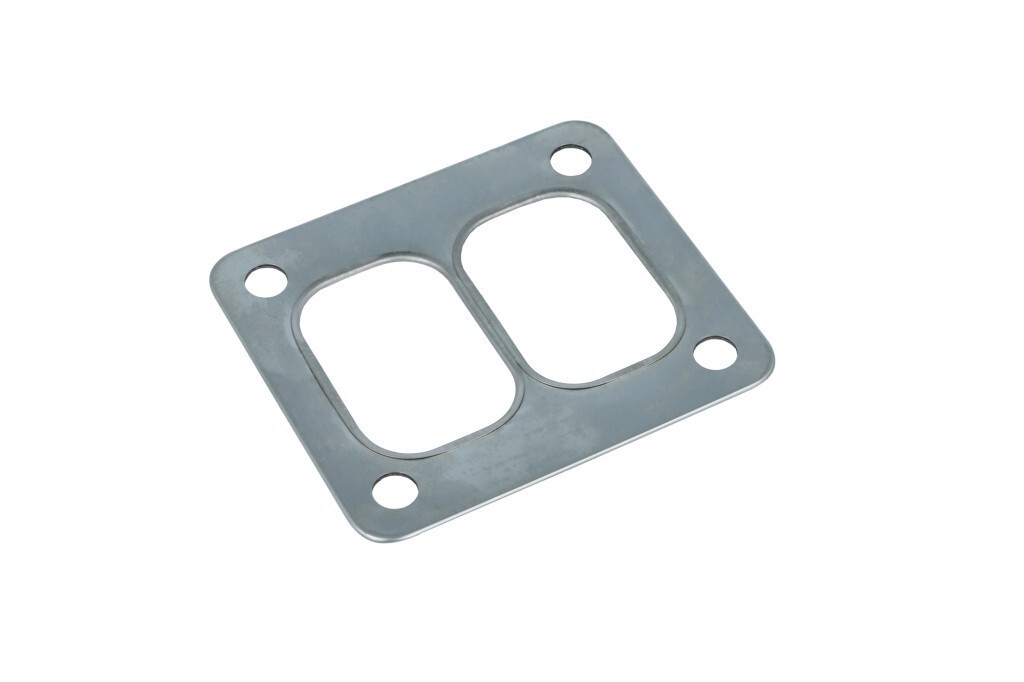

Exhaust Manifold Gasket T4 / GT4X / EFR divided / Twin Scroll
Premium metal manifold to turbine housing gasket
Gasket between exhaust manifold and turbocharger
The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.
Material: stainless steel
Total dimensions: 114mm x 96mm
Dimensions cut-out: 76mm x 50mm (Steg 5mm)
Hole distance: 83mm x 70mm
For / Fits:
turbocharger T4X / GT4X / EFR with divided / Twin Scroll turbine housings
Garrett T4, T04
Garrett GT40, GT42, GT45, GT47
Garrett GT4082
Garrett GT4088
Garrett GT4708, GT4780
Garrett GT4718, GT4788
Garrett GT40R, GT4088R
Garrett GT40/42R, GT4042R, GT4094R
Garrett GT45R, GT4508R
Garrett GT47R, GT4780R, GT4708R
Garrett GT47R, GT4788R, GT4718R
BorgWarner AirWerks S200SX
BorgWarner AirWerks S300 (T4 TwinScroll)
BorgWarner AirWerks S300SX3 (T4 TwinScroll)
BorgWarner AirWerks S400SX3
BorgWarner EFR7064-T and -WG (T4 TwinScroll)
BorgWarner EFR7670-T and -WG (T4 TwinScroll)
BorgWarner EFR8374-T and -WG (T4 TwinScroll)
BorgWarner EFR9180-T and -WG (T4 TwinScroll)
If you are unsure whether this flange fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
- Usage: Manifold to turbocharger
- Model: Single gasket
- Flange type: T4 divided / TwinScroll
