Link ECU WRXLink - WRX2X Plug-In ECU Subaru WRX & Sti V1-2
Plug-In ECU Subaru WRX & Sti V1-2
Link Plug and Play ECUs, easy to install, affordable, reliable
Plug-In ECUs are a complete replacement for standard engine control units that do not require new wiring. They come with a vehicle-specific base configuration. All Link Plug-In ECUs use the same powerful microcontroller and firmware as the XtremeX. The G4X PlugIn ECUs offer the latest technology in engine management and are designed to unlock the full potential of your vehicle. This ECU fits the factory OEM mounting location. Installation is a breeze as no changes to the original wiring harness are required for the models listed below.
Designed for the WRX V1-2 EJ20.

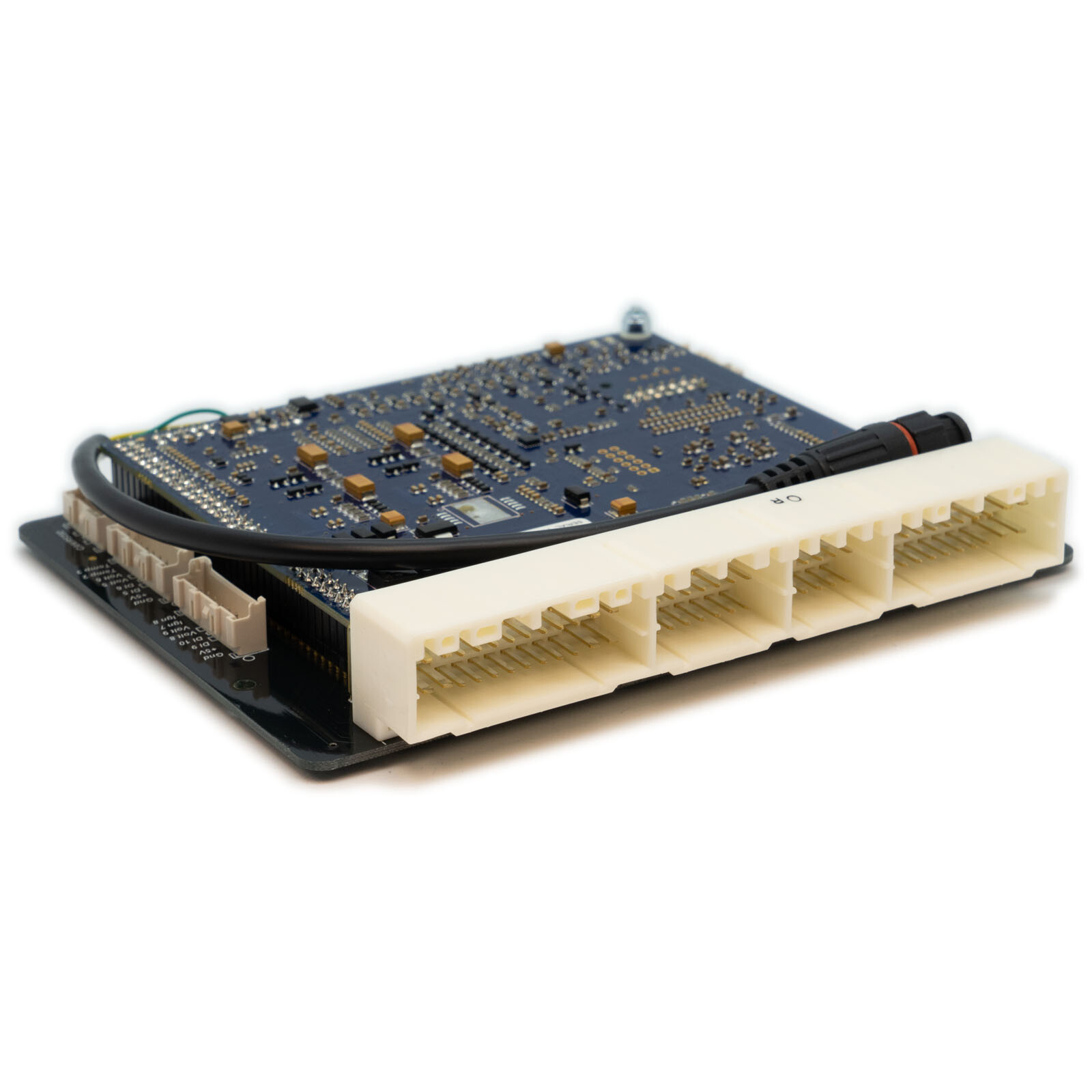

- Please check before purchasing if your pinout connector matches the header shown in the product photo
- This control unit is only suitable for vehicles with manual transmission
- An air temperature sensor is highly recommended
- Most factory functions are supported
- For more information on I/O input and output extensions, see the "Features" tab
- This control unit must be modified before E-Gas (E-Throttle) can be used
- GC8A
- GC8B
- GC8C
- WRX and STI from 10/1992 to 08/1996
- Up to 6D fuel and ignition maps
- Precise closed camshaft control (four camshafts, independent control)
- Sequential fuel injection
- Digital triggering, all OEM patterns supported
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - Antilag, Launch Control, Flat-Shift
- Continuous barometric correction (on-board)
- CAN connection
- QuickTune - Automatic fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Statistics recording in internal memory
- Gear adjustments for ignition, boost, and fuel
- Real-time switchable dual fuel, ignition, and boost maps
- Synchronization and crankshaft sensors can be a combination of Hall effect, variable reluctance, or optical
- Boost control depending on gear, speed, or throttle position
- 512 megabytes of data logging memory
- Staged injection
- Knock control with "Windowing" technology
Expansion Connector 1:
- Gnd - Sensor ground only
- +5V - Low current +5V supply
- DI 5 - Digital input
- DI 6 - Digital input
- Volt 5 - Analog 0-5V input
- Volt 6 - Analog 0-5V input
- An Temp 2 - Temperature sensor input
- An Temp 3 - Temperature sensor input
- Gnd - Sensor ground only
- +5V - Low current +5V supply
- DI 9 - Digital input
- DI 10 - Digital input
- Volt 8 - Analog 0-5V input
- Volt 9 - Analog 0-5V input
- Ign 7 - Ignition 7, AUX output
- Ign 8 - Ignition 8, AUX output
- Availability: to order
