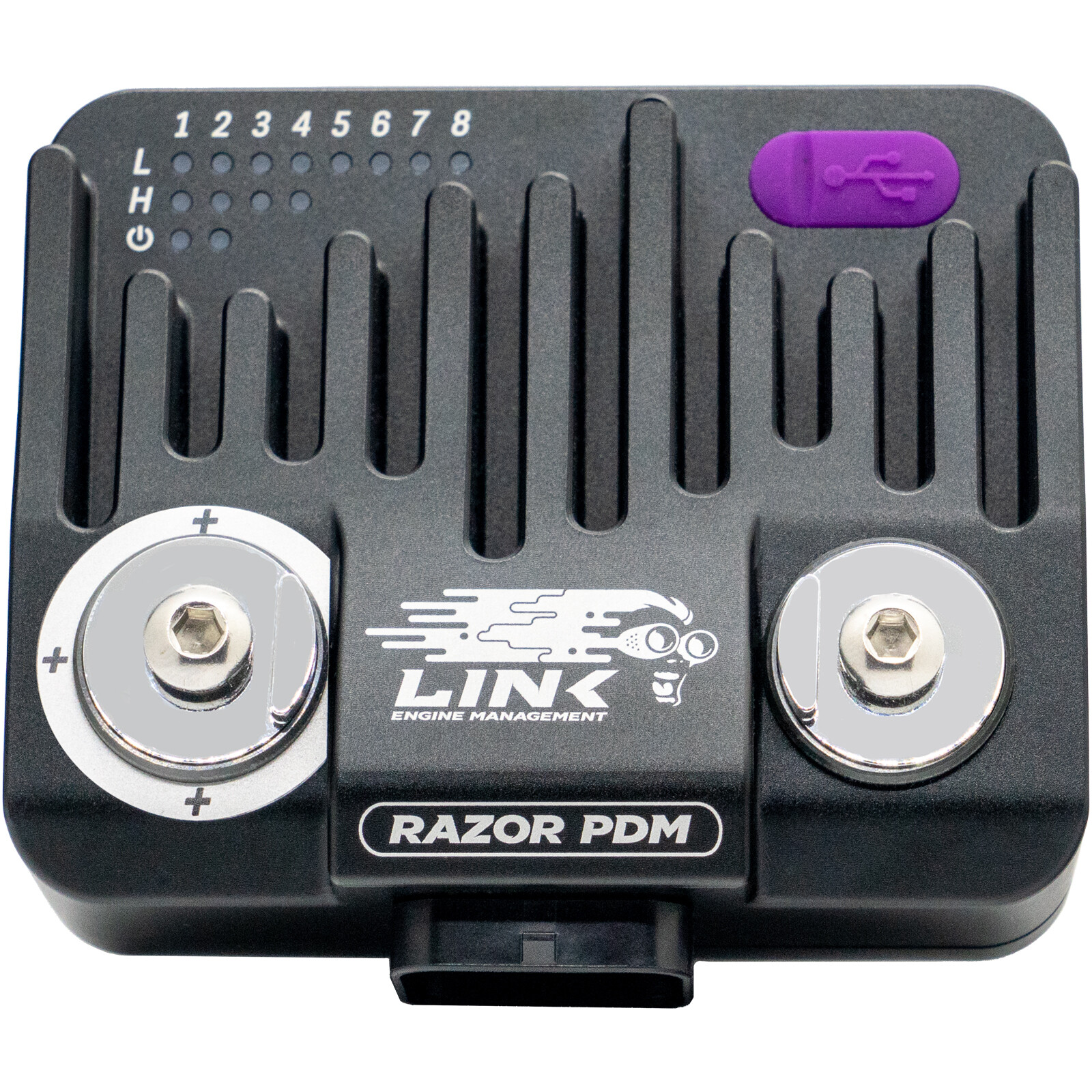

Link ECU Razor PDM

PDM for power supply and switching of consumers with CAN Bus

Powerful PDM (Power Distribution Module) for intelligent power distribution and control of electrical consumers - fully integrable via CAN Bus for maximum control and reliability.

• The long-awaited Razor PDM from Link is an intelligent Power Distribution Module that replaces conventional fuses and relays, giving you full control over your setup.
• The Razor PDM is a programmable device that intelligently controls the connected outputs using logic. This allows events and commands to be triggered when your vehicle reaches certain parameters.
• It allows you to control components such as fuel pumps, radiator fans, electronic throttle bodies, servos, lighting, and more, as well as monitor analog or digital sensor signals.
• You can fully control the outputs via an analog switch panel, a CAN keypad, or your ECU - increasing reliability and protecting important components from damage.
• Thanks to its excellent thermal properties, the Razor PDM was developed with a focus on vehicle safety while ensuring a more efficient, clean, and reliable system design.
• The compact module can handle up to 100 amps of continuous current and up to 160A temporarily (non-repeating). For higher demands, multiple Razor PDMs can be connected via CAN or used as a CAN extension for additional inputs and outputs.
• The Razor PDM can also be connected to many other ECU brands and CAN devices when a custom CAN stream is used. For Link ECUs, a pre-configured CAN stream is included in the software, so the connection works immediately.
• Configuration and control are done via the free PDM Link Software.

• Scope of delivery:
• • Link Razor PDM
• • Mounting plate and screws
• • Superseal C connector and pin kit
• • USB-C connection cable
• • Protective cap for positive terminal
• • 2 x high-current ring terminals and screws
• • Quickstart guide

• Can be used in conjunction with a Link ECU or as a standalone device
• 4 high-current outputs with 25A continuous current each, PWM-capable, high-side/low-side driver or paired as H-bridge control for actuators
• 8 universal A/D I/O pins, each with 8A output capability or usable as analog/digital inputs. Software-controlled pull-ups and adjustable switching thresholds in input mode
• Overcurrent and short-circuit protection with configurable trip and reset parameters (electronic fuse)
• Flexible and powerful control strategies including internal PID controller, mathematical functions, logic expressions, and CAN keypad integration
• CAN keypad integration and flexible button logic - buttons can control PDM or Link ECU functions (G4X or G4+ with limitations)
• Logging support via CAN or USB
• Multiple PDM support - easily connect additional units via CAN
• USB configuration via PDM Link Software (Windows only)
• The Razor PDM uses the Super Seal C connector
• 26-pin Superseal connector
• Fully sealed CNC-milled aluminum housing
