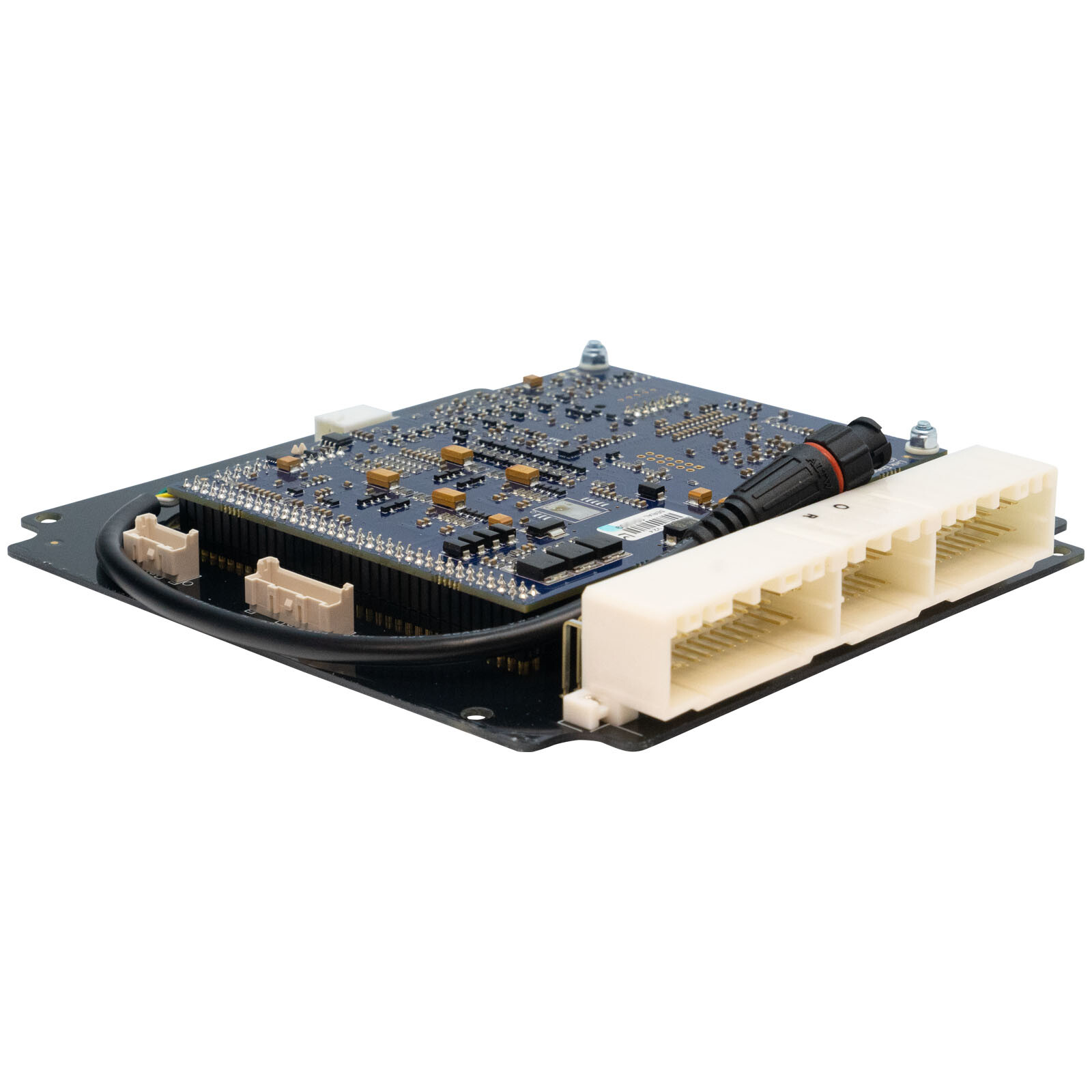

Link ECU MR2Link V1 - TST185X Plug-In ECU Toyota MR2 V1 & Celica ST185 3S-GTE Gen. 1-2

Plug-In ECU Toyota MR2 V1 & Celica ST185 3S-GTE Gen. 1-2

Link Plug and Play ECUs, easy to install, affordable, reliable

Plug-In ECUs are a complete replacement for standard engine control units that do not require new wiring. They come with a vehicle-specific base configuration. All Link Plug-In ECUs use the same powerful microcontroller and firmware as the XtremeX. The G4X PlugIn ECUs offer the latest technology in engine management and are designed to unlock the full potential of your vehicle. This ECU fits the factory OEM mounting location. Installation is a breeze as no changes to the original wiring harness are required for the models listed below.

ECU for 3SGTE

• Please check before purchasing if your pinout connector matches the header shown in the product photo.
• This control unit is only suitable for vehicles with manual transmission.
• The control unit does not fit in the original housing of vehicles without a turbocharger.
• Most factory functions are supported.
• For more information on I/O extensions, see the "Features" tab.
• This control unit must be modified before using E-Gas (Drive-by-Wire).

Suitable for:

• Toyota MR2 (SW20) from 1989 to 1992
• Toyota Celica ST185 (except the GT-Four RC/Carlos Sainz Special Edition which is compatible with the Link TST205X Plugin)

G4X PlugIn offers the following features (if applicable)

• Up to 6D fuel and ignition maps
• Precise closed camshaft control (four camshafts, independent control)
• Sequential fuel injection
• Digital triggering, all OEM patterns supported
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - Antilag, Launch Control, Flat-Shift
• Continuous barometric correction (on-board)
• CAN connection
• QuickTune - Automatic fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Statistics recording in internal memory
• Gear adjustments for ignition, boost, and fuel
• Real-time switchable dual fuel, ignition, and boost maps
• Synchronization and crankshaft sensors can be a combination of Hall effect, variable reluctance, or optical
• Boost control depending on gear, speed, or throttle position
• 512 megabytes of data logging memory
• Staged injection
• Knock control with "Windowing" technology

The following input/output connections of the expansion connector are available:
Expansion connector:

• Gnd - Sensor ground only
• +5V Out - Low current +5V supply
• DI 5 - Digital input for switching functions
• DI 6 - Digital input for switching functions
• DI 4 - Digital input for switching functions
• An Volt 4 - Analog 0-5V input
• An Volt 5 - Analog 0-5V input
• An Volt 6 - Analog 0-5V input

An ignition extension allows conversion to a direct spark ignition system. Alternatively, these outputs can also be used to control additional devices. The following pinout describes the available connections. (This is not included and must be purchased separately.)
Ignition extension:

• Ignition 1
• Ignition 2
• Ignition 4
• Ignition 3

*Please refer to the PC Link help file for more information on installing the extension cable.
