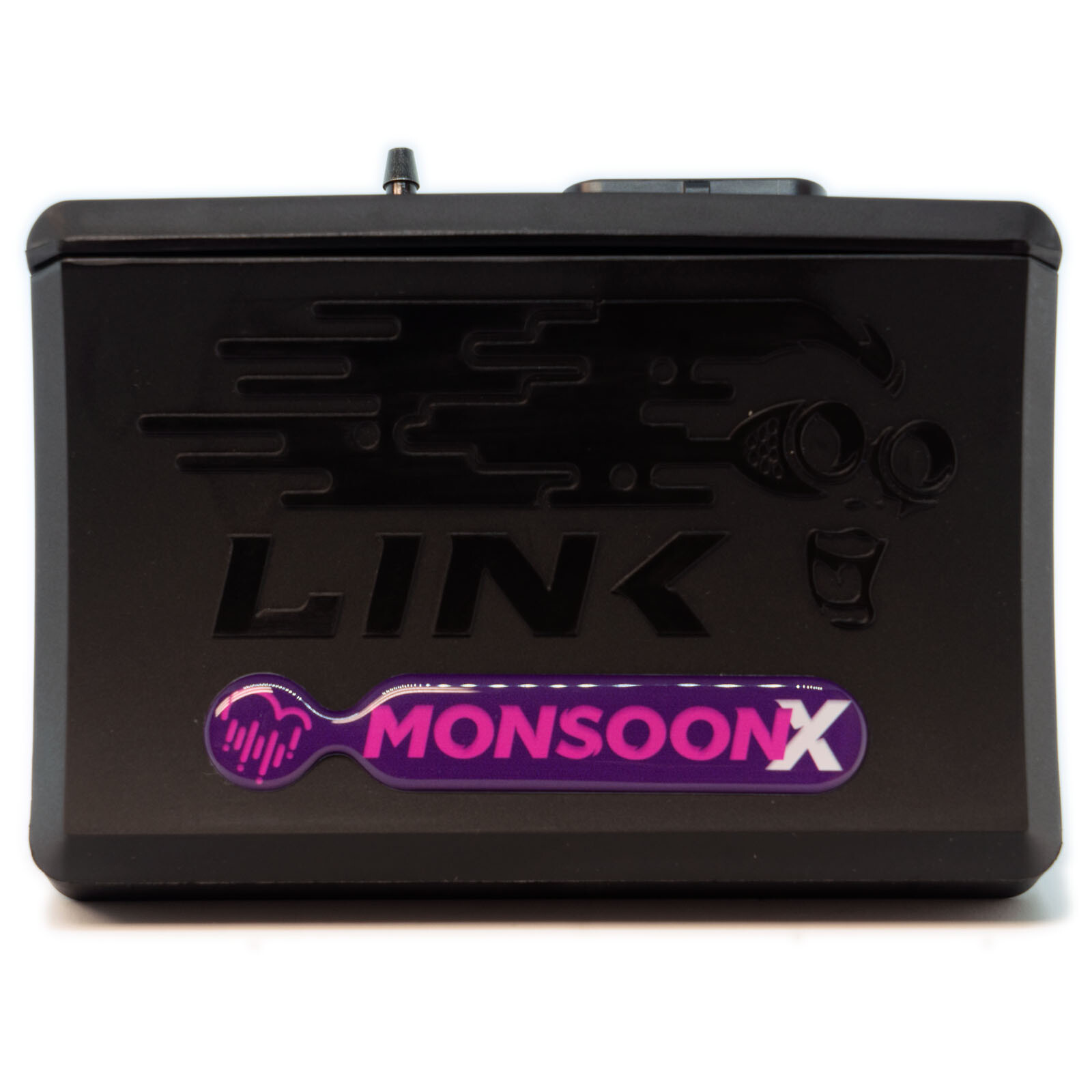

Link ECU G4X MonsoonX ECU

4 channels for ignition and injection, ideal for 4-cylinder turbo engines

Powerful Link ECUs for tuning & motorsport - Plug & Play, CAN-Bus, data logging & more. Discover G4X & G5 models now!

MonsoonX
More features, more power.
The MonsoonX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark - or up to 8 cylinders in batch-fire mode. This makes it ideal for naturally aspirated or turbo engines that only need tuning and one or two additional functions - without having to resort to a higher-level control unit. The MonsoonX control unit has been upgraded and now features 512 MB of data logging memory. This allows significantly more data to be recorded at a higher sampling rate. The control algorithms have also been improved compared to the predecessor G4+ - including:

• Single-precision floating-point calculation in the fuel tables
• Higher resolution in ignition timing calculation
• Faster data communication

These improvements make the G4X Monsoon a real powerhouse in a compact format.

Logging function (data recording):

• 512 MB memory
• 32-bit resolution
• Up to 250 channels
• Max. 1 kHz per channel (system dependent)
• Max. 100,000 samples/second

Compared to the AtomX, the MonsoonX offers additional tuning features:

• Launch Control
• Anti-Lag
• VVT control
• Closed-loop boost control
• Integrated 4-bar or 7-bar MAP sensor (saves installation costs)
• Now also with knock control

Note:
The MonsoonX can perform all the functions mentioned above, but **not simultaneously**. The number of features that can be used simultaneously depends on the limited inputs and outputs required by each function.

Technical notes:

• Requires a suitable wiring harness (A-Loom)
• The MonsoonX is a standalone automotive control unit

Ideally suited for:

• 1-12 cylinders (distributor ignition)
• 2-8 cylinders (wasted spark)
• 1-4 cylinders (direct spark)
• “Odd Fire” engines
• 2-stroke engines
• Configurable firing order
• Configurable TDC points (for odd-fire ignitions)

Inputs:

• 4 × digital inputs
• 2 × temperature sensor inputs
• 4 × analog inputs
• 2 × trigger inputs
• 1 × knock sensor input (shared with DI4)
• 1 × integrated 4-bar MAP sensor

Outputs:

• 4 × injector outputs
• 4 × ignition outputs
• 6 × auxiliary outputs^*
• +5V sensor supply output

^*Unused ignition outputs can be used as additional aux outputs.

Communication:

• 1 × CAN-Bus
• 1 × USB tuning port
• Improved communication chip (four times faster than the G4+)

Physical properties:

• Dimensions: 95mm (L) × 130mm (W) × 45mm (H) (without wiring harness)
• Weight: 220g

Advanced features (not included in AtomX):

• Anti-Lag, Rolling Anti-Lag, and Launch Control
• Up to 2 fully variable closed-loop camshaft adjusters (VVT)

Miscellaneous:

• 512 MB data logging memory in internal storage
• 20 freely configurable tables
• Runs with the PC Link software for G4X
• MonsoonX comes with:
• Waterproof connectors
• Mounting bracket
• USB tuning cable
• “A Loom” (connection wiring harness) must be purchased separately

Engine configurations

• 1-12 cylinder distributor ignition
• 2-8 cylinder wasted spark
• 1-4 cylinder direct ignition
• Irregular firing order (Odd Fire Engines)
• 2-stroke engines
• Configurable firing order
• Configurable TDC points (for irregular firing order)

Fuel adjustments

• Up to 440-zone fuel table with configurable load and RPM axes
• Multiple fuel tables
• Up to 6D fuel maps (3D fuel table + 3x3D correction tables)
• Injection rate control for group injection modes
• Master enrichment for traditional fuel tuning
• Pre-crank prime / first crank prime
• Start enrichment, post-start enrichment, warm-up enrichment
• Acceleration enrichment
• IAT fuel correction
• Injector deadtime compensation
• Short pulse width compensation of injectors
• Injector timing control (start/end of injection definable)
• AFR table correction
• Dual closed-loop lambda control
• Single cylinder fuel correction
• Fuel cut on overrun
• Idle load correction
• Fuel temperature correction

Ignition adjustments

• Up to 440-zone ignition table with configurable axes
• Maximum ignition angle
• Ignition duration
• Dwell time table
• Multiple ignition tables
• Up to 6D ignition maps
• Single cylinder ignition correction
• IAT, voltage, and ECT corrections
• OEM and CDI compatibility

Limits

• Engine temperature-dependent progressive limitation
• Speed limit
• System voltage limit
• User-defined RPM limit based on external inputs

Triggering

• Digital trigger decoders
• Reluctor, optical, or Hall sensors
• Programmable filter and arming thresholds
• User-defined or preset trigger patterns
• Compatible with almost all OEM patterns

Motorsport features

• Shift control (digital inputs only)
• Launch Control
• Anti-Lag
• VVT control

Communication

• via Mini-USB

Auxiliary outputs

• Each output individually configurable
• Unused ignition and fuel outputs can be used as aux outputs
• General PWM outputs
• Fuel pump & fan control, air conditioning, tachometer, shift light, etc.

Processor

• 150 MHz specialized engine control microprocessor
• Ignition control to 0.1°, fuel to 0.01 ms
• 32-bit floating-point
• 12-bit ADC resolution
• Over 20,000 RPM
• 4 GB non-volatile memory

Inputs/Outputs

• 4 saturation injection channels
• 4 ignition outputs
• 6 aux outputs
• 4 digital inputs
• +5V output
• 2 temperature inputs
• 4 analog 0-5V inputs
• 2 trigger inputs
• Onboard barometric sensor
• Onboard 4-bar MAP sensor

Analog inputs

• Individually configurable
• Wideband O2 (with external controller)
• Boost signal, TPS, pressure, mass air & temp sensors
• Gear detection via analog, CAN, or RPM/sensor calculation

Digital inputs

• Individually configurable
• Up to 10kHz frequency measurement
• Duty cycle measurement
• Wheel speed, turbo speed, ethanol sensor
• Theft protection via input or CAN

Mathematical processing

• 8 math channels with up to 4 parameters each
• Usable as axes, digital or analog inputs

Boost control

• Temp correction, multiple tables, external adjustment
• Open and closed loop

Idle control

• Solenoid control only
• Reliable closed loop
• Idle-ups for air conditioning, fan, steering
• Idle ignition control

Environment

• Internal temperature: -10 to 85°C
• Ambient: -30 to 90°C
• Voltage: 8-22V
• Current consumption: 200 mA
• Protection of all inputs/outputs

Physical properties

• Length: 79 mm
• Width: 126 mm
• Height: 42 mm
• Weight: 360 g
• Connector: 34-pin waterproof automotive connector

PCLink Software

• Real-time adjustment of all parameters
• Mouse or keyboard operation
• Tuning, QuickTune, analysis, diagnosis
• Display over 300 runtime parameters

Scope of delivery

• G4X MonsoonX ECU
• Mounting bracket
• Wiring and installation instructions
• 2 large Link stickers
• 2 small Link stickers

Manufacturing standard

ISO 13485

Additional accessories (available separately)

• Wiring harnesses
• Connector sets (only recommended with professional crimping equipment)
• Intake Air Temperature Sensor (IAT)
• 3/8" NPT aluminum/steel weld adapter
• 3-channel ignition amplifier (Link Igniter)
• Throttle position sensor
• Wideband O2 controller & sensor
• Injector resistor packs
