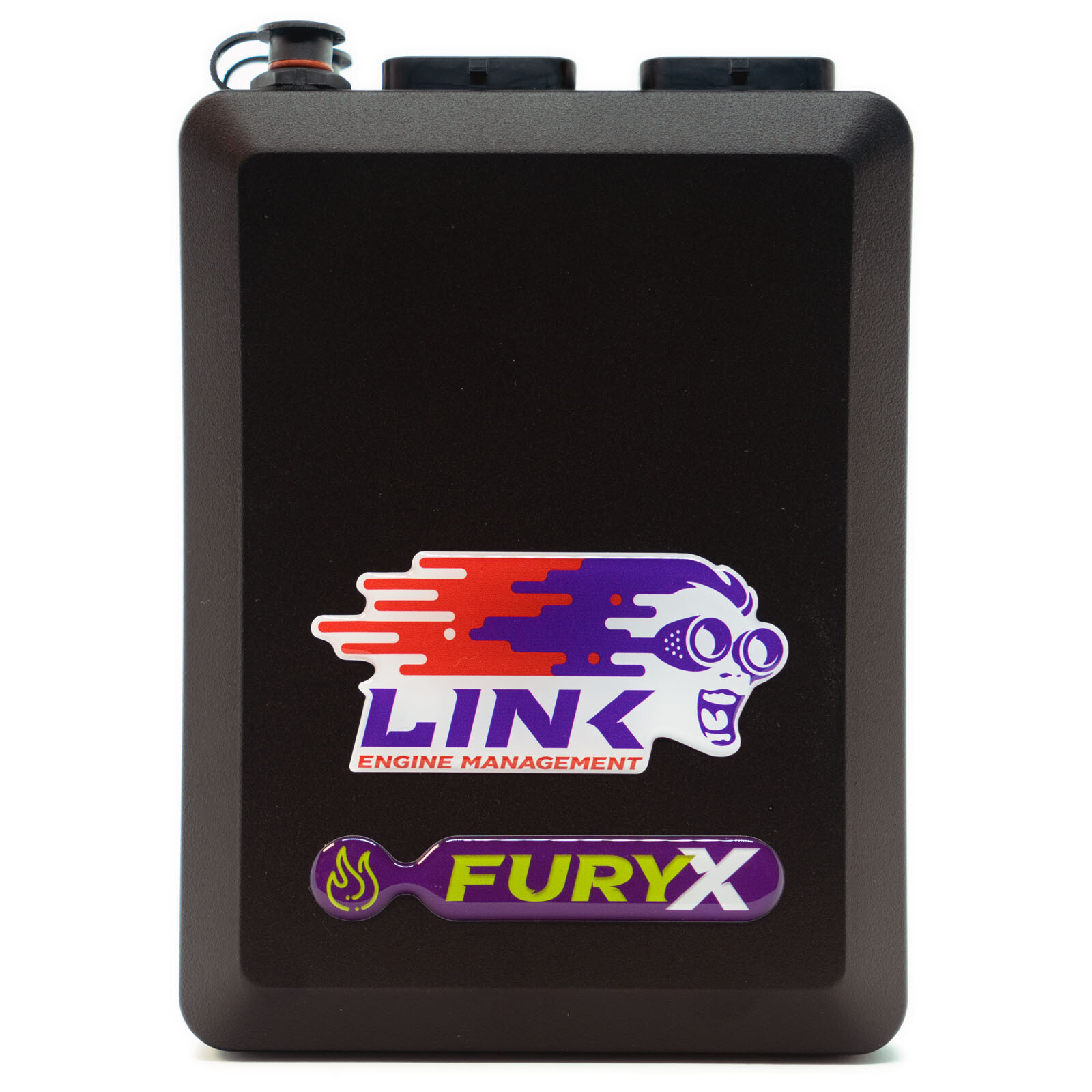

Link ECU G4X FuryX
6 channels for ignition and 8 channels for injection, e-throttle (DBW) and wideband O2
Powerful Link ECUs for tuning & motorsport - Plug & Play, CAN-Bus, data logging & more. Discover G4X & G5 models now!
FuryX - Premium ECU with integrated digital wideband lambda
The FuryX is a premium control unit like the XtremeX, but additionally offers an integrated digital wideband lambda control.
- Now on the G4X platform - with faster processor, faster communication interfaces, and 512 MB of data storage!
- 8 injection outputs and 6 ignition outputs - ideal for controlling up to 3 rotary engines or 6 cylinders with sequential injection and direct spark
- Perfectly suited for professional motorsport or demanding road vehicles
- Integrated digital wideband lambda controller for higher accuracy and easy setup
- USB tuning cable
- Mounting bracket
- Sticker set
- Quick start guide
Note: Requires "A" and "B" wiring looms or "A" and "B" connector sets (not included)
A complete list of technical specifications can be found under the "Specifications" tab.
If you need more inputs and outputs or additional features, we recommend the G5 Voodoo Pro.
Specifications overview:Inputs:
- 8/10* × digital inputs
- 4 × temperature inputs
- 9 × analog inputs
- 2 × trigger inputs
- 2 × knock sensor inputs
- 1 × LSU 4.9 wideband lambda sensor input (digital)
*DI 9 & 10 are used when the second CAN-Bus is activated
Outputs:- 8 × injection outputs
- 6 × ignition outputs
- 10 × auxiliary outputs*
- +5V sensor power supply
- +8V sensor power supply
*Unused injection and ignition outputs can be used as additional aux outputs
Communication:- 2 × CAN-Bus*
- 1 × serial interface (RS232)
- 1 × USB tuning port
- Dimensions: 185 mm (L) × 130 mm (W) × 40 mm (H) (without wiring looms)
- Weight: 680 g
- USB tuning cable
- Mounting bracket
Note: Requires "A" and "B" wiring looms or "A" and "B" connector sets (not included)
- Availability: available in 3-5 days
