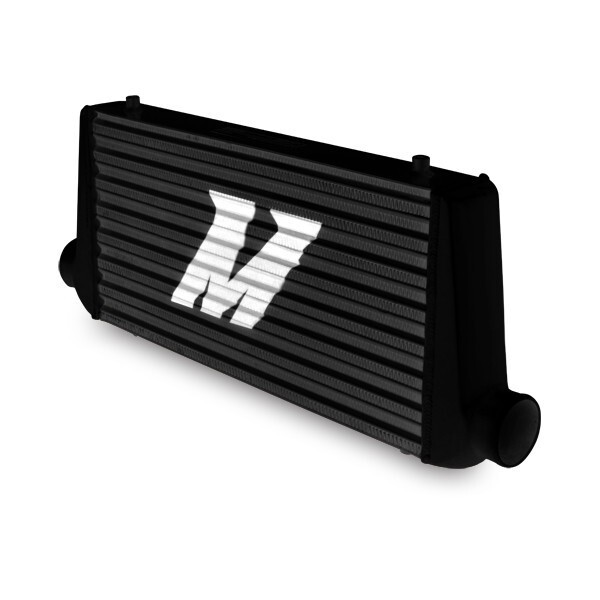

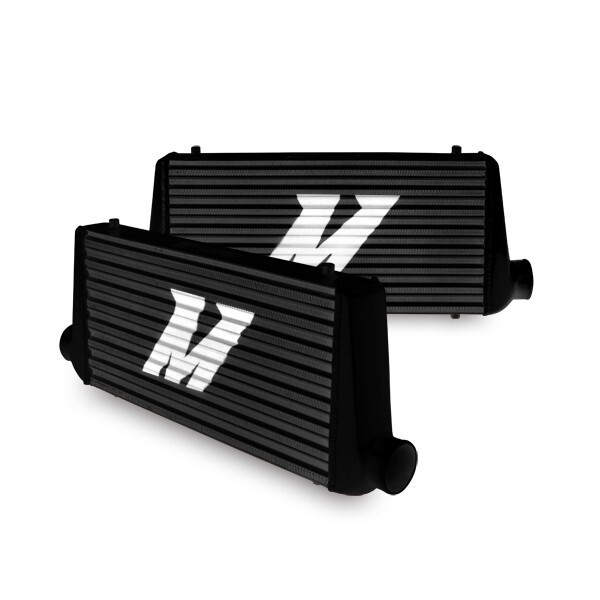

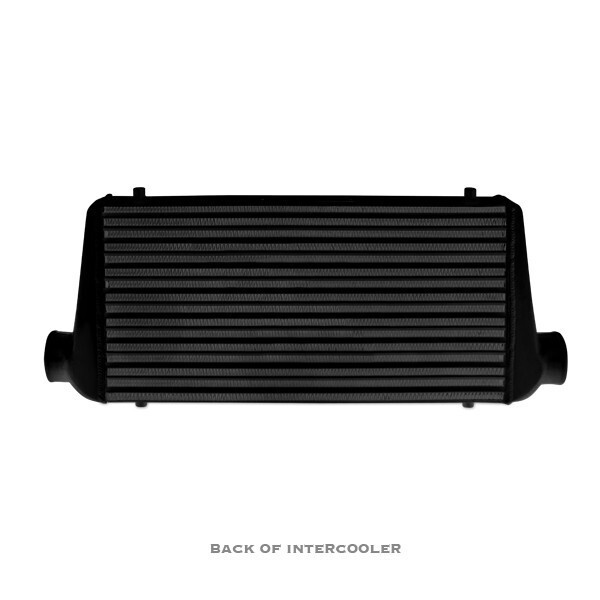

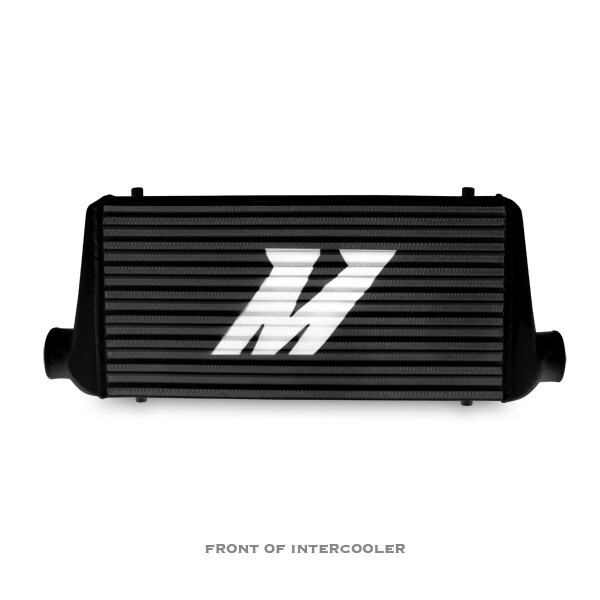

Mishimoto Universal Intercooler M-Line / Black
584mm x 305mm x 102mm
Construction: Bar-and-Plate
Pipe Construction: Polished Aluminum
Overall Length: 787mm
Overall Height: 305mm
Overall Width: 102mm
Core Length: 584mm
Core Height: 305mm
Core Width: 102mm
Core Thickness: 76mm
Core Size: 584mm x 305mm x 102mm
Inlet: 76mm
Outlet: 76mm
Max Recommended Bar: 86
Fin Pitch:
5,9 Fins/cm
Tank Wall Thickness: 5mm
CFM: 1250
Coating: Powder Coated
Silicone Boots with DuraCore:
Boot 1: 76mm, 91,5mm
Boot 2: 76mm, 91,5mm
Boot 3: 76mm
Boot 4: 76mm
Constant Tension T-Bolt Clamps:
(6) 82,5mm Constant-Tension T-Bolt Clamps
(2) 101,6mm Constant-Tension T-Bolt Clamps
Purchase includes:
Mishimoto Intercooler
Sleek and stylish, this universal front-mount intercooler will provide the perfect cooling capacity needed for smaller turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection. Coated all-black finish gives this intercooler a sleeper look when mounted.

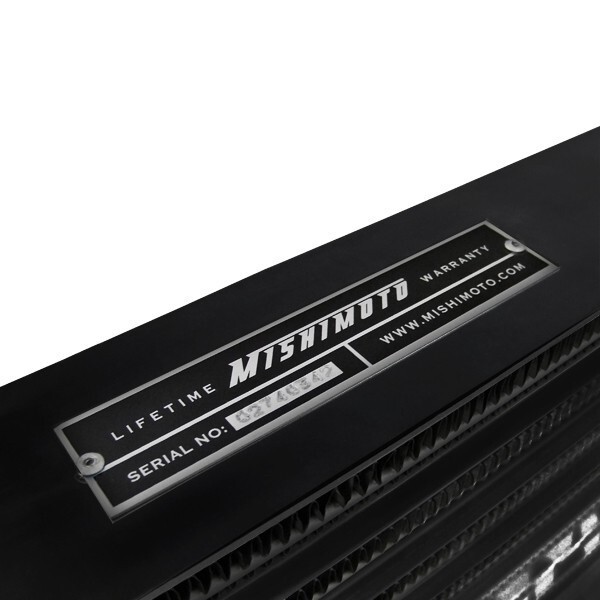

Note: For your taste, only one side of the intercooler has the Mishimoto logo.
- Availability: available in 3-5 days
- Depth: 100/102mm
- Connections: 76mm
- Height: 300mm
- Width: 600mm
