Holset HX35 Turbo - 12cm²

  • Item-No.: 432011
  • Manufacturer-No.: 0600350001
  • Manufacturer: Holset
Holset
£ 484.50
excl. 20% VAT , plus shipping costs
£ 612.00
£ 581.40
incl. 20% VAT , plus shipping costs
instead of: £ 612.00
Save 5%
seen cheaper?
Stock DE :
4
Status:
In stock
seen cheaper?

Holset Turbocharger Super HX35

Original Holset Performance Turbocharger

Solid and robust turbocharger up to 500hp

The HX35 can deliver up to 500hp. This turbo is specially designed for motorcycle applications. The recommended cubic capacity for vehicles is 1.8l to 2.5l - For motorcycles at 0.7 to 1.3l.

Manifold flange: T3 split
Pipe flange: V-band 65mm x 79mm
Exhaust side: 12cm²

Compressor housing inlet: 102mm

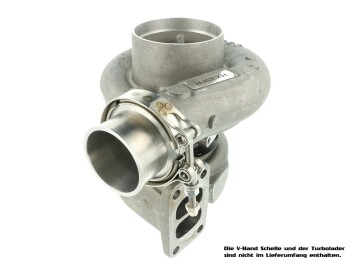

Compressor housing outlet: V-band 52mm x 74mm / it fits our V-band flange 1820629189 and the clamp 3506283503

Compressor wheel inlet: 52mm
Compressor impeller outlet: 77 mm
Exhaust gas inlet: 70mm
Exhaust gas outlet: 60mm

Video
Youtube Consent geben
Turbocharger selection made easy: Try our TurboGuide
Youtube Consent geben
Which turbocharger is better? BorgWarner, Garrett or another one?
Youtube Consent geben
TwinScroll vs SingleScroll housing | Turbocharger simply explained
Youtube Consent geben
What should I pay attention when installing a motorsport turbocharger?
Youtube Consent geben
What are the advantages of a turbo with ball bearings? Better than journal bearings? | Turbocharger simply explained
Youtube Consent geben
Which oil restrictor do I need?
Youtube Consent geben
What does T25, T3, T4 flange mean? | Turbocharger simply explained
Youtube Consent geben
What does the A/R value mean - more power vs. response | Turbocharger simply explained
Youtube Consent geben
Extended tip technology on the compressor wheel of the turbocharger | Turbocharger simply explained
Youtube Consent geben
Internal and external wastegate + actuators | Turbocharger simply explained
Features
Similar
Banjo Bolt M16x1,5
- 5%
Banjo Bolt M16x1,5
£ 2.80 *
instead of: £ 2.94
Copper Seal Ring 10mm
- 4%
Copper Seal Ring 10mm
£ 0.55 *
instead of: £ 0.58
Copper Seal Ring 12mm
- 5%
Copper Seal Ring 12mm
£ 1.10 *
instead of: £ 1.16
Manifold Flange T3 TwinScroll - stainless steel
- 5%
Manifold Flange T3 TwinScroll - stainless steel
£ 36.24 *
instead of: £ 38.15
Manifold Gasket T3 TwinScroll
- 5%
Manifold Gasket T3 TwinScroll
£ 4.90 *
instead of: £ 5.15
Manifold V-Band inlet clamp for TiAL Housings Garrett...
- 5%
Manifold V-Band inlet clamp for TiAL Housings Garrett GT28 up to GT35 | TiAL
£ 42.12 *
instead of: £ 44.34
Oil return adapter T3 / T4 - pipe short | BOOST products
- 5%
Oil return adapter T3 / T4 - pipe short | BOOST products
£ 15.12 *
instead of: £ 15.91
Oil Return Adapter T3 / T4 / KKK Male Thread | BOOST...
- 5%
Oil Return Adapter T3 / T4 / KKK Male Thread | BOOST products
£ 15.12 *
instead of: £ 15.91
Oil Return Adapter T3 / T4 / KKK with Female Thread |...
- 5%
Oil Return Adapter T3 / T4 / KKK with Female Thread | BOOST products
£ 15.12 *
instead of: £ 15.91
Oil return line gasket T3 / T4 / from GT37R
- 5%
Oil return line gasket T3 / T4 / from GT37R
£ 0.90 *
instead of: £ 0.95
Screw-in Adapter M12 x 1,5 to Dash 4 / -04 AN
Screw-in Adapter M12 x 1,5 to Dash 4 / -04 AN
- 5%
Screw-in Adapter M12 x 1,5 to Dash 4 / -04 AN
£ 3.08 *
instead of: £ 3.24
Screw-in Adapter M12 x 1,5 to Dash 6 / -06 AN
Screw-in Adapter M12 x 1,5 to Dash 6 / -06 AN
- 5%
Screw-in Adapter M12 x 1,5 to Dash 6 / -06 AN
£ 3.47 *
instead of: £ 3.65
Screw-in Adapter M16 x 1,5 to Dash 8 / -08 AN
Screw-in Adapter M16 x 1,5 to Dash 8 / -08 AN
- 5%
Screw-in Adapter M16 x 1,5 to Dash 8 / -08 AN
£ 4.63 *
instead of: £ 4.87
Screw-in Adapter12x1,5 to M12x1,5
- 5%
Screw-in Adapter12x1,5 to M12x1,5
£ 2.82 *
instead of: £ 2.96
Screw-in Adapter16x1,5 to 9mm Push-on Hose Connector
- 5%
Screw-in Adapter16x1,5 to 9mm Push-on Hose Connector
£ 5.70 *
instead of: £ 6.00
Screw-in Adapter16x1,5 to M16x1,5
- 5%
Screw-in Adapter16x1,5 to M16x1,5
£ 3.66 *
instead of: £ 3.85
V-Band gasket 63,5mm
V-Band gasket 63,5mm
- 5%
V-Band gasket 63,5mm
£ 6.97 *
instead of: £ 7.34
Others also bought:

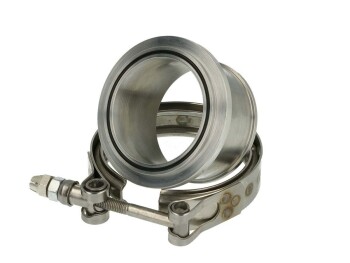

V-Band clamp compressor outlet HX35 - HX50 Holset turbo
