Garrett turbine housing GT35 / GTX35 Series - V-Band TwinScroll / V-Band 1.01 A/R

  • Item-No.: 436762
  • Manufacturer-No.: 740902-0019
  • Manufacturer: Garrett
Garrett
£ 422.20
excl. 20% VAT , plus shipping costs
£ 516.98
£ 506.64
incl. 20% VAT , plus shipping costs
instead of: £ 516.98
Save 2%
seen cheaper?
Status:
will be reordered for you (more information)
ETA
11 - 13 Workdays (more information)
seen cheaper?

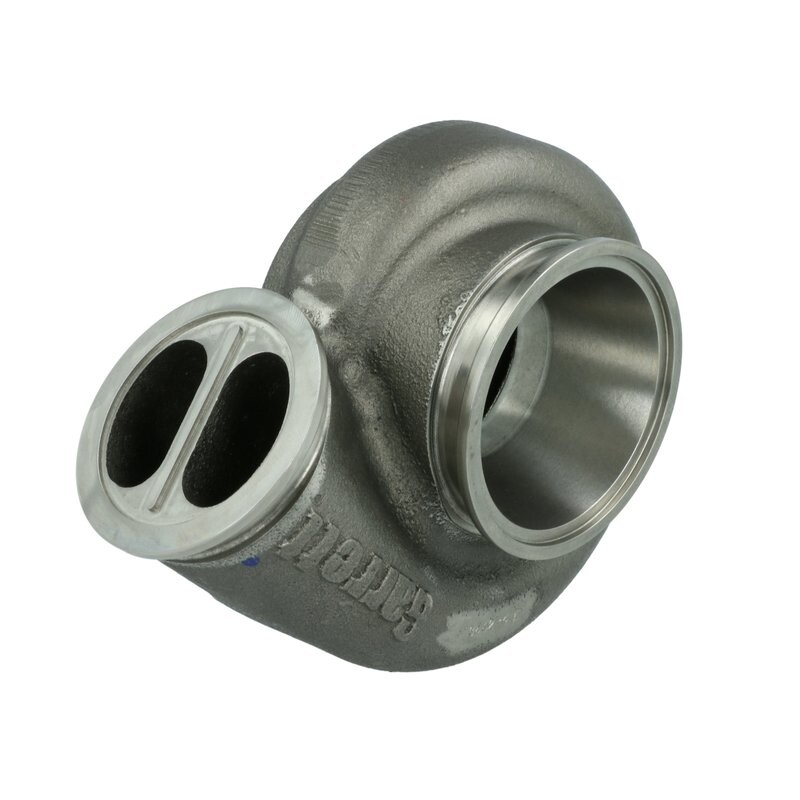

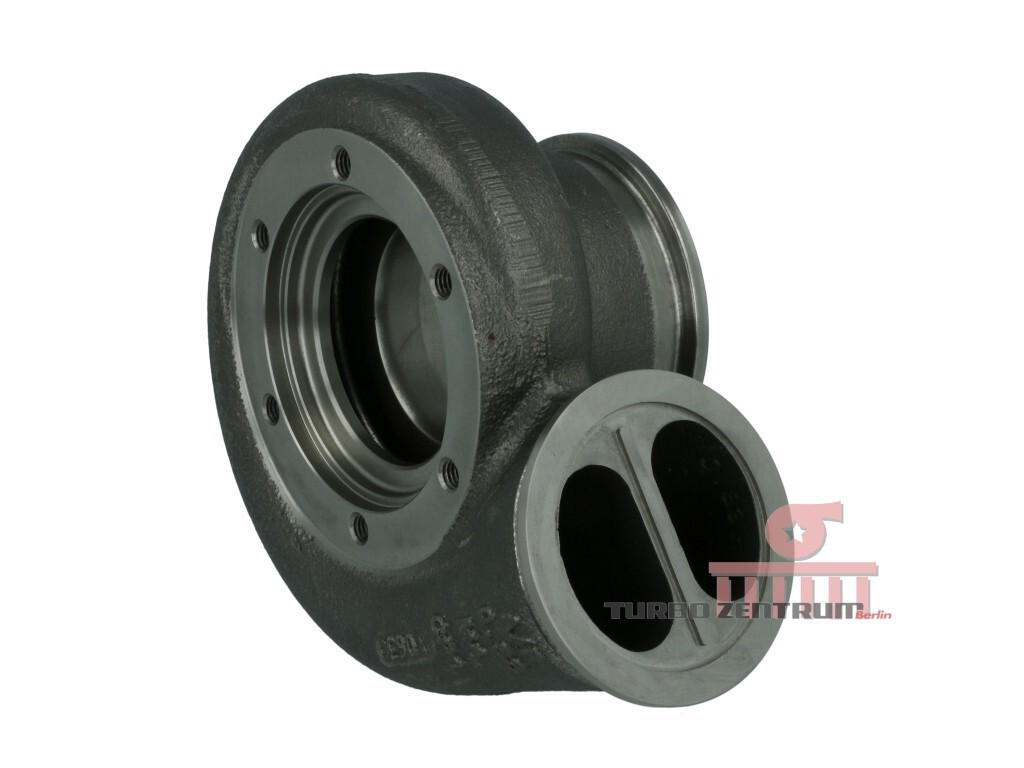

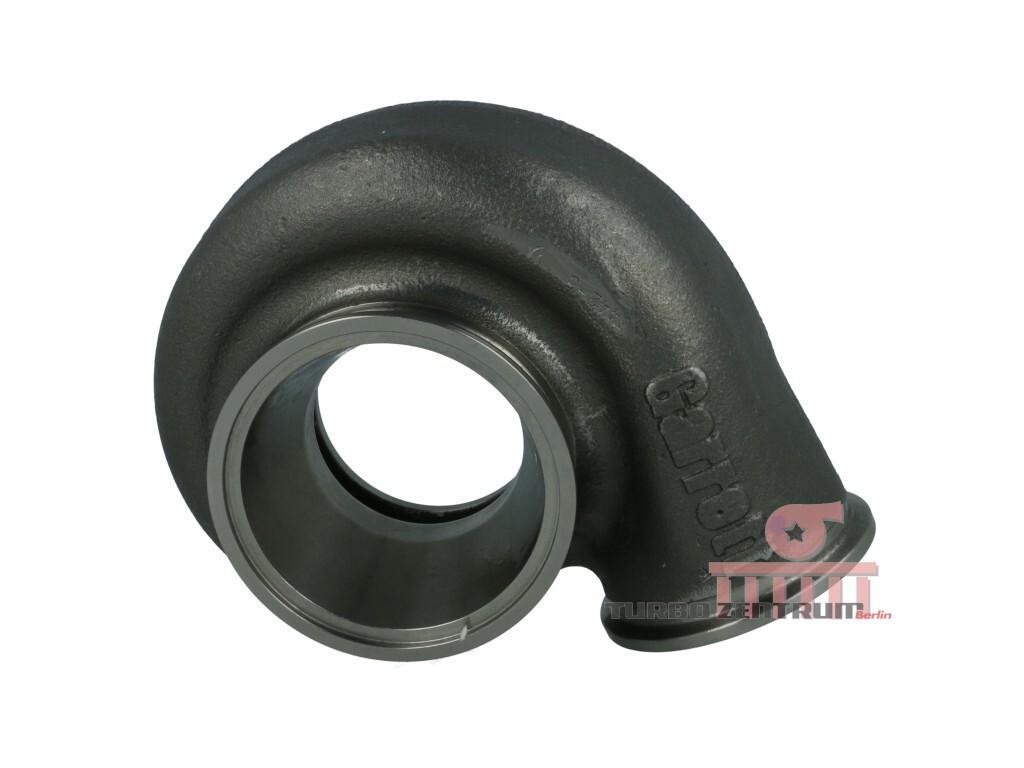

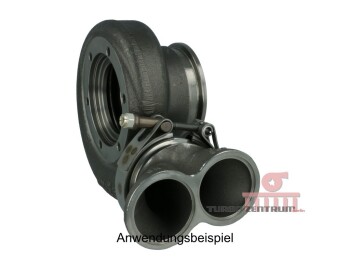

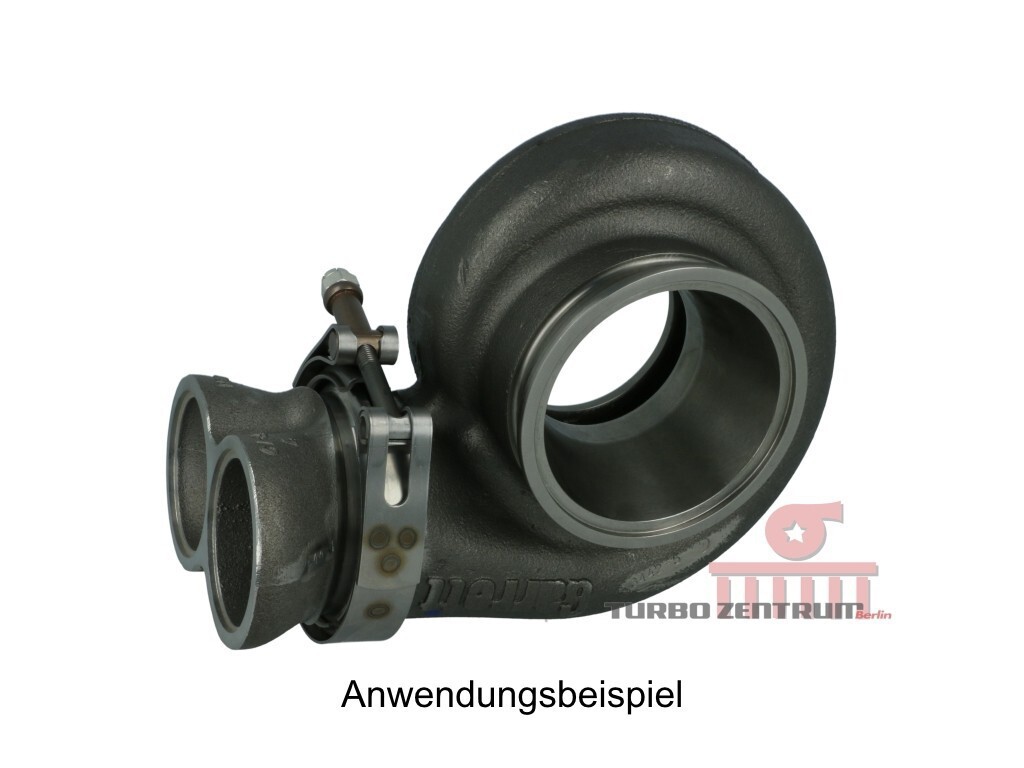

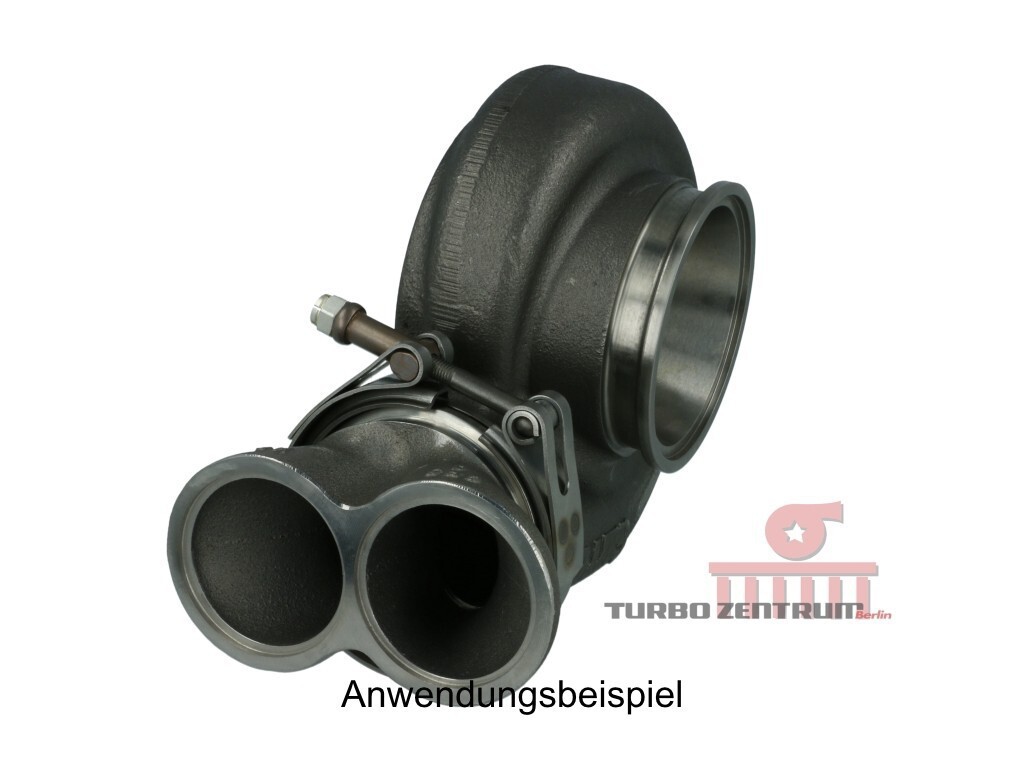

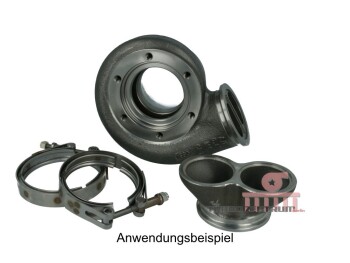

Turbine housing Garrett T3 divided (TwinScroll)

Single turbine housing T3 twinscroll 3"/76mm V-Band

For GT35R / GTX35 Series with 1.01 A/R

This turbine housing is to be used with Garrett turbochargers of the GT35 or GTX35 series with 65mm turbine wheel.

Turbine Inlet flange: T3 divided (TwinScroll)
A/R-ratio: 1,01ar

Fits:
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)

Garrett turbochargers allow a very easy exchange of the turbine housing, for example enabling a quick change in mounting position or the choice of a smaller or larger A/R ratio to increase response or peak performance.

Video
Youtube Consent geben
What does T25, T3, T4 flange mean? | Turbocharger simply explained
Youtube Consent geben
TwinScroll vs SingleScroll housing | Turbocharger simply explained
Youtube Consent geben
What does the A/R value mean - more power vs. response | Turbocharger simply explained
Youtube Consent geben
What should I pay attention when installing a motorsport turbocharger?
Youtube Consent geben
Internal and external wastegate + actuators | Turbocharger simply explained
PDF
Garrett torque specs for screws and nuts
PDF Garrett torque specs for screws and nuts
