Garrett Vent GVB-50A Blow-Off Valve
Smooth boost control & turbo protection
CFD optimized, vent to atmosphere (VTA) BOV, Nomex-reinforced elastomer diaphragm
Garrett Vent | Blow-Off Valves release excess boost pressure from the charge pipe when the throttle is closed, preventing damage to the turbocharger and other engine components, ensuring smooth operation and extending turbo lifespan. Developed by the engineers behind the G-Series turbochargers and GVW wastegates, the GVB-50 is a high-flow BOV with a 50 mm valve available in four colors: Red | Blue | Black | Silver.Choose between vent to atmosphere (VTA) and recirculating (RCV) housings. The GVB-50R (RCV) delivers up to 350 CFM | 0.21 kg/s maximum flow thanks to advanced CFD used to simulate, visualize, and quantify airflow prior to production. A proprietary, high-temperature Nomex-reinforced elastomer diaphragm provides exceptional durability and fatigue resistance, while a plated stem and bushing reduce friction and wear.
Pressure Settings & Kit
GVB blow-off valves are set to 10 PSI base pressure and offer configurable rates from 0.2 bar | 3 PSI to 0.9 bar | 13 PSI. Unlike many alternatives, Garrett includes five springs for precise tuning, optimizing BOV behavior and overall turbo system performance. A single vacuum port streamlines installation. Every kit includes all fasteners, springs, fittings, V-bands, clamps, and flanges.
Key Features
- CFD-validated for maximum flow and thermal efficiency
- Serviceable design with replaceable components to extend lifespan
- Robust construction for quick diaphragm replacement
- 6061 anodized aluminum actuator cover and fully-machined billet housing
- Max flow 350 CFM | 0.21 kg/s for GVB-50R (RCV)
- Four outlet adapters available for the recirculating valve (sold separately)

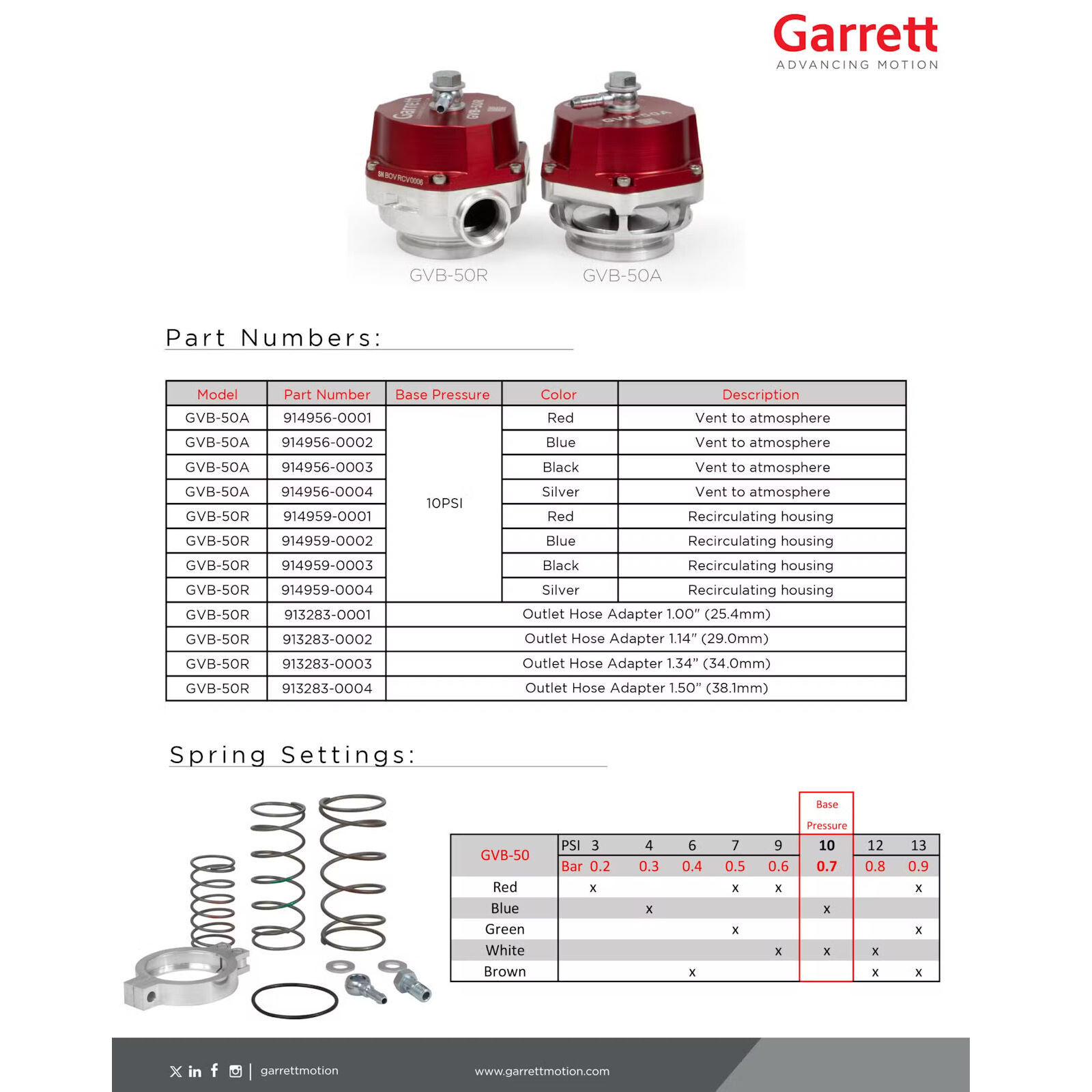

- Base pressure: 0.7 bar | 10 PSI (blue & white springs installed)
- Spring settings: 3 | 4 | 6 | 7 | 9 | 10 | 12 | 13 PSI (≈ 0.21 | 0.28 | 0.41 | 0.48 | 0.62 | 0.69 | 0.83 | 0.90 bar)
- Wrought aluminum alloy weld flange
- 17-7 PH stainless steel springs
- Plated stem and bushing for reduced friction and wear
- High-temperature Nomex-reinforced diaphragm
- Stainless steel fittings and fasteners

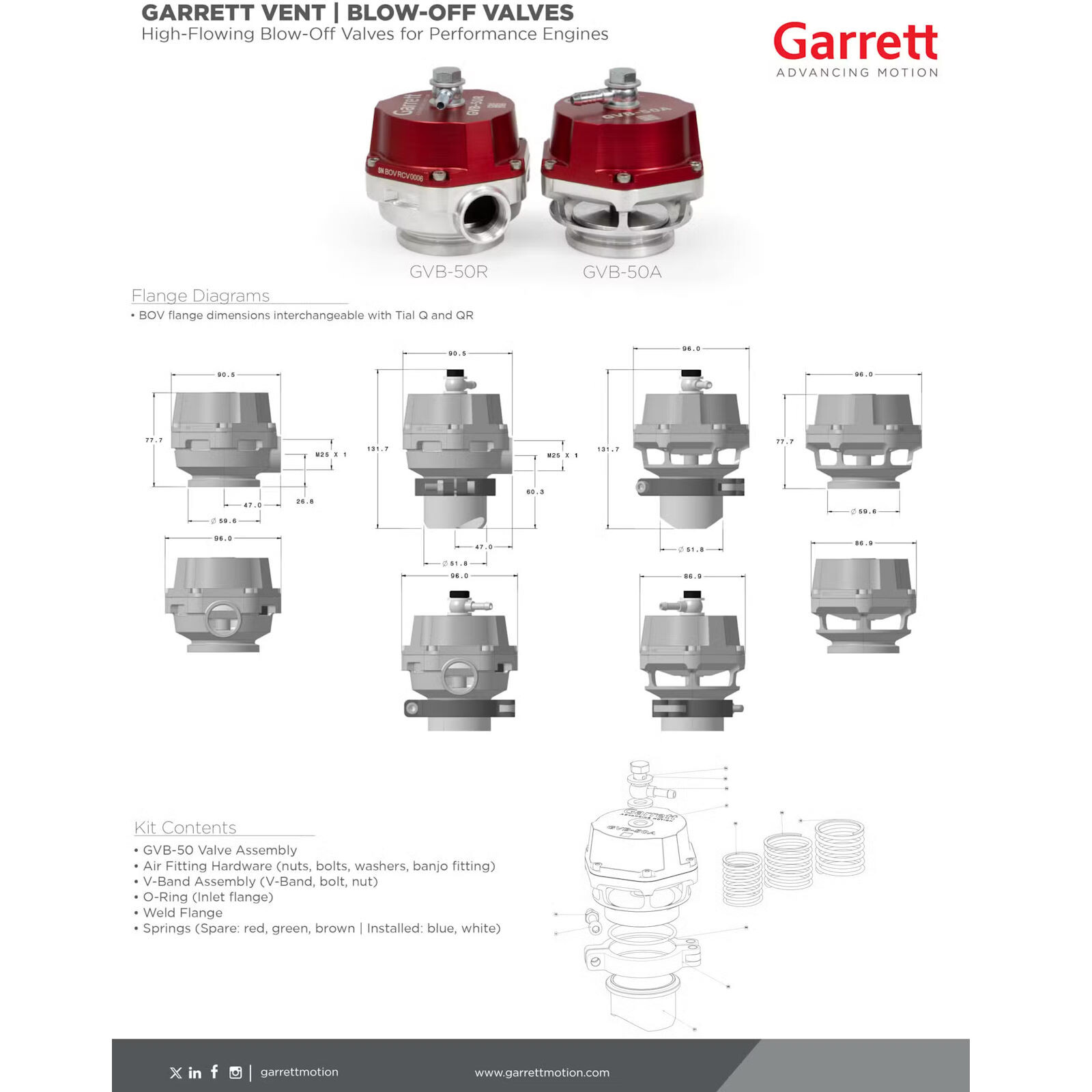

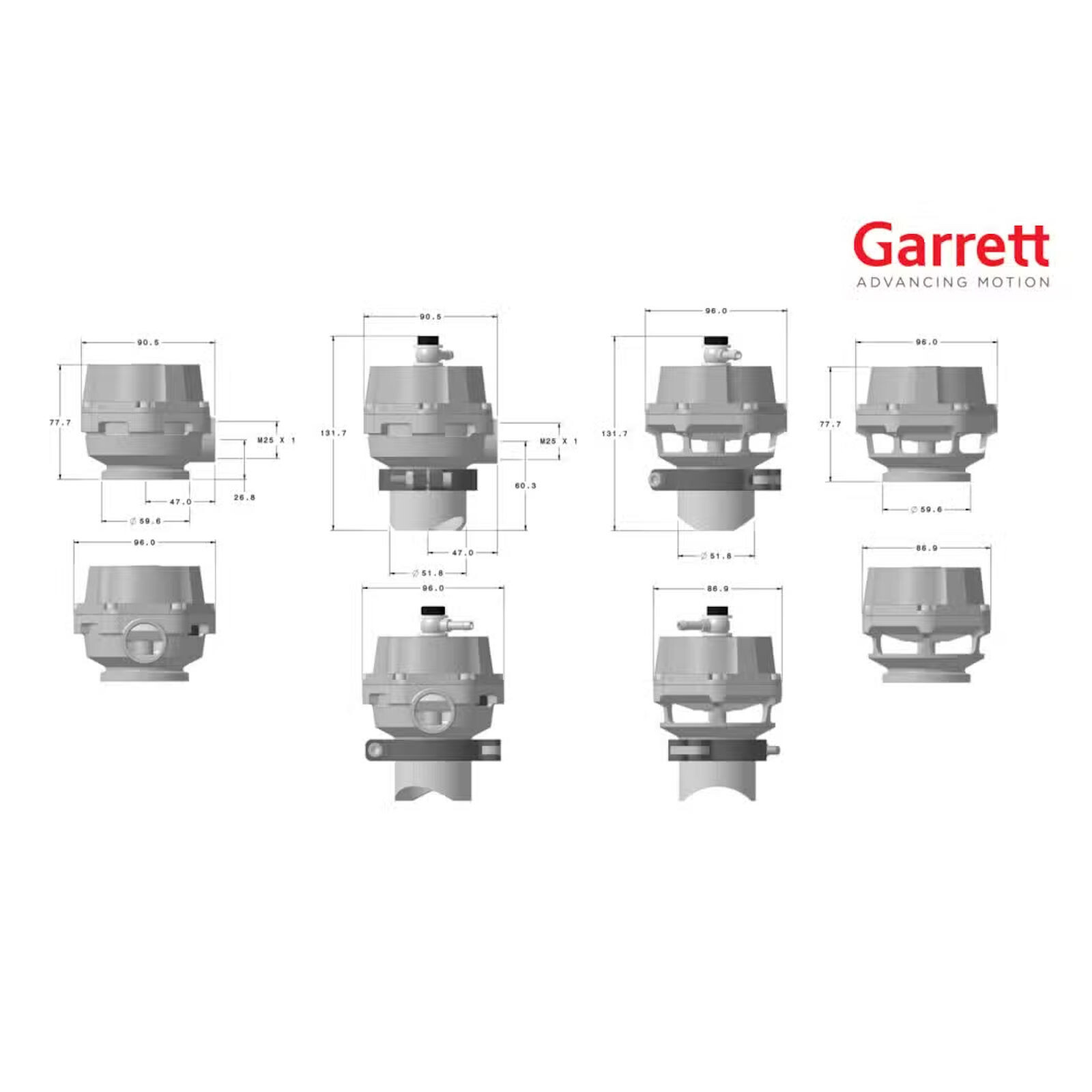

- BOV flange dimensions interchangeable with TiAL Q / QR
Features
- Tuning Part: Blow Off Valve
- Flange type: V-Band
- Color: blacksilverbluered
- Availability: to order
- Model: BOV with connectors
