Adapter GT30R / GTX30, GT35R / GTX35R Downpipe for V-Band 76mm
Adapter for the construction of the downpipe
High quality stainless steel turbo flange

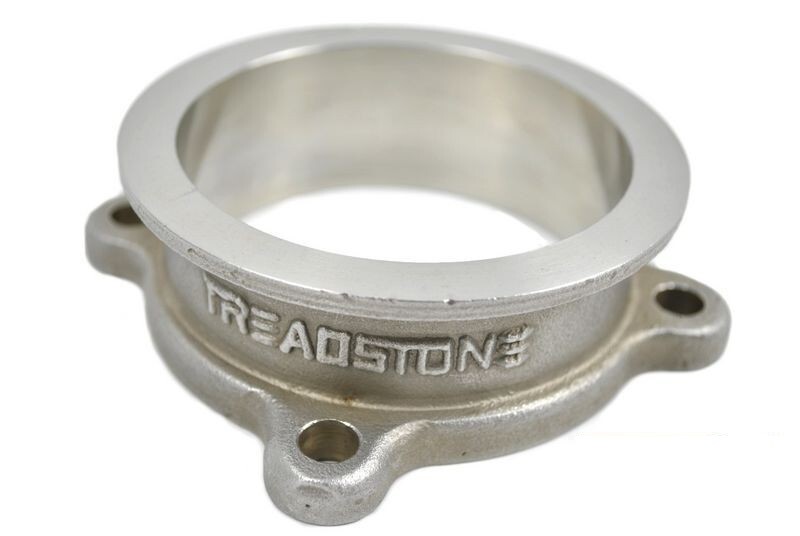

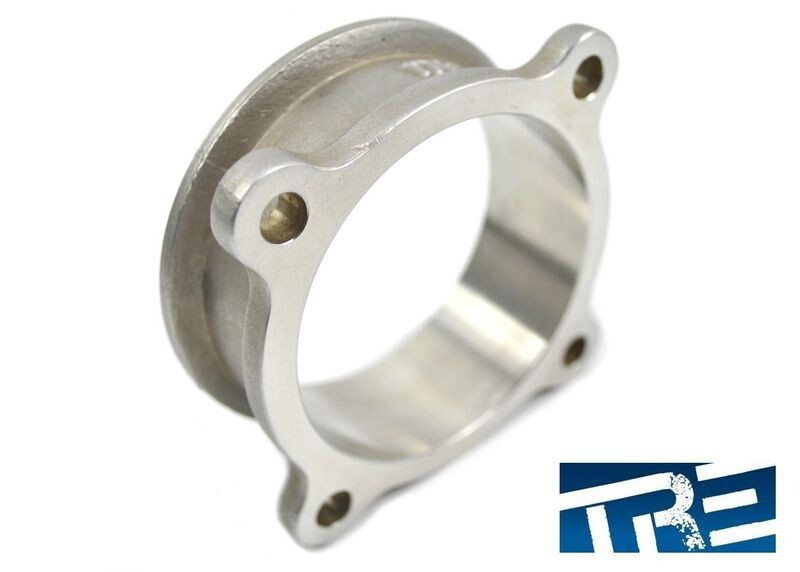

With this adapter you can easily get from a 74mm 4 hole flange to a 76mm V-Band connection. This flange is for the exhaust pipe at the exhaust outlet. The adapter is CNC milled to fit perfectly and be flat.
Material: Stainless steel
Dimensions Detail: 76mm
Thread size: For M8
Extras / Features: No threads. Holes 9mm.
For / Fits:
Turbo outlet / downpipe connection 4 hole 76mm
Garrett GT3071R with T3 4-hole exhaust side as well as K24/26 (Audi S2 and RS2) exhaust side
Garrett GT / GTX3076R (GT30R or GT30RS) with T3 4-hole and K24/26 exhaust
Garrett GT3082R (GT30/40R) with T3 4-hole exhaust side and KKK K24/26
Garrett GT / GTX3582R (GT35/40R or GT35R) with T3 4-hole and K24/26 exhaust
KKK BorgWarner some K27 models
some KKK turbos from K27

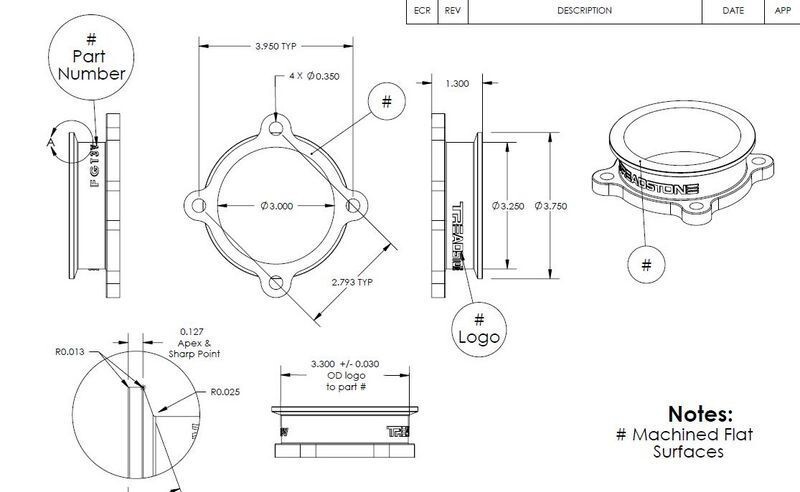

If you are not sure whether the flange fits on your turbo, here are the dimensions. If you are in doubt you can send us a sketch of your exhaust side, and we will advise you of the suitable gasket.y
