Garrett GT3582R / GT35R Turbo - 836033-5001 / 836033-1

  • Item-No.: 464032
  • Manufacturer-No.: 836033-5001S
  • Manufacturer: Garrett
Garrett
Flange - A/R - Wastegate - Outlet
£ 940.32
excl. 20% VAT , plus shipping
£ 1,128.38
incl. 20% VAT , plus shipping
seen cheaper?
seen cheaper?
Stk
Status:
will be reordered for you
ETA
7 - 8 Wochen (more information)

Garrett Turbocharger GT3582R - 836033-5001

Genuine Garrett turbocharger

Replaces the earlier GT3582R - 714568-2 / 3 / 1

performance rating: 400 - 675 HP
Equipment: SuperCore (CHRA and compressor housing) without exhaust housing
Recommended displacement: 2,0 - 4,5L

Compressor: inlet 61,4mm / outlet 82,0mm / trim 56 / 0,70ar
Turbine: diameter 68,0mm / trim 84 / no turbine housing

- dual ball bearing
- oil and water cooled bearing system
- Inconel-turbine wheel
- turbocharger perfectly suited for twin-turbo applications at large displacement V8 engines

You purchase this article directly by Garrett part number as offered and delivered by www.turbobygarrett.com. If you are looking for a specific turbocharger without knowledge of the corresponding part number we suggest you contact us via phone or email.

Custom Garrett Turbos

This offered turbocharger comes so directly from the manufacturer. With Garrett turbochargers, there are various options to adapt flange patterns and connections to the conditions of your vehicle. We are happy to assemble Garrett turbochargers with various exhaust casings and compressor casings. Please contact us by phone, email or contact form.

Video
Youtube Consent geben
What are the advantages of a turbo with ball bearings? Better than journal bearings? | Turbocharger simply explained
Youtube Consent geben
Turbocharger selection made easy: Try our TurboGuide
Youtube Consent geben
Which turbocharger is better? BorgWarner, Garrett or another one?
Youtube Consent geben
What does T25, T3, T4 flange mean? | Turbocharger simply explained
Youtube Consent geben
What does the A/R value mean - more power vs. response | Turbocharger simply explained
Youtube Consent geben
TwinScroll vs SingleScroll housing | Turbocharger simply explained
Youtube Consent geben
What should I pay attention when installing a motorsport turbocharger?
Youtube Consent geben
Internal and external wastegate + actuators | Turbocharger simply explained
Youtube Consent geben
Water cooling or oil cooling on the turbo | Turbocharger simply explained
Youtube Consent geben
Which oil restrictor do I need?
Youtube Consent geben
Extended tip technology on the compressor wheel of the turbocharger | Turbocharger simply explained
PDF
Garrett torque specs for screws and nuts
PDFGarrett torque specs for screws and nuts
Garrett GT3582R - 714568-8
PDFGarrett GT3582R - 714568-8
Features

Accessory

Banjo Bolt for Water Cooling Garrett and BorgWarner
£ 4.32 *
Banjo Bolt M14x1,5
£ 2.23 *
Banjo Fitting M14 -> 10mm
£ 3.53 *
Banjo Fitting M14 -> 8mm
£ 2.44 *
instead of: £ 3.24
Copper Washer 14mm
£ 1.04 *
Garrett Gasket Kit GT28XXR / GT30XXR-WG
£ 17.08 *
Garrett Gasket Kit GT35R
£ 19.18 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 flange 0.63 A/R
£ 345.80 *
instead of: £ 443.34
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 flange 0.82 A/R
£ 503.41 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 flange 1.06 A/R
£ 446.20 *
instead of: £ 572.05
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 V-Band 0.63 A/R
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 V-Band 0.82 A/R
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - GT T3 V-Band 1.06 A/R
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - K24/K26 0.63 A/R
£ 338.66 *
instead of: £ 434.18
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - K24/K26 0.82 A/R
£ 434.18 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T25 EWG (44mm WG)
£ 272.22 *
instead of: £ 324.07
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T25 V-Band 0.63 A/R
£ 244.16 *
instead of: £ 294.18
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T25 V-Band 0.82 A/R
£ 244.16 *
instead of: £ 294.18
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 5-bolt (Ford) 0.63 A/R
£ 423.68 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 63mm V-Band 0.63 A/R
£ 294.18 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 63mm V-Band 0.82 A/R
£ 294.18 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 Cosworth 0.72 A/R
£ 462.50 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 internal WG 0.63 A/R
£ 461.94 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 internal WG 0.82 A/R
£ 431.70 *
instead of: £ 553.46
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 internal WG 1.06 A/R
£ 509.12 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll / V-Band 0.61 A/R (Ni-Resist)
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll / V-Band 0.83 A/R (Ni-Resist)
£ 563.47 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll / V-Band 1.01 A/R (Ni-Resist)
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll V-Band 0.78 A/R
£ 347.66 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll V-Band 0.82 A/R
£ 432.61 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T3 TwinScroll V-Band 1.06 A/R
£ 326.42 *
instead of: £ 393.29
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T31 0.63 A/R
£ 244.16 *
instead of: £ 294.18
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T31 0.82 A/R
£ 294.18 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T4 0.63 A/R
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T4 0.82 A/R
£ 480.53 *
instead of: £ 572.05
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T4 1.06 A/R
£ 572.05 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - T4 TwinScroll 1.06 A/R
£ 530.94 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - V-Band / V-Band 0.61 A/R (Ni-Resist)
£ 532.01 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - V-Band / V-Band 0.83 A/R (Ni-Resist)
£ 532.01 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - V-Band / V-Band 1.01 A/R (Ni-Resist)
£ 532.01 *
Garrett Turbine Housing GT35 / GTX35 Series - 68mm - V-Band TwinScroll / V-Band 0.61 A/R
£ 529.15 *
Garrett Turbine Housing GT35 / GTX35 Series - V-Band TwinScroll / V-Band 0.83 A/R
£ 412.74 *
instead of: £ 529.15
Garrett Turbine Housing GT35 / GTX35 Series - V-Band TwinScroll / V-Band 1.01 A/R
£ 529.15 *
Mounting Kit Turbine Housing Garrett GT / GTR / GTX / GTW
£ 21.89 *
Mounting Kit Turbine Housing Garrett T3 TwinScroll 0.78 A/R
£ 22.79 *
Oil Adapter with Restrictor for Garrett GT-R
£ 6.52 *
instead of: £ 8.58
Oil Feed Banjo Steel Bolt for GT-R Turbos
£ 37.43 *
Oil Feed Line Teflon VAG to GT-R
£ 147.20 *
Oil Feed Line Teflon VAG to GT-R Corrugated Hose
£ 153.00 *
Oil Return Adapter GT-R with Inner Thread
£ 11.15 *
instead of: £ 14.86
Oil Return Adapter GT-R with Outer Thread
£ 9.84 *
instead of: £ 13.12
Oil return flange Garrett GTX / G-series / GT-R / BorgWarner EFR - pipe flexible long version
£ 41.36 *
Oil return flange Garrett GTX / G-series / GT-R / BorgWarner EFR - pipe flexible short version
£ 41.36 *
Screw-in adapter 1/2" NPT for oil return line
£ 6.02 *
instead of: £ 7.92
Screw-in Adapter14x1,5 to 7,5mm Push-on Hose Connector
£ 4.70 *
Silicone Coupler - Double Hump, 102mm, black
£ 26.22 *
Silicone Coupler - Double Hump, 63mm, black
£ 14.62 *
Silicone Coupler - Single Hump, 102mm, black
£ 20.02 *
Silicone Coupler - Single Hump, 63mm, black
£ 11.45 *
Silicone Coupler / 102mm / black
£ 11.66 *
Silicone Coupler / 63mm / black
£ 6.40 *
Silicone Elbow 135°, 63mm, black
£ 19.97 *
Silicone Elbow 180°, 63mm, black
£ 24.34 *
Silicone Elbow 45°, 102mm, black
£ 34.32 *
Silicone Elbow 45°, 63mm, black
£ 19.60 *
Silicone Elbow 90°, 102mm, black
£ 33.83 *
Silicone Elbow 90°, 63mm, black
£ 19.27 *
Silicone Reducer Elbow 45°, 102 - 76mm, black
£ 37.54 *
Silicone Reducer Elbow 45°, 102 - 89mm, black
£ 42.90 *
Silicone Reducer Elbow 45°, 70 - 63mm, black
£ 24.41 *
Silicone Reducer Elbow 45°, 76 - 63mm, black
£ 25.62 *
Silicone Reducer Elbow 90°, 102 - 76mm, black
£ 38.66 *
Silicone Reducer Elbow 90°, 102 - 89mm, black
£ 43.91 *
Silicone Reducer Elbow 90°, 70 - 63mm, black
£ 24.58 *
Silicone Reducer Elbow 90°, 76 - 63mm, black
£ 25.62 *
Silicone Reducer Straight, 102 - 76mm, black
£ 19.15 *
Silicone Reducer Straight, 102 - 89mm, black
£ 21.96 *
Silicone Reducer Straight, 127 - 100mm, Black
£ 27.46 *
Silicone Reducer Straight, 70 - 63mm, black
£ 12.40 *
Silicone Reducer Straight, 76 - 63mm, black
£ 13.01 *
Turbine housing Garrett GT35 series - 68mm - V-Band stainless 0.64 A/R | TiAL
£ 408.08 *
Turbine housing Garrett GT35 series - 68mm - V-Band stainless 0.82 A/R | TiAL
£ 408.08 *
Turbine housing Garrett GT35 series - 68mm - V-Band stainless 1.06 A/R | TiAL
£ 408.08 *
Turbine Housing Garrett GT35 series (GT3576R, GTX3582R) - T3 5-bolt (Ford style) 0.82 A/R
£ 351.66 *
instead of: £ 423.68
Turbocharger Oil Return Gasket GT-R
£ 2.09 *
VAG complete connection kit GT-R
£ 317.57 *
Oil Adapter with 1,1mm Restrictor for Garrett GT-R
Price on request

Similar

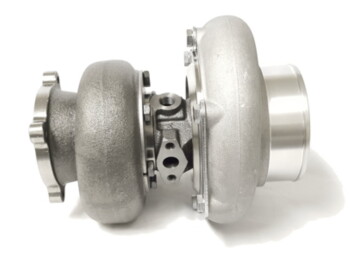

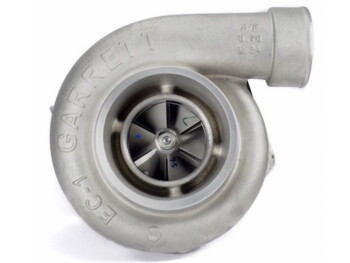

Garrett GT3582R / GT35R Turbo 1.06 A/R - HighFlow - 714568-10 / 714568-5010
