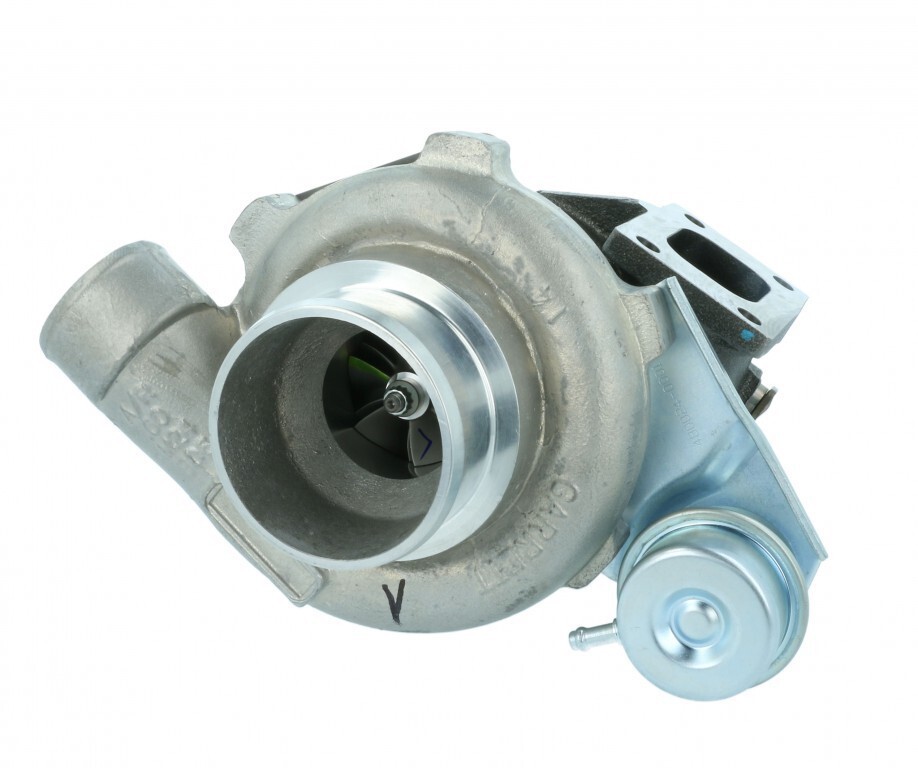

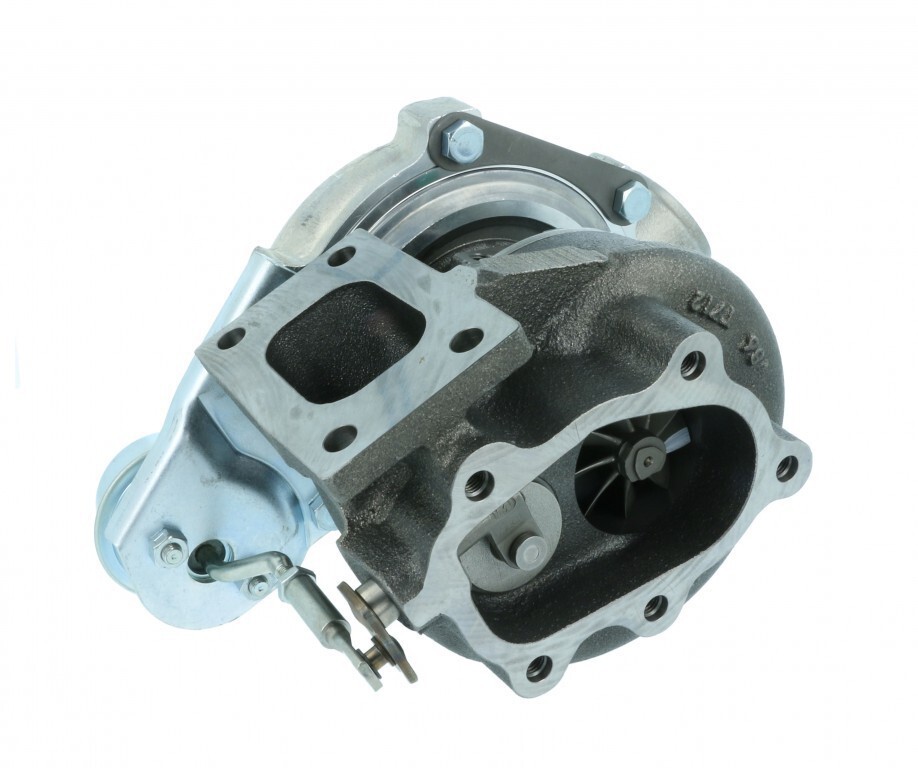

Garrett GT2860RS / GT28RS Turbo 0.86 A/R - 836026-15 / Low Boost
Genuine Garrett turbocharger
Low boost actuator 7 Psi / 0,48 Ba (480009-0009)
Garrett item number: 836026-5015
Performance range: 250 - 360 HP
Engine displacement: 1,8 - 3,0L
Compressor: Inlet 47,2mm / outlet 60,1mm / trim 62 / 0,60ar
Turbine: diameter 53,9mm / trim 76 / 0,86ar / internal Wastegate
- double ball bearing (739548-1)
- double ceramic ball bearing (836026-15)
- oil & water cooled bearing system
- internal Wastegate with actuator (0,48bar / Low Boost)
- Inconel turbine wheel
- Upgrade turbocharger for GT2554R (836023-1 / 471171-3) and GT2560R (836023-3 / 466541-1)
You purchase this article directly by Garrett part number as offered and delivered by www.turbobygarrett.com. If you are looking for a specific turbocharger without knowledge of the corresponding part number we suggest you contact us via phone or email.
- Boost pressure: 0.48bar / 0.5bar
- Flange type: T25 / T285-Bolt GT28
- a/r Value: 0.86ar
- Availability: to order
- Turbocharger: GT2860RS
