Fuel pump Universal
Upgrade fuel pump with 250 liter/hour

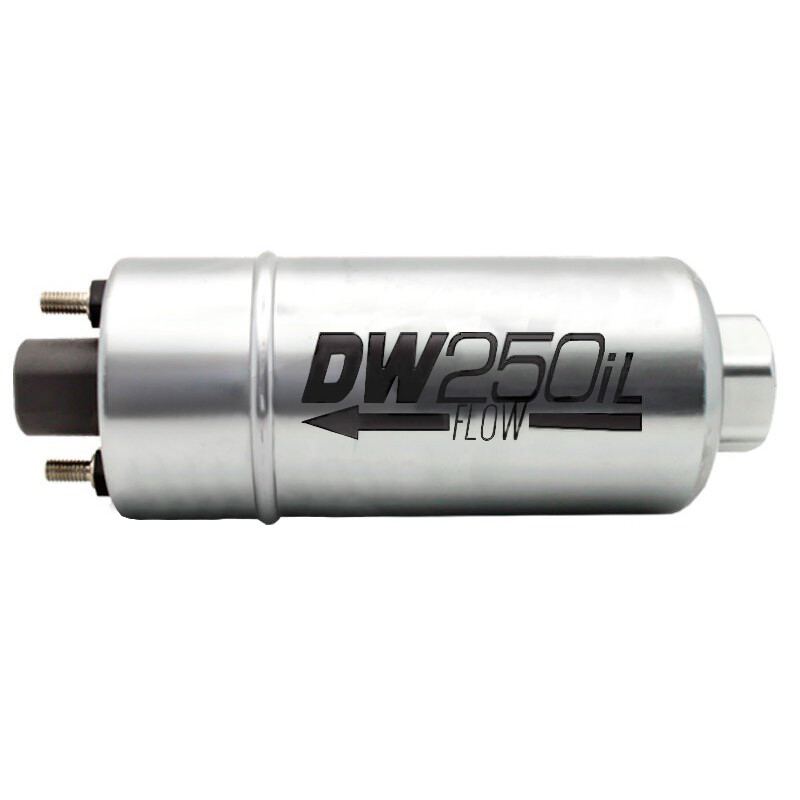

Series DW250iL - 250l/h and ethanol suitable
Type: Universal
Model: Inline pump (can be installed externally in the fuel line)
Fits: The DW250il pump is almost identical in construction to BOSCH petrol pumps such as the BOSCH 044 motorsport pump, only with newer technology and ethanol suitability. However, the DW250il is smaller in diameter (54mm) than the Bosch 044 (60mm). You also need the connection kit 6-02-0101 to replace the Bosch 044.
Pumping capacity: 250 litres per hour
The DW250iL fuel pump is specially designed and tested for compatibility with gasoline and ethanol.
Mechanical properties
Weight: 690 grams (34 oz)
Outside material: hard anodized aluminum
Inlet fitting: -6 AN ORB
Outlet fitting: -6 AN ORB
PRV activation: NA
Rotor design: Roller-Vane
Electrical properties
Connector Terminal: Pole terminal
Min. voltage input: 8 Volt
Max. Voltage input: 16 Volts
Power consumption (40psi): 9,9 Ampere (13.5 V)
Power consumption (80psi): 13,5 Ampere (13.5 V)
All DeatschWerks fuel pumps are subjected to a multi-stage performance test to ensure the highest standards. This process, carried out by trained technicians, gives consumers the assurance that they are not buying any off the peg" product.All DeatschWerks fuel pumps are subjected to a multi-stage performance test to ensure the highest standards. This process, carried out by trained technicians, gives consumers the assurance that they are not buying any "off the peg" product.
The performance tests include:

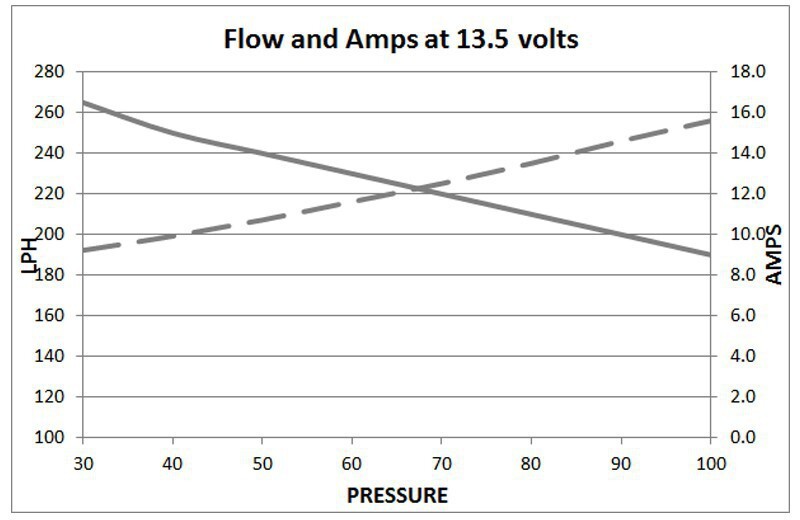

- Flow rate at pressures of 40 psi, 60 psi, 80 psi, 100 psi
- Current consumption at each pressure
- PRV Activation point
- Non-return valve function
- Cavitation
- Quality control
