Fuel rail for port injection VW/Audi EA888 2.0 TSI
VW - Audi 2.0 TFSI / TSI EA888 3 Gen.
Radium upgrade fuel rail for Audi/VW 2.0 TFSI / TSI
COMPATIBILITY
- 2016+ Audi TT
- 2014+ Audi S3
- 2015+ Audi A3
- 2016+ Audi A4
- 2014+ Porsche Macan
- 2019+ Volkswagen Arteon
- 2018+ Volkswagen Atlas
- 2015+ Volkswagen Golf
- 2014+ Volkswagen Jetta
- 16-17 Volkswagen Passat
- 14-17 Volkswagen Beetle Directly compatible with European vehicles ONLY. North American vehicles did not receive port injection from the factory. However, there are many inexpensive ways to convert the OEM system. This information can be found online.

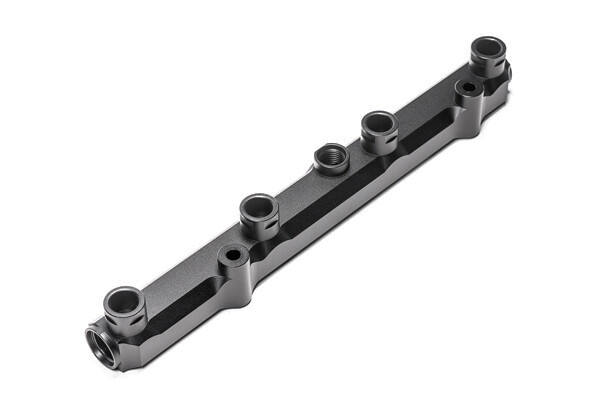

PORTS AND FITTINGS
- The fuel rail end ports are tapped for 8AN ORB. 8AN ORB adapter fittings can be found in our webshop
- The fuel rail upper center port is tapped for 1/8" NPT. 1/8" NPT adapter fittings can be found in our webshop
- The fuel rail lower center port is tapped for 6AN ORB, as shown below. 6AN ORB adapter fittings can be found in our webshop
INJECTORS

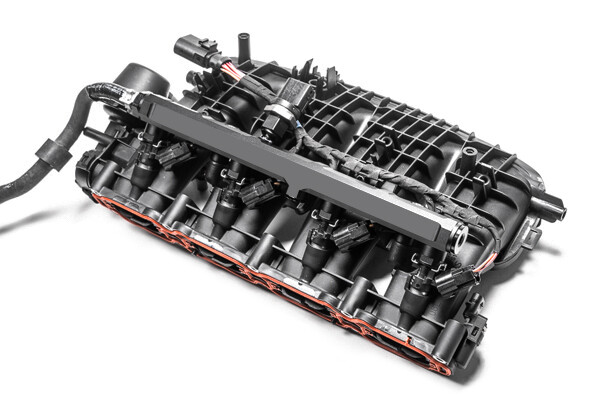

Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors, or any equivalent aftermarket injector, can be used. As shown above, the factory injector retaining clips can be reused.
FEATURES
- Lightweight aluminum construction
- Inner bore diameter: 0.7 inch
- Anodized surface finish for wear and corrosion resistance
- Can be converted to a pressure regulated return system
- No special tools required for installation
- Fits under the factory engine cover

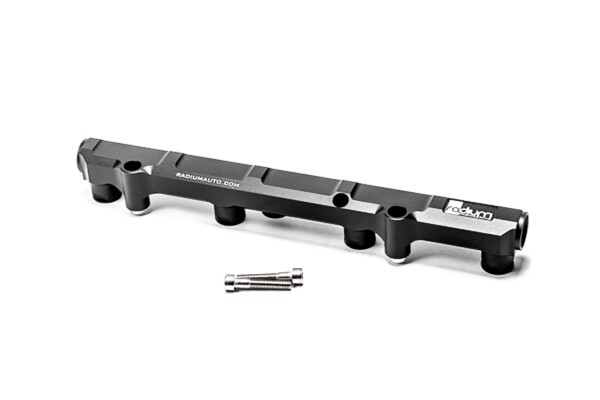

- 1x EA888 Port Injection Fuel Rail
- 2x Stainless Screws, M6x1mm
