Fuel Rail / BMW 6 Cyl. / M30

Name: Fuel Rail / BMW 6cyl / M30
Brand: Nuke Performance
SKU: 293809
Price: 275.16 GBP
Availability: InStock

6082-T6 machined aluminum, incl. brackets

AN-8 ORB threads, suitable for E85, alcohol, etc.

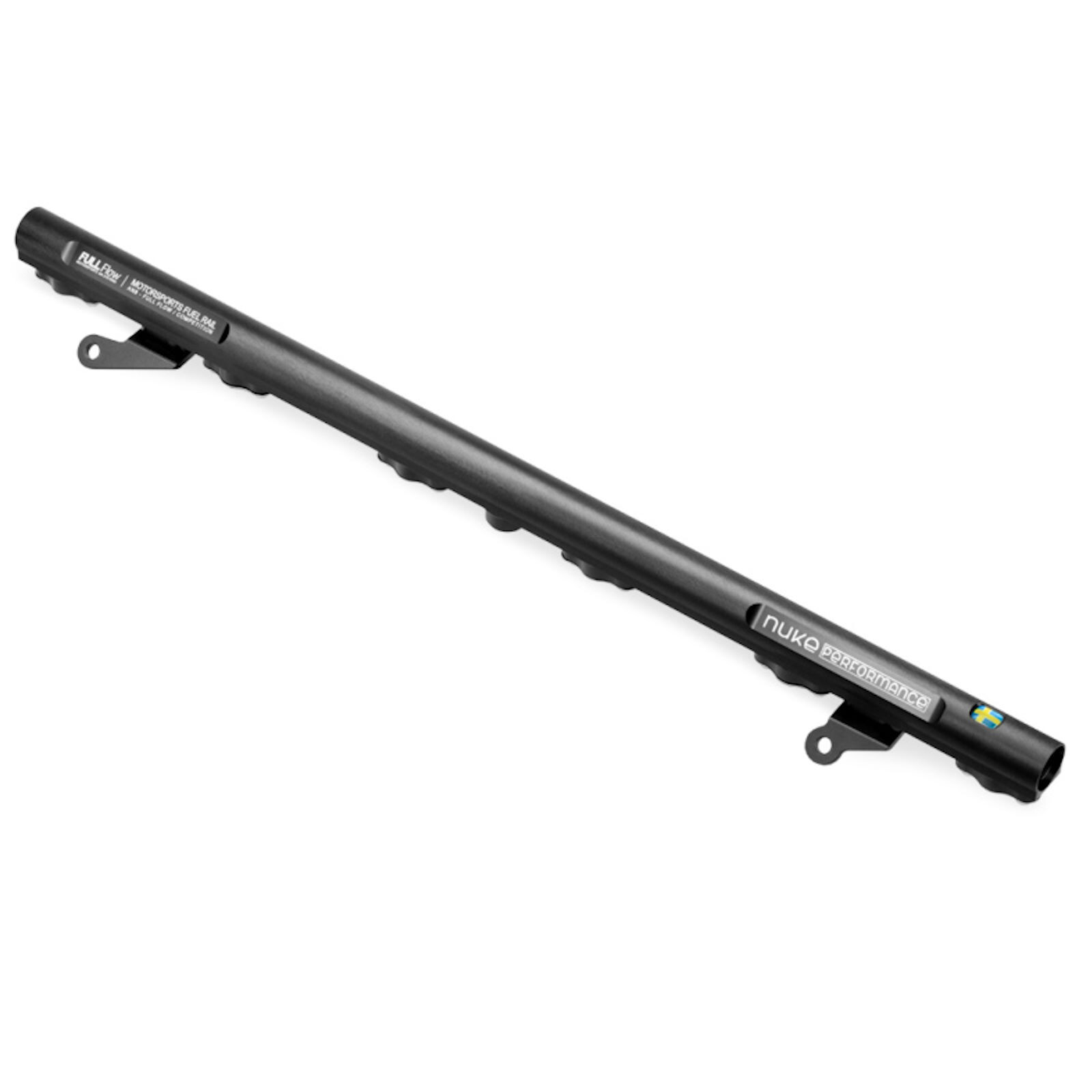

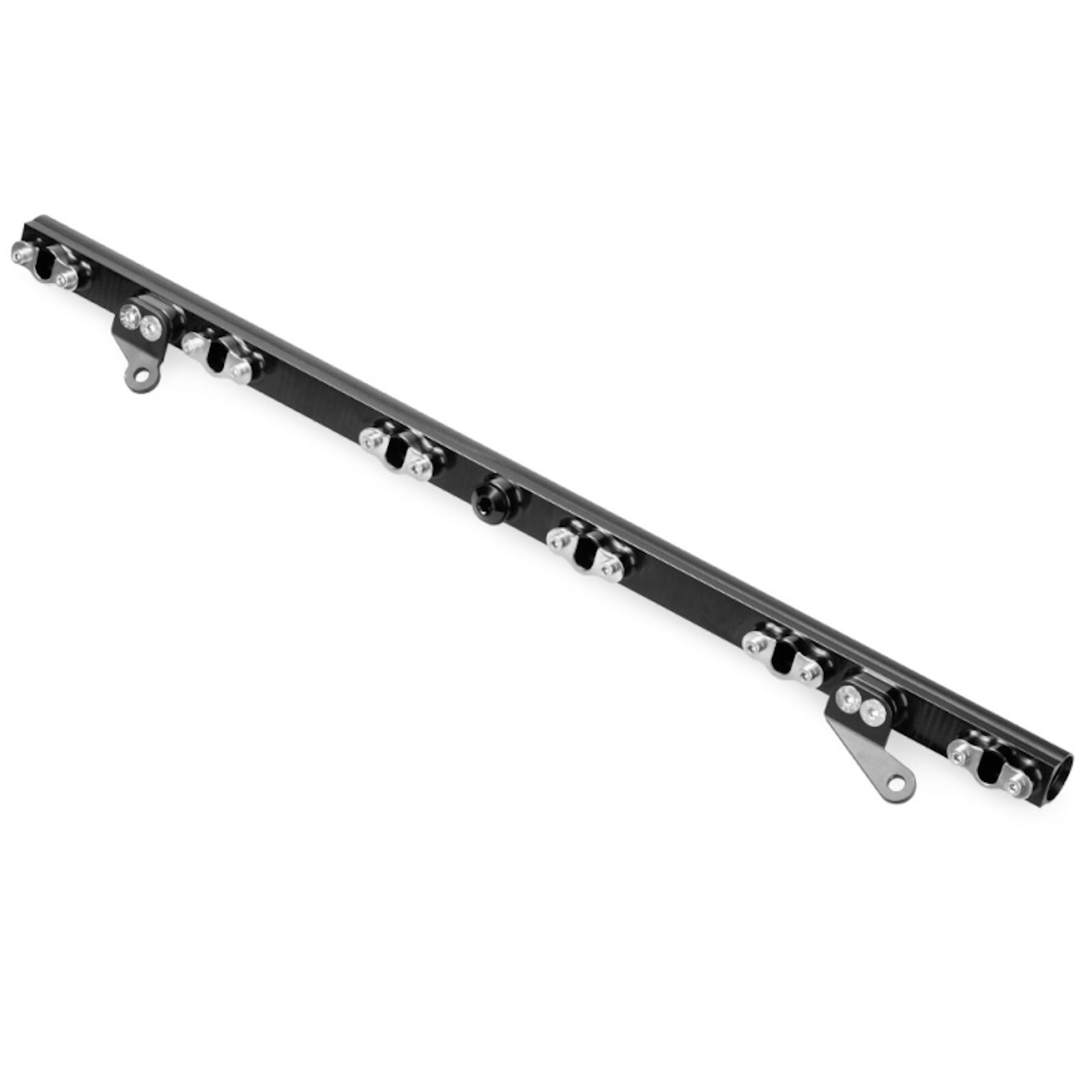

Nuke Performance fuel rail for the BMW 6-cylinder M30 engine – featuring oversized internal passages, lightweight design, and equipped with our unique injector safety clips.

Fits:

BMW M30B25 1981-1987
BMW M30B30 1971-1990
BMW M30B32 1977-1986
BMW M30B34 1982-1988
BMW M30B35 1988-1992

Lightweight fuel rail, fits BMW 6 Cylinder M30 engines
Designed for use with Bosch EV14L injectors
AN-08 / Dash 8 ORB threads at both ends for high fuel flow
Delivered with brackets for easy mounting to the BMW M30 intake manifold
AN-06 / Dash 6 ORB side outlet/inlet for optional applications
Safe for all fuel types, including alcohol-based fuels such as E85

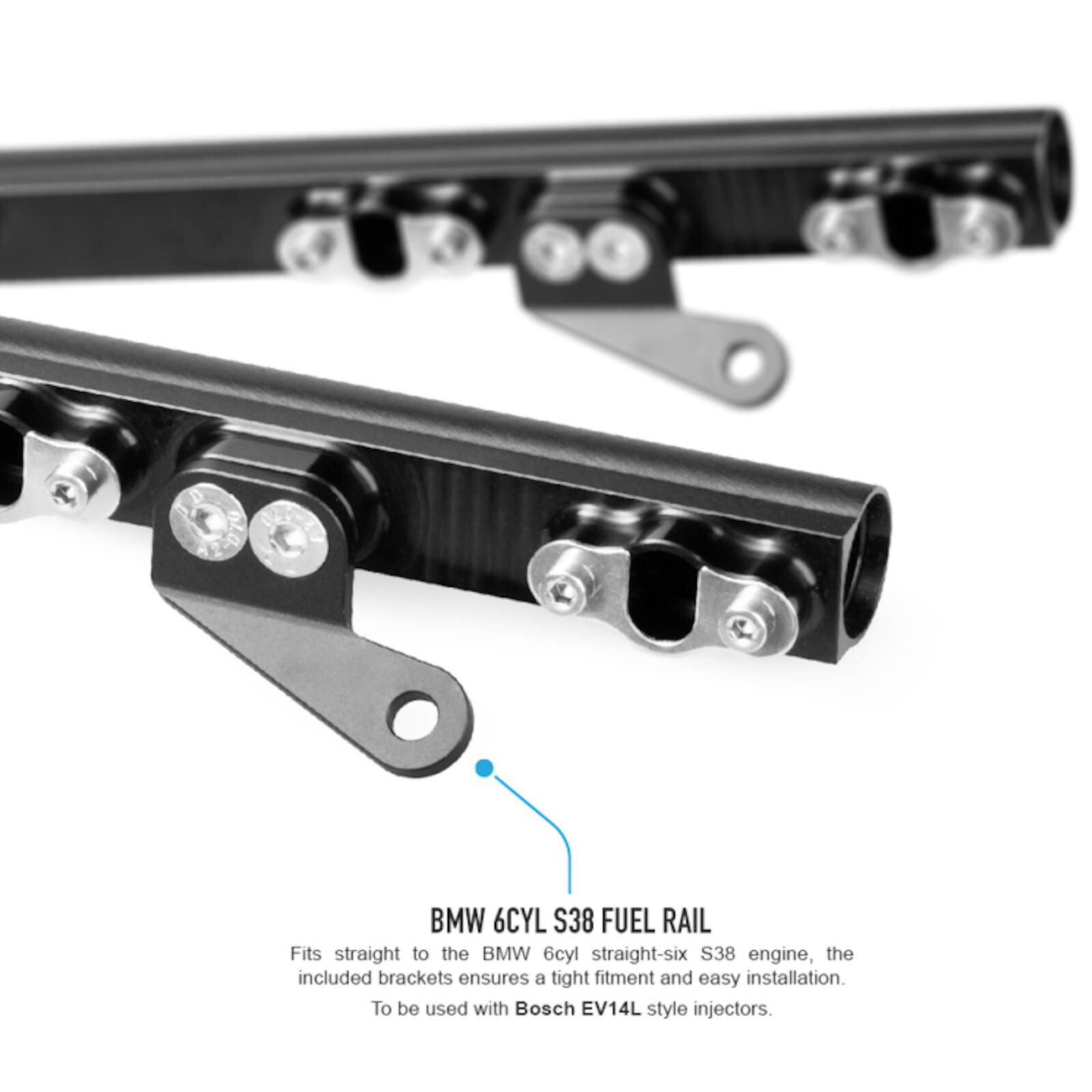

The latest generation of Nuke Performance fuel rails offers an easy fit for your engine with an extremely lightweight design. It uses the unique injector safety clips for which Nuke Performance fuel rails are known, ensuring a leak-proof seal—even in the event of a crash where the fuel rail is ripped out of the intake manifold.
The fuel rail for the BMW 6-cylinder M30 is delivered with brackets for the M30 engine and allows you to use AN fuel lines and aftermarket injectors for your classic BMW engine. Please note that this fuel rail is only compatible with the BMW M30 engine. However, we offer a wide range of fuel rails for BMW inline six-cylinder engines such as M20, M50, M54, and S50.

Scope of delivery:

1 x AN-8 ORB full-flow fuel rail for BMW 6-cylinder M30 engine
2 x aluminum brackets for BMW 6-cylinder S38 engine
1 x AN-6 ORB plug
6 x Nuke Performance injector safety clips
12 x MC6S M4x6 mm stainless steel bolts
4 x MF6S M6x10 mm stainless steel bolts
2 x K6S M6x12 mm stainless steel bolts

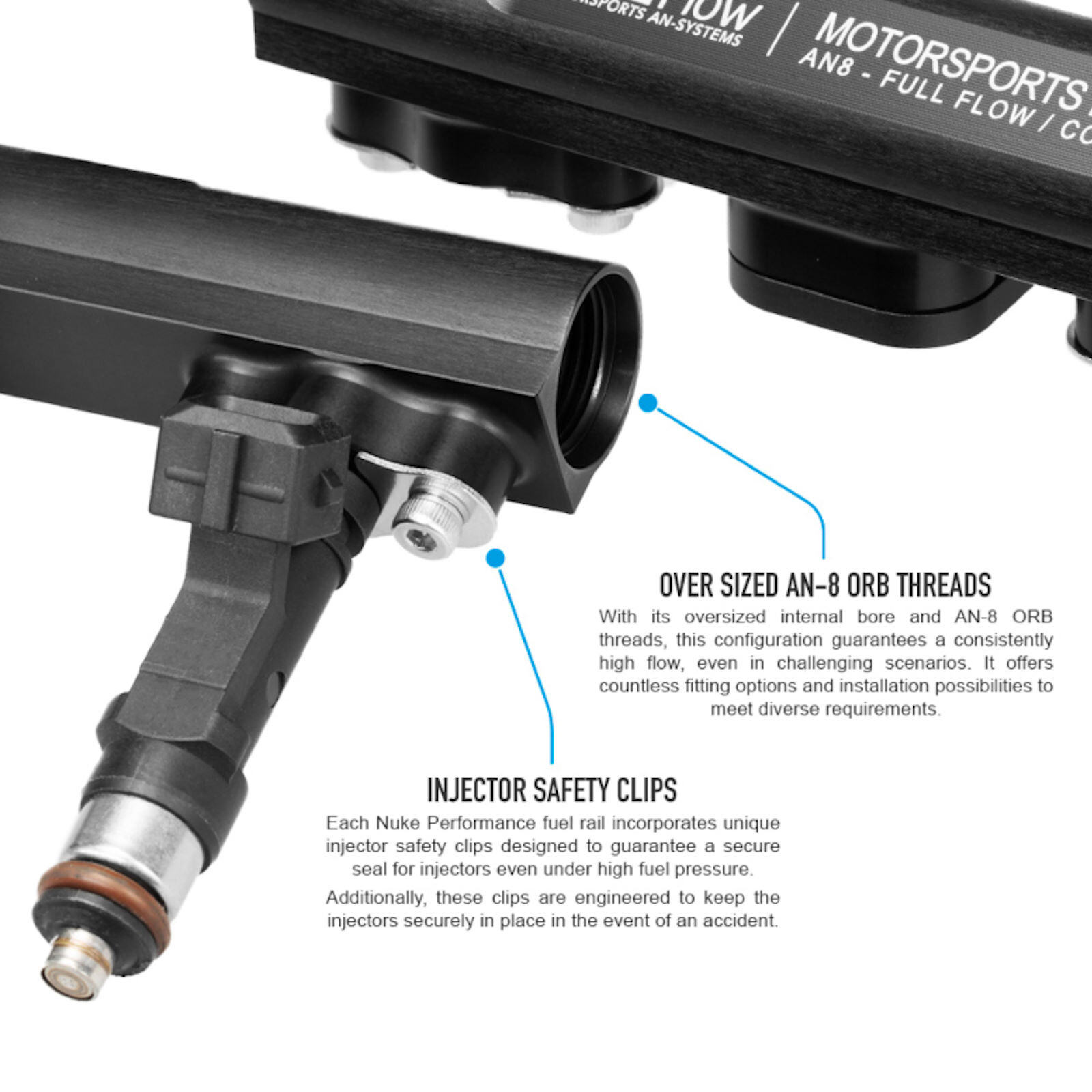

All Nuke Performance fuel rails use unique injector safety clips that ensure a perfect seal under all conditions. A distinctive feature of Nuke Performance is the use of these safety clips, which ensure a flawless seal for injectors even under extreme fuel pressure. They guarantee a safe and reliable seal even during high fuel demand. Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure that the injectors remain securely attached to the fuel rail. This design prevents fuel leakage, even if the fuel pump continues running or residual pressure remains in the fuel system.

The fuel rail is delivered with an AN-6 ORB plug for the side port, but the main port fittings are sold as accessories.

AN-8 ORB to AN-6 Male Part #: 700-04-104

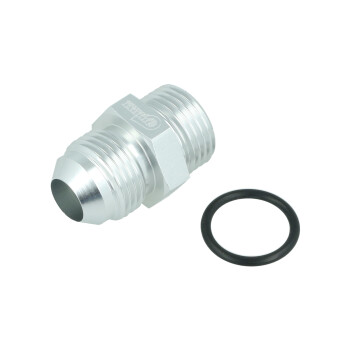

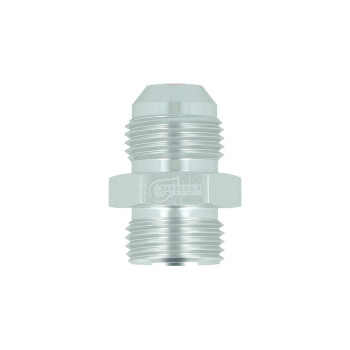

AN-8 ORB to AN-8 Male Part #: 700-04-105
AN-8 ORB to AN-10 Male Part #: 700-04-106

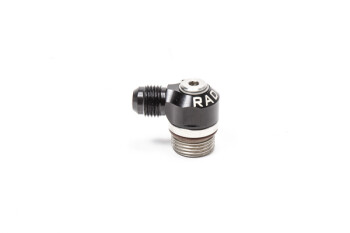

AN-8 ORB to AN-6 Male Full Flow Banjo Part #: 710-01-105

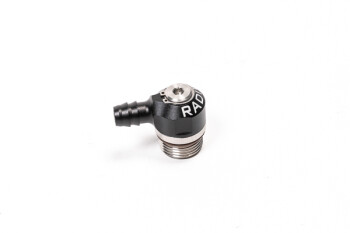

AN-8 ORB to AN-8 Male Full Flow Banjo Part #: 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part #: 710-01-107
AN-8 ORB Plug Part #: 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part #: 700-04-129

This fuel rail replaces our previous universal version for BMW 6-cylinder with 6x100 M30 and S38, part number 100-02-203, which is no longer available. The fuel rail is delivered without fittings and injectors—these need to be purchased separately as accessories.

Features

Vehicle manufacturer: BMW
Availability: to order
