Fuel Rail BMW 6-Cylinder M50 – Bolt-On

Precision CNC-machined aluminum fuel rail for BMW M50 engines (1990–1996) and U.S. S50B30US

Includes brackets for M50 engines, compatible with Bosch EV14L injectors, AN-8 ORB ports

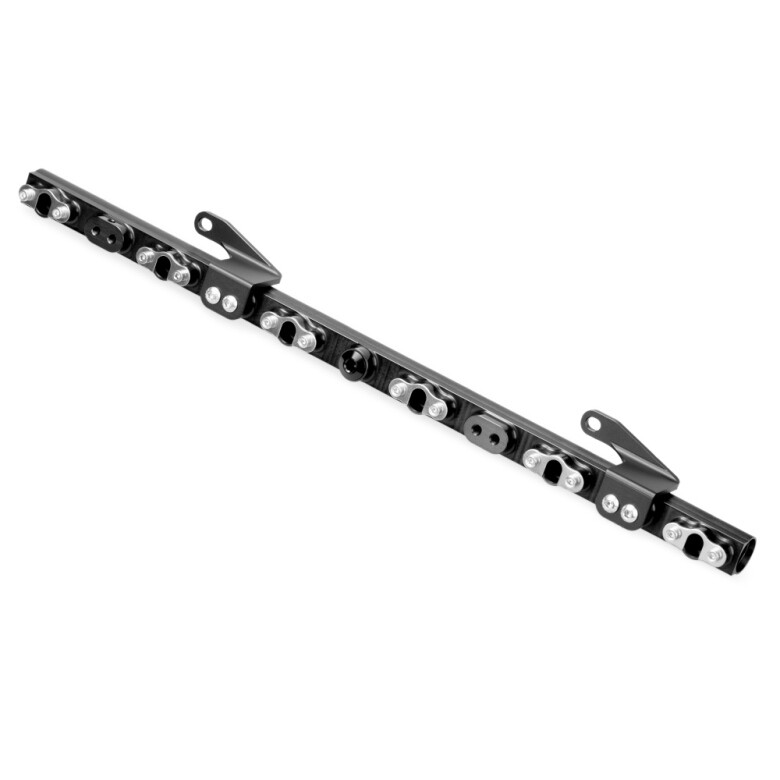

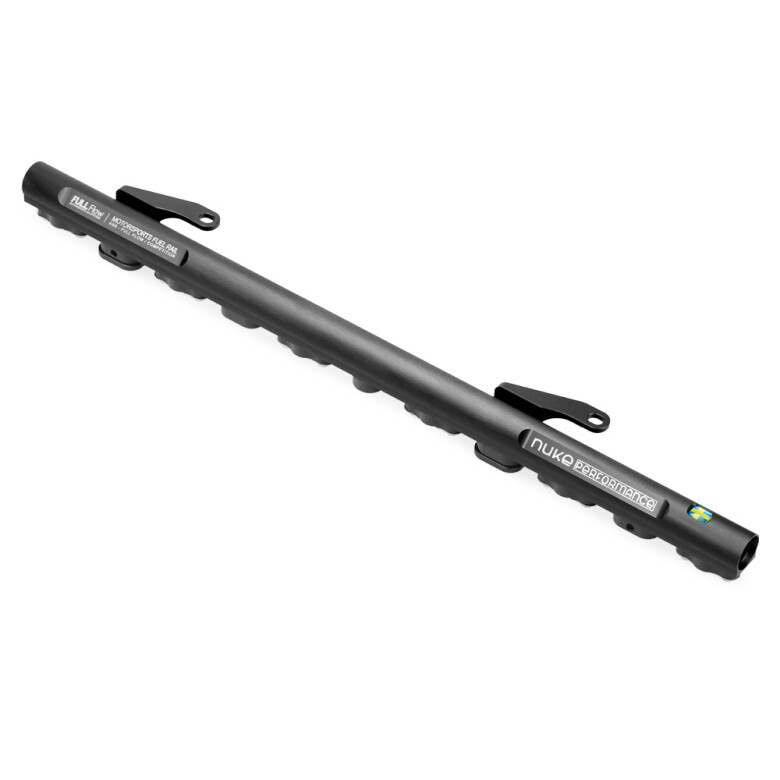

The Nuke Performance fuel rail for BMW 6-cylinder M50 engines features an oversized internal bore, lightweight construction, and Nuke’s signature injector safety clips. It comes with custom brackets for direct installation on M50 engines and supports the use of AN fuel lines and aftermarket performance injectors for classic BMW powerplants.

• Lightweight fuel rail for BMW 6-cylinder M50 engines
• Compatible with Bosch EV14L injectors
• AN-8 ORB ports on both ends for maximum fuel flow

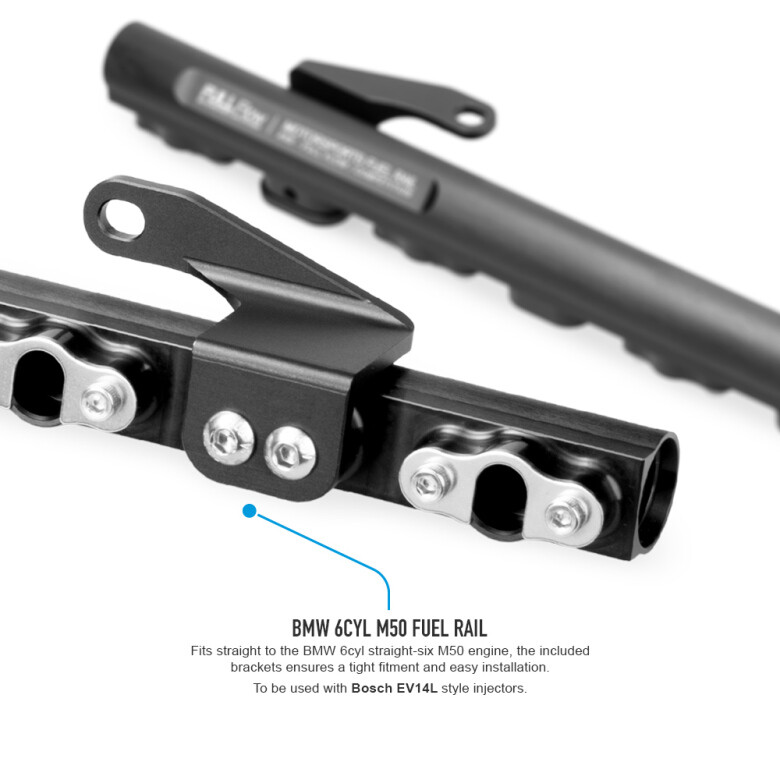

• Includes mounting brackets for easy installation on M50 intake manifolds
• Side port with AN-6 ORB thread for additional applications
• Suitable for all fuel types, including E85 and methanol

This latest generation of Nuke Performance fuel rails is extremely lightweight and easy to install. The integrated injector safety clips ensure a secure and leak-free fit—even in the event of an accident where the fuel rail may be pulled from the intake manifold.

Compatibility:

• BMW M50B20 (1990–1992)
• BMW M50B20TU (1992–1996)
• BMW M50B24TU (1992–1996)
• BMW M50B25 (1990–1992)
• BMW M50B25TU (1992–1996)
• Also compatible with the North American S50B30US engine

Note: Designed exclusively for BMW M50 engines. Additional fuel rail models for M20, M54, S50, and others are available separately.

Ports & Accessories:

The fuel rail features two AN-8 ORB threaded ports at each end, plus a side port with AN-6 ORB thread. An AN-6 ORB plug is included, while all other fittings are available separately.

• AN-8 ORB to AN-6 / AN-8 / AN-10 adapters
• AN-8 ORB full-flow banjo fittings
• AN-8 ORB to 1/8" NPT adapters

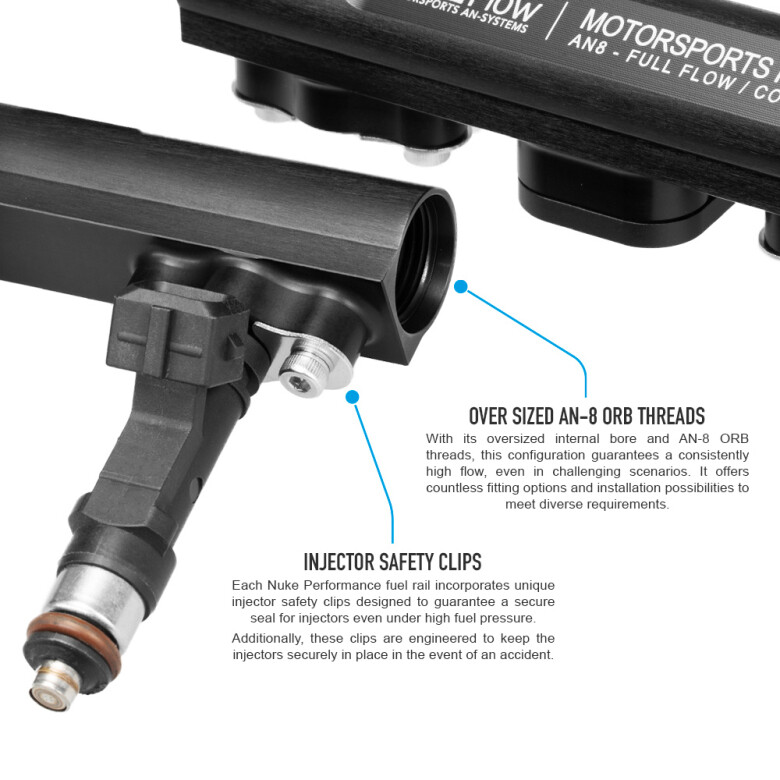

Injector Safety Clips:

All Nuke Performance fuel rails include proprietary injector safety clips, which ensure a secure and sealed connection—even under extreme operating conditions, including heavy vibrations, high pressure, or accidents where the fuel pump continues to run.

Design & Quality:

Designed and manufactured in Sweden, this fuel rail meets the highest quality standards. Developed in collaboration with motorsports teams and BMW specialists, it delivers outstanding functionality and helps set a new benchmark for aftermarket performance components.

Technical Specifications:

• Fits BMW 6-cylinder M50 engines (1990–1996)
• Injector type: Bosch EV14 L
• End ports: AN-8 ORB thread
• Side port: AN-6 ORB thread
• Length: 500 mm
• Height: 32 mm
• Weight: 427 g
• Fuel compatibility: Petrol, Ethanol (E85/E100), Methanol
• Part number: 120-02-102
• EAN: 7340209506778
• Application: Motorsport / Performance Tuning
• Replaces previous model: 100-02-202

Scope of Delivery:

• 1 × Fuel rail with AN-8 ORB end ports
• 2 × CNC-machined aluminum brackets
• 1 × AN-6 ORB plug
• 6 × Injector safety clips
• 12 × M4x6 mm stainless steel screws
• 4 × M6x10 mm stainless steel screws
• 2 × M6x12 mm stainless steel screws

The fuel rail is delivered without fittings and injectors – these must be purchased separately.
