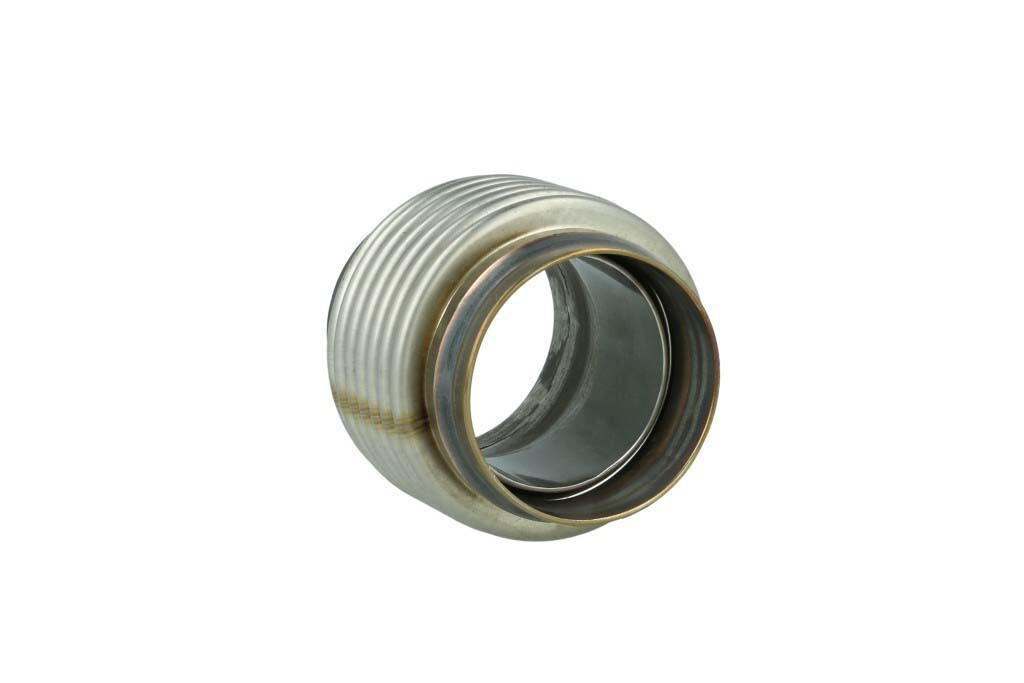

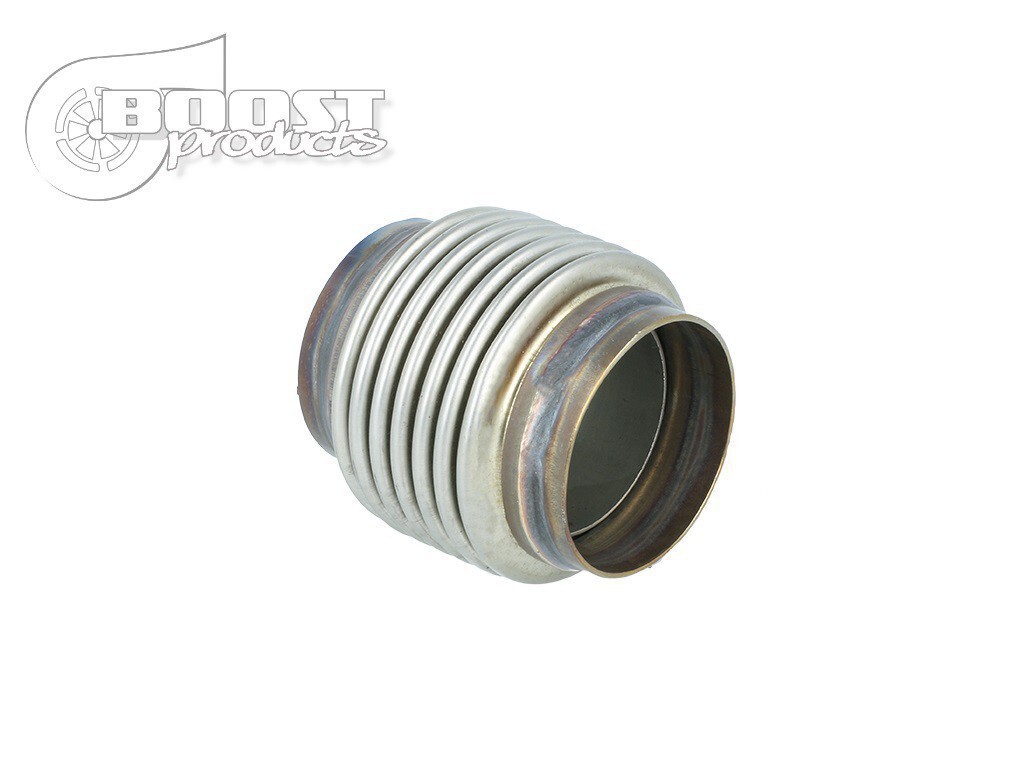

BOOST products Flexible Bellow HD 76mm
HD Version with inner pipe, more durable but still flexible
Completely made of Stainless Steel, gas tight and extremely stable

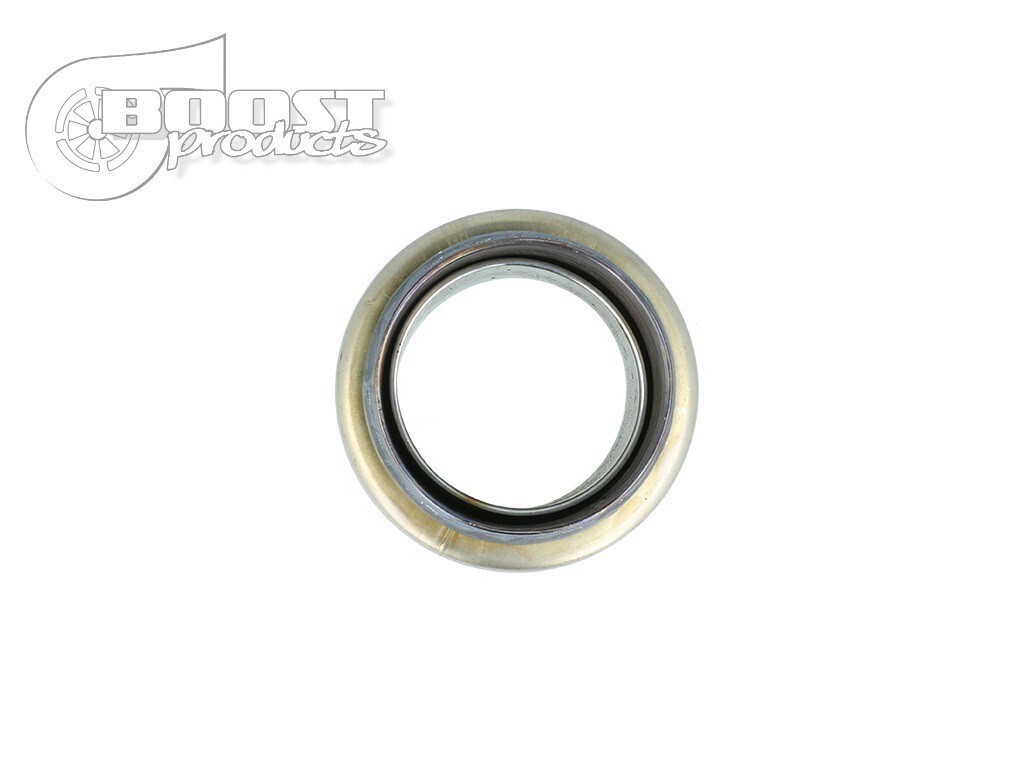

This compensator has an inner pipe what keeps the gas flow straight and avoids the direct heat to the outer flex waves. But the inner pipe makes the inner diameter smaller, where we recommend to use always one size bigger than at the standard compensators. Best purpose is the construction of Wastegate pipes, downpipes, exhaust systems or manifold construction. The BOOST products Flex Pipe Compensators are extremely resilient but still flexible. Completely made of Stainless Steel.
IMPORTANT:
A compensator compensates like the name says expansions caused by temperature. For example Wastegate pipes before and after the turbocharger. It serves to compensate the expansions on these spots to prevent cracking of these pipes.
It is not in the position to absorb heavy load and is thereby not suitable as a Flex Pipe substitute. Here we recommend a reinforced Flex Pipe from our product portfolio.
Material: stainless steel 1.4301 / SS304/ V2A
Outer diameter exhaust pipe: 100mm
Inner diameter exhaust pipe: 76mm
Inner diameter HD pipe (intenal pipe): 65mm
Length: 100mm
Note: At all messurements are slightly differences possible because production procedures.
5 Years BOOST products Warranty
For this item you receive 5 years warranty in the Area of the Federal Republic of Germany, additionally to the legal guarantee. The processing is handled directly by BOOST products GmbH regarding the BOOST products Warranty Terms. You find these at www.boost-products.eu/en/cont/warranty-conditions/.
