Flange (outlet) T4 turbine housings G40 / G42 / G45

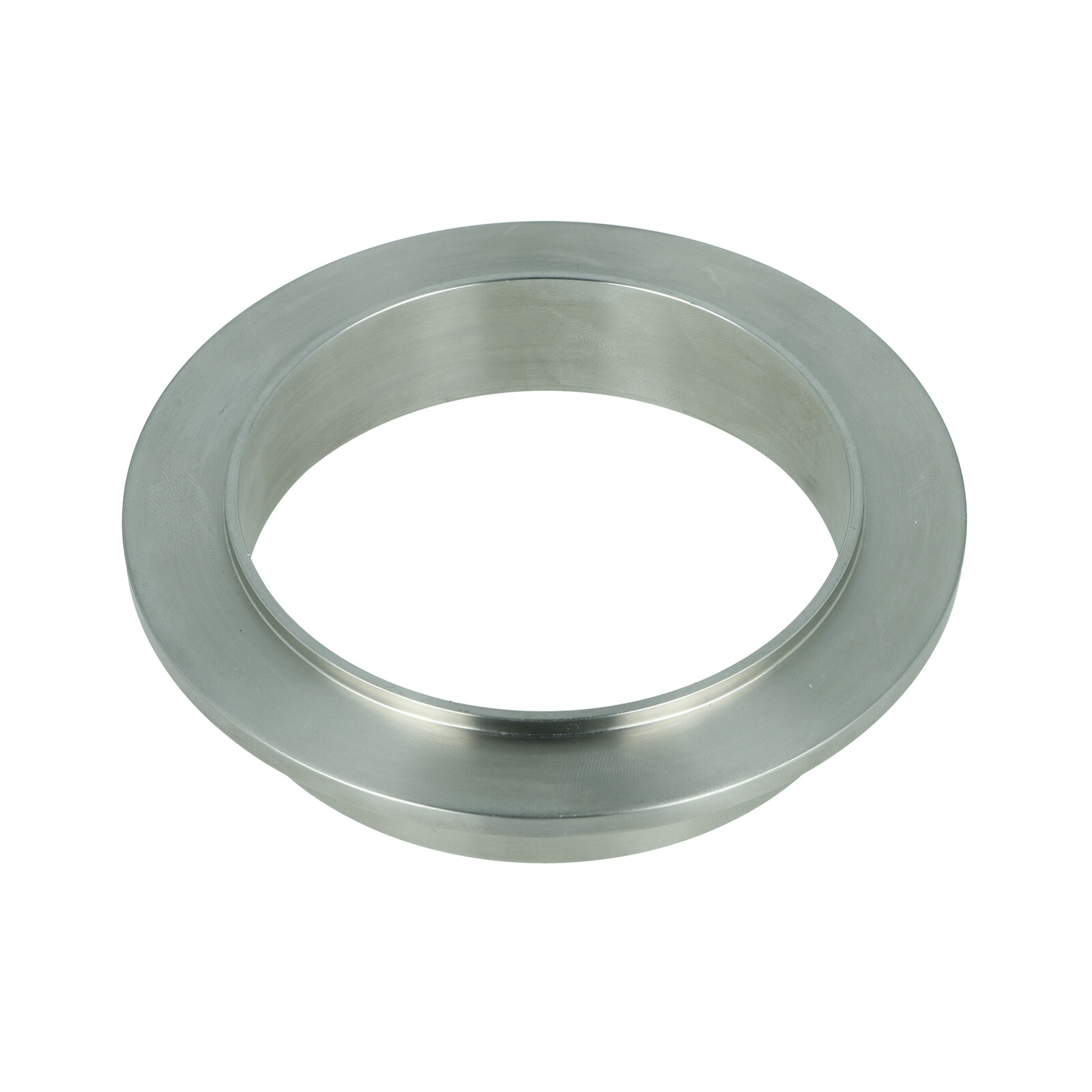

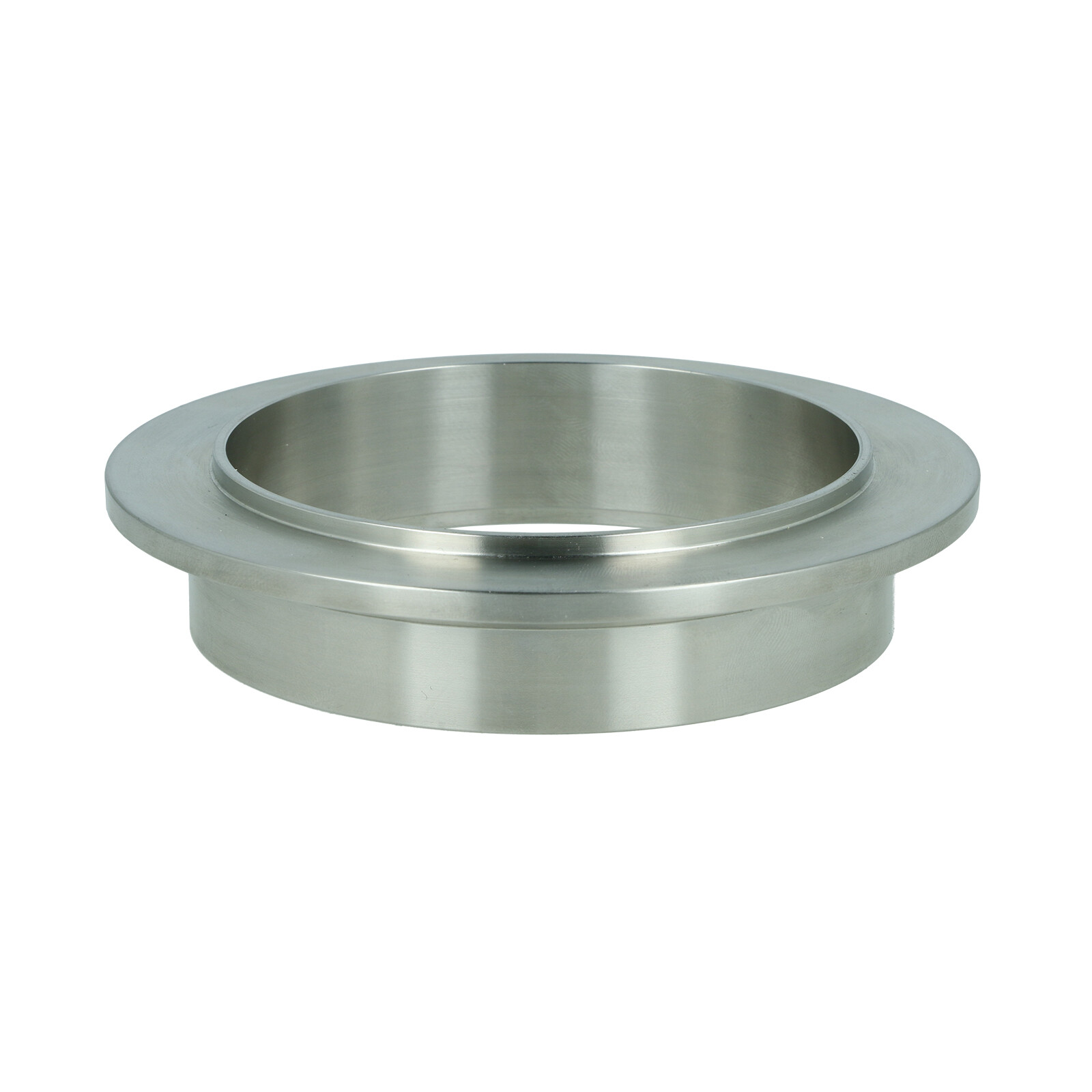

Stainless steel V-Band flange for T4 Ni-Resist turbine housings (outlet)
Fits for the outlet for Garrett G40 / G42 / G45 T4 exhaust housings
TurboZentrum stainless steel V-Band flange, fits for the outlet (downpipe side) of the Garrett Ni-resist twincroll T4 turbine housings (see list below). Fits for the outlet of  G40-900 / G40-1150 / G42-1200 / G42-1450 / G45-1125 / G45-1350 / G45-1500 T4 twinscroll exhaust housings.
Application: Outlet of the T4 turbine housing
Material: Stainless steel
Fits for turbocharger (outlet / manifold side):
G40-900 / G40-1150:
757707-0032
757707-0033
757707-0034
757707-0035
G42-1200 Compact:
- 879779-5004S
- 879779-5005S
- 879779-5006S
G42-1200:
- 879779-5010S
- 879779-5011S
- 879779-5012S
G42-1450:
- 879779-5016S
- 879779-5017S
- 879779-5018S
G45-1125 / G45-1350 / G45-1500:
- 757707-0023
- 757707-0024
- 757707-0025
- 757707-0026
- Model: single flange
- Usage: Turbocharger to Downpipe
- Flange type: T4 divided / TwinScrollV-Band
- Product Type: V-Band
- Turbocharger: G40-1150G42-1200G42-1450G45-1125G45-1350G45-1500G40-900
