Stainless Steel downpipe V-Band Flange 76mm for Precision / Turbonetics / EFR
High Quality V2A V-Band Ring
For Downpipe pipe construction with 76mm exhaust pipes

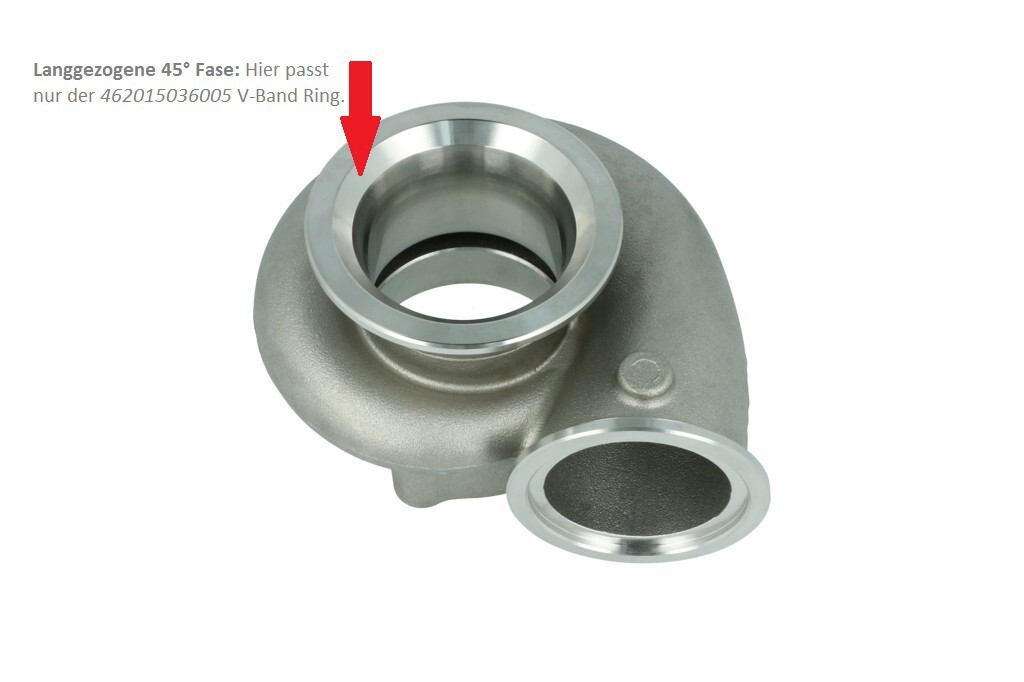

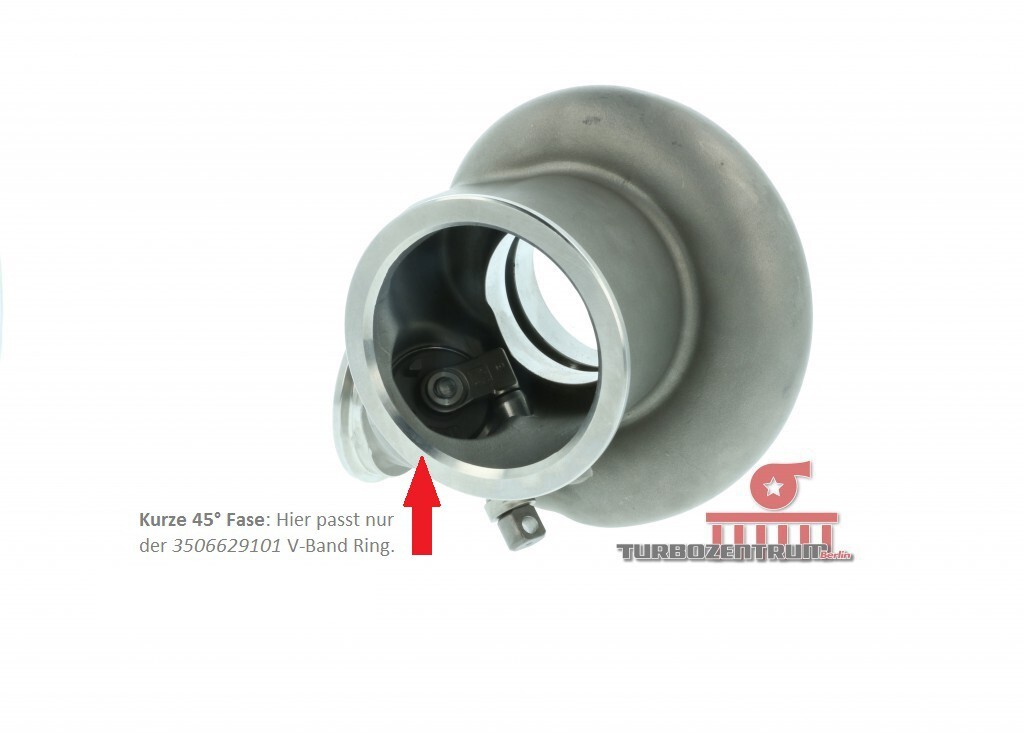

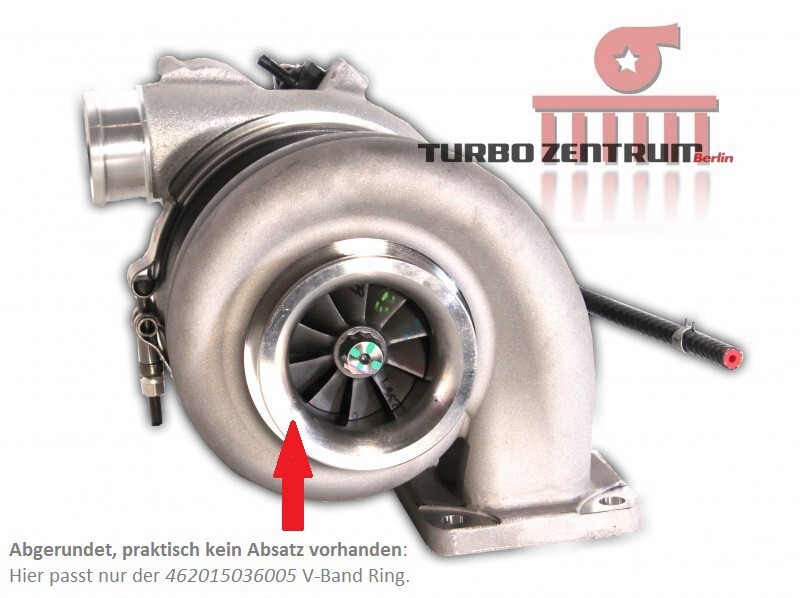

Note: Unfortunately there are different bevel runouts / grooves at the exit of the EFR turbine housing to the downpipe depending on the batch. This V-Band ring fits on All EFR turbochargers on the outlet side, as this V-Band flange deliberately has no centering. Some EFR exhaust housings have a pronounced centering chamfer / groove and a V-Band ring with centering does not fit- For a better understanding we have uploaded additional pictures.

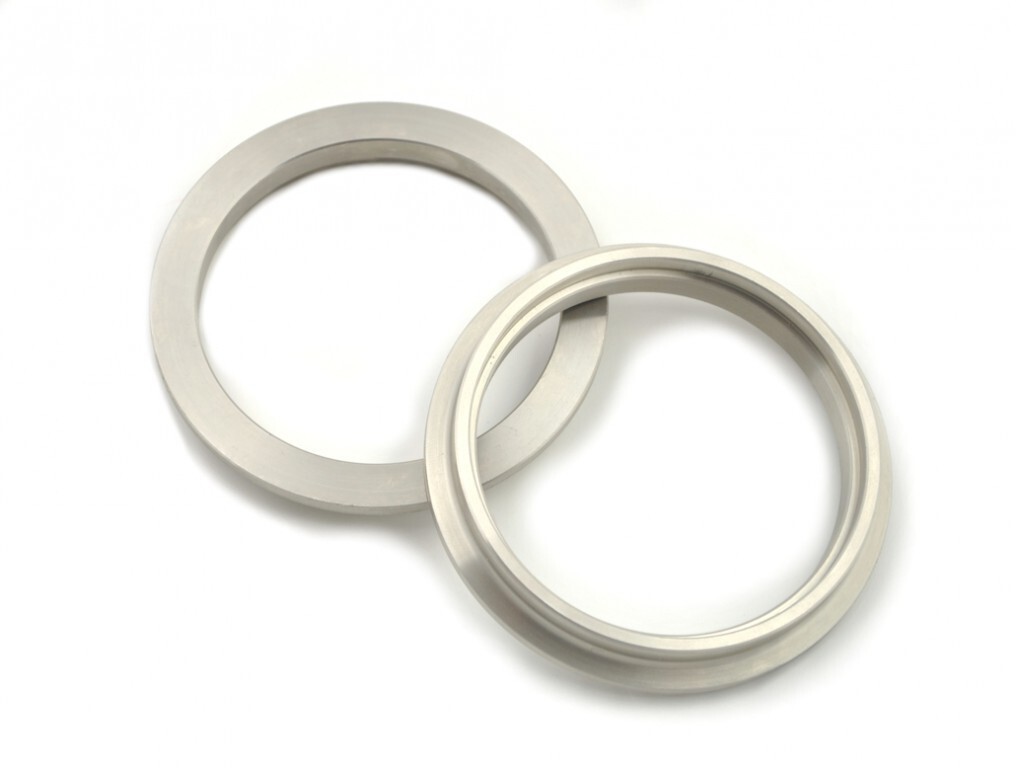

Stainless steel V-band ring 92mm (measured outside - For 76mm exhaust pipes) with low profile, suitable for all EFR, Turbonetics T4 and Precision T4 exhaust housings. The V-band flange is made from a forged piece of 304 stainless steel. A solid material that does not simply warp like other flanges that are cast and then machined.
Material: Stainless steel / V2A
Inside diameter: 76mm / 3"
Fits the following turbochargers:
- All EFR
- Turbonetics with T4 turbine housings
- Precision Turbo with T4 exhaust sides
- Usage: Turbocharger to Downpipe
- Flange type: V-Band
- Availability: to order
- Material: Stainless Steel
- Model: single flange
