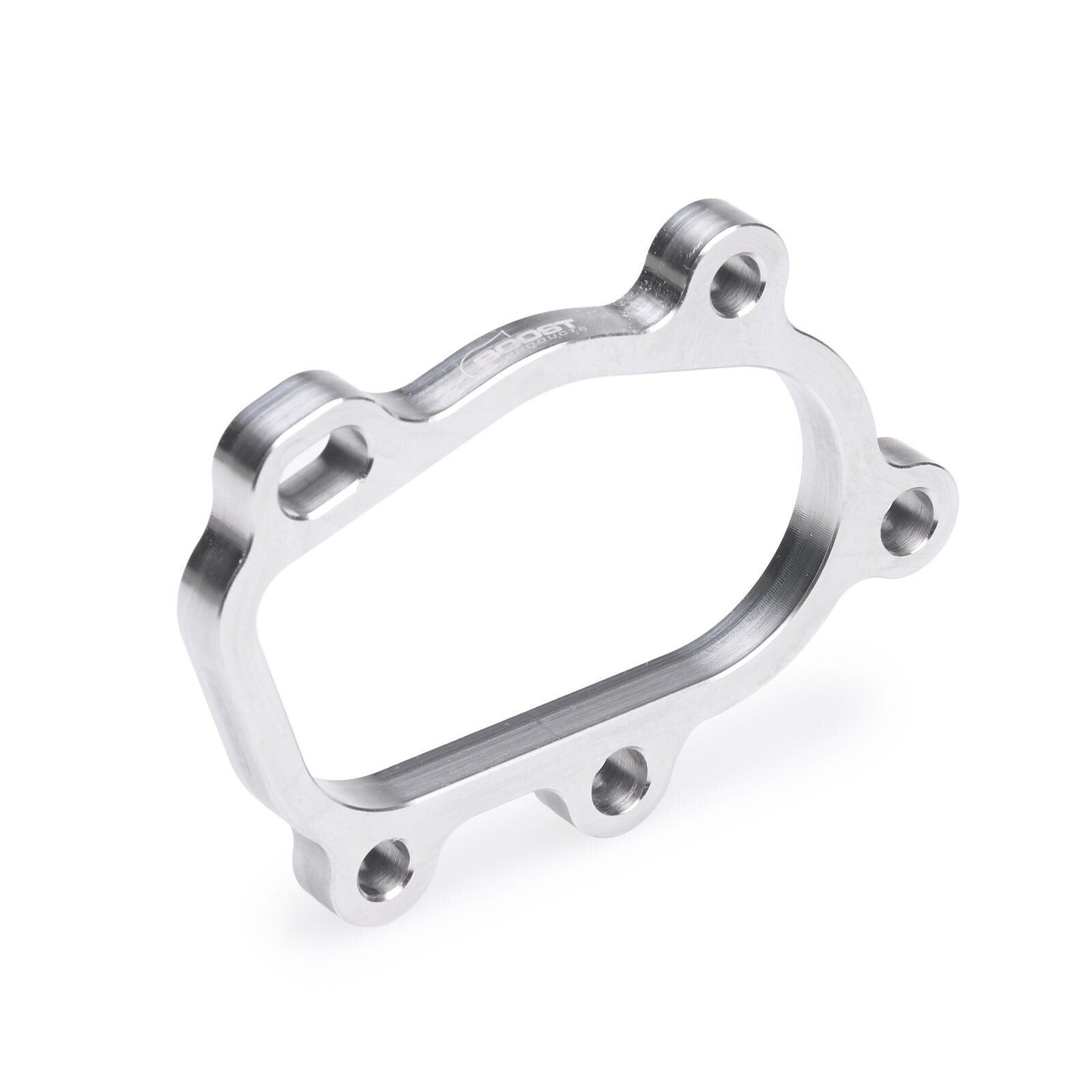

Downpipe Flange 5-Bolt GT2X / GBC
Stainless flange for fabrication of the downpipe
Premium stainless steel downpipe flange
This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.
Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 125mm (max. height) x 90mm (max. width)
Dimensions cut-out: 76mm Oval
Thread: for M8
Extras / Features: No threads! Holes 9mm!
For / Fits:
Turbocharger GT25XX / GT28XX
GBC17-250, GBC20-300, GBC22-350
Garrett GT2554R (GT25R)
Garrett GT2560R (GT28R)
Garrett GT2860RS (GT28RS)
Garrett GT2871R
Garrett GT2876R (GT25/40R)
Garrett GT3071R-WG with T28 turbine housing
Garrett GT3076R-WG with T28 turbine housing
Garrett T25 , T25BB
Garrett T28 , T28BB
