Connector Housing Set for Bosch Performance Fuel Temperature / Oil Pressure Sensor - 026154401F / 0261230482 / 0261230340
Equivalent to Bosch 1928405159 – 5-pin trapezoidal connector
Complete kit incl. single wire seals 1928300934 and female terminals 1928498143

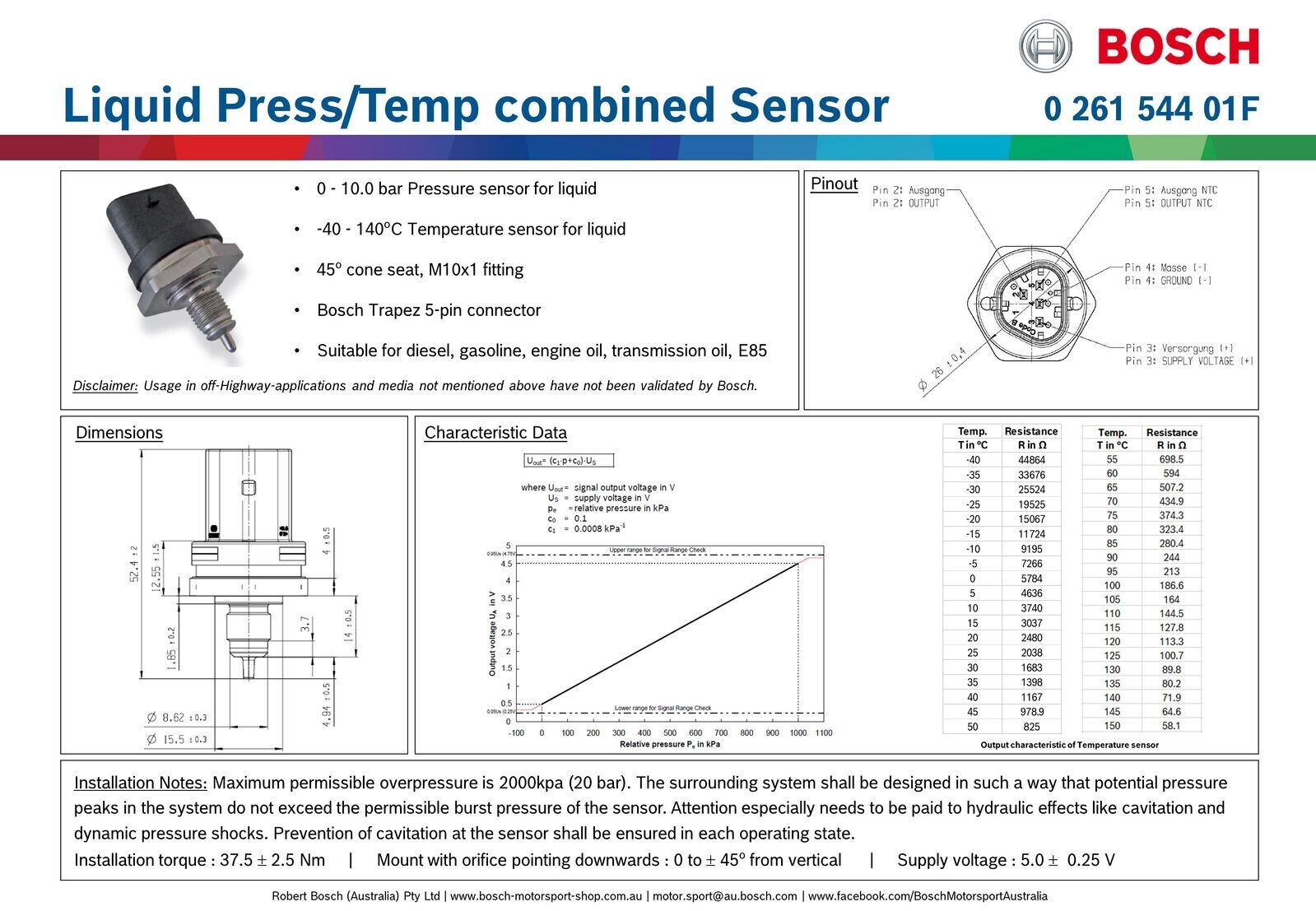

Note: The connector housing (NOT the sensor) may have incorrectly printed pin numbers. Please always refer to the pin assignment shown in the Bosch PDF in our images and do not rely on the numbers printed on the connector itself.
High-quality 5-pin trapezoidal connector housing, designed for demanding automotive applications where high temperatures, vibrations, and moisture are present. Thanks to its robust design and reliable sealing, this connector meets the highest OEM standards.
Technical Data
- Bosch reference number: 1928405159 (1 928 405 159)
- Type: Trapezoidal connector housing, 5-pin, female, Code B
- Dimensions: approx. 26.03 × 23.01 × 27.8 mm
- Color: Blue
- Material: PA66 GF (glass fiber reinforced plastic)
- Terminal size: 1.2 mm
- Wire cross-section: 0.35–1.00 mm² (22–18 AWG)
- Temperature range: −40 °C to +150 °C
- Current capacity: approx. 15 A per contact
- Voltage: approx. 42 V DC
- Protection rating: IPX9K (waterproof and vibration-resistant)
- Locking mechanism: Lance-locking + CPA secondary lock
- Vibration resistance: up to 45 G

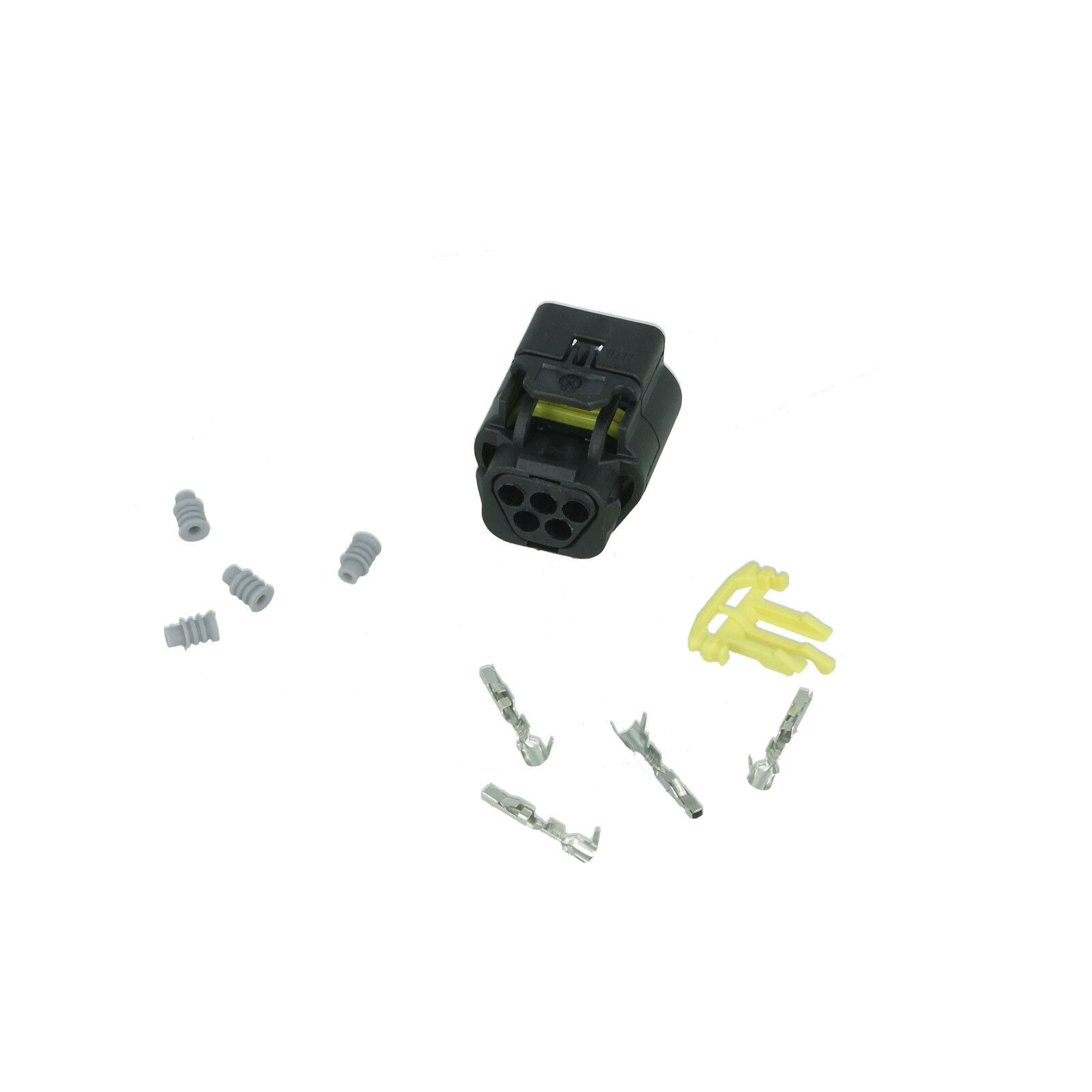

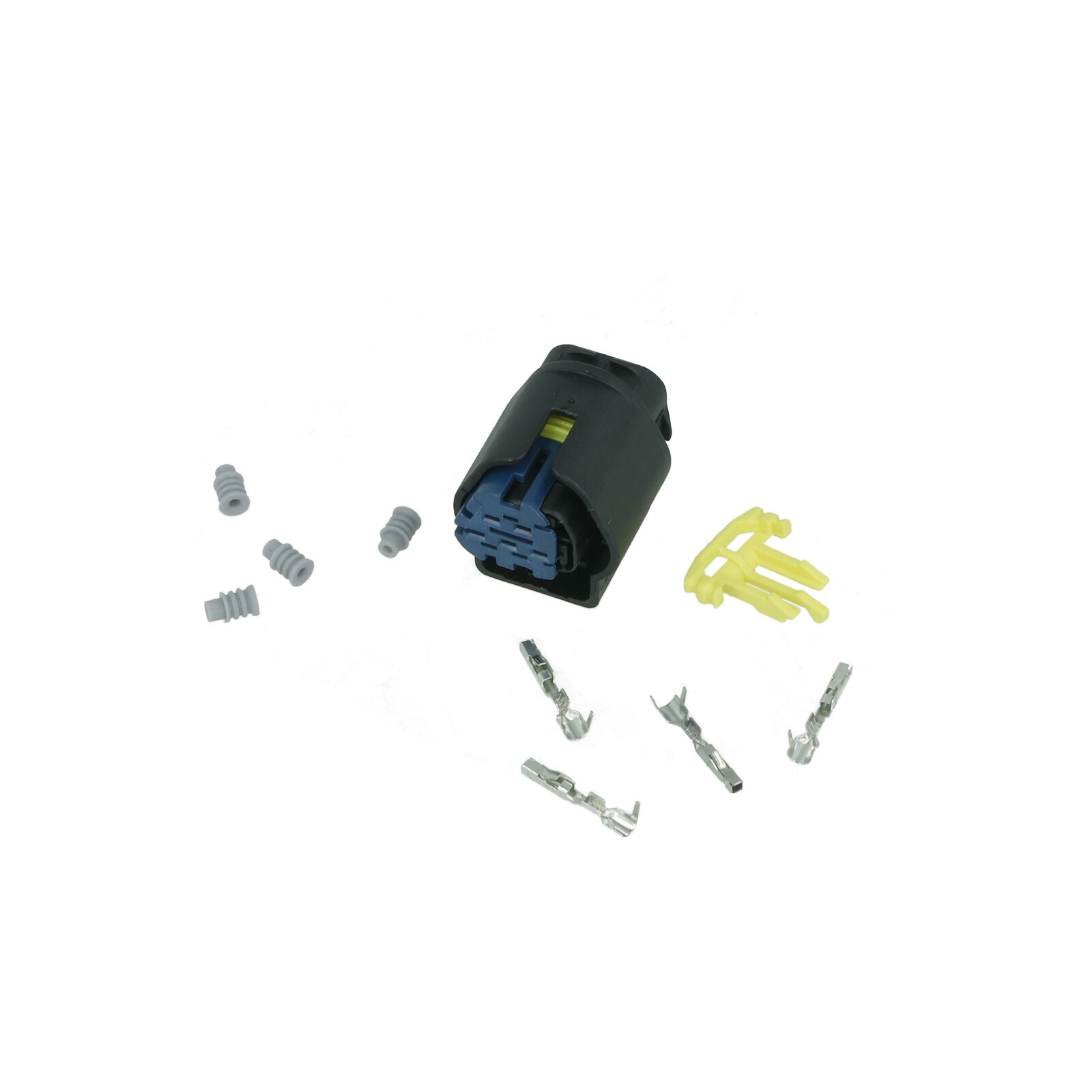

- 1x connector housing (equivalent to Bosch 1928405159)
- 5x female terminals 1.2 mm (equivalent to Bosch 1928498143)
- 5x single wire seals (equivalent to Bosch 1928300934)
This connector housing is commonly used in automotive applications, especially for components such as mass air flow sensors, fuel pumps, sensors, and actuators. Typical installation areas include the engine bay, transmission area, or other locations exposed to heat and moisture. Vehicles like the Opel Cruze or Honda Accord use this type of connector as standard. The connector corresponds to Bosch 1928405159 and is a reliable, durable, and secure 5-pin connector for automotive applications. With its IPX9K seal, high temperature resistance, and Bosch-quality standard, it is ideal for critical electrical connections in vehicles.
Special Features
- OEM quality by Bosch
- High resistance to temperature and vibration
- Waterproof and dustproof thanks to individual wire sealing
- Easy assembly via secondary lock (CPA)
