CANchecked boost pressure sensor 4,5 bar / 65 psi
Electronic boost pressure sensor up to 4.5 Bar / 65 Psi
Fits for displays, gauges, boost controller, MFD28, MFD32, Zada Tech, standalone ECU's
After great demand we now offer the CANchecked 4,5 Bar boost pressure sensor individually!
Finally available and only at the TurboZentrum, the CANchecked 4,5 Bar / 65 Psi boost pressure sensor! Compatible with all CANchecked displays and numerous other displays and gauges or standalone ECU's! In contrast to other suppliers, this sensor can display boost pressures up to 4.5 Bar / 65 Psi!
Key Features of the Boost Controller incl. 4,5 Bar LD-Sensor
- Up to a maximum of 4,5 Bar / 65 Psi
- With plug and connection pins for self crimping
- Works with all displays / gauges / free programmable ECU systems
The following ECUs have already been tested:
- trijekt (Premium, Bee, trigifant)
- Megasquirt 2 and 3
- k-data KDFI
- UMC1/UMC2
- EFIgnition
- Microsquirt
- EcuMaster EMU (classic with Can-Bus adapter: EMU Black)
- AIM generic protocol
- LinkECU
- Haltech v2
- MME ECU481 with Can Bus
- SCS Delta GDI4 and Delta
- VAG (Audi / VW / Seat)
- Van kronenburg KMS MD35 (MP25 with CAN-Bus Adapter)
- VEMS with serial adapter
If your ECU is not listed, please contact us.

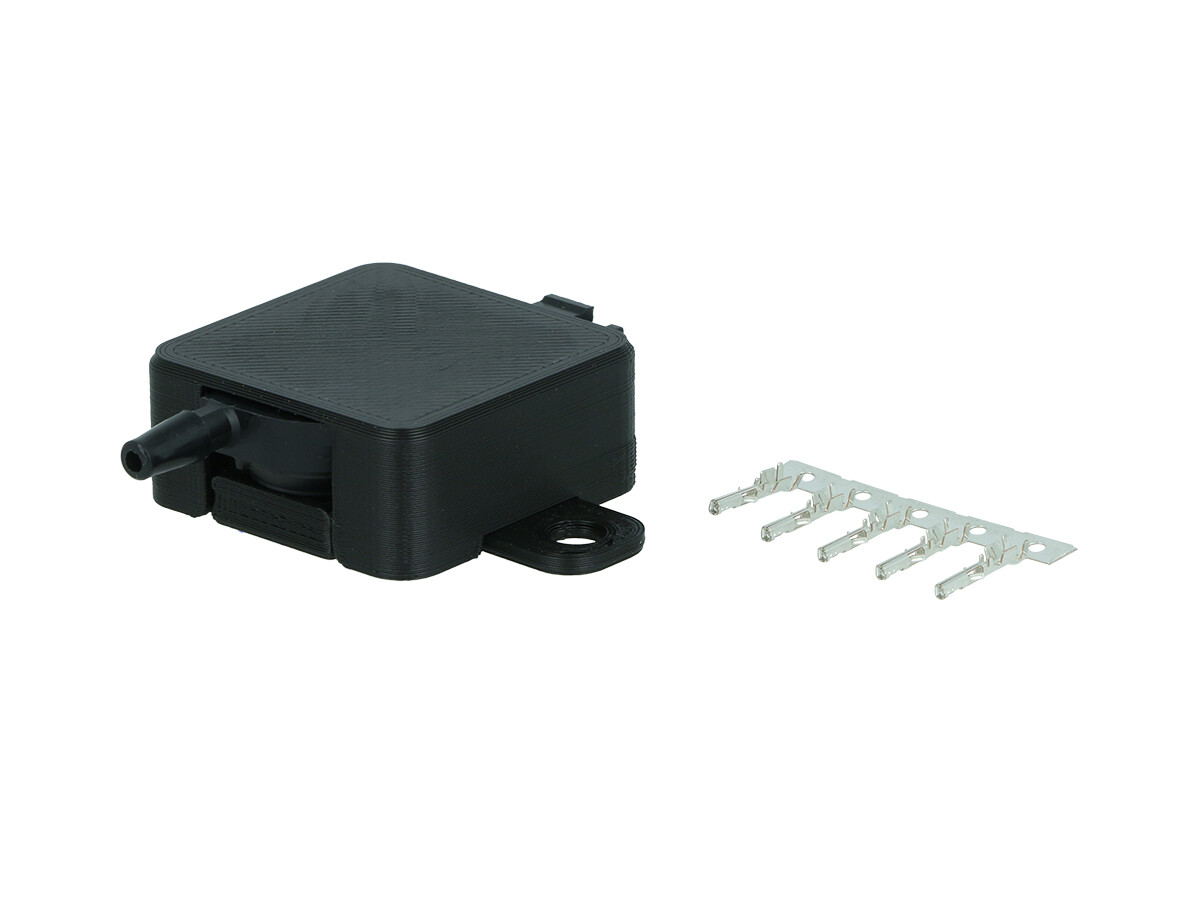

Scope of delivery
- 4.5 Bar boost pressure sensor
- Connector plug
- Pins for crimping cables

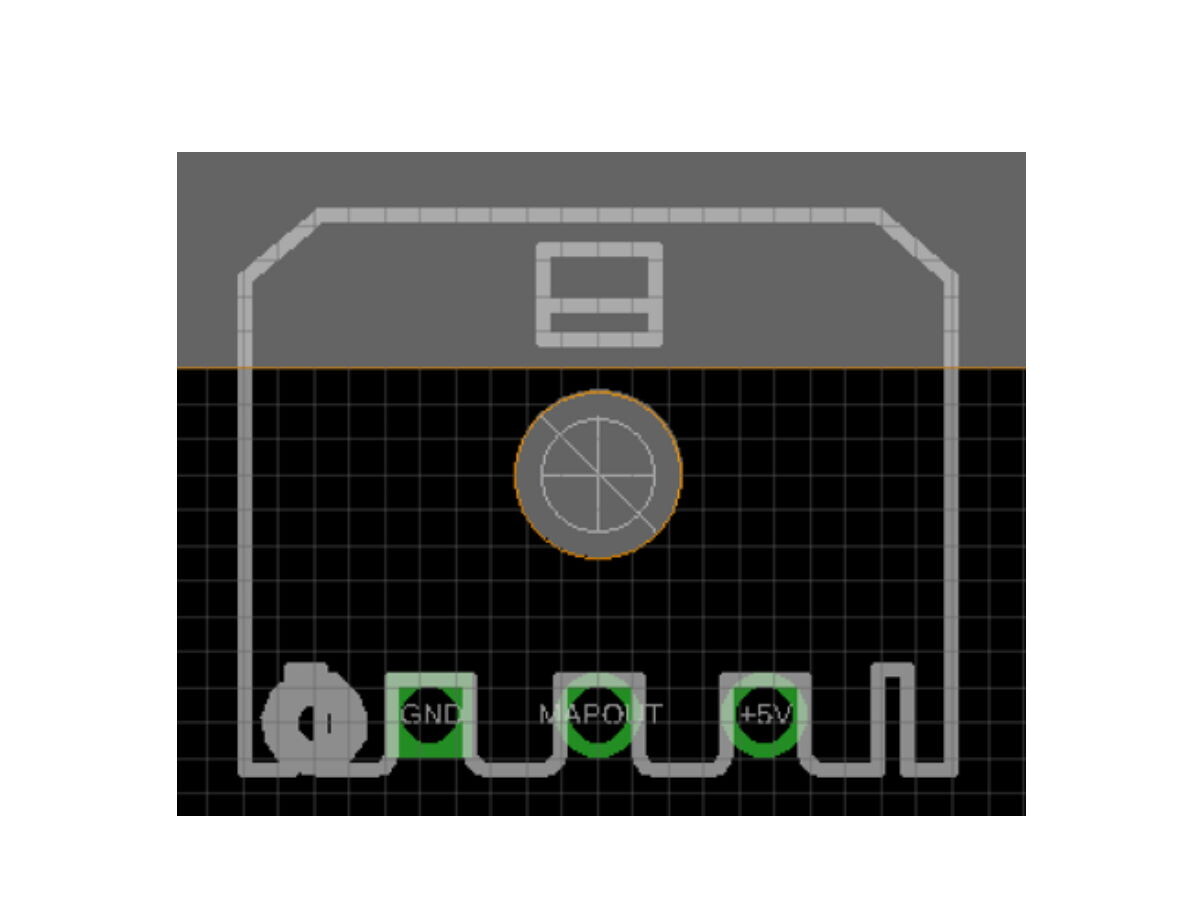

Connection pinout of the sensor connector to the MFD28 / MFD32 display:
5V -> A2
Ground -> A6
Signal -> A8
0-5V output curve:
0V = -1,3 BAR
5V = 6,77 BAR
- Gauge Value: Boost pressure
- Model: digital
