TMC01 - Tire Temperature Monitoring Single / Wired
Technology from Motorsport with CAN Bus Based Tire Temperature Measurement
Sensor for Measuring Brake Temperature

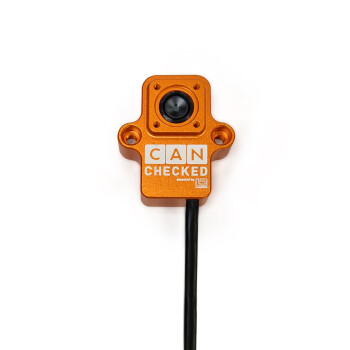

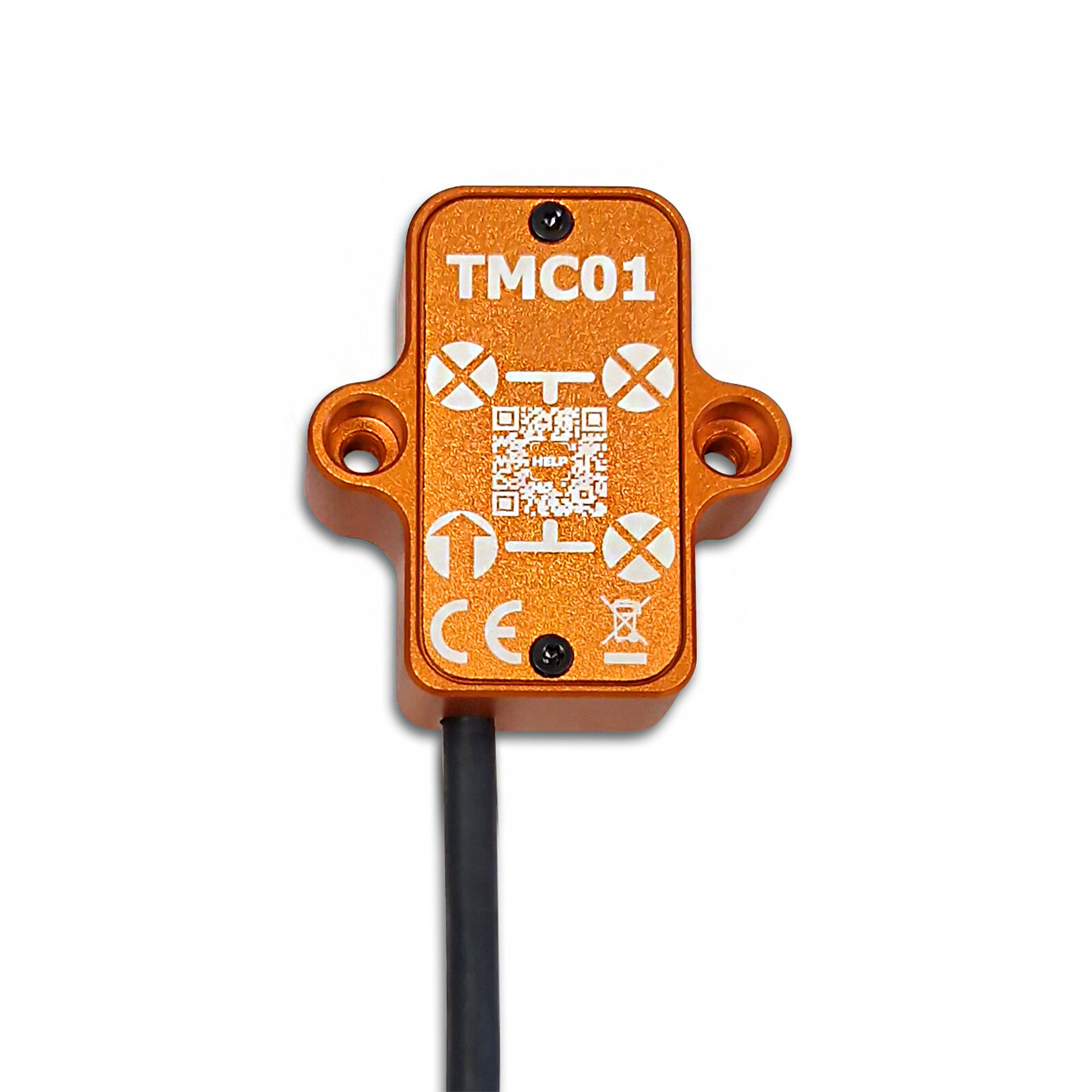

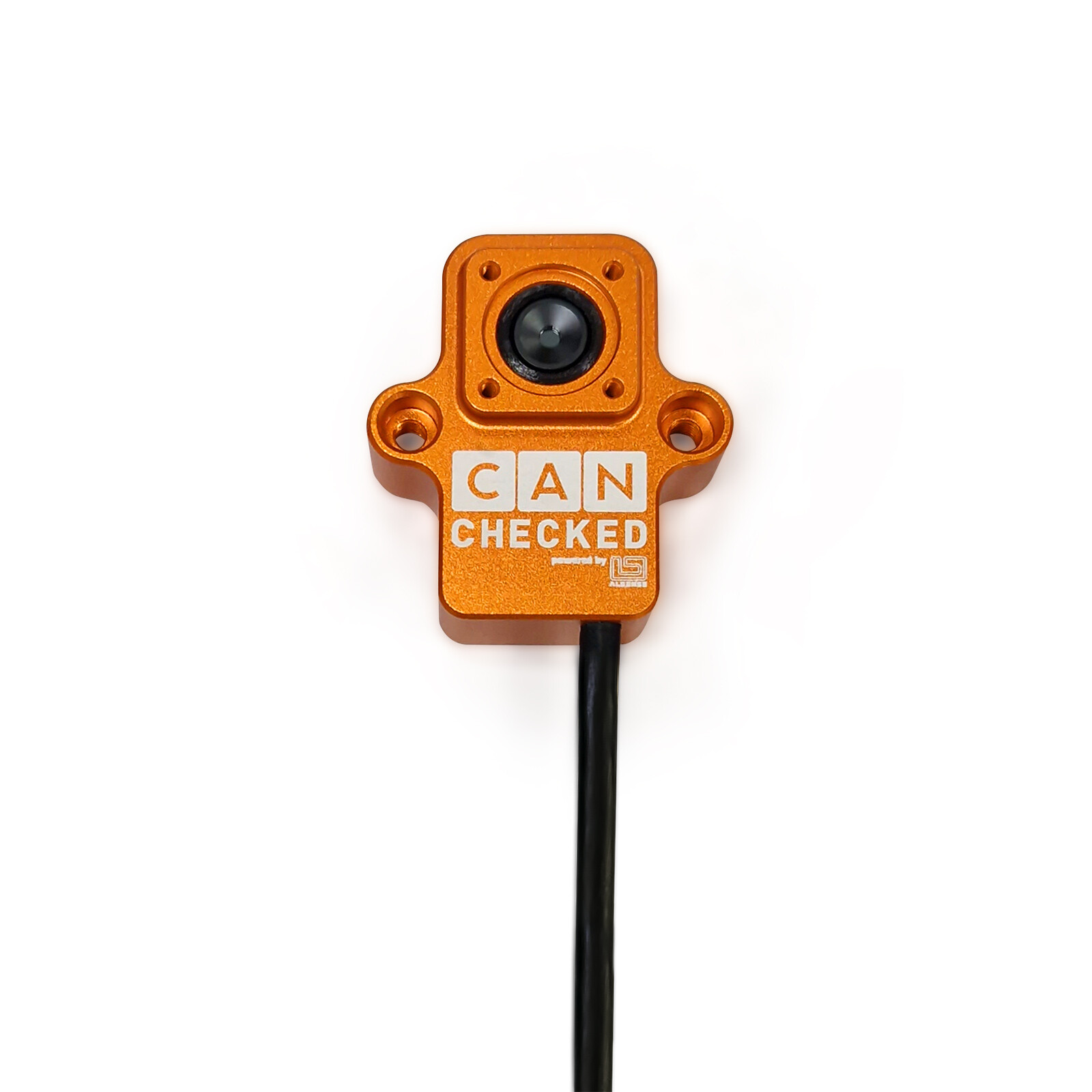

CANchecked Tire Temperature Sensor - TMC01
Enhance your racing or high-performance setup with precise, real-time temperature data. This sensor provides comprehensive data across multiple channels and is specifically designed for the demands of motorsport.
Main Features
- Temperature Range: -40 to +300°C with ±1°C accuracy
- Multi-Channel Adjustments: Up to 16 configurable channels for customized data
- Measurement Range Options: 110° standard, optionally 55° for focused measurements on request
- Compact and Robust Design:
- Size: 45.5 x 25.5 x 12 mm
- Weight: 25g
- Housing: Anodized aluminum, electronics potted, IP66 for harsh conditions
- Optional Protective Lens: Additional accessory for enhanced durability and protection
- Power Supply: Operated with 5–20V and adjustable update rate up to 64 Hz
- Seamless CAN Integration:
- Supports CAN 2.0A and 2.0B standards
- Adjustable bit rates and CAN termination options
- Standard CAN ID configurable for tire (0x310) or brake (0x210) data
- Data Precision:
- -200°C offset
- 0.1°C per bit resolution for high-precision measurements
- Easy Installation:

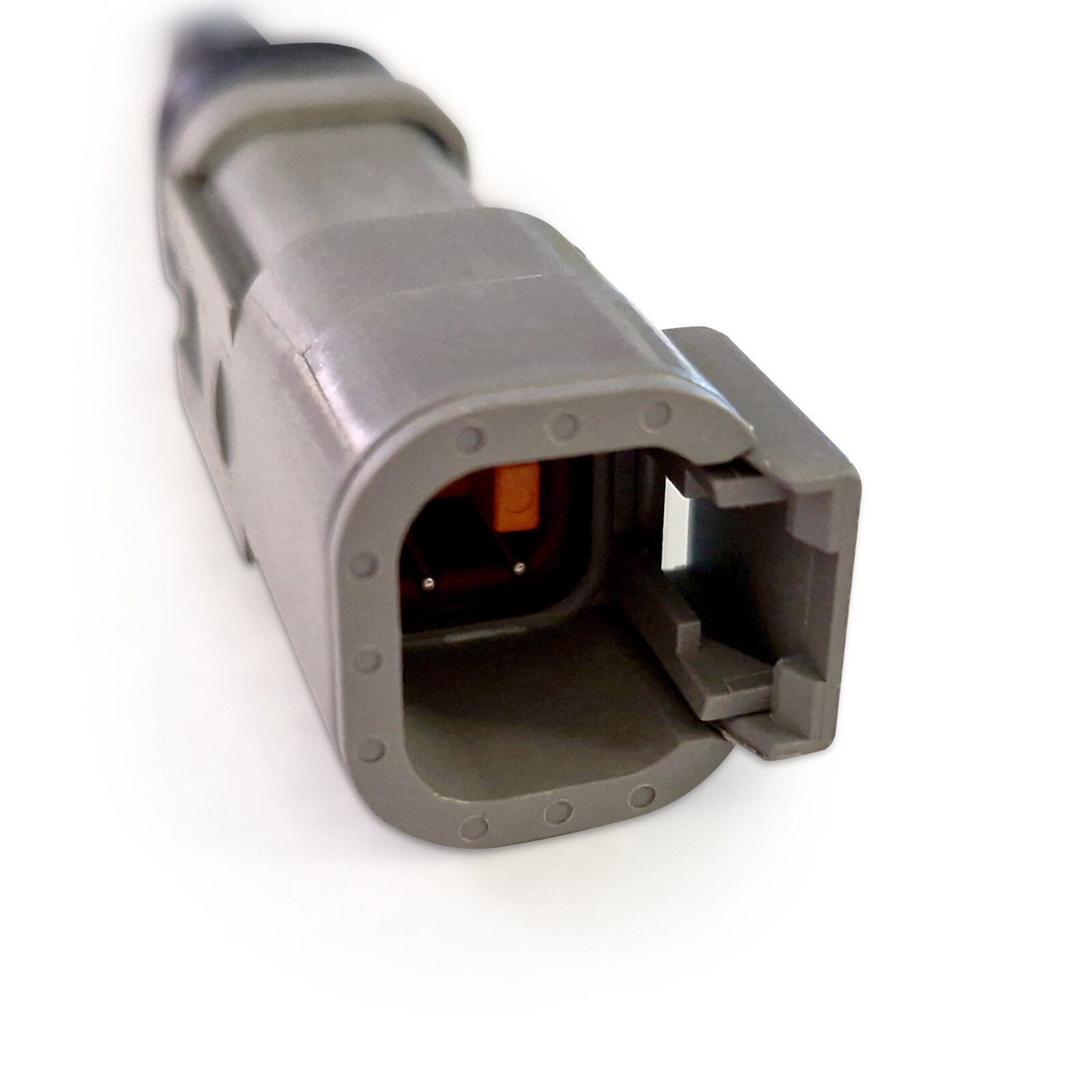

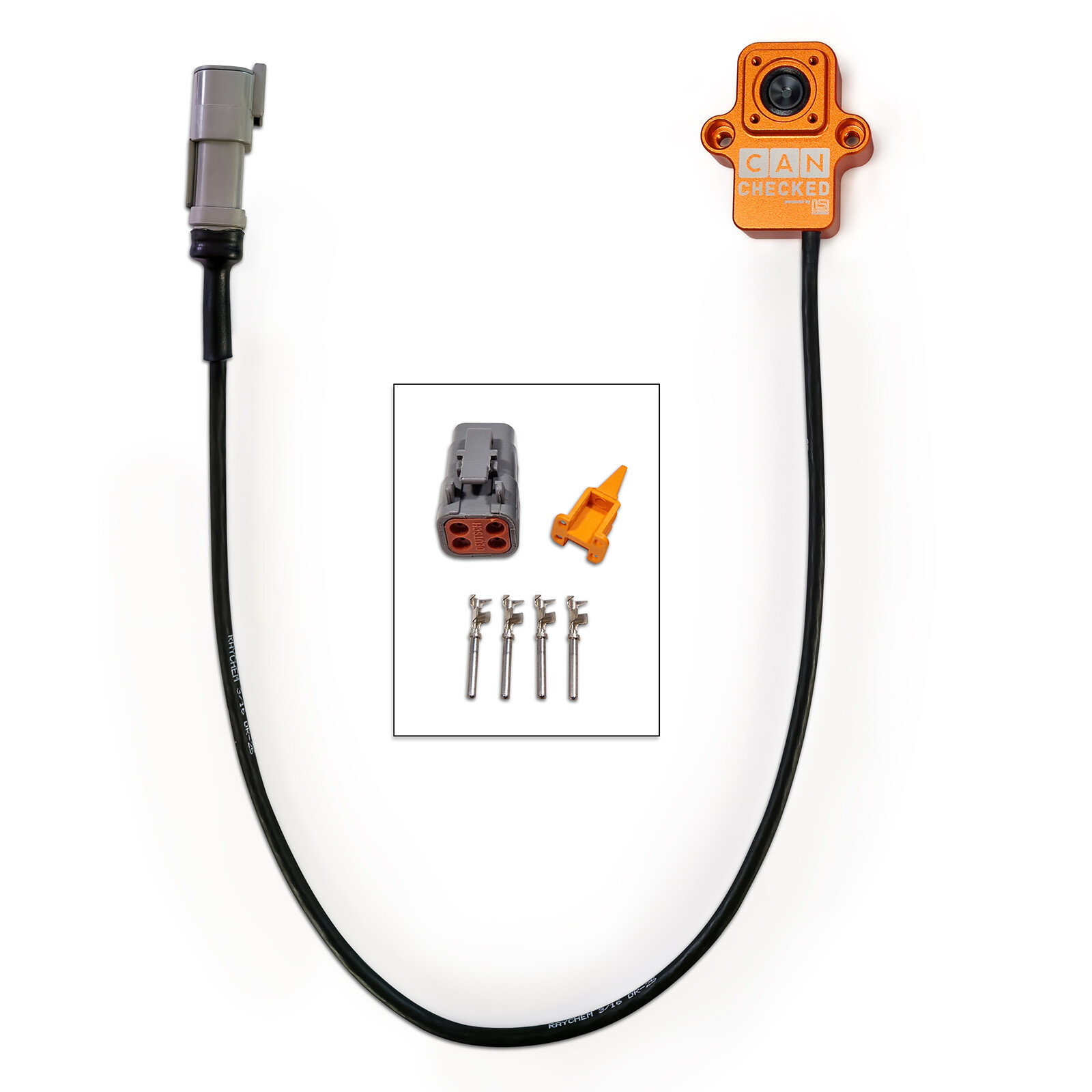

- Includes 0.5m AWG22 cable and DTM04-4P connector incl. mating connector
- Developed for Performance: IP66 rating ensures resistance to harsh environments
Conclusion
Ideal for racing and performance testing, this sensor provides actionable data to optimize driving behavior, braking, and tire management.
Features
- Availability: to order
