TMB04 - Tire Temperature Monitoring SET / BLE with Charging Case

Technology from motorsport with CAN Bus based tire temperature measurement

Sensor set for measuring tire temperature

Bluetooth Temperature Monitor Set for Tires with Charging and Storage Box - TMB04

Monitoring your tire performance has never been easier – **no cables required**! This Bluetooth temperature monitor set is a complete, wireless system designed for both racers and high-performance enthusiasts. With four advanced multi-channel infrared sensors, Bluetooth connectivity, and easy setup, this sensor set provides real-time temperature data to optimize your vehicle's performance. Installation is quick, and switching the system between vehicles takes only a few minutes.

Main Features:

• Easy wireless setup: Installation and switching between vehicles in minutes, without the hassle of cables
• Advanced multi-channel monitoring:
  • 3 configurable temperature measurement points per tire, a total of 12 channels per set
  • Adjustable update rate up to 10 Hz for accurate real-time insights
• Durable, rechargeable battery:
  • 250 mAh battery (USB-C charged) with up to 15 hours of active track use

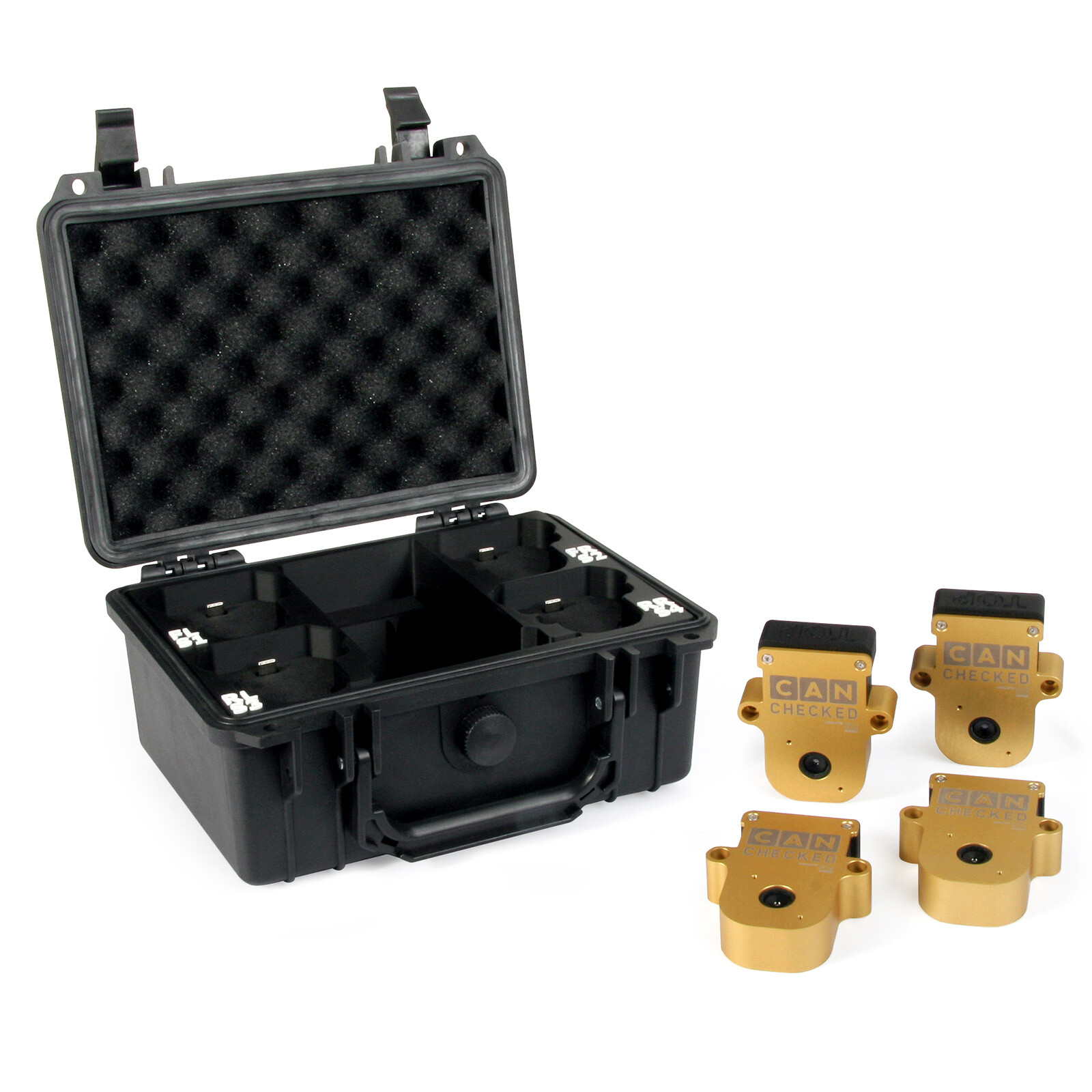

• Charging box:

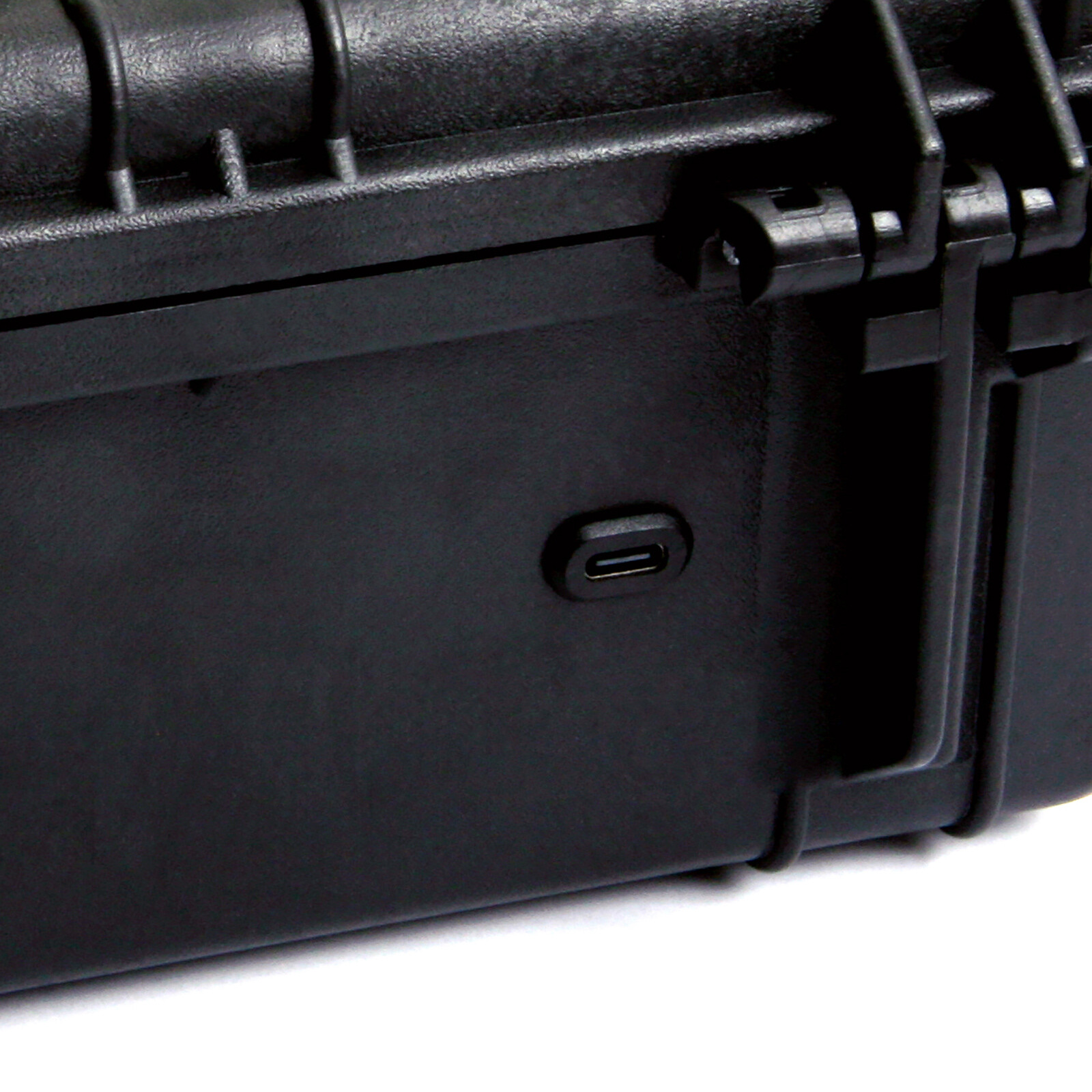

  • Includes charging box for convenient simultaneous charging of all four sensors
  • Compact design allows easy transport, protection, and storage
• High precision and wide temperature range:
  • Operating range: -40 to +300°C with ±1°C accuracy
  • Field of view: 110° standard, optional 55° for focused measurements
• Rugged, compact design:
  • Dimensions: 64.0 x 42.0 x 17.5 mm per sensor
  • Weight: 57g per sensor
  • Housing: Rugged aluminum/polyamide, protected for harsh environments
  • Optional protective lens: Available to increase durability and protection
• Operating temperature: -40 to +85°C

Compatible Apps:

• PaceLaps
• GPS Buddy (Harry's Laptimer)
• For developers, documentation is available to integrate this system into your own BLE application – contact us for more details!

Scope of Delivery:

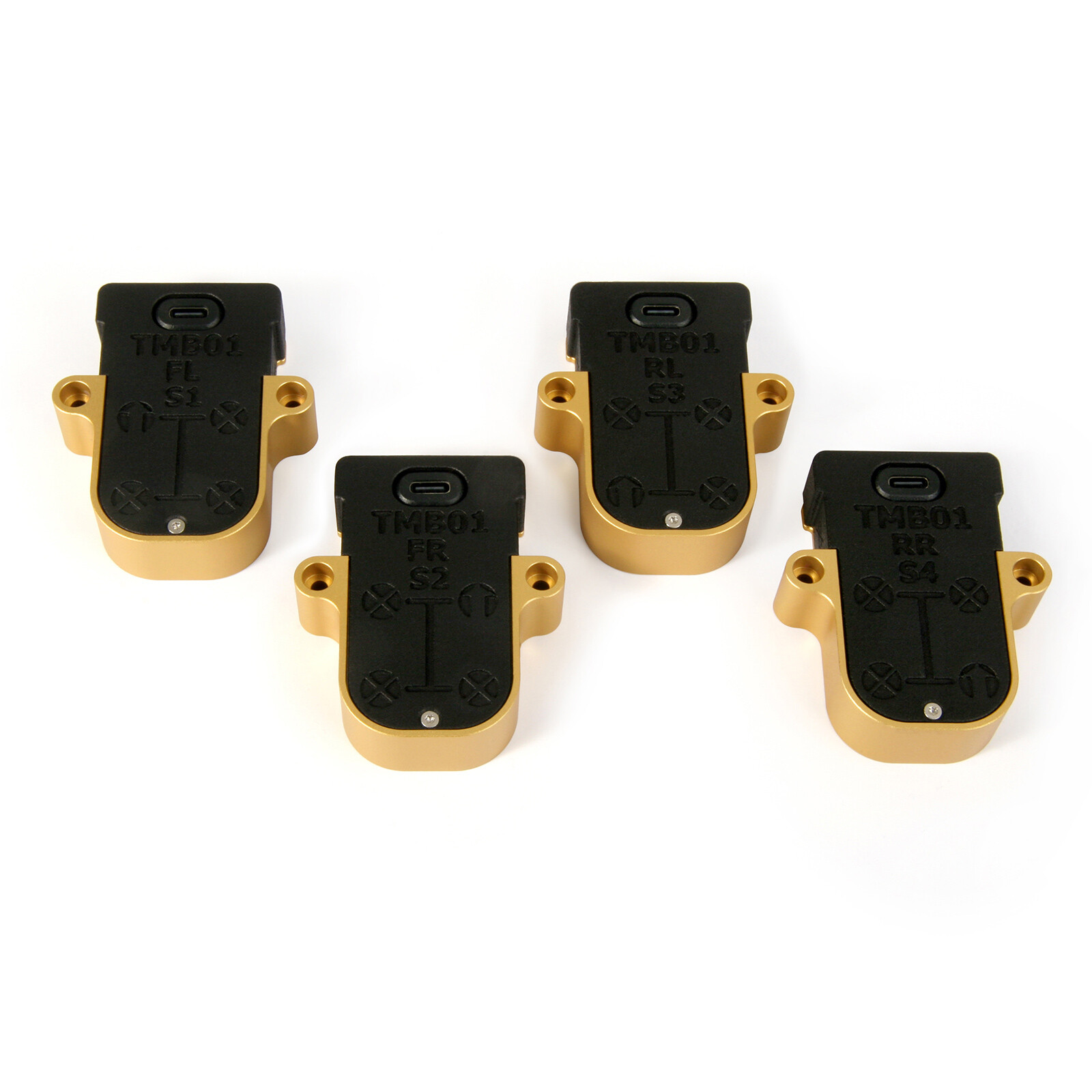

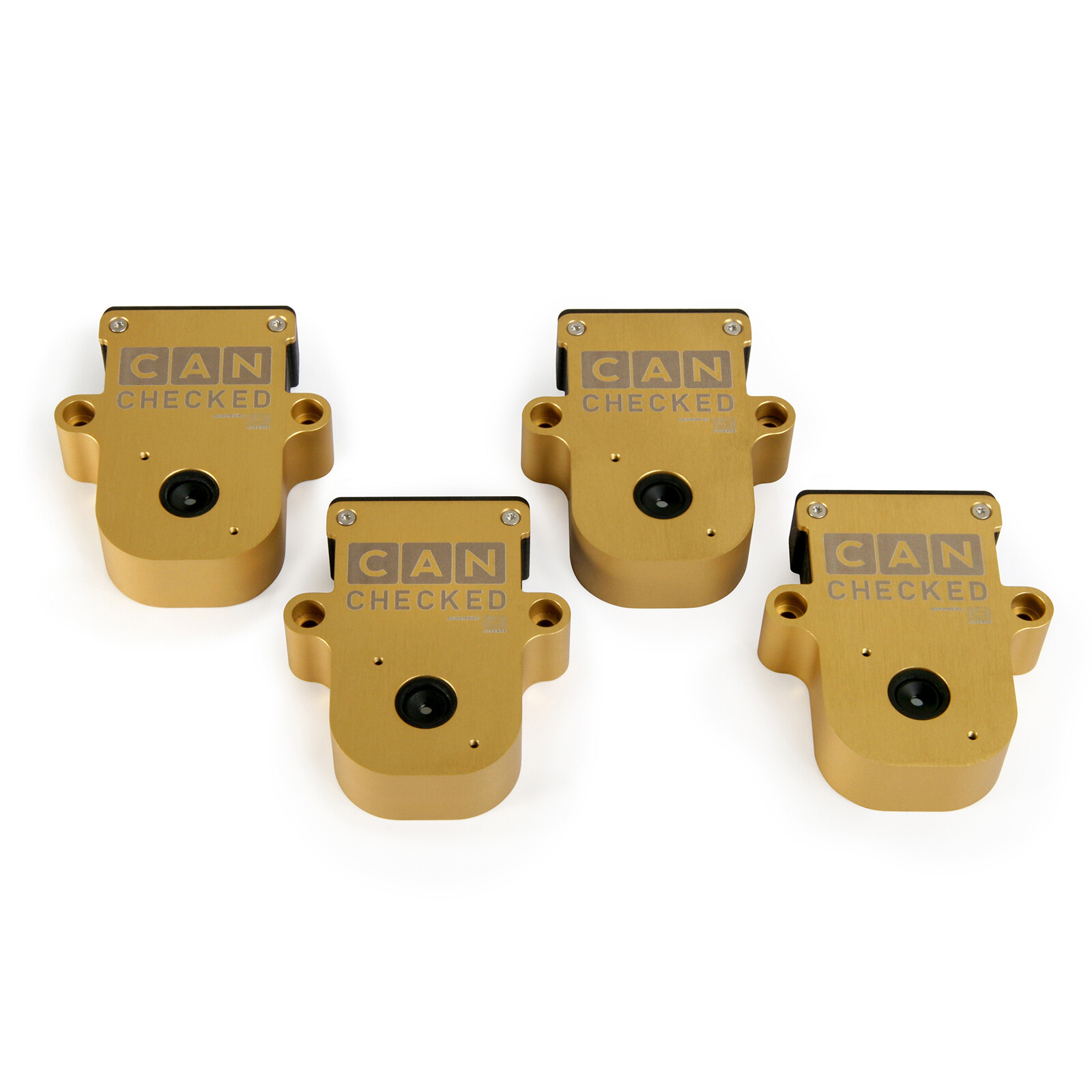

• 4x TMB01 sensors
• 1x charging box

Perfect for professional racing and performance testing, this Bluetooth temperature monitor set provides the insights you need to optimize tire handling. For developers, our documentation makes integration into BLE applications seamless. Contact us to learn more!
