CANchecked MFD32 GEN 2 - 3.2" Display for Audi A3/S3 8L FL RHD

With OBD 2 cable and vehicle-specific mount for Audi A3/S3 8L FL RHD air vents

The new CANchecked GEN2 multifunction display for OBD2 and analog sensors

The brand new second generation (GEN 2) of CANchecked displays offers

• Improved graphics with better anti-aliasing
• Swiping instead of tapping
• Widgets are more precisely adjustable
• New warning popup functions

What is CANchecked? CANchecked displays, gauges, software, and sensors enable the visual representation of important engine data, such as oil temperature, boost pressure, exhaust temperature, etc. This can be done either via CAN Bus (depending on ECU values) or via additional analog sensors. Additionally, functions like Haldex control for GEN 1 and GEN 2 can be purchased through licenses.

Key Features:
- Haldex control for GEN1 and GEN2 Haldex
- 2.8-inch capacitive touch display including vehicle-specific mounting frame for air vent
- Integrated shift light function
- Connection via Can-Bus and serial interface
- CAN Bus values can be displayed
- 2 digital and 4 analog inputs for 0 - 5V sensors (e.g., oil pressure, fuel pressure, exhaust temperature (with Type-K converter), and boost pressure)
- 8GB SD card storage
- Up to 10 freely configurable pages
- CAN Bus switching
- Datalogging
- Performance meter (measure times e.g., 100-200 km/h)
- Individual minimum and maximum warning values
- Popup function when values are exceeded or not met
- Adjustable screen brightness

Views
- 10 pages freely configurable
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, RPM, single pointer, log, table switch, image (from SD card), number, circle display, Haldex)
- Widgets can be moved via drag'n'drop and resized
- Color adjustment possible depending on widgets

As an alternative, the online configurator (DSS - Display Software) is available on the CANchecked website. Here, views can be created in advance and then copied to the SD card via the export function.

Performance Monitor

• The high-speed CAN integration allows you to access up to 128 vehicle sensors that you can display in real-time. You can quickly swap sensors via the 2.8"/3.2" touchscreen and set up custom ranges and alerts with the DSS software.

Diagnostic Function

Swipe down from any page to instantly diagnose the error memory. CANchecked can read, diagnose, and clear codes for engine, ABS, transmission, ESP, TPMS, and other systems.

Data Logging

• Easy access to the log when needed and storage on the internal SD card.
• Four different logging types are available:
• 1. USB: logs all sensor data live via USB
• 2. SD card: all sensor data is logged on the SD card
• 3. Debug: all CAN-Bus data is logged via USB.
• 4. sDbg: all Can Bus data is saved on the SD card (CAN Bus Logger)
The logviewer is available online for evaluating the log. Simply load the log file and use the intuitive interface.

Plug & Play Installation

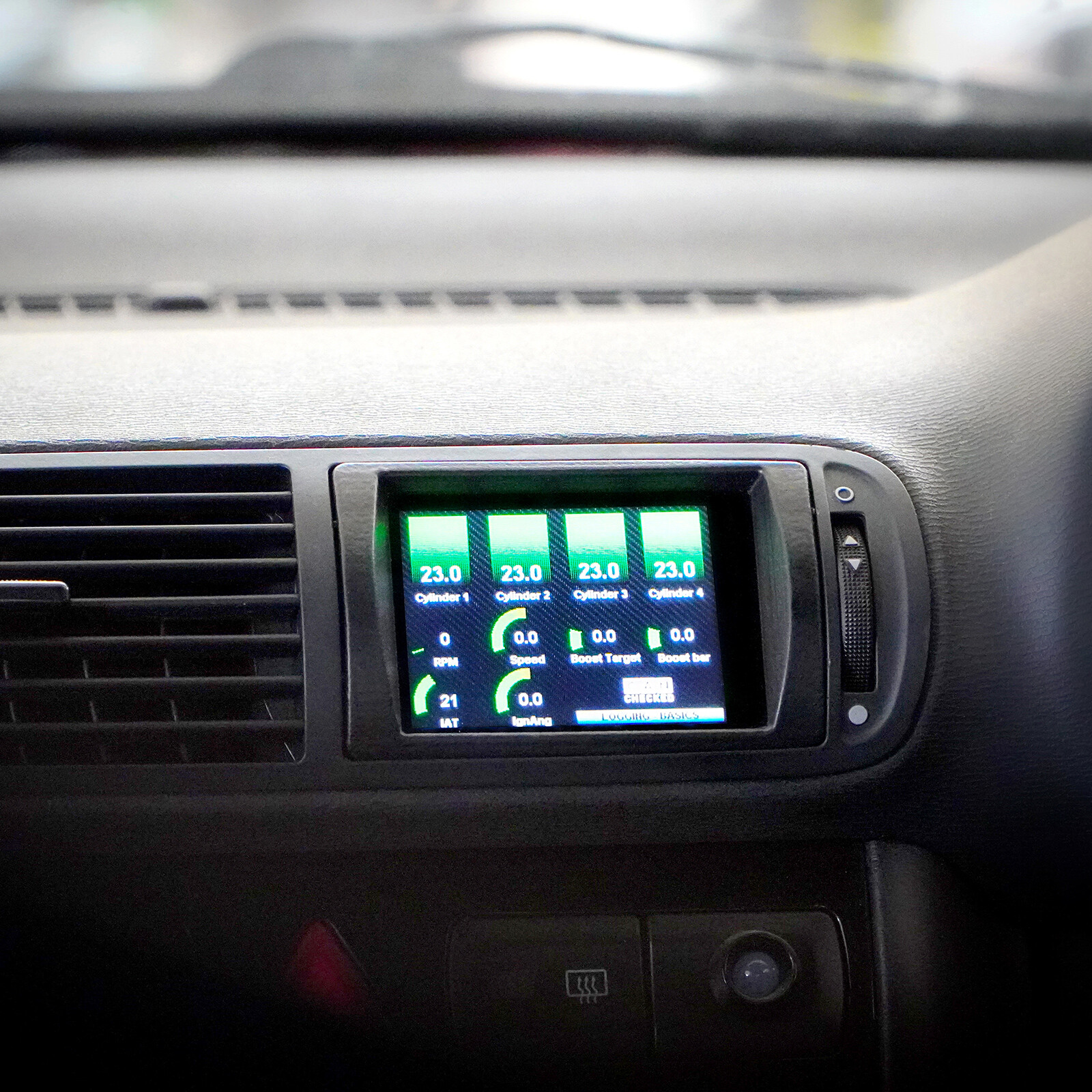

• In addition to the universal variants, CANchecked also offers displays with vehicle-specific mounting frames. These are precision-made and fit perfectly into your vehicle's interior without hindering the functionality of your vehicle's ventilation system.

Expandable Functionality

• Haldex control for VAG Haldex GEN 1 and Gen 2 generation (*please refer to the CANchecked Haldex installation instructions before purchase!)
• 4 analog and 2 digital inputs allow monitoring of sensors and devices from other manufacturers. Future licenses, currently in development, will enable the integration of water-methanol injection systems and ethanol fuel systems.

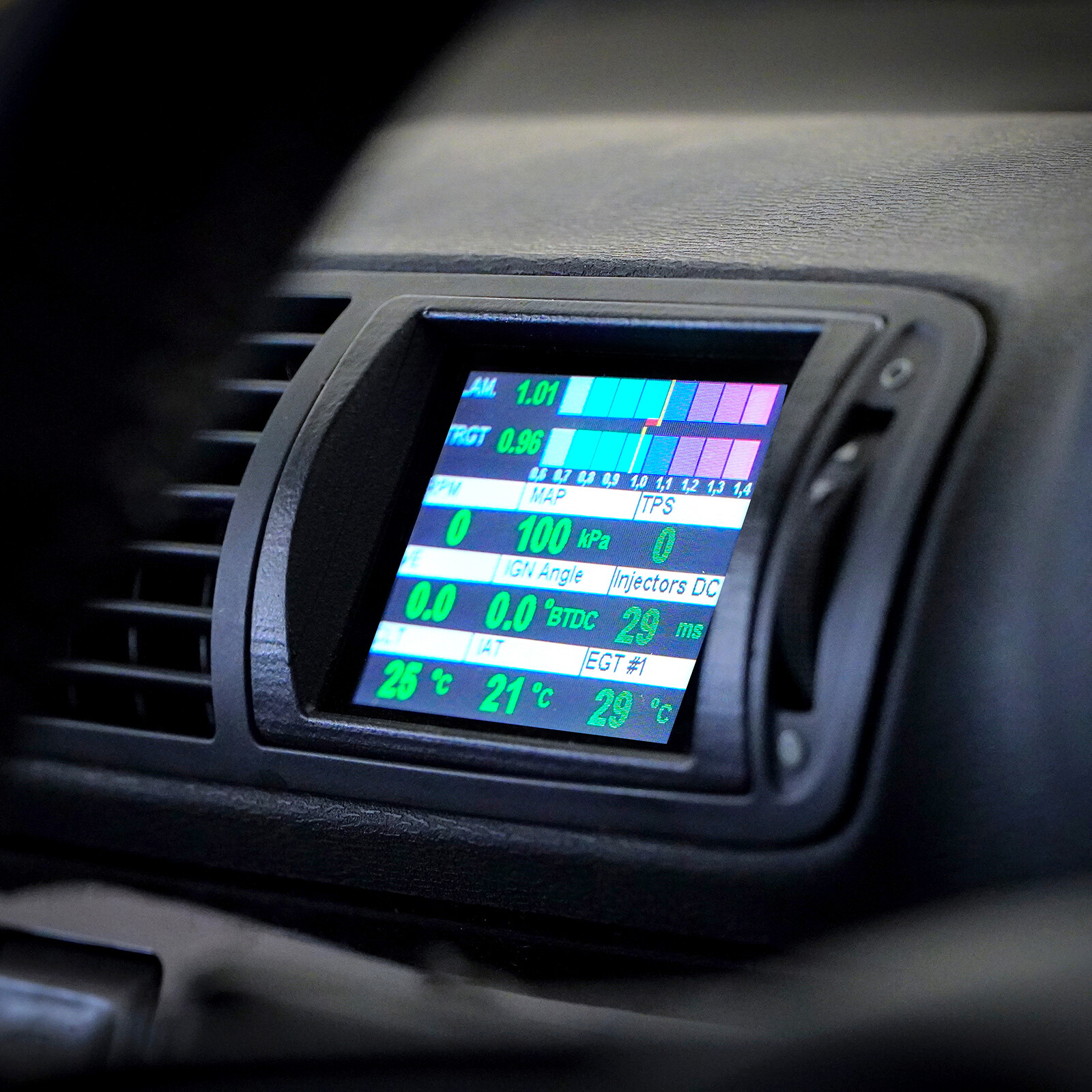

Customizable Screen Displays

• CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the supplied software and the library of widgets.

Your Data, Your Way!

• CANchecked can display up to ten pages and access up to 128 sensors of your vehicle (only for OBD 2 vehicles with optional CANchecked OBD 2 cable tree). Use the touchscreen to navigate between pages and select which sensor you want to display. Need more customization options? You can personalize your views by customizing the graphics, sensors, and widgets using the supplied DSS software. We have already loaded some examples onto your CANchecked display to help you get started.

CANchecked Optional Accessories:

• Vehicle-specific displays with mounting frame and matching cable set
• A wide range of sensors, such as oil and water temperature, boost pressure, oil and fuel pressure, etc...
• *Planned for GEN 2: Haldex control (currently only for the first generation of Haldex, e.g., Golf IV 4-Motion, Audi S3 (8L))
• Serial adapter (VEMS + Ecumaster without CAN
• Further vehicle-specific integrations available

Supported Control Units and Values:
The CANchecked display allows the display of up to 128 sensor signals on up to ten pages - provided the control unit supports the corresponding data transmission and protocols. Navigation is via the touchscreen, and displays can be customized with the DSS software. Pre-made layouts are already installed to facilitate getting started.Important Notes:

• OBD 2 Compatibility: Vehicles before the 2008 model year generally do not support data reading via OBD. However, there are specific solutions for certain models - please contact support.
• Sensor and Data Availability: Not every vehicle can display all data. The available values depend on the control unit communication and the installed sensors.
• Supported Control Units: All control units with documented CAN-Bus or serial interface are supported. The latter requires an optional serial adapter.
• Data Customization: Manufacturers determine which values are transmitted via the interface. A dbc file can be converted into the required .tri format using the DBC converter.

Connection and Expansion
Any sensors can be connected via the four analog inputs – we support both linear 0-5V and NTC sensors. Our in-house CANchecked sensors are standardly stored in the TRI-/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Converter for exhaust temperature probe Type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: Boost pressure sensor 0-5.5 Bar absolute (BST01)

CANchecked Optional Accessories:

• CC24000 SLM08 - external shift light module
• CC22780 ANC04 - fourfold AIN cable harness 300cm
• CC22100 CBD08 - eightfold Can Distribution Hub
• CC22902 NTC01 - Temperature sensor for liquids 1/8 inch NPT
• CC22903 TCC01 - Type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5.5 Bar absolute (80psi)
• A wide range of sensors, such as oil and water temperature, boost pressure, oil and fuel pressure, etc...
• Haldex control for GEN 1 and GEN 2 optionally available
• Serial adapter (VEMS + Ecumaster without CAN
• Further vehicle-specific integrations/li>

The following control units have already been implemented:
- trijekt (Premium, Bee, trigifant)
- Megasquirt 2 and 3
- k-data KDFI
- UMC1/UMC2
- EFIgnition
- Microsquirt
- EcuMaster EMU (classic with Can-Bus adapter: EMU Black)
- AIM generic protocol
- LinkECU
- Haltech v2
- MME ECU481 with Can Bus
- SCS Delta GDI4 and Delta
- VAG (Audi / VW / Seat)
- Van kronenburg KMS MD35 (MP25 with CAN-Bus adapter)
- VEMS with serial adapter
If your control unit is not listed, please contact us.

Scope of Delivery
- CANchecked 2.8-inch display including vehicle-specific mounting frame
- Micro-SD card adapter
- Quickstart Guide
- Connector A, Connector B
- Pre-crimped cables
- Four mounting screws
- 8 GB Micro-SD card (installed)
- Display film
- 2x 1K1 pull-up resistor (for NTC)
- Additional pins for self-crimping

Installation instructions can also be found on the CANchecked website.

The display can be configured via the DSS Display Setup Software (found on the CANchecked website under the DSS menu), but the widgets can also be set directly on the display.
The temperature range of the display is -10°C to 70°C.
A power supply of 12V is required, optionally 5V or 24V is also possible.

Dimensions
- Opening 73x54.4mm
- Bezel 87.5x58mm
- Depth 29mm

FAQ

Does the display get hot in the air vent?

No. The screens are always protected from heat flowing through the air vents.

Does the air vent still work with the display installed?

Yes, it does. We are constantly developing ventilation solutions where the airflow continues to pass by the display through special tunnels.

Can I change the appearance of the display, units, and scales?

Yes! With the various settings options to upload your own graphics, you can customize your display.

Can I use analog inputs?

Yes, there are 6 analog inputs. This allows you to read pressures, temperatures, etc. We can also put together complete packages for what you need!

What ECU data can CANchecked access?
By default, we deliver a pre-made TRI file with your display. All sensors queried are defined here, e.g.:

Temperatures: Exhaust temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG oil temperature

Pressures: Boost pressure, ambient pressure, fuel pressure, pre-supply pump pressure

Lambda / Mixture: Lambda value, injection timing, short-term lambda control, long-term lambda control

Other: RPM, air mass (g/s), vehicle speed, throttle angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in %, voltage at terminal 30, oil level, torque, transmission...

If values are missing, they can be easily added.

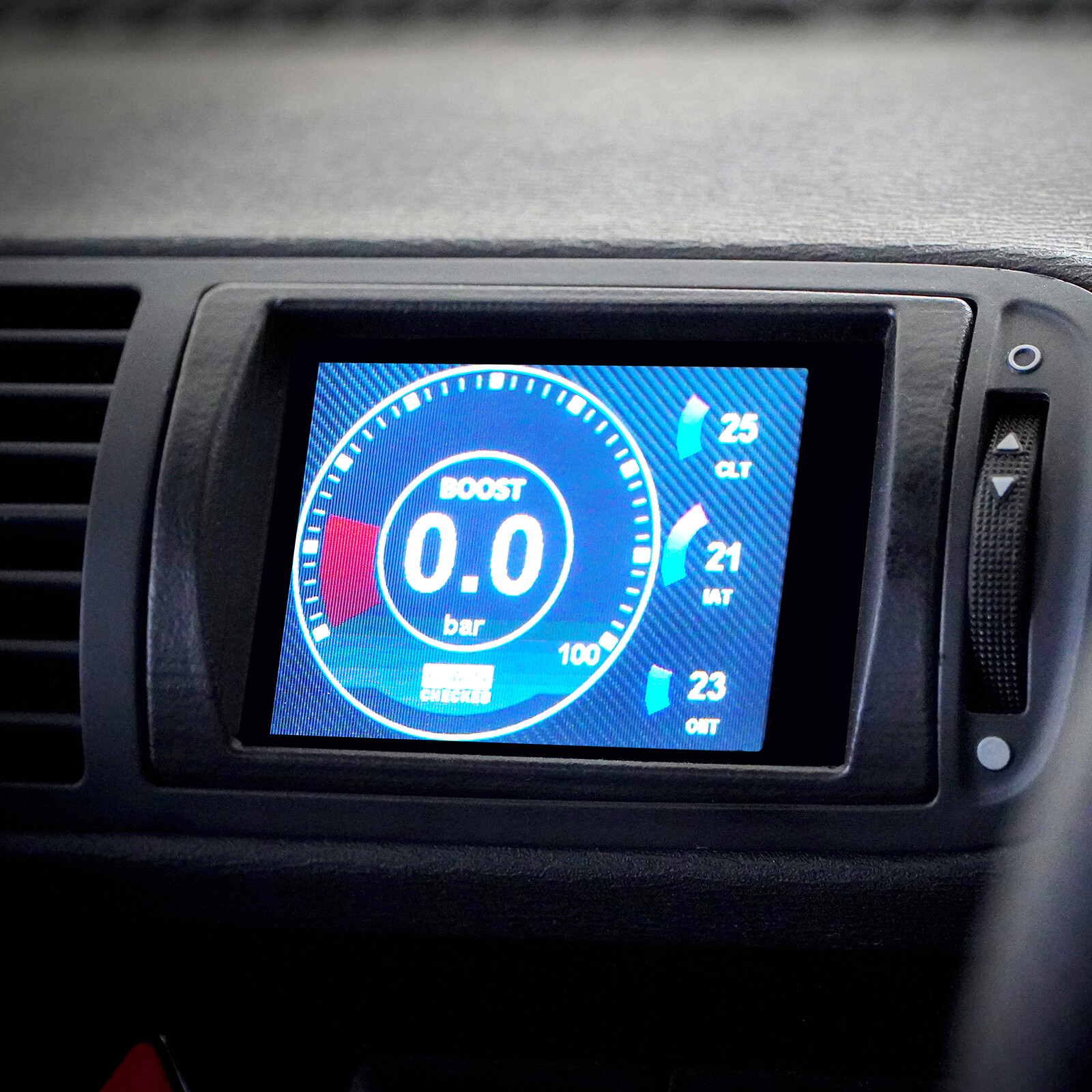

Can I customize the appearance of the boost pressure gauge to my vehicle?

You can use the CANchecked Online Display Setup Software (DSS) to upload your own graphics. They must have the following format:

- Image type: 24bit BMP file (R8 G8 B8)
- Size: 128 x 128 pixels

In our online shop, you will find numerous other displays for various vehicle models. Further bezels available on request.
