CANchecked MFD28 GEN 2 - 2.8" OBD2 Display for Dodge RAM 4 LHD

With OBD 2 cable and vehicle-specific mount for Dodge RAM 4 LHD air vents

The new CANchecked GEN2 multifunction display for OBD2 and analog sensors

Note: OBD2 protocols only work from the year 2008 onwards. For older vehicles, the CAN bus line is used instead! This display comes with an OBD II adapter cable (1.50m). Thus, installation is plug and play, and all OBD 2 values output by the engine control unit (ECU) are displayed.
The CANchecked OBD2 displays work for a variety of vehicles and engines with OBD 2. If your OBD2 model does not work or does not display correct values, then your vehicle is not OBD2 capable, or the OBD2 protocol has not yet been implemented. However, within two working days, CANchecked can add the correct .tri file for your engine/car model. Contact us for more information.

The brand new second generation (GEN 2) of CANchecked displays offers

• Improved graphics with better anti-aliasing
• Swiping instead of tapping
• The widgets are more precisely adjustable
• New warning popup functions

What is CANchecked? CANchecked displays, gauges, software, and sensors enable the visual representation of important engine data, such as oil temperature, boost pressure, exhaust temperature, etc. This can be done either via OBD 2 (depending on the ECU values) or via additional analog sensors. Furthermore, functions such as Haldex control for GEN 1 and GEN 2 can be purchased additionally through licenses.

Key Features:
- Haldex control for GEN1 and GEN2 Haldex
- 2.8-inch capacitive touch display with mounting frame
- OBD 2 values can be displayed (adapter cable included)
- 8GB SD memory card
- Up to 10 freely configurable display pages
- Connection via OBD2 car connection
- Two digital and four analog inputs for 0 - 5V sensors (e.g., oil pressure, fuel pressure, exhaust temperature (with adapter), and boost pressure)
- Integrated shift light
- Performance meter (measures, for example, the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Popup function when warning values are exceeded or not met
- Screen brightness adjustable

Views:
- 10 pages free configuration
- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, table switch, image (from SD card), number, circular display, Haldex)
- Widgets can be moved and resized via drag'n'drop
- Depending on the widgets, color adjustments are possible

As an alternative, the online configurator is available. Here, the views can be created in advance and then copied to the SD card via the export function.

Performance Monitor

• The high-speed CAN integration allows you to access up to 128 vehicle sensors, which you can display in real-time. You can quickly swap sensors via the 2.8"/3.2" touchscreen and set up custom ranges and alerts with the DSS software.

Diagnostic Function

Swipe down from any page to instantly diagnose the error memory. CANchecked can read, diagnose, and clear codes for engine, ABS, transmission, ESP, TPMS, and other systems.

Data Logging

• Easy access to the log when needed and storage on the internal SD card.

Plug & Play Installation

• CANchecked displays with vehicle-specific mounting frames are precision-made and integrate perfectly into your vehicle's interior without hindering the functionality of your vehicle's ventilation system.

Expandable Functionality

• 4 analog and 2 digital inputs allow monitoring of sensors and devices from other manufacturers. Future licenses, currently in development, will enable the integration of Haldex all-wheel drive controls, water-methanol injection systems, and ethanol fuel systems.

Customizable Screen Displays

• CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the supplied software and the library of widgets.

Your data, the way you want it!

• CANchecked can display up to ten pages and has access to up to 128 sensors in your vehicle. Use the touchscreen to navigate between pages and select which sensor you want to display. Need more customization options? You can personalize your views by customizing the graphics, sensors, and widgets using the supplied DSS software. We have pre-loaded some examples on your CANchecked display to help you get started.

Connection and Expansion
Through the four analog inputs, any sensors can be connected – we support both linear 0-5V and NTC sensors. Our in-house CANchecked sensors are standardly stored in the TRI-/TRX files and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Converter for exhaust temperature probe type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: Boost pressure sensor 0-5.5 Bar absolute (BST01)

CANchecked optional accessories:

• CC24000 SLM08 - external shift light module
• CC22780 ANC04 - fourfold AIN cable harness 300cm
• CC22100 CBD08 - eightfold Can Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/8 inch NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - pressure sensor 0-5.5 Bar absolute (80psi)
• A wide range of sensors, such as oil and water temperature, boost pressure, oil and fuel pressure, etc...
• Haldex control for GEN 1 and GEN 2 optionally available
• Serial adapter (VEMS + Ecumaster without CAN
• Further vehicle-specific integrations/li>

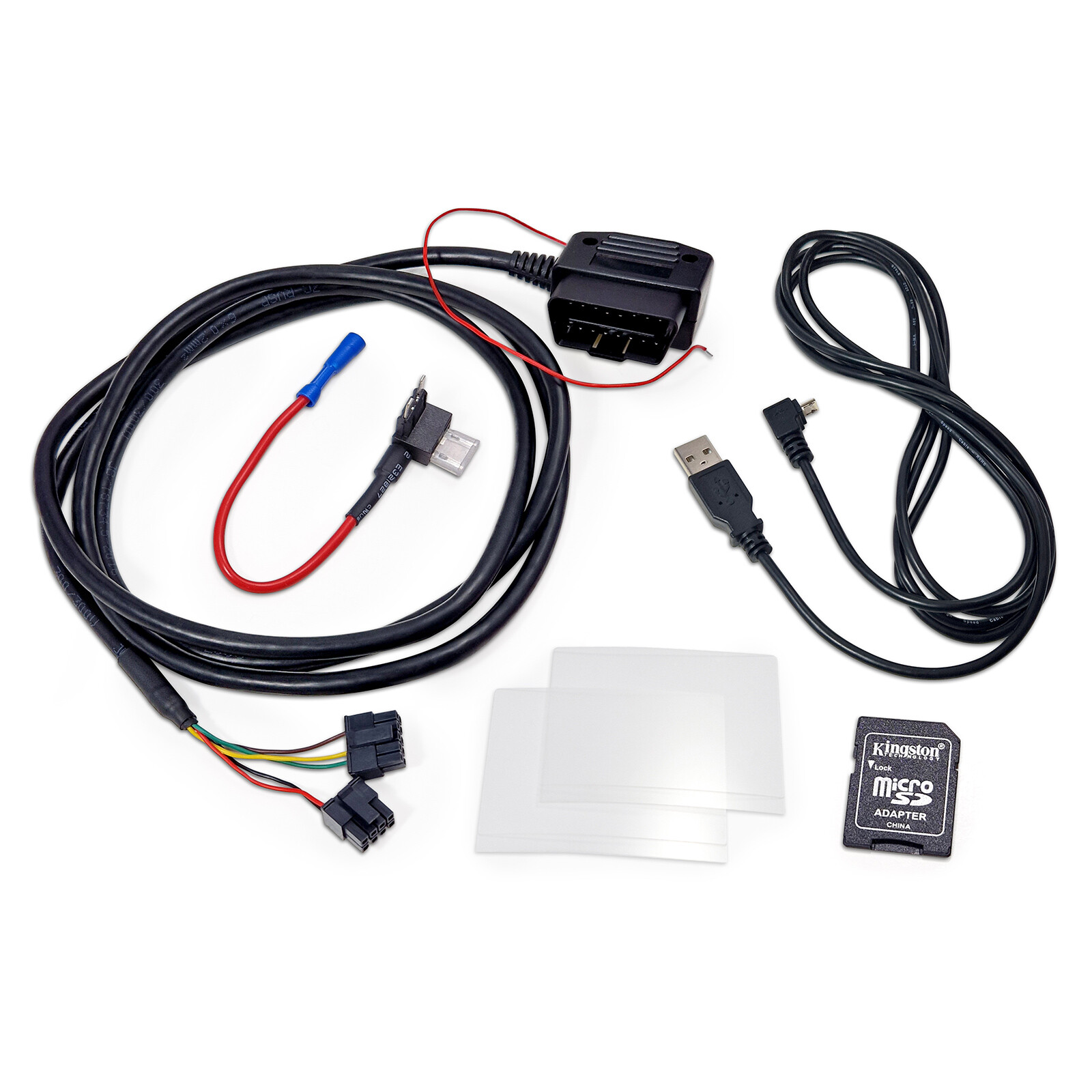

Scope of delivery

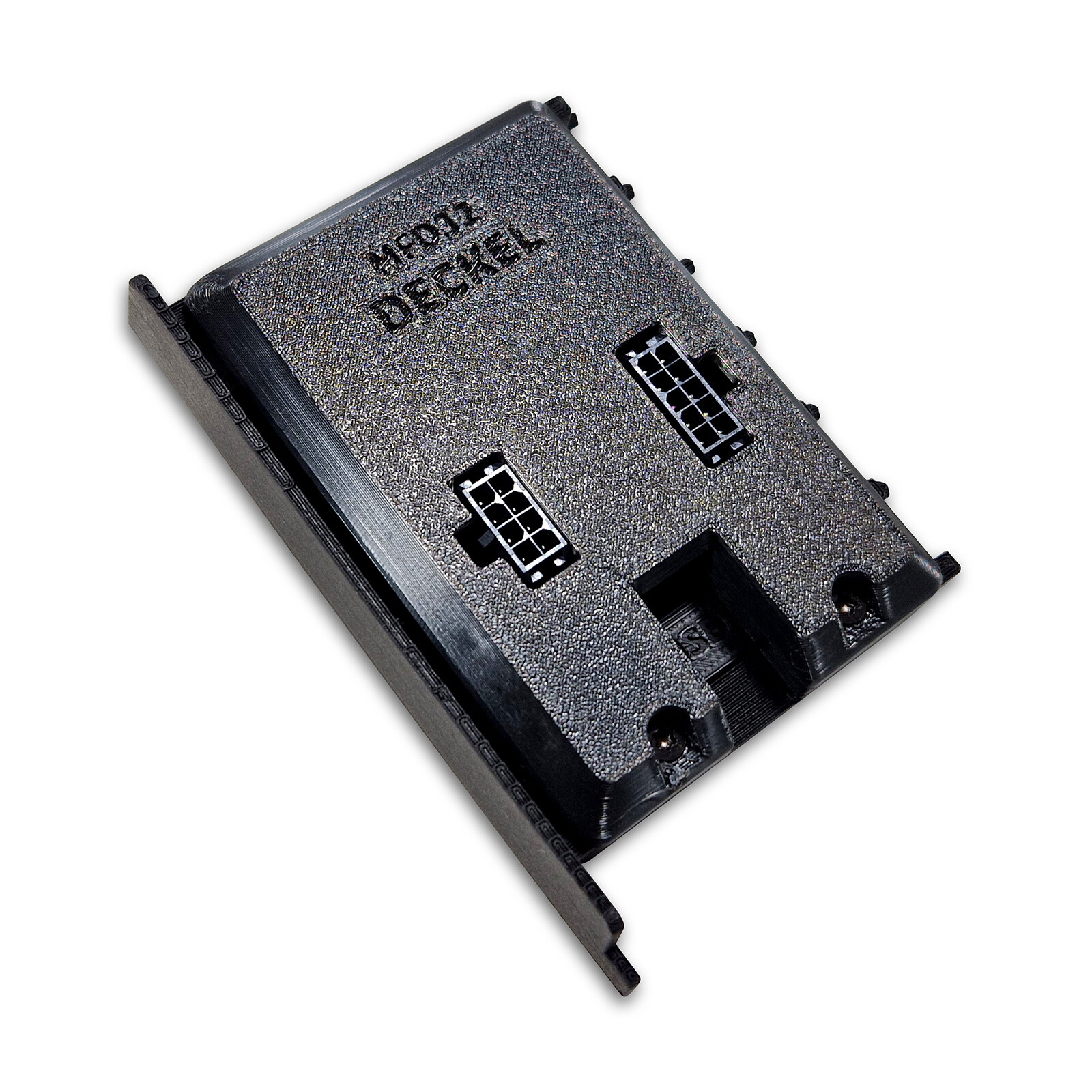

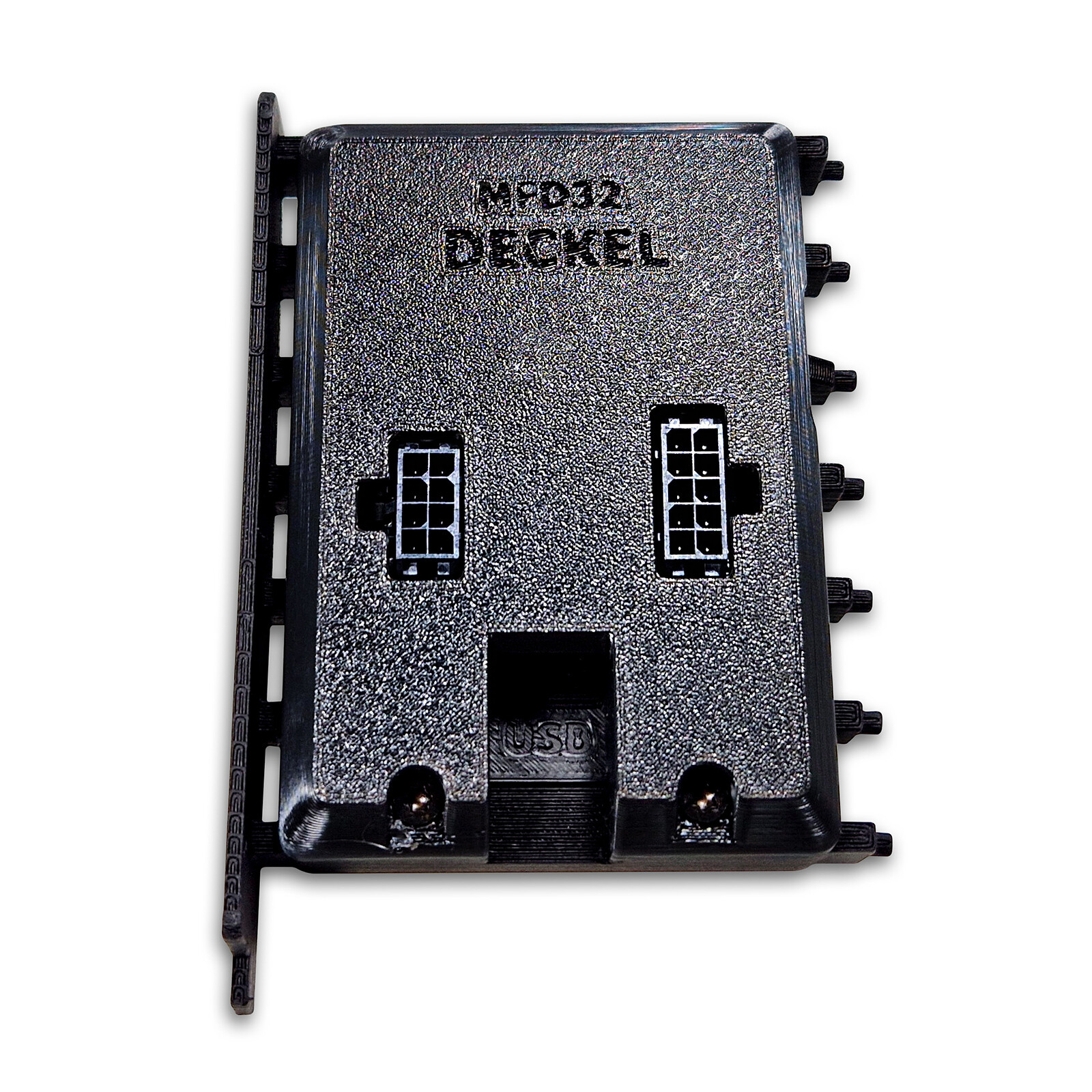

- vehicle-specific mount / installation frame for air vents

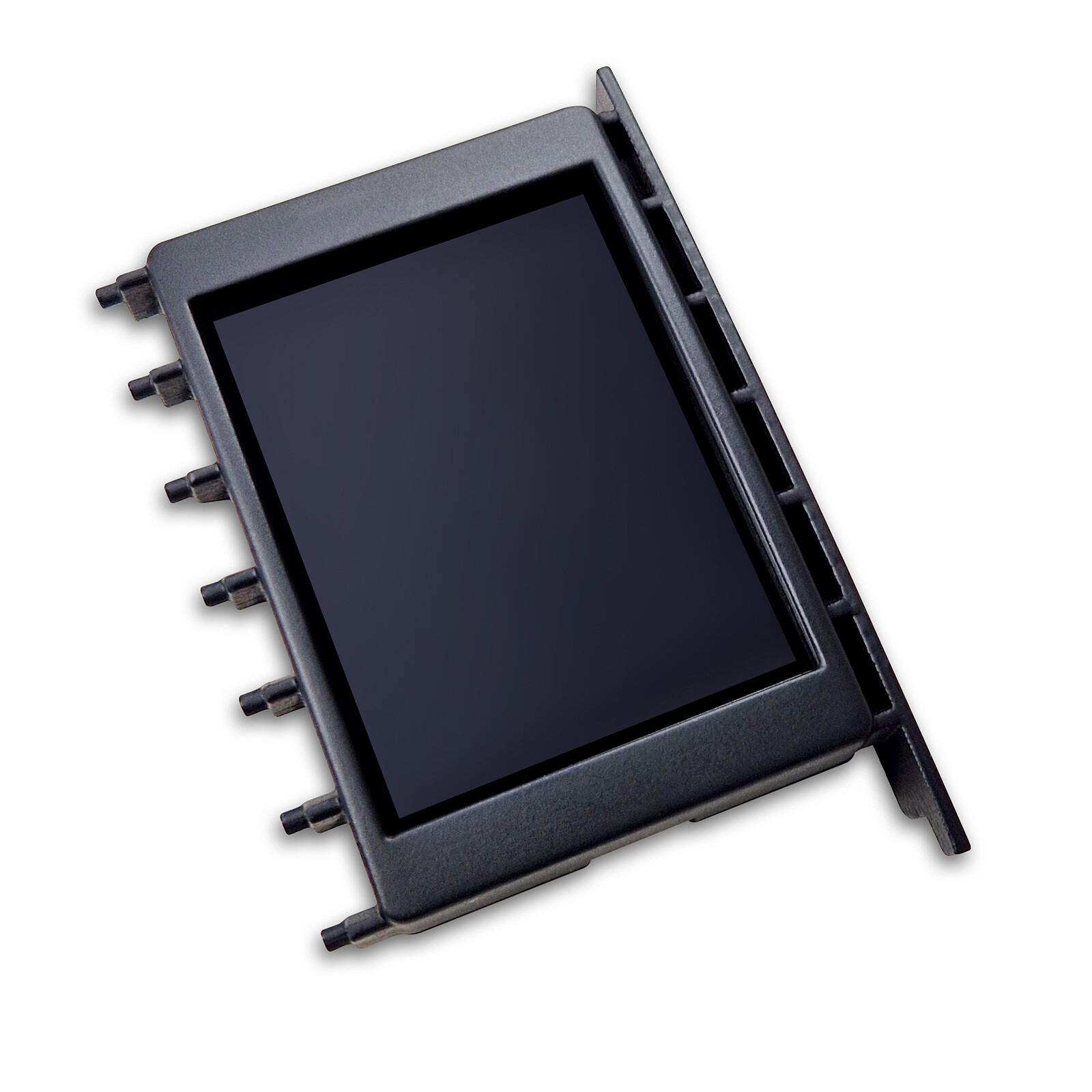

- CANchecked 2.8-inch display
- cable set
- OBD 2 adapter cable
- 8 GB Micro-SD card
- Micro-SD card adapter
- Quickstart guide

If available, installation instructions are stored on the TurboZentrum or CANchecked website

The display can be individually configured via the website. The dbc converter for the Can-Bus protocol and the online configurator for the widgets, which can also be set via the touch display.
The temperature range of the display is -10°C to 70°C.
A power supply of 12V is required, 5V or 24V are optionally possible.

TurboZentrum offers CANchecked vehicle-specific displays for many vehicles. You can find these in our online shop. More are available on request.

FAQ

Does the display get hot in the ventilation shaft?

No. The screens are always protected from heat flowing through the ventilation slots.

Does the ventilation nozzle work with the display installed?

Yes, it does. We are constantly developing ventilation solutions where the airflow continues to flow past the display through special tunnels.

Can I change the appearance of the display, units, and scales?

Yes! With the various setting options to upload your own graphics, you can customize your display.

Can I use analog inputs?

Yes, there are 6 analog inputs. This allows you to read pressures, temperatures, etc. We can also put together complete packages for what you need!

What ECU data can CANchecked access?
By default, we deliver a pre-made TRI file with your display. All sensors queried are defined here, e.g.:

Temperatures: exhaust temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG oil temperature

Pressures: boost pressure, ambient pressure, fuel pressure, pre-supply pump pressure

Lambda / Mixture: lambda value, injection timing, short-term lambda control, long-term lambda control

Other: RPM, air mass (g/s), vehicle speed, throttle angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in %, voltage at terminal 30, oil level, torque, transmission...

If values are missing, they can be easily added.

Can I customize the appearance of the boost pressure gauge graphic to my vehicle?

You can use the CANchecked Online Display Setup Software (DSS) to upload your own graphics. They must have the following format:

- Image type: 24bit BMP file (R8 G8 B8)
- Size: 128 x 128 pixels

The display is also available with vehicle-specific mounts for the air vents. You can find these in our online shop for numerous vehicles. More covers on request.
