BMU04 - Brake Temperature Monitoring SET / Wireless with Charging Case

Technology from motorsport with CAN bus-based tire temperature measurement

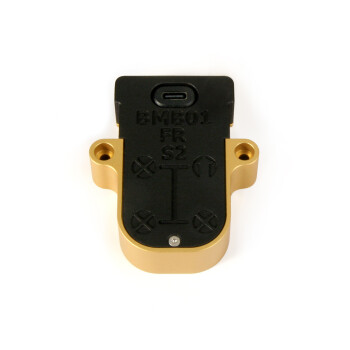

Sensor set for measuring brake temperature

Wireless Brake Temperature Monitor with Charging and Storage Box - BMU04

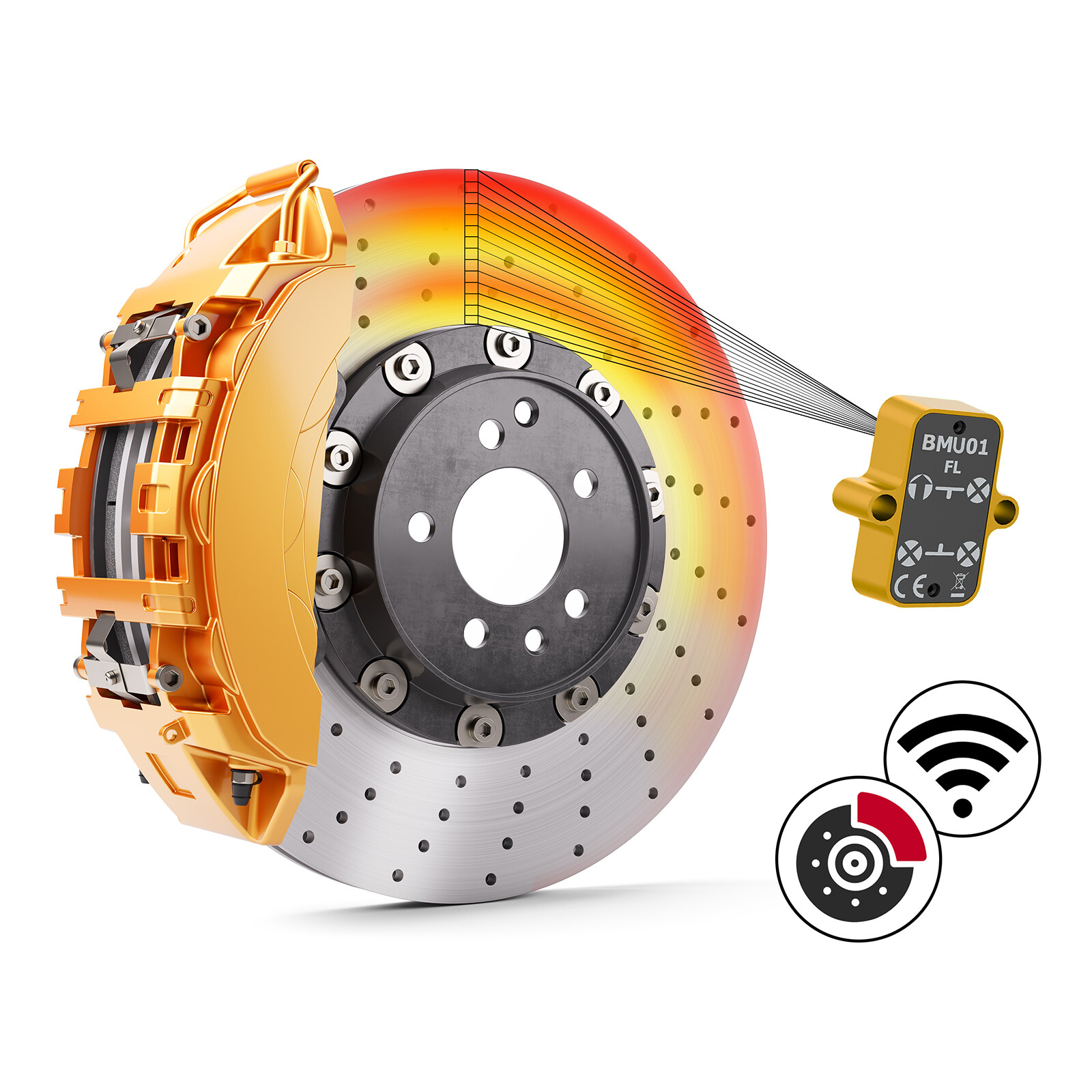

Our wireless system with advanced infrared temperature sensors and CAN interface provides you with precise real-time data on your brake temperatures.

Main features:

• Wireless and easy to install: Easy setup with quick switching between vehicles
• Advanced multi-channel infrared monitoring:
  • Configurable 8 channels per brake
  • Adjustable update rate up to 50 Hz for precise real-time insights

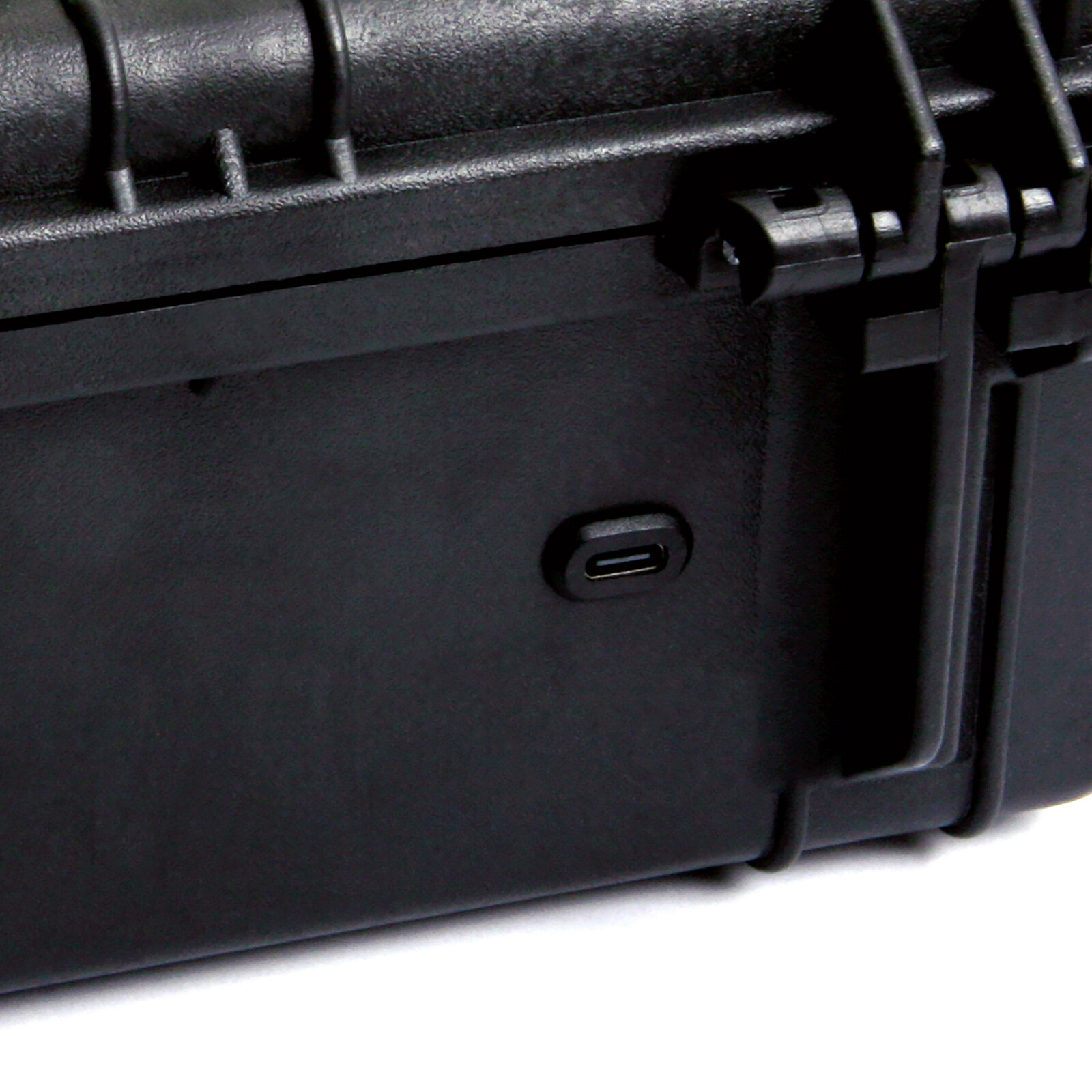

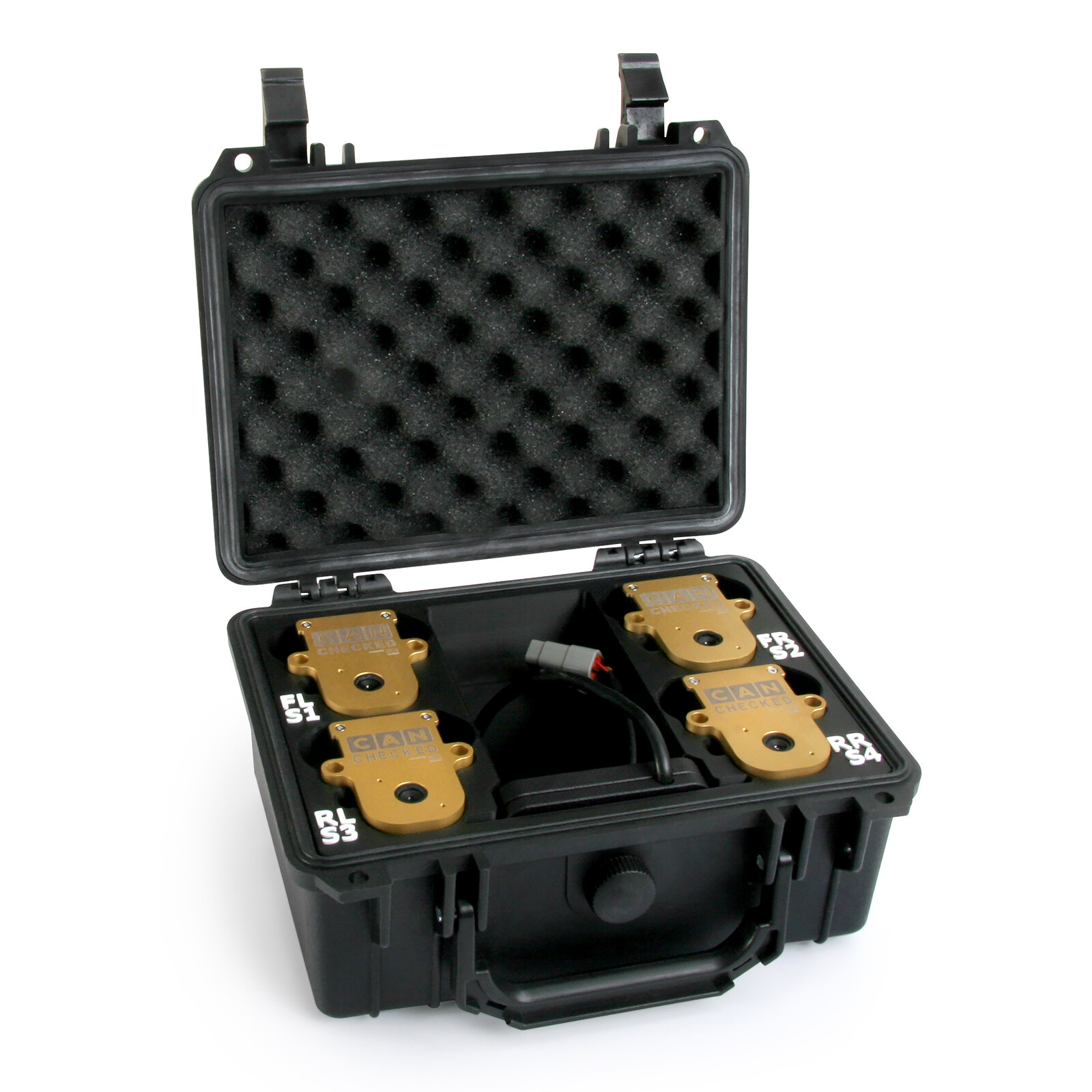

• Charging and storage box:
  • Simultaneous charging of all four temperature sensors to ensure they are always ready for use
  • Integrated storage compartment for safe and convenient transport of the CAN receiver box
• Rechargeable battery for longer use:
  • 250 mAh battery (USB-C charged) in each sensor
  • Provides up to 15 hours of active track use per charge
• High precision and wide temperature range:
  • Operating range: -40 to +800°C with ±1°C accuracy
  • Field of view: 110° x 6° for complete coverage, optional 55° for focused measurements

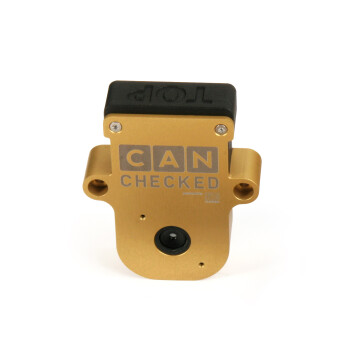

• Robust and compact design:
  • Dimensions: 64.0 x 42.0 x 17.5 mm
  • Weight: 57g
  • Robust aluminum/polyamide housing
  • Operating temperature: -40 to +85°C
  • Optional protective lens: Available to increase durability and protection (CC22954)
• Receiver specifications:
  • Supply voltage: 5–20V
  • Supply current: 50mA
  • CAN standard: 2.0A (11-bit) or 2.0B with selectable bit rates (500 Kbps standard / 1 Mbps)
  • Configurable settings for emissivity, channel, CAN speed, and CAN ID
  • Standard CAN ID (adjustable): 0x310 / 0x210
  • Temperature conversion: -200°C offset, 0.1°C per bit resolution

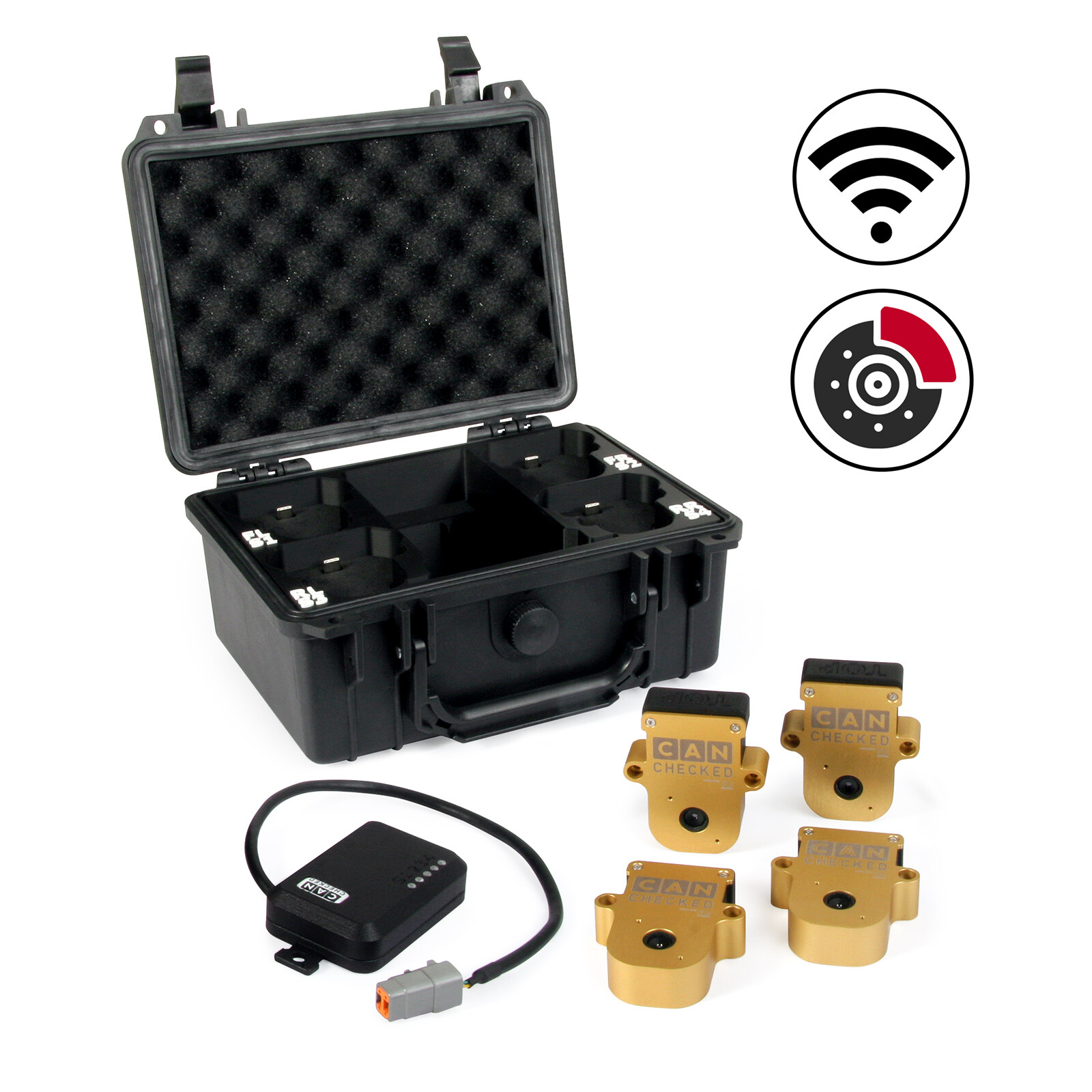

Scope of delivery:

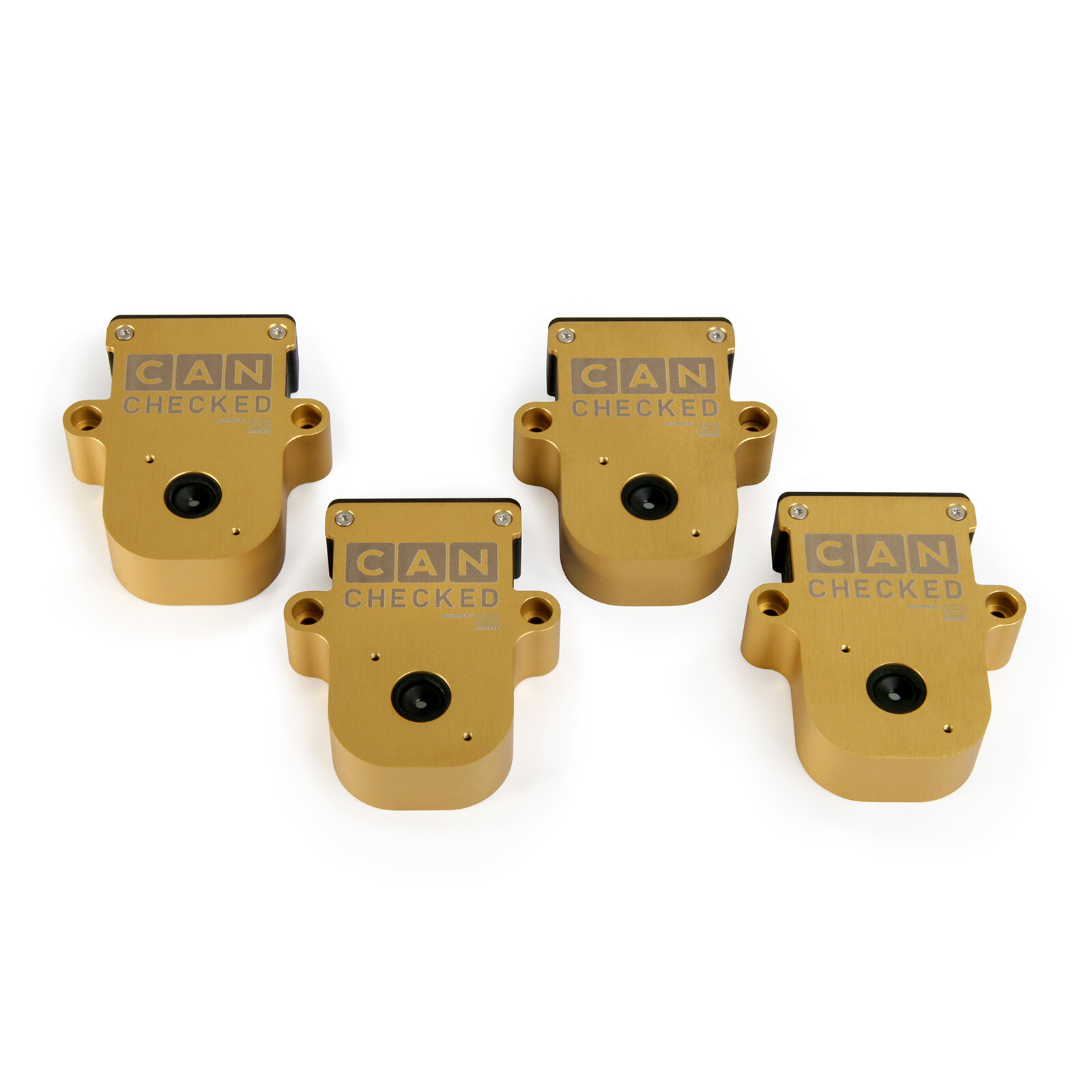

• 4x TMU01 sensors
• 1x CAN bus receiver box
• 1x charging box

Perfect for professional racing and high-performance testing, the wireless temperature monitor with its new charging and storage solution offers unparalleled convenience and reliability, making tracking and managing brake performance data easier than ever. Comprehensive documentation is available for developers for easy integration into CAN applications. Contact us to learn more!
