BMC04 - Brake Temperature Monitoring SET / wired
Technology from motorsport with CAN Bus based temperature measurement of tires
Sensor set for measuring brake temperature
CANchecked Brake Temperature Sensor Set - BMC04
Enhance your racing or high-performance setup with a comprehensive set of four precise, real-time brake temperature sensors. This set provides extensive insights across multiple measurement points and is specifically designed for the rigorous demands of motorsport environments.
Main Features
- Temperature Range: Each sensor operates from -40 to +800°C
- Multi-Channel Adaptation: Each sensor offers up to 16 configurable channels for customized data acquisition
- Field of View Options: 110° standard, optional 55° for focused measurements upon request

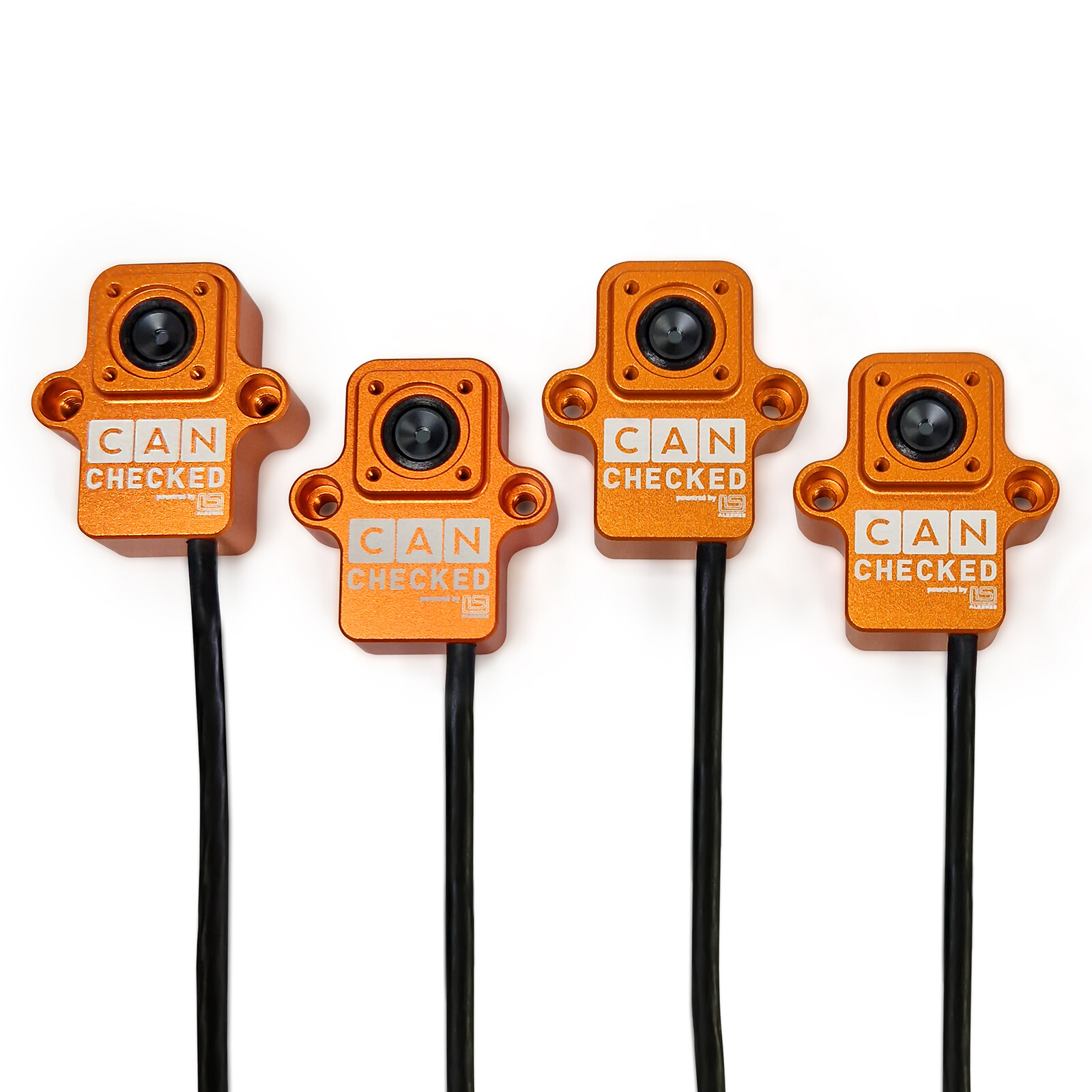

- Compact and Robust Design:
- Size: 45.5 x 25.5 x 12 mm per sensor
- Weight: 25g per sensor
- Housing: Available in aluminum or polyamide, IP66 protected for harsh environments
- Optional Protective Lens: Additional lens option for increased durability and protection
- Flexible Power Input: Each sensor operates with 5–20 V and an adjustable update rate of up to 64 Hz
- Seamless CAN Integration:
- Supports CAN 2.0A and 2.0B standards
- Adjustable bit rates and CAN termination options
- Standard CAN-ID configurable for tire (0x310) or brake data (0x210) across the entire set
- Data Accuracy:
- -200°C offset per sensor
- 0.1°C per bit resolution for high-precision measurements
- Easy Installation:

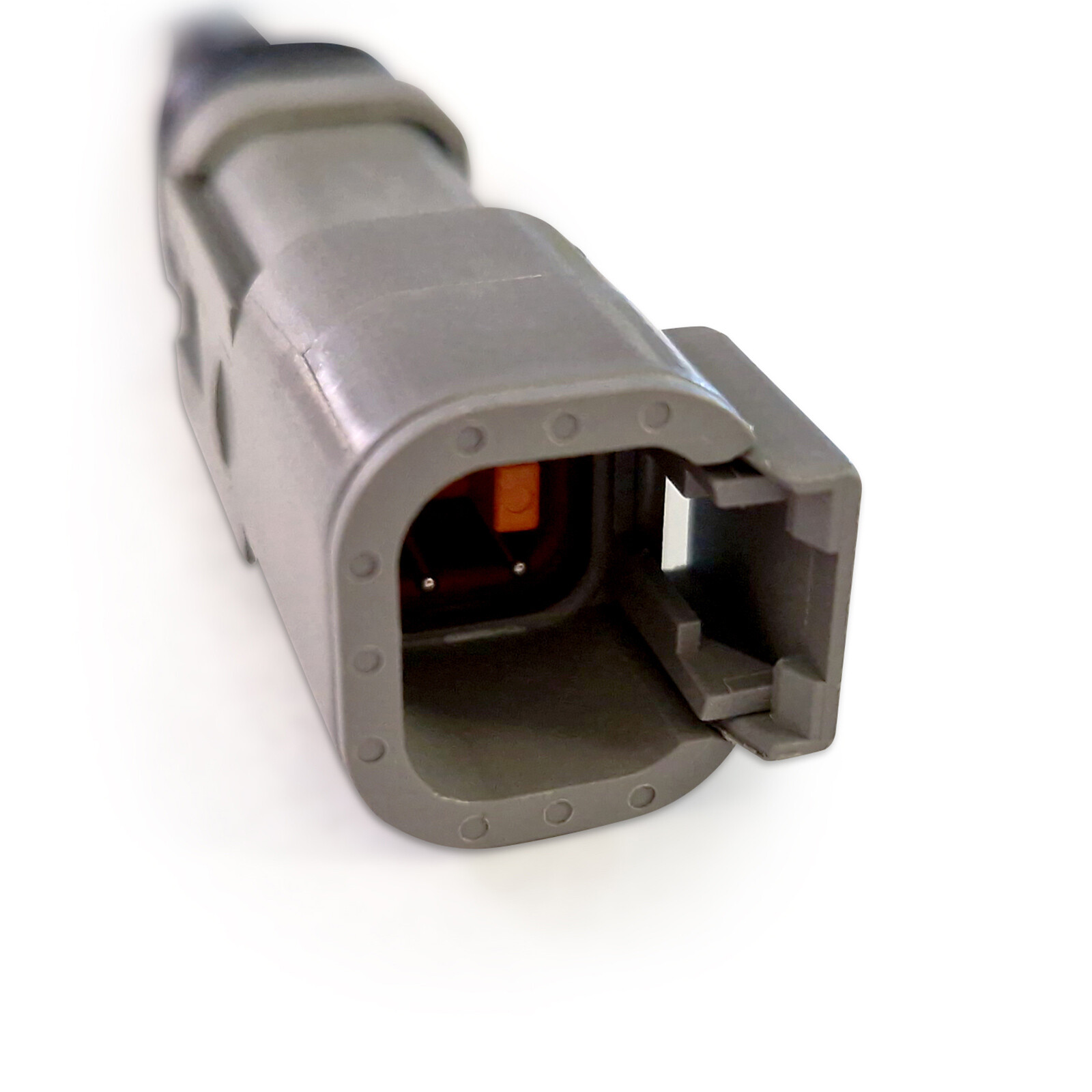

- Includes four 0.5 m AWG22 cables and DTM04-4P connectors for easy setup
- Built for Performance: IP66 rating ensures resistance to harsh environments

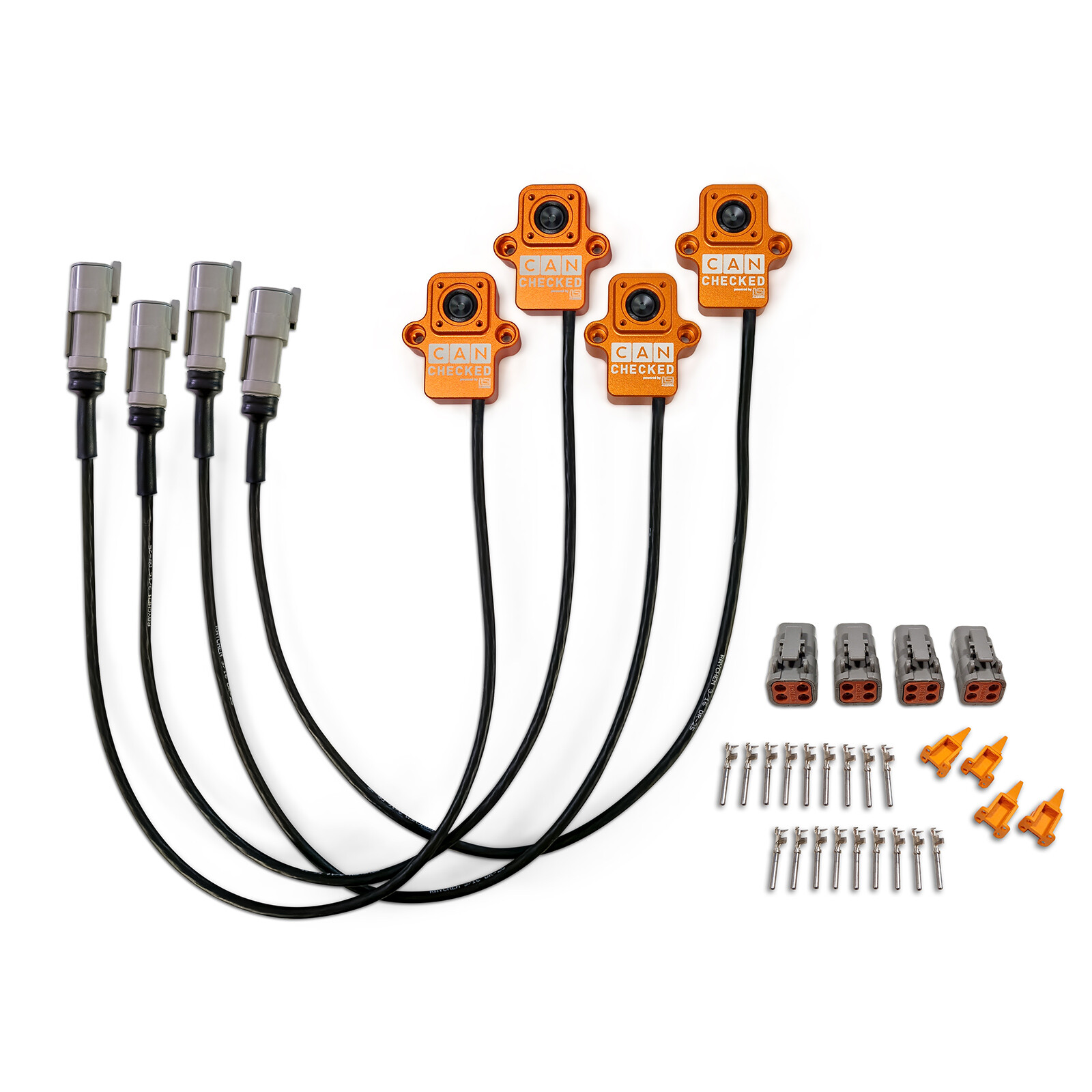

Scope of Delivery

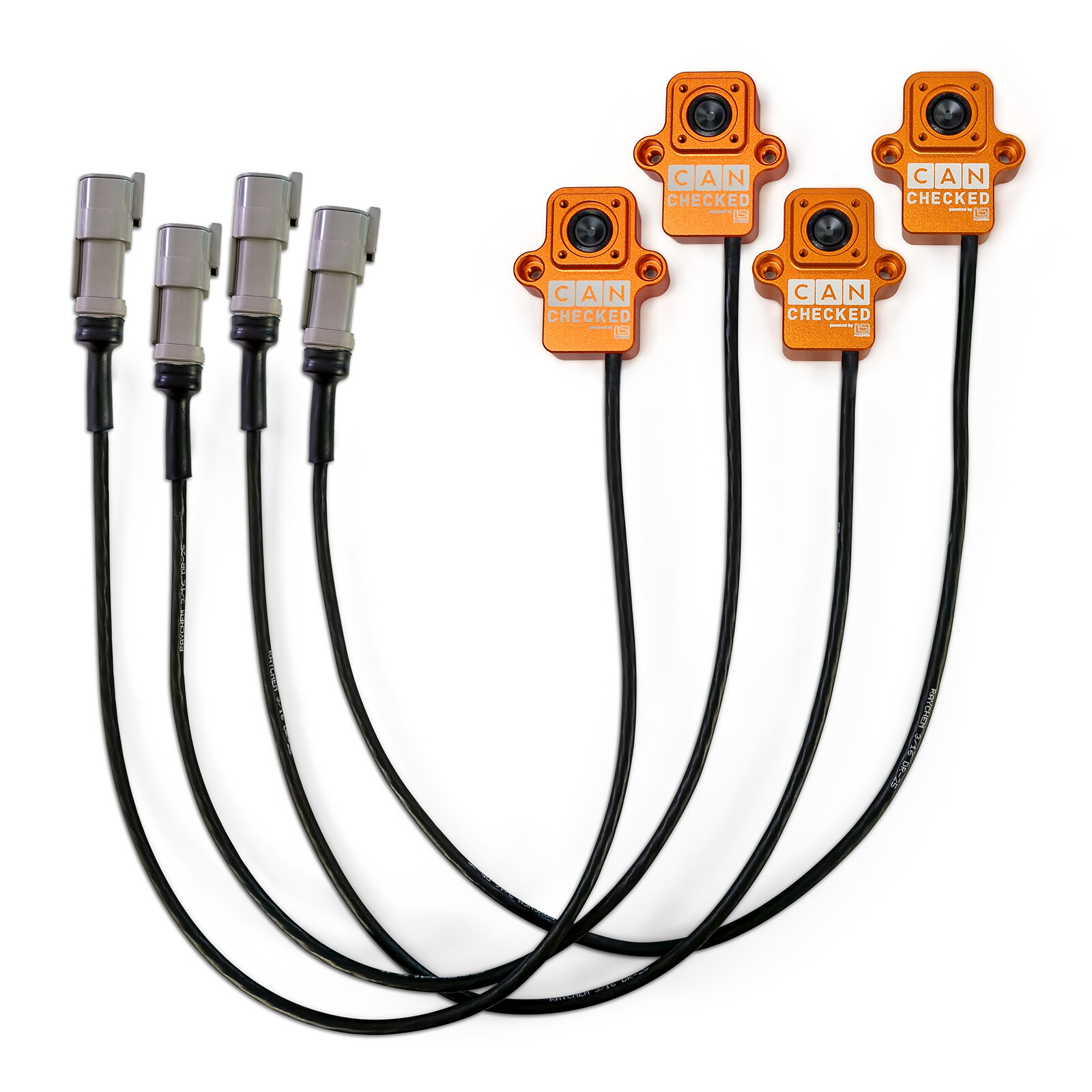

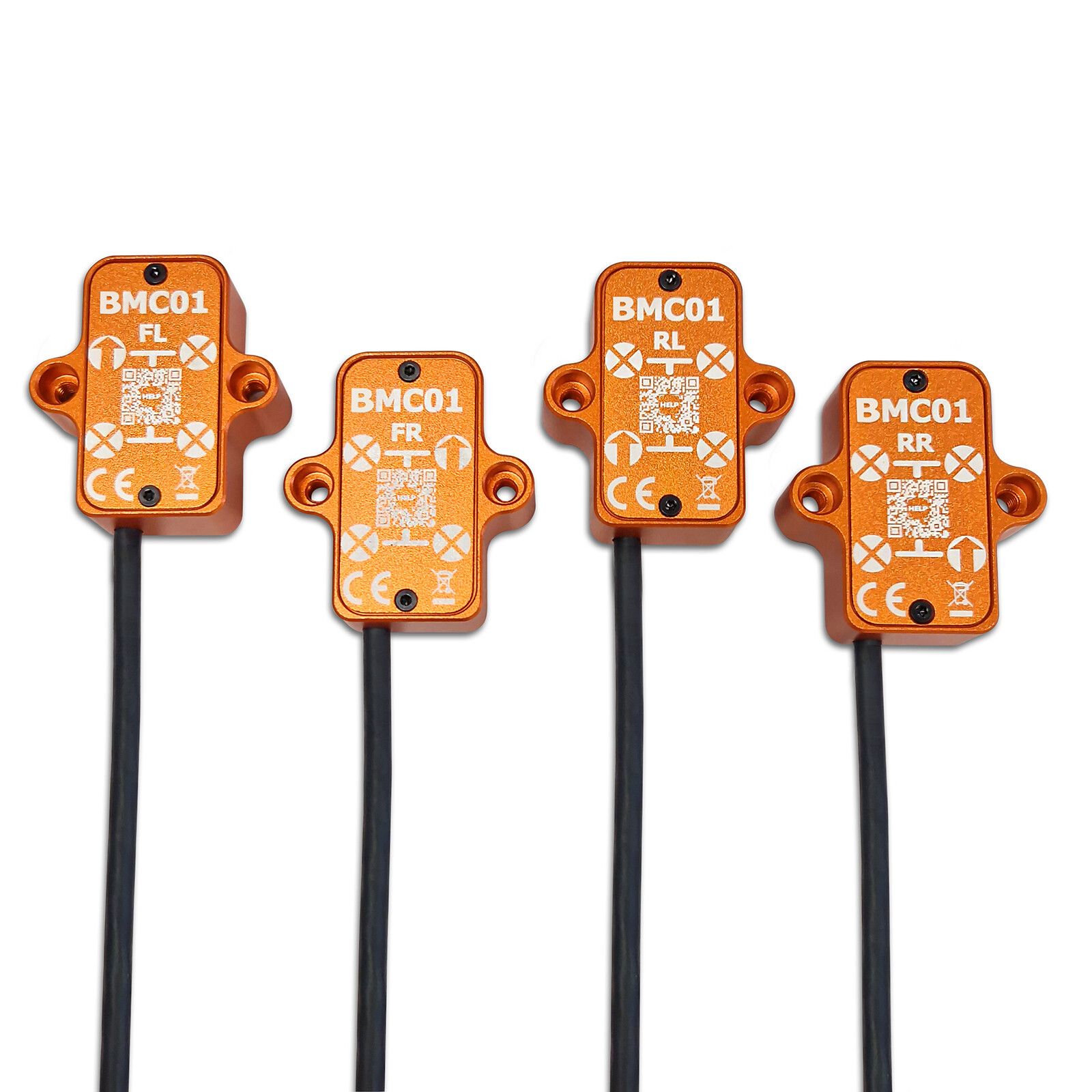

- 4x BMC01 with 0.5 m AWG22 cables and female DTM04 connectors
- 4x male DTM connectors
Conclusion
Ideal for racing and performance testing, this set of four sensors enables data-driven optimization of handling, braking, and tire management.
