PWM electric water pump for water-cooled charge air cooler

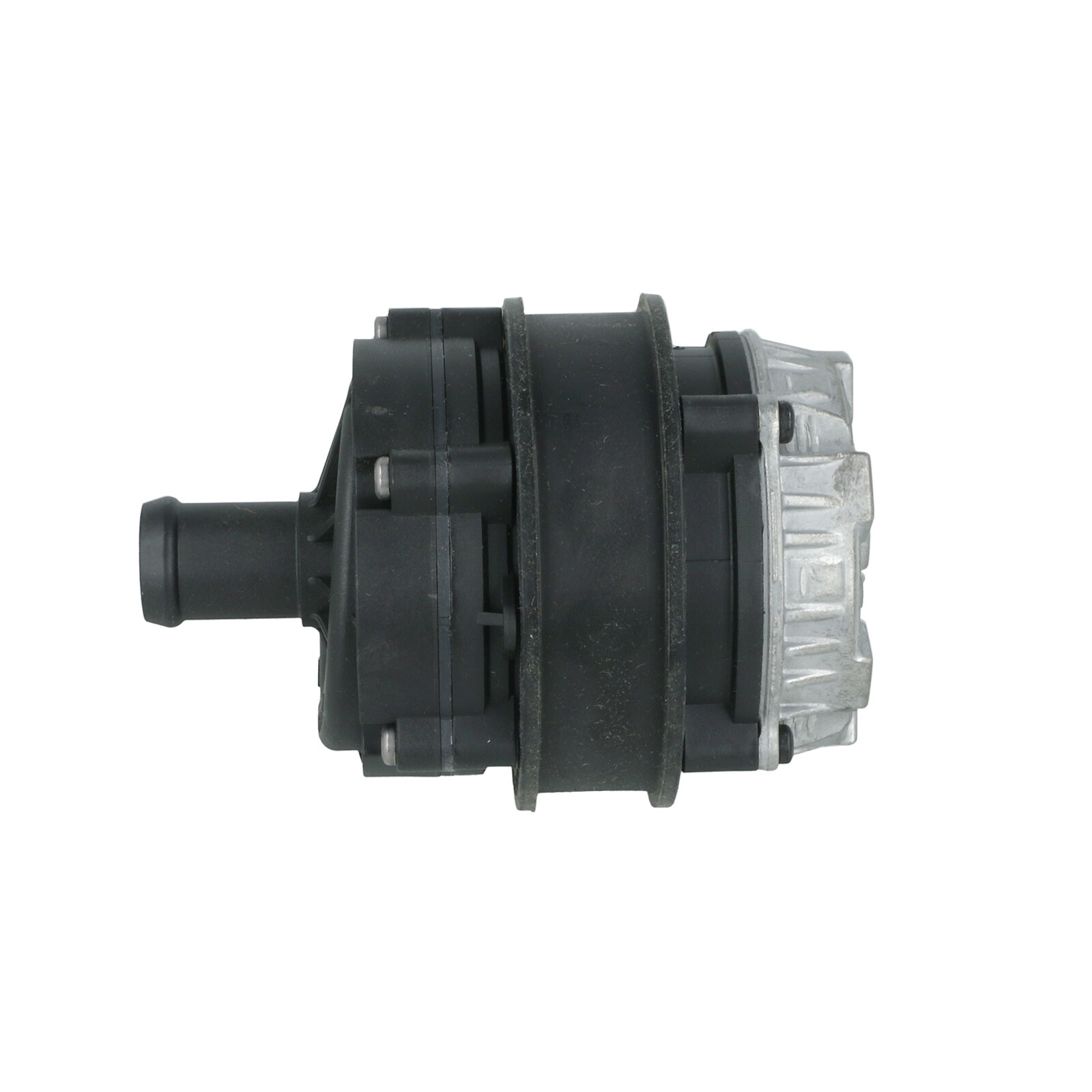

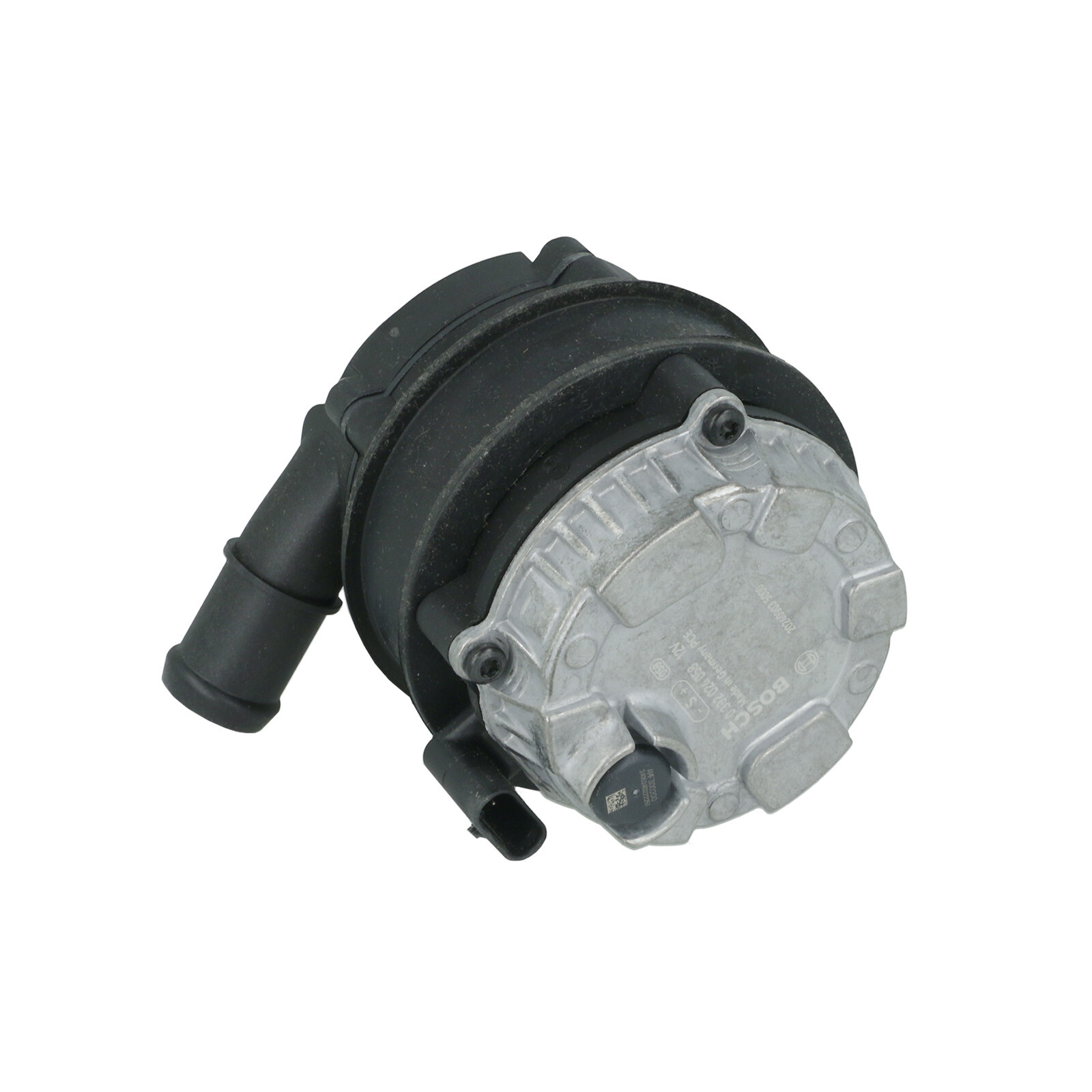

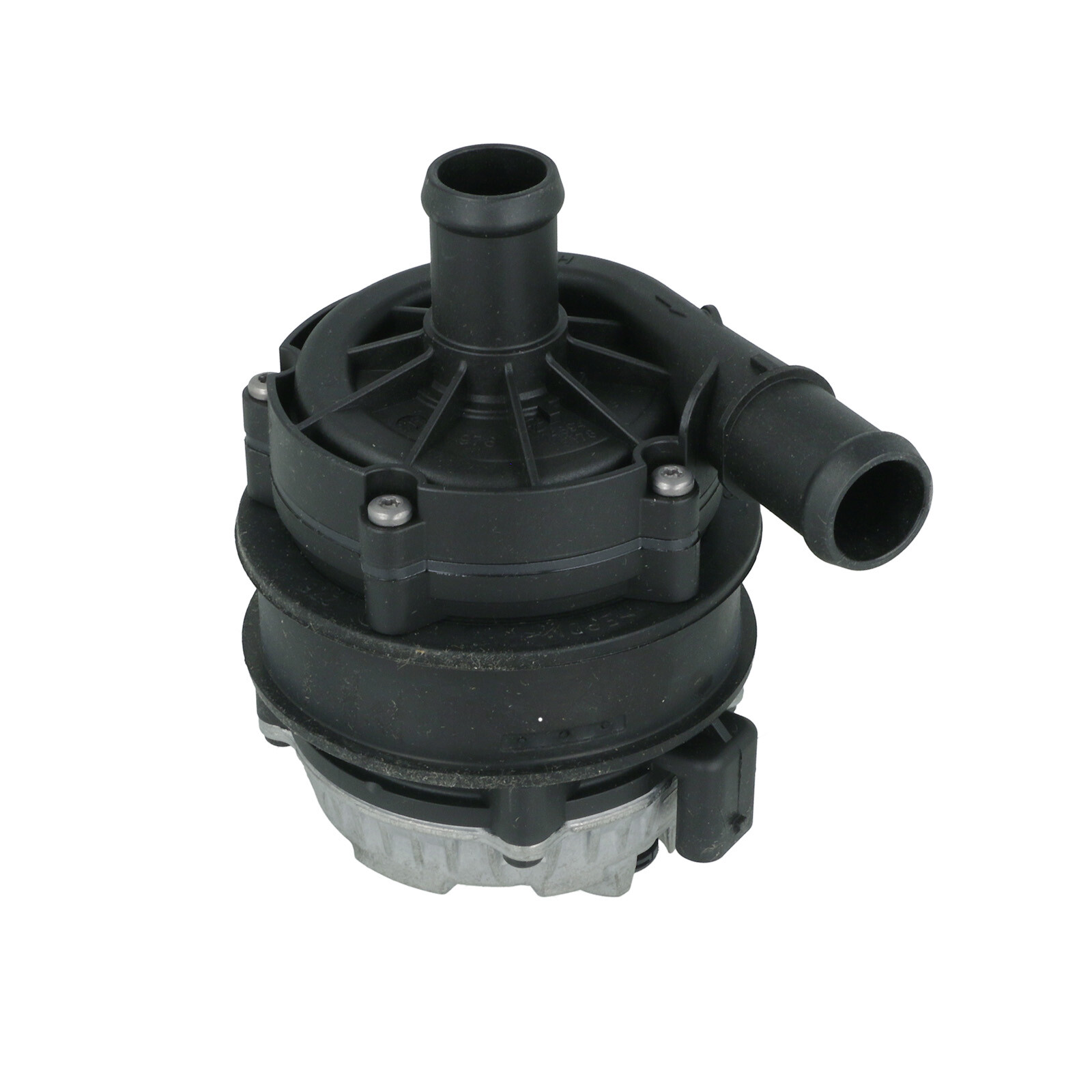

Bosch Performance water pump for WIC with a flow rate of 20 liters / minute
12V Electric water pump for our air-to-water intercooler
The Bosch Coolant Pump PCE is an electronically commutated 12V centrifugal pump suitable for a wide range of applications. Its integrated electronics with fault diagnosis and volume flow regulation through PWM signals ensure higher efficiency.
The robust design leads to a longer lifespan, and depending on the model, a motor mount is also possible. This ensures effective cooling even off-road in snowmobiles, jet skis, or forestry machinery.
If you have a water-cooled charge air cooler installed, you will need a circulation pump for the additional cooler. Our Bosch water pump operates at 12V and has a flow rate of 20L/min, making it ideal for water-cooled charge air systems. Water flow should be moderate to allow enough time for heat transfer.
Technical Data:
- Flow Rate (L/h): 1200
- Nominal Pressure (bar): 0.6
- Nominal Voltage (V): 12
- Weight (kg): 0.65
- Control: PWM
- Medium: Water/Glycol (50/50)
- Connections: Pin 1 Ground, Pin 2 Signal, Pin 3 Power Supply
- TE Connectivity MCON 1.2 1488991-6 (with CPA), …-2 w/o CPA
- Molex MXP120 34900-3102
- Bosch 1 928 498 811
- Tyco / Molex MCON 1.2 1670146-3 – Ag plated (20awg)
- KOSTAL MLK 1.2 [32124734130]
- Bosch 1 928 300 936
- TE Connectivity 967067-1 (20 awg)
- KOSTAL 10800507250
- Availability: available in 3-5 days
