    [cName] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000
    [cSeo] => BorgWarner-EFR-9180-Turbo-T4-TwinScroll-WG-092-A-R-12809880000
    [cBeschreibung] =>

BorgWarner EFR-9180 Turbo - T4 TwinScroll WG 0.92ar - 11589880036

Genuine EFR-Turbocharger

Twin Scroll, T4 with internal wastegate

Performance rating: 600 - 1000 HP
Compressor wheel: Inducer: 67.8mm, Exducer: 92.2mm
Turbine wheel outlet: 80mm

Turbine housing: 0.92 A/R with T4 twinscroll flange, internal Wastegate, V-band downpipe connection

Pictures for reference only!

BorgWarner EFR turbocharger has been developed with only one goal in mind: to dominate road, racetrack and quartermile. BorgWarner EFR turbocharger are equipped with state of the art high-tech features for unbeaten performance.
EFR Turbos are available in 7 different sizes and 4 different turbine housings, covering performance ratings from 250 to 1000HP.
The combination of a high-efficiency compressor wheel, Gamma-Titanaluminid Turbine wheel, with ceramic ball bearing technology dramatically raises the bar for motorsports turbochargers and is state of the art in terms of turbocharger technology:

Compressor:
- forged and milled compressor wheel, extremely lightweight and resistant to highest boost levels, Extended tip technology
- integrated blow off valve
- integrated boost solenoid
- 360° rotation via V-band technology
- prepared socket for speed sensor (optionally available) to monitor compressor wheel speed. Thereby compressor efficiency can be calculated.

Core assembly:
- dual ceramic ball bearing
- integrated oil restrictor
- water cooled

Turbine housing:
- stainless steel turbine housing
- Gamma-Titanaluminid turbine wheel and shaft, 50% lighter than comparable Inconel Turbine wheel and extremely heat resistant up to 1050°C (for comparison: Garrett only up to 950°C)
- high-flow wastegate port
- internal wastegate (even available for Twinscroll turbine housing!)

[cAnmerkung] => Bestellnummer: 1280 988 0000 [cArtNr] => 433946 [cURL] => BorgWarner-EFR-9180-Turbo-T4-TwinScroll-WG-092-A-R-12809880000 [cURLFull] => https://turbozentrum.co.uk/BorgWarner-EFR-9180-Turbo-T4-TwinScroll-WG-092-A-R-12809880000 [cVPE] => N [cVPEEinheit] => [cSuchbegriffe] => [cTeilbar] => N [cBarcode] => 4063087330237 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N [cKurzBeschreibung] => BorgWarner EFR-9180 Turbo - T4 TwinScroll WG 0.92ar - 11589880036 | Genuine EFR-turbocharger | Twin Scroll, T4 with internal wastegate [cMwstVersandText] => incl. 20% VAT, plus shipping costs [cLieferstatus] => ca. 2-4 Wochen Lieferzeit [cVorschaubild] => media/image/product/10906/sm/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cVorschaubildURL] => https://turbozentrum.co.uk/media/image/product/10906/sm/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cHerstellerMetaTitle] => [cHerstellerMetaKeywords] => [cHerstellerMetaDescription] => [cHerstellerBeschreibung] => [dZulaufDatum] => [dMHD] => [dErscheinungsdatum] => 2017-01-01 [cTopArtikel] => N [cNeu] => N [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 10906 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fVKNetto] => 2331.112945 [fVKBrutto] => 2797.34 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 2590.22 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 3108.26 [1] => 2590.22 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 3,108.26 [1] => £ 2,590.22 ) [fVK] => Array ( [0] => 2797.34 [1] => 2331.112945 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 10906 [kSteuerklasse] => 1 [fLagerbestand] => 4 [fNettoPreis] => 2590.22 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 2590.22 [maxNettoPrice] => 2590.22 [minBruttoPrice] => 3108.264 [maxBruttoPrice] => 3108.264 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 ) [Bilder] => Array ( [0] => stdClass Object ( [cPfadMini] => media/image/product/10906/xs/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cPfadKlein] => media/image/product/10906/sm/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cPfadNormal] => media/image/product/10906/md/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cPfadGross] => media/image/product/10906/lg/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [nNr] => 1 [cURLMini] => https://turbozentrum.co.uk/media/image/product/10906/xs/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cURLKlein] => https://turbozentrum.co.uk/media/image/product/10906/sm/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cURLNormal] => https://turbozentrum.co.uk/media/image/product/10906/md/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cURLGross] => https://turbozentrum.co.uk/media/image/product/10906/lg/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg [cAltAttribut] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 [galleryJSON] => {"xs":{"src":"https:\/\/turbozentrum.co.uk\/media\/image\/product\/10906\/xs\/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg","size":{"width":80,"height":42},"type":2,"alt":"BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A\/R - 12809880000"},"sm":{"src":"https:\/\/turbozentrum.co.uk\/media\/image\/product\/10906\/sm\/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg","size":{"width":350,"height":183},"type":2,"alt":"BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A\/R - 12809880000"},"md":{"src":"https:\/\/turbozentrum.co.uk\/media\/image\/product\/10906\/md\/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg","size":{"width":500,"height":262},"type":2,"alt":"BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A\/R - 12809880000"},"lg":{"src":"https:\/\/turbozentrum.co.uk\/media\/image\/product\/10906\/lg\/borgwarner-efr-9180-turbo-t4-twinscroll-wg-092-a-r-12809880000.jpg","size":{"width":500,"height":262},"type":2,"alt":"BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A\/R - 12809880000"}} ) ) [FunktionsAttribute] => Array ( [isactive] => true [bestellnummer] => 1280 988 0000 [meldebestandinfo] => Meldebestand: 2 [itemno] => EFR-9180-T-WG [externalitemid] => 12809880000 [video] => [interneartnr] => 12809880000 [berechnungsvorgaben] => EK/68*119 | 3/10/20/20 [lieferzeit in wochen] => 8 [safety faktor] => 1,50000000 [mengen_fuer_abverkauf] => 1 [ek_fuer_berechnungen] => 1567,19 [bestandde] => 2 [keinexportpreiseuk] => no ) [Attribute] => Array ( ) [AttributeAssoc] => Array ( [meta_description] => Borgwarner high-performance efr turbochargers for fastest response and maximum power [meta_title] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 [meta_keywords] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 Motorsport Racing Rennsport Drag Racing 1/4 Meile Racetrack Turbocharger Maximum Performance Upgrade Tuning EFR ) [Variationen] => Array ( [0] => JTL\Catalog\Product\Variation Object ( [Werte] => Array ( [0] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29331 [kEigenschaft] => 4625 [cName] => without turbine housing - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 1 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 8908 [tartikel_fLagerbestand] => 1 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [1] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29333 [kEigenschaft] => 4625 [cName] => without turbine housing - Alu [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 2 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 25295 [tartikel_fLagerbestand] => 6 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [2] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29329 [kEigenschaft] => 4625 [cName] => T3 - WG - 0.83ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 3 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 6546 [tartikel_fLagerbestand] => 4 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [3] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29332 [kEigenschaft] => 4625 [cName] => T4 TS - WG - 0.92ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 4 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 10906 [tartikel_fLagerbestand] => 4 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [4] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29330 [kEigenschaft] => 4625 [cName] => T4 TS - None WG - 1.05ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 5 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 6547 [tartikel_fLagerbestand] => 7 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [kEigenschaft] => 4625 [kArtikel] => 131375 [cWaehlbar] => Y [cTyp] => SELECTBOX [nSort] => 0 [cName] => Flange - Wastegate - A/R - Material CHRA [nLieferbareVariationswerte] => 5 ) ) [Sonderpreise] => [bSuchspecial_arr] => Array ( [1] => [2] => 1 [3] => [4] => [5] => [6] => [7] => [8] => 1 [9] => ) [oSuchspecialBild] => JTL\Media\Image\Overlay Object ( [path:JTL\Media\Image\Overlay:private] => bilder/suchspecialoverlay/ [pathSizes:JTL\Media\Image\Overlay:private] => Array ( [xs] => bilder/suchspecialoverlay/klein/ [sm] => bilder/suchspecialoverlay/normal/ [md] => bilder/suchspecialoverlay/gross/ [lg] => bilder/suchspecialoverlay/retina/ ) [position:JTL\Media\Image\Overlay:private] => 2 [active:JTL\Media\Image\Overlay:private] => 1 [priority:JTL\Media\Image\Overlay:private] => 6 [margin:JTL\Media\Image\Overlay:private] => 5 [transparence:JTL\Media\Image\Overlay:private] => 15 [size:JTL\Media\Image\Overlay:private] => 30 [type:JTL\Media\Image\Overlay:private] => 2 [language:JTL\Media\Image\Overlay:private] => 1 [name:JTL\Media\Image\Overlay:private] => Sonderangebote [imageName:JTL\Media\Image\Overlay:private] => std_kSuchspecialOverlay_1_2.png [templateName:JTL\Media\Image\Overlay:private] => Turbozentrum Shop 5 [urlSizes:JTL\Media\Image\Overlay:private] => Array ( [xs] => https://turbozentrum.co.uk/bilder/suchspecialoverlay/klein/std_kSuchspecialOverlay_1_2.png [sm] => https://turbozentrum.co.uk/bilder/suchspecialoverlay/normal/std_kSuchspecialOverlay_1_2.png [md] => https://turbozentrum.co.uk/bilder/suchspecialoverlay/gross/std_kSuchspecialOverlay_1_2.png [lg] => https://turbozentrum.co.uk/bilder/suchspecialoverlay/retina/std_kSuchspecialOverlay_1_2.png ) [data:JTL\Media\Image\Overlay:private] => Array ( ) ) [bIsBestseller] => 0 [bIsTopBewertet] => 0 [oProduktBundle_arr] => Array ( ) [oMedienDatei_arr] => Array ( [0] => stdClass Object ( [kMedienDatei] => 59159 [cPfad] => [cURL] => https://youtu.be/watch?v=FuyNRKEHiTY [cTyp] => .* [nSort] => 1 [cName] => Turbocharger selection made easy: Try our TurboGuide [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [1] => stdClass Object ( [kMedienDatei] => 64487 [cPfad] => [cURL] => https://youtu.be/watch?v=sQtOIwRhUYA [cTyp] => .* [nSort] => 1 [cName] => What are the advantages of a turbo with ball bearings? Better than journal bearings? | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [2] => stdClass Object ( [kMedienDatei] => 56939 [cPfad] => [cURL] => https://youtu.be/watch?v=bmP0hlseXS0 [cTyp] => .* [nSort] => 2 [cName] => What does T25, T3, T4 flange mean? | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [3] => stdClass Object ( [kMedienDatei] => 60846 [cPfad] => [cURL] => https://youtu.be/watch?v=hSpdcDstY3w [cTyp] => .* [nSort] => 2 [cName] => Which turbocharger is better? BorgWarner, Garrett or another one? [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [4] => stdClass Object ( [kMedienDatei] => 52552 [cPfad] => [cURL] => https://youtu.be/watch?v=5Ob0plBGfww [cTyp] => .* [nSort] => 3 [cName] => TwinScroll vs SingleScroll housing | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [5] => stdClass Object ( [kMedienDatei] => 65679 [cPfad] => [cURL] => https://youtu.be/watch?v=VdaWhE08B80 [cTyp] => .* [nSort] => 3 [cName] => What does the A/R value mean - more power vs. response | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [6] => stdClass Object ( [kMedienDatei] => 60051 [cPfad] => [cURL] => https://youtu.be/watch?v=GlGyhFtxjpQ [cTyp] => .* [nSort] => 4 [cName] => What should I pay attention when installing a motorsport turbocharger? [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [7] => stdClass Object ( [kMedienDatei] => 58361 [cPfad] => [cURL] => https://youtu.be/watch?v=Fj1x-E3zzTI [cTyp] => .* [nSort] => 4 [cName] => Internal and external wastegate + actuators | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [8] => stdClass Object ( [kMedienDatei] => 61972 [cPfad] => [cURL] => https://youtu.be/watch?v=R4RdTl5zl40 [cTyp] => .* [nSort] => 5 [cName] => Water cooling or oil cooling on the turbo | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [9] => stdClass Object ( [kMedienDatei] => 61662 [cPfad] => [cURL] => https://youtu.be/watch?v=oS38_Dmdcfw [cTyp] => .* [nSort] => 6 [cName] => Which oil restrictor do I need? [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [10] => stdClass Object ( [kMedienDatei] => 55947 [cPfad] => [cURL] => https://youtu.be/watch?v=AGlCsLEDor8 [cTyp] => .* [nSort] => 9 [cName] => Extended tip technology on the compressor wheel of the turbocharger | Turbocharger simply explained [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => Video [nMedienTyp] => 4 [videoType] => [cAttributTab] => ) [11] => stdClass Object ( [kMedienDatei] => 87046 [cPfad] => [cURL] => https://www.turbozentrum.de/mediafiles/pdf/Anleitungen/b2-frame-dimensions.pdf [cTyp] => .pdf [nSort] => 38 [cName] => BorgWarner EFR B2 Series frame dimensions [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => PDF [nMedienTyp] => 5 [videoType] => [cAttributTab] => ) [12] => stdClass Object ( [kMedienDatei] => 86960 [cPfad] => [cURL] => https://www.turbozentrum.de/mediafiles/pdf/Anleitungen/EFR%20Verdichterdiagramme/EFR%209180.png [cTyp] => .pdf [nSort] => 38 [cName] => Compressor Map [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => PDF [nMedienTyp] => 5 [videoType] => [cAttributTab] => ) [13] => stdClass Object ( [kMedienDatei] => 81379 [cPfad] => [cURL] => https://www.turbozentrum.de/mediafiles/pdf/BorgWarner/bwts_performanceturbosgeneral_1880_2103.pdf [cTyp] => .pdf [nSort] => 255 [cName] => Borg Warner Catalog 2017 [cBeschreibung] => [kSprache] => 1 [oMedienDateiAttribut_arr] => Array ( ) [nErreichbar] => 1 [cMedienTyp] => PDF [nMedienTyp] => 5 [videoType] => [cAttributTab] => ) ) [cMedienTyp_arr] => Array ( [video] => stdClass Object ( [count] => 11 [name] => Video ) [pdf] => stdClass Object ( [count] => 3 [name] => PDF ) ) [nVariationsAufpreisVorhanden] => 0 [cMedienDateiAnzeige] => [oVariationKombi_arr] => Array ( [0] => stdClass Object ( [kEigenschaftKombi] => 67247 [kEigenschaft] => 4625 [kEigenschaftWert] => 29332 ) ) [VariationenOhneFreifeld] => Array ( [0] => JTL\Catalog\Product\Variation Object ( [Werte] => Array ( [0] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29331 [kEigenschaft] => 4625 [cName] => without turbine housing - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 1 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 8908 [tartikel_fLagerbestand] => 1 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [1] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29333 [kEigenschaft] => 4625 [cName] => without turbine housing - Alu [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 2 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 25295 [tartikel_fLagerbestand] => 6 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [2] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29329 [kEigenschaft] => 4625 [cName] => T3 - WG - 0.83ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 3 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 6546 [tartikel_fLagerbestand] => 4 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [3] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29332 [kEigenschaft] => 4625 [cName] => T4 TS - WG - 0.92ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 4 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 10906 [tartikel_fLagerbestand] => 4 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [4] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29330 [kEigenschaft] => 4625 [cName] => T4 TS - None WG - 1.05ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 5 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 6547 [tartikel_fLagerbestand] => 7 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [kEigenschaft] => 4625 [kArtikel] => 131375 [cWaehlbar] => Y [cTyp] => SELECTBOX [nSort] => 0 [cName] => Flange - Wastegate - A/R - Material CHRA [nLieferbareVariationswerte] => 5 ) ) [oVariationenNurKind_arr] => Array ( [0] => stdClass Object ( [Werte] => Array ( [0] => JTL\Catalog\Product\VariationValue Object ( [kEigenschaftWert] => 29332 [kEigenschaft] => 4625 [cName] => T4 TS - WG - 0.92ar - Steel [fAufpreisNetto] => 0.0000 [fGewichtDiff] => 0.0000 [cArtNr] => 0 [nSort] => 4 [fLagerbestand] => 0 [fPackeinheit] => 1 [inStock] => 1 [notExists] => [oVariationsKombi] => stdClass Object ( [kArtikel] => 10906 [tartikel_fLagerbestand] => 4 [cLagerBeachten] => Y [cLagerKleinerNull] => Y [cLagerVariation] => N ) [cAufpreisLocalized] => Array ( [0] => £ 0.00 [1] => £ 0.00 ) [cPreisVPEWertAufpreis] => Array ( ) [cPreisVPEWertInklAufpreis] => Array ( ) [cPreisInklAufpreis] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fAufpreis] => Array ( [0] => 0 [1] => 0 ) [fVPEWert] => [cPfad] => [cBildPfad] => [cBildPfadFull] => [cBildPfadMini] => [cBildPfadMiniFull] => [cBildPfadGross] => [cBildPfadGrossFull] => [cPfadMini] => [cPfadMiniFull] => [cPfadKlein] => [cPfadKleinFull] => [cPfadNormal] => [cPfadNormalFull] => [cPfadGross] => [cPfadGrossFull] => [imageType:protected] => variation [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [kEigenschaft] => 4625 [kArtikel] => 131375 [cWaehlbar] => Y [cTyp] => SELECTBOX [nSort] => 0 [cName] => Flange - Wastegate - A/R - Material CHRA [nLieferbareVariationswerte] => 5 ) ) [Lageranzeige] => stdClass Object ( [cLagerhinweis] => Array ( [genau] => 4 In stock [verfuegbarkeit] => Available ) [nStatus] => 2 [AmpelText] => In stock ) [kEigenschaftKombi] => 0 [kVaterArtikel] => 131375 [nIstVater] => 1 [cVaterVKLocalized] => [oKategorie_arr] => Array ( [0] => 45578 [1] => 46750 [2] => 46824 [3] => 46825 ) [oKonfig_arr] => Array ( ) [bHasKonfig] => [oMerkmale_arr] => Array ( [42973] => JTL\Catalog\Product\Merkmal Object ( [kMerkmal] => 42973 [cName] => Model [cBildpfad] => [nSort] => 6 [cBildpfadKlein] => gfx/keinBild.gif [nBildKleinVorhanden] => 0 [cBildpfadGross] => gfx/keinBild.gif [nBildGrossVorhanden] => 0 [cBildpfadNormal] => [oMerkmalWert_arr] => Array ( [0] => JTL\Catalog\Product\MerkmalWert Object ( [kSprache] => 1 [kMerkmalWert] => 147874 [kMerkmal] => 42973 [nSort] => 1680 [cWert] => internal Wastegate [cMetaKeywords] => [cMetaDescription] => [cMetaTitle] => [cBeschreibung] => [cSeo] => internal-Wastegate [cURL] => internal-Wastegate [cURLFull] => https://turbozentrum.co.uk/internal-Wastegate [cBildpfad] => [cBildpfadKlein] => gfx/keinBild_kl.gif [nBildKleinVorhanden] => 0 [cBildpfadNormal] => gfx/keinBild_kl.gif [nBildNormalVorhanden] => 0 [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [cBildURLNormal] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [imageType:protected] => characteristicvalue [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [1] => JTL\Catalog\Product\MerkmalWert Object ( [kSprache] => 1 [kMerkmalWert] => 147897 [kMerkmal] => 42973 [nSort] => 1730 [cWert] => Ball bearing [cMetaKeywords] => [cMetaDescription] => [cMetaTitle] => [cBeschreibung] => [cSeo] => Ball-bearing [cURL] => Ball-bearing [cURLFull] => https://turbozentrum.co.uk/Ball-bearing [cBildpfad] => [cBildpfadKlein] => gfx/keinBild_kl.gif [nBildKleinVorhanden] => 0 [cBildpfadNormal] => gfx/keinBild_kl.gif [nBildNormalVorhanden] => 0 [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [cBildURLNormal] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [imageType:protected] => characteristicvalue [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [cTyp] => TEXT [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLGross] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLNormal] => https://turbozentrum.co.uk/ [kSprache] => 1 [imageType:protected] => characteristic [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [42994] => JTL\Catalog\Product\Merkmal Object ( [kMerkmal] => 42994 [cName] => Flange type [cBildpfad] => [nSort] => 33 [cBildpfadKlein] => gfx/keinBild.gif [nBildKleinVorhanden] => 0 [cBildpfadGross] => gfx/keinBild.gif [nBildGrossVorhanden] => 0 [cBildpfadNormal] => [oMerkmalWert_arr] => Array ( [0] => JTL\Catalog\Product\MerkmalWert Object ( [kSprache] => 1 [kMerkmalWert] => 147845 [kMerkmal] => 42994 [nSort] => 18036 [cWert] => T4 divided / TwinScroll [cMetaKeywords] => [cMetaDescription] => [cMetaTitle] => [cBeschreibung] => [cSeo] => T4-divided-TwinScroll [cURL] => T4-divided-TwinScroll [cURLFull] => https://turbozentrum.co.uk/T4-divided-TwinScroll [cBildpfad] => [cBildpfadKlein] => gfx/keinBild_kl.gif [nBildKleinVorhanden] => 0 [cBildpfadNormal] => gfx/keinBild_kl.gif [nBildNormalVorhanden] => 0 [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [cBildURLNormal] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [imageType:protected] => characteristicvalue [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [cTyp] => TEXT [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLGross] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLNormal] => https://turbozentrum.co.uk/ [kSprache] => 1 [imageType:protected] => characteristic [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [42990] => JTL\Catalog\Product\Merkmal Object ( [kMerkmal] => 42990 [cName] => Turbocharger [cBildpfad] => [nSort] => 67 [cBildpfadKlein] => gfx/keinBild.gif [nBildKleinVorhanden] => 0 [cBildpfadGross] => gfx/keinBild.gif [nBildGrossVorhanden] => 0 [cBildpfadNormal] => [oMerkmalWert_arr] => Array ( [0] => JTL\Catalog\Product\MerkmalWert Object ( [kSprache] => 1 [kMerkmalWert] => 148507 [kMerkmal] => 42990 [nSort] => 32380 [cWert] => EFR 9180 [cMetaKeywords] => [cMetaDescription] => [cMetaTitle] => [cBeschreibung] => [cSeo] => EFR-9180 [cURL] => EFR-9180 [cURLFull] => https://turbozentrum.co.uk/EFR-9180 [cBildpfad] => [cBildpfadKlein] => gfx/keinBild_kl.gif [nBildKleinVorhanden] => 0 [cBildpfadNormal] => gfx/keinBild_kl.gif [nBildNormalVorhanden] => 0 [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [cBildURLNormal] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [imageType:protected] => characteristicvalue [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [cTyp] => TEXT [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLGross] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLNormal] => https://turbozentrum.co.uk/ [kSprache] => 1 [imageType:protected] => characteristic [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) [43038] => JTL\Catalog\Product\Merkmal Object ( [kMerkmal] => 43038 [cName] => a/r Value [cBildpfad] => [nSort] => 76 [cBildpfadKlein] => gfx/keinBild.gif [nBildKleinVorhanden] => 0 [cBildpfadGross] => gfx/keinBild.gif [nBildGrossVorhanden] => 0 [cBildpfadNormal] => [oMerkmalWert_arr] => Array ( [0] => JTL\Catalog\Product\MerkmalWert Object ( [kSprache] => 1 [kMerkmalWert] => 149874 [kMerkmal] => 43038 [nSort] => 0 [cWert] => 0.92ar [cMetaKeywords] => [cMetaDescription] => [cMetaTitle] => [cBeschreibung] => [cSeo] => 092ar [cURL] => 092ar [cURLFull] => https://turbozentrum.co.uk/092ar [cBildpfad] => [cBildpfadKlein] => gfx/keinBild_kl.gif [nBildKleinVorhanden] => 0 [cBildpfadNormal] => gfx/keinBild_kl.gif [nBildNormalVorhanden] => 0 [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [cBildURLNormal] => https://turbozentrum.co.uk/gfx/keinBild_kl.gif [imageType:protected] => characteristicvalue [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [cTyp] => [cBildURLKlein] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLGross] => https://turbozentrum.co.uk/gfx/keinBild.gif [cBildURLNormal] => https://turbozentrum.co.uk/ [kSprache] => 1 [imageType:protected] => characteristic [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => ) ) [cMerkmalAssoc_arr] => Array ( [Model] => internal Wastegate, Ball bearing [Flangetype] => T4 divided / TwinScroll [Turbocharger] => EFR 9180 [arValue] => 0.92ar ) [cVariationKombi] => 4625_29332 [kEigenschaftKombi_arr] => [oVariationKombiVorschauText] => [oVariationDetailPreisKind_arr] => Array ( [29332] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 10906 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fVKNetto] => 2331.112945 [fVKBrutto] => 2797.34 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 2590.22 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 3108.26 [1] => 2590.22 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 3,108.26 [1] => £ 2,590.22 ) [fVK] => Array ( [0] => 2797.34 [1] => 2331.112945 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 10906 [kSteuerklasse] => 1 [fLagerbestand] => 4 [fNettoPreis] => 2590.22 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 2590.22 [maxNettoPrice] => 2590.22 [minBruttoPrice] => 3108.264 [maxBruttoPrice] => 3108.264 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 ) ) ) [oVariationDetailPreis_arr] => Array ( [29329] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 6546 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 2,462.25 [1] => £ 2,051.88 ) [fVKNetto] => 2051.87900167 [fVKBrutto] => 2462.25 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 2279.95 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 2735.94 [1] => 2279.95 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 2,735.94 [1] => £ 2,279.95 ) [fVK] => Array ( [0] => 2462.25 [1] => 2051.87900167 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 6546 [kSteuerklasse] => 1 [fLagerbestand] => 4 [fNettoPreis] => 2279.95 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 2279.95 [maxNettoPrice] => 2279.95 [minBruttoPrice] => 2735.94 [maxBruttoPrice] => 2735.94 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 [cAufpreisLocalized] => Array ( [0] => + £ 566.30 [1] => + £ 471.92 ) ) ) [29330] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 6547 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 2,494.08 [1] => £ 2,078.40 ) [fVKNetto] => 2078.402305 [fVKBrutto] => 2494.08 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 2309.42 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 2771.3 [1] => 2309.42 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 2,771.30 [1] => £ 2,309.42 ) [fVK] => Array ( [0] => 2494.08 [1] => 2078.402305 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 6547 [kSteuerklasse] => 1 [fLagerbestand] => 7 [fNettoPreis] => 2309.42 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 2309.42 [maxNettoPrice] => 2309.42 [minBruttoPrice] => 2771.304 [maxBruttoPrice] => 2771.304 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 [cAufpreisLocalized] => Array ( [0] => + £ 598.13 [1] => + £ 498.45 ) ) ) [29331] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 8908 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 1,895.95 [1] => £ 1,579.96 ) [fVKNetto] => 1579.95576667 [fVKBrutto] => 1895.95 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 1755.57 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 2106.68 [1] => 1755.57 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 2,106.68 [1] => £ 1,755.57 ) [fVK] => Array ( [0] => 1895.95 [1] => 1579.95576667 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 8908 [kSteuerklasse] => 1 [fLagerbestand] => 1 [fNettoPreis] => 1755.57 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 1755.57 [maxNettoPrice] => 1755.57 [minBruttoPrice] => 2106.684 [maxBruttoPrice] => 2106.684 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 ) ) [29332] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 10906 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 2,797.34 [1] => £ 2,331.11 ) [fVKNetto] => 2331.112945 [fVKBrutto] => 2797.34 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 2590.22 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 3108.26 [1] => 2590.22 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 3,108.26 [1] => £ 2,590.22 ) [fVK] => Array ( [0] => 2797.34 [1] => 2331.112945 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 10906 [kSteuerklasse] => 1 [fLagerbestand] => 4 [fNettoPreis] => 2590.22 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 2590.22 [maxNettoPrice] => 2590.22 [minBruttoPrice] => 3108.264 [maxBruttoPrice] => 3108.264 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 [cAufpreisLocalized] => Array ( [0] => + £ 901.39 [1] => + £ 751.16 ) ) ) [29333] => stdClass Object ( [Preise] => JTL\Catalog\Product\Preise Object ( [kKundengruppe] => 1 [kArtikel] => 25295 [kKunde] => 0 [cVKLocalized] => Array ( [0] => £ 1,955.41 [1] => £ 1,629.51 ) [fVKNetto] => 1629.50536 [fVKBrutto] => 1955.41 [fPreis1] => [fPreis2] => [fPreis3] => [fPreis4] => [fPreis5] => [fUst] => 20.00 [alterVKNetto] => 1810.63 [nAnzahl1] => [nAnzahl2] => [nAnzahl3] => [nAnzahl4] => [nAnzahl5] => [alterVK] => Array ( [0] => 2172.76 [1] => 1810.63 ) [rabatt] => [alterVKLocalized] => Array ( [0] => £ 2,172.76 [1] => £ 1,810.63 ) [fVK] => Array ( [0] => 1955.41 [1] => 1629.50536 ) [nAnzahl_arr] => Array ( ) [fPreis_arr] => Array ( ) [fStaffelpreis_arr] => Array ( ) [cPreisLocalized_arr] => Array ( ) [Sonderpreis_aktiv] => 1 [Kundenpreis_aktiv] => [oPriceRange] => JTL\Catalog\Product\PriceRange Object ( [productData:JTL\Catalog\Product\PriceRange:private] => stdClass Object ( [kArtikel] => 25295 [kSteuerklasse] => 1 [fLagerbestand] => 6 [fNettoPreis] => 1810.63 ) [customerGroupID:JTL\Catalog\Product\PriceRange:private] => 1 [customerID:JTL\Catalog\Product\PriceRange:private] => 0 [discount:JTL\Catalog\Product\PriceRange:private] => 0 [minNettoPrice] => 1810.63 [maxNettoPrice] => 1810.63 [minBruttoPrice] => 2172.756 [maxBruttoPrice] => 2172.756 [isMinSpecialPrice] => [isMaxSpecialPrice] => ) [SonderpreisBis_en] => 2024-05-20 [SonderpreisBis_de] => 20.05.2024 [discountPercentage] => 10 [cAufpreisLocalized] => Array ( [0] => + £ 59.46 [1] => + £ 49.55 ) ) ) ) [oProduktBundleMain] => [oProduktBundlePrice] => [inWarenkorbLegbar] => 1 [oVariBoxMatrixBild_arr] => [oVariationKombiVorschau_arr] => Array ( ) [cVariationenbilderVorhanden] => [nVariationenVerfuegbar] => 1 [nVariationAnzahl] => 1 [nVariationOhneFreifeldAnzahl] => 1 [Bewertungen] => JTL\Catalog\Product\Bewertung Object ( [oBewertung_arr] => Array ( ) [nSterne_arr] => Array ( [0] => 0 [1] => 0 [2] => 0 [3] => 0 [4] => 0 ) [nAnzahlSprache] => 0 [oBewertungGesamt] => stdClass Object ( [fDurchschnitt] => 0 [nAnzahl] => 0 ) [Sortierung] => 0 ) [fDurchschnittsBewertung] => 0 [HilfreichsteBewertung] => JTL\Catalog\Product\Bewertung Object ( [oBewertung_arr] => Array ( [0] => ) [nSterne_arr] => [nAnzahlSprache] => [oBewertungGesamt] => ) [similarProducts] => Array ( [0] => kArtikelXSellerKey_arr [1] => oArtikelArr [kArtikelXSellerKey_arr] => Array ( [0] => 8157 [1] => 26938 [2] => 6695 [3] => 24719 [4] => 11044 [5] => 6796 [6] => 21735 [7] => 10873 [8] => 6693 [9] => 8142 [10] => 8143 [11] => 24717 [12] => 6959 [13] => 6961 [14] => 165 [15] => 7864 [16] => 917 [17] => 36644 [18] => 24625 [19] => 1584 [20] => 1531 [21] => 777 [22] => 23888 [23] => 23886 [24] => 527 [25] => 358 [26] => 568 [27] => 102 [28] => 593 [29] => 1093 [30] => 163 [31] => 738 [32] => 6603 [33] => 6631 [34] => 760 [35] => 755 [36] => 915 [37] => 2086 [38] => 994 [39] => 434 [40] => 1027 [41] => 437 [42] => 428 [43] => 966 [44] => 77 [45] => 501 [46] => 443 [47] => 998 [48] => 440 [49] => 461 [50] => 455 [51] => 611 [52] => 7768 [53] => 36996 [54] => 6905 [55] => 11045 [56] => 6546 [57] => 6547 [58] => 8908 [59] => 25295 ) [oArtikelArr] => Array ( [0] => stdClass Object ( [kArtikel] => 131375 [kVaterArtikel] => 0 ) [1] => stdClass Object ( [kArtikel] => 176295 [kVaterArtikel] => 0 ) [2] => stdClass Object ( [kArtikel] => 131453 [kVaterArtikel] => 0 ) [3] => stdClass Object ( [kArtikel] => 131374 [kVaterArtikel] => 0 ) [4] => stdClass Object ( [kArtikel] => 131372 [kVaterArtikel] => 0 ) [5] => stdClass Object ( [kArtikel] => 131454 [kVaterArtikel] => 0 ) ) ) [cacheID] => fa_10906_e84ae5b247152265576583243a63cc6a [oFavourableShipping] => JTL\Checkout\Versandart Object ( [kVersandart] => 65 [kVersandberechnung] => 3 [cVersandklassen] => 1 1-2 1-4 1-2-4 [cName] => DPD Standard [cLaender] => GB [cAnzeigen] => immer [cKundengruppen] => -1 [cBild] => [cNurAbhaengigeVersandart] => N [nSort] => 10 [fPreis] => 0.00 [fVersandkostenfreiAbX] => 0.00 [fDeckelung] => 0.00 [oVersandartSprache_arr] => Array ( [ger] => stdClass Object ( [kVersandart] => 65 [cISOSprache] => ger [cName] => Standard (1-2 days from UK, +1-5 days if EU Stock) [cLieferdauer] => 1-2 days [cHinweistext] => [cHinweistextShop] => ) ) [oVersandartStaffel_arr] => Array ( [0] => stdClass Object ( [kVersandartStaffel] => 587 [kVersandart] => 65 [fBis] => 99999 [fPreis] => 7.5 ) ) [cSendConfirmationMail] => Y [cIgnoreShippingProposal] => N [nMinLiefertage] => 1 [nMaxLiefertage] => 3 [eSteuer] => brutto [country] => [cPriceLocalized] => [shippingSurcharges] => Illuminate\Support\Collection Object ( [items:protected] => Array ( ) [escapeWhenCastingToString:protected] => ) [data:JTL\Checkout\Versandart:private] => Array ( ) ) [cCachedCountryCode] => GB [fLieferantenlagerbestand] => 0 [fLieferzeit] => 18 [cEstimatedDelivery] => 1 - 3 Workdays [kVPEEinheit] => 0 [fMwSt] => 20.00 [fArtikelgewicht] => 10 [nSort] => 1 [dErstellt] => 2017-01-01 [dErstellt_de] => 01.01.2017 [dLetzteAktualisierung] => [cSerie] => [cISBN] => EFR-9180-T-WG [cASIN] => [cHAN] => 12809880000 [cUNNummer] => [cGefahrnr] => [cTaric] => 84148011 [cUPC] => [cHerkunftsland] => US [cEPID] => [oStueckliste_arr] => Array ( ) [nErscheinendesProdukt] => 0 [nMinDeliveryDays] => 1 [nMaxDeliveryDays] => 3 [cEinheit] => [Erscheinungsdatum_de] => 01.01.2017 [cVersandklasse] => standard [fNettoPreis] => 2331.112945 [cAktivSonderpreis] => Y [dSonderpreisStart_en] => 2024-05-05 [dSonderpreisEnde_en] => 2024-05-20 [dSonderpreisStart_de] => 05.05.2024 [dSonderpreisEnde_de] => 20.05.2024 [dZulaufDatum_de] => [dMHD_de] => [cBildpfad_thersteller] => https://turbozentrum.co.uk/media/image/manufacturer/14/xs/borgwarner.png [cHersteller] => BorgWarner [cHerstellerSeo] => BorgWarner [cHerstellerURL] => BorgWarner [cHerstellerHomepage] => [cHerstellerBildKlein] => bilder/hersteller/klein/BorgWarner.png [cHerstellerBildNormal] => bilder/hersteller/normal/BorgWarner.png [cHerstellerBildURLKlein] => https://turbozentrum.co.uk/media/image/manufacturer/14/xs/borgwarner.png [cHerstellerBildURLNormal] => https://turbozentrum.co.uk/media/image/manufacturer/14/md/borgwarner.png [cHerstellerSortNr] => 0 [oDownload_arr] => Array ( ) [oVariationKombiKinderAssoc_arr] => [oWarenlager_arr] => Array ( ) [cLocalizedVPE] => [cStaffelpreisLocalizedVPE1] => Array ( ) [cStaffelpreisLocalizedVPE2] => Array ( ) [cStaffelpreisLocalizedVPE3] => Array ( ) [cStaffelpreisLocalizedVPE4] => Array ( ) [cStaffelpreisLocalizedVPE5] => Array ( ) [fStaffelpreisVPE1] => Array ( ) [fStaffelpreisVPE2] => Array ( ) [fStaffelpreisVPE3] => Array ( ) [fStaffelpreisVPE4] => Array ( ) [fStaffelpreisVPE5] => Array ( ) [fStaffelpreisVPE_arr] => Array ( ) [cStaffelpreisLocalizedVPE_arr] => Array ( ) [cGewicht] => 0,00 [cArtikelgewicht] => 10,00 [cSprachURL_arr] => Array ( [ger] => BorgWarner-EFR-9180-Turbo-T4-TwinScroll-WG-092-A-R-12809880000 ) [cUVPLocalized] => £ 3,108.27 [verfuegbarkeitsBenachrichtigung] => 0 [kArtikelVariKombi] => [kVariKindArtikel] => 10906 [cMasseinheitCode] => [cMasseinheitName] => [cGrundpreisEinheitCode] => [cGrundpreisEinheitName] => [isSimpleVariation] => [metaKeywords] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 Motorsport Racing Rennsport Drag Racing 1/4 Meile Racetrack Turbocharger Maximum Performance Upgrade Tuning EFR [metaTitle] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000, £ 2,797.34 [metaDescription] => Borgwarner high-performance efr turbochargers for fastest response and maximum power [staffelPreis_arr] => Array ( ) [taxData] => Array ( [net] => [text] => [tax] => 20 [shippingFreeCountries] => [countries] => Array ( ) [shippingClass] => standard ) [cMassMenge] => [cacheHit] => 1 [cKurzbezeichnung] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 [originalName] => BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000 [originalSeo] => BorgWarner-EFR-9180-Turbo-T4-TwinScroll-WG-092-A-R-12809880000 [customImgName] => [kSprache:JTL\Catalog\Product\Artikel:private] => 1 [conf:protected] => Array ( [global] => Array ( [global_wunschliste_artikel_loeschen_nach_kauf] => N [systemlog_flag] => 550 [global_wizard_done] => Y [admin_login_logger_mode] => Array ( [0] => 1 ) [global_wunschliste_weiterleitung] => Y [global_wunschliste_anzeigen] => Y [global_wunschliste_freunde_aktiv] => Y [global_wunschliste_max_email] => 10 [artikel_artikelanzeigefilter] => 1 [artikel_artikelanzeigefilter_seo] => seo [artikel_lagerampel_gruen] => 5 [artikel_lagerampel_rot] => 0 [artikel_ampel_lagernull_gruen] => Y [global_preis0] => N [artikeldetails_variationswertlager] => 2 [global_versandfrei_anzeigen] => Y [global_warenkorb_weiterleitung] => N [global_lieferverzoegerung_anzeigen] => N [global_versandklasse_anzeigen] => Y [global_versandkostenfrei_darstellung] => M [global_bestseller_minanzahl] => 10 [kategorien_anzeigefilter] => 2 [global_shopname] => TurboZentrum UK Ltd [artikel_lagerampel_keinlager] => 2 [global_sichtbarkeit] => 1 [global_kundenkonto_aktiv] => S [kaufabwicklung_ssl_nutzen] => N [global_versandhinweis] => zzgl [global_erscheinende_kaeuflich] => N [global_cancellation_time] => 14 [global_zaehler_anzeigen] => N [global_dezimaltrennzeichen_sonstigeangaben] => , [garbagecollector_wawiabgleich] => Y [global_merkmalwert_url_indexierung] => N [redirect_save_404] => Y [global_ust_auszeichnung] => auto [global_fusszeilehinweis] => [global_steuerpos_anzeigen] => Y [wartungsmodus_aktiviert] => N [global_versandermittlung_anzeigen] => Y [global_versandermittlung_lieferdauer_anzeigen] => N [admin_ckeditor_mode] => N [global_cookie_lifetime] => 1209600 [global_cookie_path] => [global_cookie_domain] => [global_cookie_secure] => S [global_cookie_httponly] => S [global_cookie_samesite] => S ) [artikeldetails] => Array ( [artikeldetails_fragezumprodukt_anzeigen] => P [artikeldetails_fragezumprodukt_email] => [email protected] [produktfrage_abfragen_anrede] => N [produktfrage_abfragen_vorname] => N [produktfrage_abfragen_nachname] => N [produktfrage_abfragen_firma] => N [produktfrage_abfragen_tel] => N [produktfrage_abfragen_fax] => N [produktfrage_abfragen_mobil] => N [produktfrage_kopiekunde] => N [produktfrage_sperre_minuten] => 1 [produktfrage_abfragen_captcha] => Y [benachrichtigung_nutzen] => Y [benachrichtigung_abfragen_vorname] => N [benachrichtigung_abfragen_nachname] => N [benachrichtigung_sperre_minuten] => 2 [benachrichtigung_abfragen_captcha] => N [benachrichtigung_min_lagernd] => 0 [artikeldetails_xselling_standard_anzeigen] => Y [artikeldetails_xselling_kauf_anzeigen] => Y [artikeldetails_xselling_kauf_anzahl] => 6 [artikeldetails_xselling_kauf_parent] => N [artikel_variationspreisanzeige] => 2 [artikel_lagerbestandsanzeige] => ampel [artikeldetails_lieferantenbestand_anzeigen] => U [artikeldetails_kurzbeschreibung_anzeigen] => N [artikeldetails_uvp_anzeigen] => N [artikeldetails_hersteller_anzeigen] => B [artikeldetails_lieferstatus_anzeigen] => N [artikeldetails_artikelintervall_anzeigen] => Y [artikel_weitere_artikel_hersteller_anzeigen] => Y [artikeldetails_rabattanzeige] => 4 [artikeldetails_sonderpreisanzeige] => 2 [artikeldetails_kategorie_anzeigen] => N [artikeldetails_tabs_nutzen] => Y [artikeldetails_navi_blaettern] => Y [sie_sparen_x_anzeigen] => 1 [artikeldetails_canonicalurl_varkombikind] => Y [artikeldetails_warenkorbmatrix_anzeige] => N [artikeldetails_warenkorbmatrix_anzeigeformat] => H [artikeldetails_warenkorbmatrix_lagerbeachten] => Y [upload_modul_limit] => 10 [adr_hazard_display] => N [isbn_display] => N [gtin_display] => always [artikeldetails_vergleichsliste_anzeigen] => N [mediendatei_anzeigen] => YM [artikeldetails_aehnlicheartikel_anzahl] => 6 [artikeldetails_stueckliste_anzeigen] => N [artikeldetails_produktbundle_nutzen] => N [merkmale_anzeigen] => Y [artikeldetails_gewicht_anzeigen] => N [artikeldetails_artikelgewicht_anzeigen] => N [artikeldetails_abmessungen_anzeigen] => N [artikeldetails_attribute_anhaengen] => Y ) [artikeluebersicht] => Array ( [suche_fulltext] => N [suche_prio_name] => 10 [suche_prio_suchbegriffe] => 9 [suche_prio_artikelnummer] => 8 [suche_prio_kurzbeschreibung] => 8 [suche_prio_beschreibung] => 7 [suche_prio_ean] => 1 [suche_prio_isbn] => 1 [suche_prio_han] => 6 [suche_prio_anmerkung] => 0 [suche_min_zeichen] => 3 [suche_sortierprio_name] => 10 [suche_sortierprio_name_ab] => 9 [suche_sortierprio_preis] => 8 [suche_sortierprio_preis_ab] => 7 [suche_sortierprio_ean] => 2 [suche_sortierprio_erstelldatum] => 3 [suche_sortierprio_artikelnummer] => 8 [suche_sortierprio_gewicht] => 0 [suche_sortierprio_erscheinungsdatum] => 5 [suche_sortierprio_bestseller] => 0 [suche_sortierprio_bewertung] => 0 [suche_max_treffer] => 300 [suche_ajax_anzahl] => 5 [artikeluebersicht_lagerbestandsanzeige] => verfuegbarkeit [artikeluebersicht_kurzbeschreibung_anzeigen] => N [artikeluebersicht_lagerbestandanzeige_anzeigen] => U [artikeluebersicht_hersteller_anzeigen] => Y [artikeluebersicht_artikelproseite] => 15 [artikeluebersicht_artikelsortierung] => 10 [artikeluebersicht_max_seitenzahl] => 9 [artikeluebersicht_rabattanzeige] => 1 [artikeluebersicht_sonderpreisanzeige] => 2 [articleoverview_pricerange_width] => 0 [topbest_anzeigen] => N [artikelubersicht_topbest_anzahl] => 6 [artikelubersicht_bestseller_gruppieren] => N [artikeluebersicht_bestseller_anzahl] => 3 [artikeluebersicht_gewicht_anzeigen] => N [artikeluebersicht_artikelgewicht_anzeigen] => N [artikeluebersicht_vergleichsliste_anzeigen] => N [artikeluebersicht_wunschzettel_anzeigen] => Y [artikeluebersicht_artikelintervall_anzeigen] => Y [livesuche_max_ip_count] => 0 [suchfilter_anzeigen_ab] => 12 [artikeluebersicht_erw_darstellung] => Y [artikeluebersicht_erw_darstellung_stdansicht] => 2 [artikeluebersicht_anzahl_darstellung1] => 10 [products_per_page_list] => 10,20,30,40,50 [artikeluebersicht_anzahl_darstellung2] => 20 [products_per_page_gallery] => 10,20,30,40,50 ) [boxen] => Array ( [box_bestseller_anzahl_anzeige] => 3 [box_bestseller_anzahl_basis] => 10 [box_sonderangebote_anzahl_anzeige] => 2 [box_neuimsortiment_anzahl_anzeige] => 3 [box_neuimsortiment_alter_tage] => 31 [box_topangebot_anzahl_basis] => 10 [box_topangebot_anzahl_anzeige] => 3 [box_erscheinende_anzahl_anzeige] => 3 [configgroup_8_box_manufacturers] => Hersteller [box_hersteller_anzahl_anzeige] => 20 [box_zuletztangesehen_anzahl] => 3 [box_neuimsortiment_anzahl_basis] => 10 [boxen_topbewertet_anzahl] => 3 [boxen_topbewertet_basisanzahl] => 20 [boxen_topbewertet_minsterne] => 3 [boxen_livesuche_count] => 10 [box_erscheinende_anzahl_basis] => 10 [box_sonderangebote_anzahl_basis] => 10 [boxen_wunschzettel_anzahl] => 3 [boxen_wunschzettel_bilder] => Y ) [metaangaben] => Array ( [global_meta_publisher] => [global_meta_copyright] => 2020 TurboZentrum UK Ltd. - All rights reserved. [global_meta_title_anhaengen] => N [global_meta_title_preis] => Y [global_meta_keywords_laenge] => 0 [global_meta_maxlaenge_title] => 69 [global_meta_maxlaenge_description] => 156 ) [bewertung] => Array ( [bewertungserinnerung_kundengruppen] => Array ( [0] => ) [bewertung_alle_sprachen] => Y [bewertung_sortierung] => 0 [bewertung_anzeigen] => N [bewertung_freischalten] => Y [bewertung_anzahlseite] => 10 [bewertung_hilfreich_anzeigen] => Y [bewertungserinnerung_nutzen] => Y [bewertungserinnerung_versandtage] => 3 [bewertung_guthaben_nutzen] => N [bewertung_stufe2_anzahlzeichen] => 120 [bewertung_stufe1_guthaben] => 1 [bewertung_stufe2_guthaben] => 2 [bewertung_max_guthaben] => 10 [bewertung_artikel_gekauft] => N ) ) [options:protected] => stdClass Object ( [nMerkmale] => 1 [nKategorie] => 1 [nAttribute] => 1 [nArtikelAttribute] => 1 [nMedienDatei] => 1 [nVariationen] => 1 [nWarenlager] => 1 [nVariationDetailPreis] => 1 [nRatings] => 1 [nWarenkorbmatrix] => 0 [nStueckliste] => 0 [nProductBundle] => 0 [nDownload] => 0 [nKonfig] => 1 [nMain] => 1 [bSimilar] => 1 ) [imageType:protected] => product [images:protected] => Array ( ) [iid:protected] => [currentImagePath] => 500_262_00c25b49b72850656645883dc1a7552e_e119745164dee266d0be45f7a113a38f124af9794a1d85b56afdd7c568bf9b398f5cf99fe72ba58502395fbb42831ab65d78763ee3572df157097dde0a2df96d.jpg [cVaterURL] => Turbo-BorgWarner-EFR-9180 [VaterFunktionsAttribute] => Array ( [bestandde] => 0 [keinexportpreiseuk] => no ) [SieSparenX] => stdClass Object ( [anzeigen] => 1 [nProzent] => 10 [fSparbetrag] => 310.93 [cLocalizedSparbetrag] => £ 310.93 ) ) 1

BorgWarner EFR 9180 Turbo - T4 TwinScroll WG 0.92 A/R - 12809880000



Flange - Wastegate - A/R - Material CHRA
£ 2,331.11
excl. 20% VAT , plus shipping costs
£ 3,108.26
£ 2,797.34
incl. 20% VAT , plus shipping costs
instead of: £ 3,108.26
Save 10%

BorgWarner EFR-9180 Turbo - T4 TwinScroll WG 0.92ar - 11589880036

Genuine EFR-Turbocharger

Twin Scroll, T4 with internal wastegate

Performance rating: 600 - 1000 HP
Compressor wheel: Inducer: 67.8mm, Exducer: 92.2mm
Turbine wheel outlet: 80mm

Turbine housing: 0.92 A/R with T4 twinscroll flange, internal Wastegate, V-band downpipe connection

Pictures for reference only!

BorgWarner EFR turbocharger has been developed with only one goal in mind: to dominate road, racetrack and quartermile. BorgWarner EFR turbocharger are equipped with state of the art high-tech features for unbeaten performance.
EFR Turbos are available in 7 different sizes and 4 different turbine housings, covering performance ratings from 250 to 1000HP.
The combination of a high-efficiency compressor wheel, Gamma-Titanaluminid Turbine wheel, with ceramic ball bearing technology dramatically raises the bar for motorsports turbochargers and is state of the art in terms of turbocharger technology:

Compressor:
- forged and milled compressor wheel, extremely lightweight and resistant to highest boost levels, Extended tip technology
- integrated blow off valve
- integrated boost solenoid
- 360° rotation via V-band technology
- prepared socket for speed sensor (optionally available) to monitor compressor wheel speed. Thereby compressor efficiency can be calculated.

Core assembly:
- dual ceramic ball bearing
- integrated oil restrictor
- water cooled

Turbine housing:
- stainless steel turbine housing
- Gamma-Titanaluminid turbine wheel and shaft, 50% lighter than comparable Inconel Turbine wheel and extremely heat resistant up to 1050°C (for comparison: Garrett only up to 950°C)
- high-flow wastegate port
- internal wastegate (even available for Twinscroll turbine housing!)

Video
Turbocharger selection made easy: Try our TurboGuide
What are the advantages of a turbo with ball bearings? Better than journal bearings? | Turbocharger simply explained
What does T25, T3, T4 flange mean? | Turbocharger simply explained
Which turbocharger is better? BorgWarner, Garrett or another one?
TwinScroll vs SingleScroll housing | Turbocharger simply explained
What does the A/R value mean - more power vs. response | Turbocharger simply explained
What should I pay attention when installing a motorsport turbocharger?
Internal and external wastegate + actuators | Turbocharger simply explained
Water cooling or oil cooling on the turbo | Turbocharger simply explained
Which oil restrictor do I need?
Extended tip technology on the compressor wheel of the turbocharger | Turbocharger simply explained

PDF
BorgWarner EFR B2 Series frame dimensions

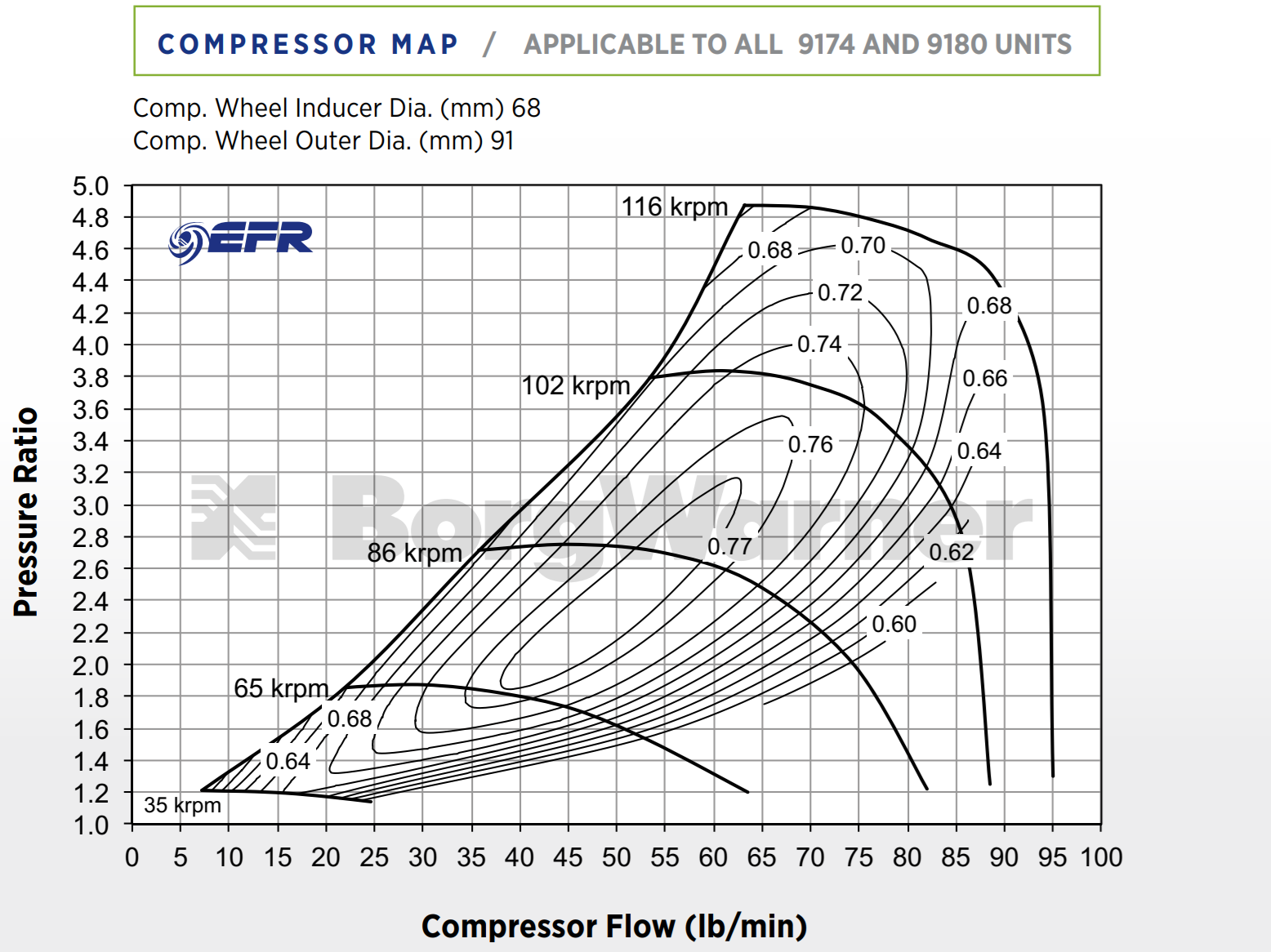

Compressor Map
Borg Warner Catalog 2017

Features
Accessory
BorgWarner Boost Control solenoid valve - 179425
- 5%
BorgWarner Boost Control solenoid valve - 179425
£ 161.44 *
instead of: £ 169.93
BorgWarner EFR B2-Series (from 7670) Turbo Blanket | PTP
BorgWarner EFR B2-Series (from 7670) Turbo Blanket | PTP
- 5%
BorgWarner EFR Block Off Set for integrated PopOff (for...
BorgWarner EFR Block Off Set for integrated PopOff (for...
- 5%
BorgWarner EFR bracket kit for Super Short WG actuator -...
BorgWarner EFR hardware installation kit - 179423
BorgWarner EFR hardware installation kit - 179423
BorgWarner EFR Speed Sensor - Turbo RPM sensor
BorgWarner EFR Speed Sensor - Turbo RPM sensor
- 5%
BorgWarner EFR Speed Sensor - Turbo RPM sensor
£ 174.68 *
instead of: £ 183.88
BorgWarner EFR Wastegate hose kit - 179426
BorgWarner EFR Wastegate hose kit - 179426
- 5%
BorgWarner EFR Wastegate hose kit - 179426
£ 37.51 *
instead of: £ 39.48
BorgWarner EFR WG actuator bracket kit T3 / T4...
BorgWarner EFR WG actuator High Boost - EFR 7064 up to 9280
BorgWarner EFR WG actuator High Boost - EFR 7064 up to 9280
BorgWarner EFR WG actuator Low Boost - EFR 7064 up to 9280
BorgWarner EFR WG actuator Low Boost - EFR 7064 up to 9280
BorgWarner EFR WG actuator Medium Boost - EFR 7064 up to...
BorgWarner EFR WG actuator Medium Boost - EFR 7064 up to...
BOV Cover EFR turbocharger with angled connection -...
BOV Cover EFR turbocharger with angled connection -...
- 11%
Complete DIY oil return line kit for Garrett GT-R / GTX /...
Complete DIY oil return line kit for Garrett GT-R / GTX /...
- 5%
Complete DIY oil return line kit for Garrett GTX /...
Complete DIY oil return line kit for Garrett GTX /...
- 5%
Garrett Speed Sensor Street kit (with gauge) - Turbo RPM...
Manifold Flange T4 TwinScroll - stainless steel
- 5%
Manifold Gasket T4 TwinScroll
- 5%
Manifold Gasket T4 TwinScroll
£ 12.36 *
instead of: £ 13.01
Oil and water connection kit TFSI to EFR
- 5%
Oil and water connection kit TFSI to EFR
£ 273.73 *
instead of: £ 288.14
Oil Feed Adapter BorgWarner EFR with Restrictor 1,6mm
Oil Feed Adapter BorgWarner EFR with Restrictor 1,6mm
- 5%
Oil return adapter Garrett GT-R / GTX / G-series /...
- 5%
Oil return adapter GT / GT-R / GTX / G-Serie / EFR -...
- 5%
Oil return adapter GT-R / GTX / G-Serie / BorgWarner EFR...
- 5%
Oil return flange Garrett GTX / G-series / GT-R /...
Oil return flange Garrett GTX / G-series / GT-R /...
- 5%
Oil return flange Garrett GTX / G-series / GT-R /...
Oil return flange Garrett GTX / G-series / GT-R /...
- 5%
Oil return flange GT-R / GTX / G-Series / BorgWarner EFR...
- 5%
Oil return line gasket GT-R / GTX / G-Series / BorgWarner...
- 5%
Silicone Connector - Double Hump, 102mm, black | BOOST...
Silicone Connector - Double Hump, 102mm, black | BOOST...
- 5%
Silicone Connector - Double Hump, 63mm, black | BOOST...
Silicone Connector - Double Hump, 63mm, black | BOOST...
Silicone Connector - Single Hump, 102mm, black | BOOST...
Silicone Connector - Single Hump, 102mm, black | BOOST...
Silicone Connector - Single Hump, 63mm, black | BOOST...
Silicone Connector - Single Hump, 63mm, black | BOOST...
Silicone Connector / 102mm / black
Silicone Connector / 63mm / black
Silicone Connector / 63mm / black
Silicone elbow 135°, 63mm, black | BOOST products
Silicone elbow 135°, 63mm, black | BOOST products
Silicone elbow 180°, 63mm, black | BOOST products
Silicone elbow 180°, 63mm, black | BOOST products
Silicone elbow 45°, 102mm, black | BOOST products
Silicone elbow 45°, 102mm, black | BOOST products
Silicone elbow 45°, 63mm, black | BOOST products
Silicone elbow 45°, 63mm, black | BOOST products
- 5%
Silicone elbow 90°, 102mm, black | BOOST products
Silicone elbow 90°, 102mm, black | BOOST products
Silicone elbow 90°, 63mm, black | BOOST products
Silicone elbow 90°, 63mm, black | BOOST products
Silicone Reducer Elbow 45°, 102 - 76mm, black | BOOST...
Silicone Reducer Elbow 45°, 102 - 76mm, black | BOOST...
Silicone Reducer Elbow 45°, 102 - 89mm, black | BOOST...
Silicone Reducer Elbow 45°, 102 - 89mm, black | BOOST...
Silicone Reducer Elbow 45°, 70 - 63mm, black | BOOST...
Silicone Reducer Elbow 45°, 70 - 63mm, black | BOOST...
Silicone Reducer Elbow 45°, 76 - 63mm, black | BOOST...
Silicone Reducer Elbow 45°, 76 - 63mm, black | BOOST...
Silicone Reducer Elbow 90°, 102 - 76mm, black | BOOST...
Silicone Reducer Elbow 90°, 102 - 76mm, black | BOOST...
Silicone Reducer Elbow 90°, 102 - 89mm, black | BOOST...
Silicone Reducer Elbow 90°, 102 - 89mm, black | BOOST...
Silicone Reducer Elbow 90°, 70 - 63mm, black | BOOST...
Silicone Reducer Elbow 90°, 70 - 63mm, black | BOOST...
Silicone Reducer Elbow 90°, 76 - 63mm, black | BOOST...
Silicone Reducer Elbow 90°, 76 - 63mm, black | BOOST...
Silicone Reducer Straight, 102 - 76mm, black | BOOST...
Silicone Reducer Straight, 102 - 76mm, black | BOOST...
Silicone Reducer Straight, 102 - 89mm, black | BOOST...
Silicone Reducer Straight, 102 - 89mm, black | BOOST...
Silicone Reducer Straight, 127 - 100mm, black | BOOST...
Silicone Reducer Straight, 127 - 100mm, black | BOOST...
Silicone Reducer Straight, 70 - 63mm, black | BOOST products
Silicone Reducer Straight, 70 - 63mm, black | BOOST products
Silicone Reducer Straight, 76 - 63mm, black | BOOST products
Silicone Reducer Straight, 76 - 63mm, black | BOOST products
Silicone Vacuum Hose 6mm, black | BOOST products
- 5%
Silicone Vacuum Hose reinforced 6mm, black | BOOST products
- 5%
SINGLE PORT Actuator 1,0 bar / 14 psi BorgWarner EFR...
SINGLE PORT Actuator 1,0 bar / 14 psi BorgWarner EFR...
Stainless Steel BorgWarner EFR V-Band Flange / Flange...
- 5%
Stronger BOV spring for BorgWarner EFR Turbocharger -...
- 5%
Similar
BorgWarner EFR 9180 Turbo - T3 WG 0.83 A/R - 179358
BorgWarner EFR 9180 Turbo - T3 WG 0.83 A/R - 179358
- 10%
BorgWarner EFR 9180 Turbo - T3 WG 0.83 A/R - 179358
£ 2,462.25 *
instead of: £ 2,735.94

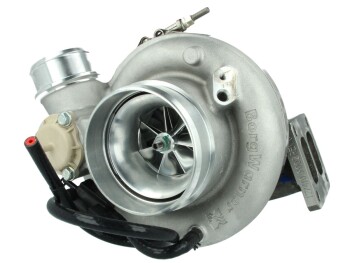

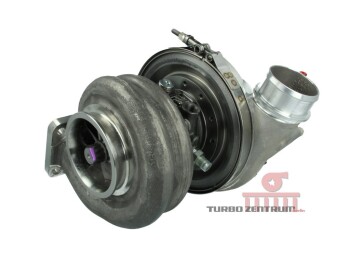

BorgWarner EFR 9180 Turbo - T4 TwinScroll 1.05 A/R - 179394
BorgWarner EFR 9180 Turbo - T4 TwinScroll 1.05 A/R - 179394
- 10%

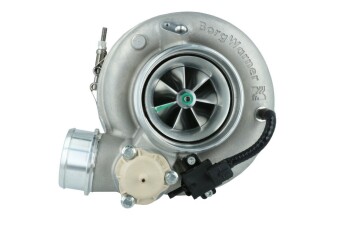

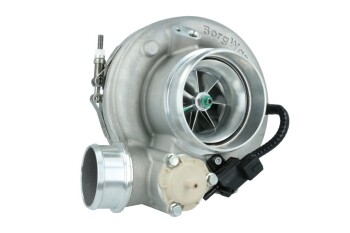

BorgWarner EFR 9180 Turbo SuperCore - 179356
