BorgWarner EFR-8474-AL Turbo - T4 TwinScroll w/o WG 1.05ar
Genuine EFR Turbocharger with Aluminium cartridge
Twin Scroll, T4 Flange, External Wastegate, 1,05 A/R
Performance rating: 500 - 950
Compressor wheel: Inducer: 68mm, Exducer: 84mm
Turbine wheel Outlet 74mm

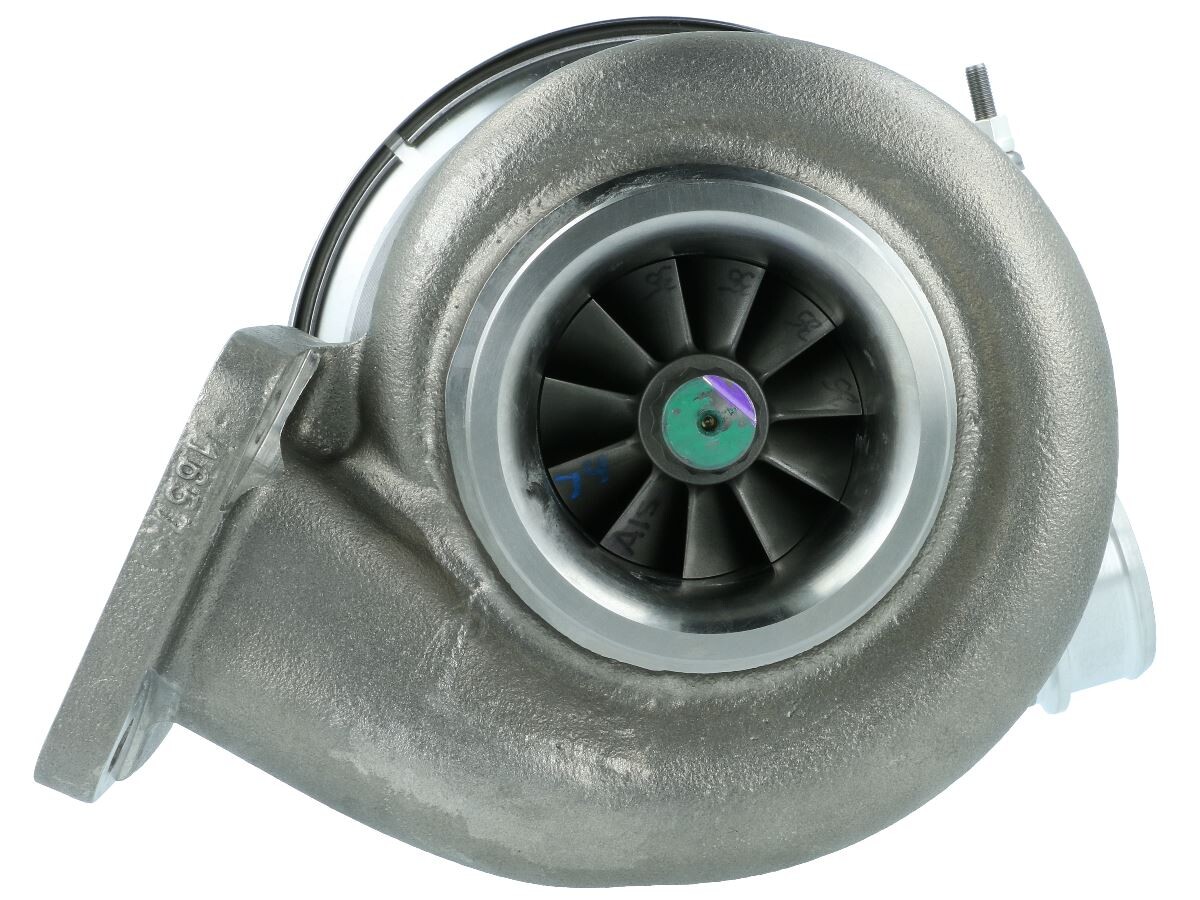

Turbine housing: 1.05 A/R with T4 flange, twinscroll, external wastegate, V-Band downpipe connection

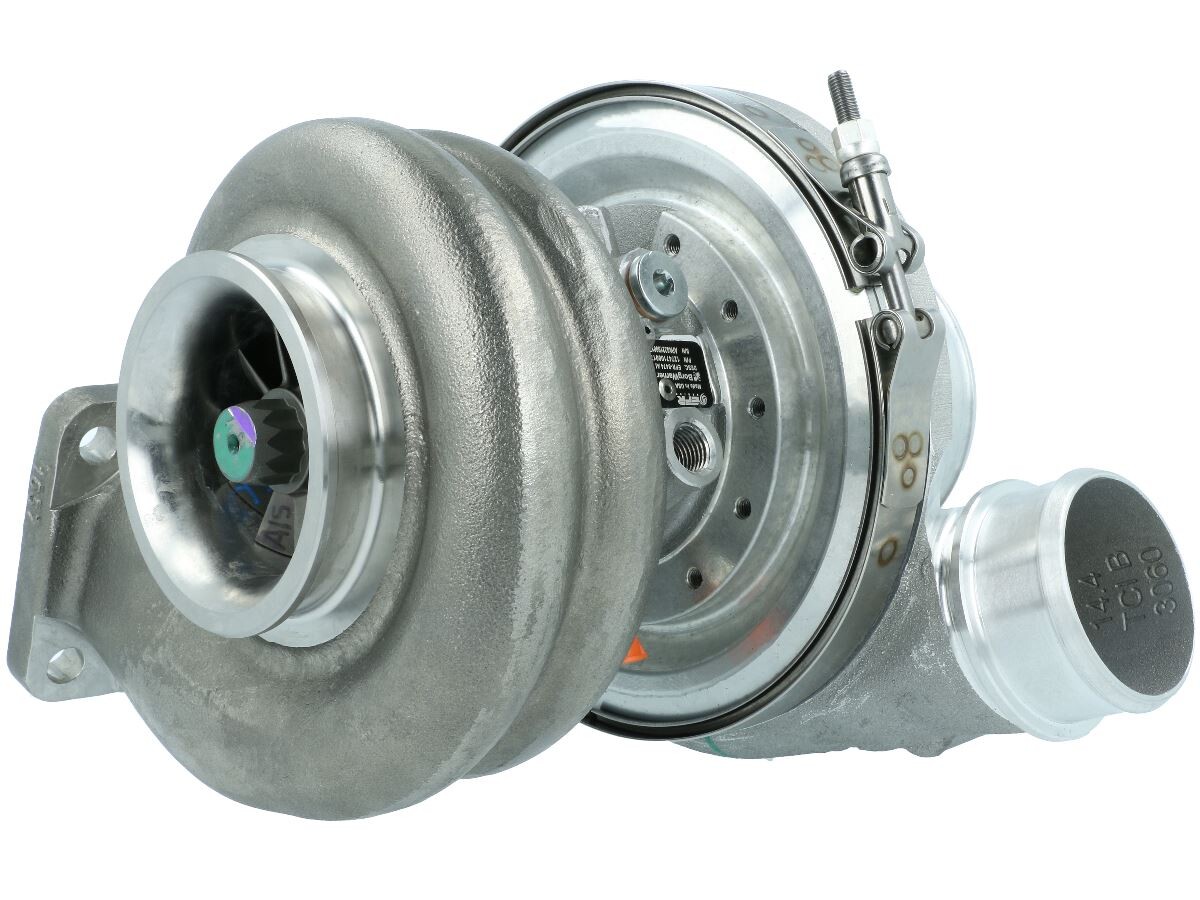

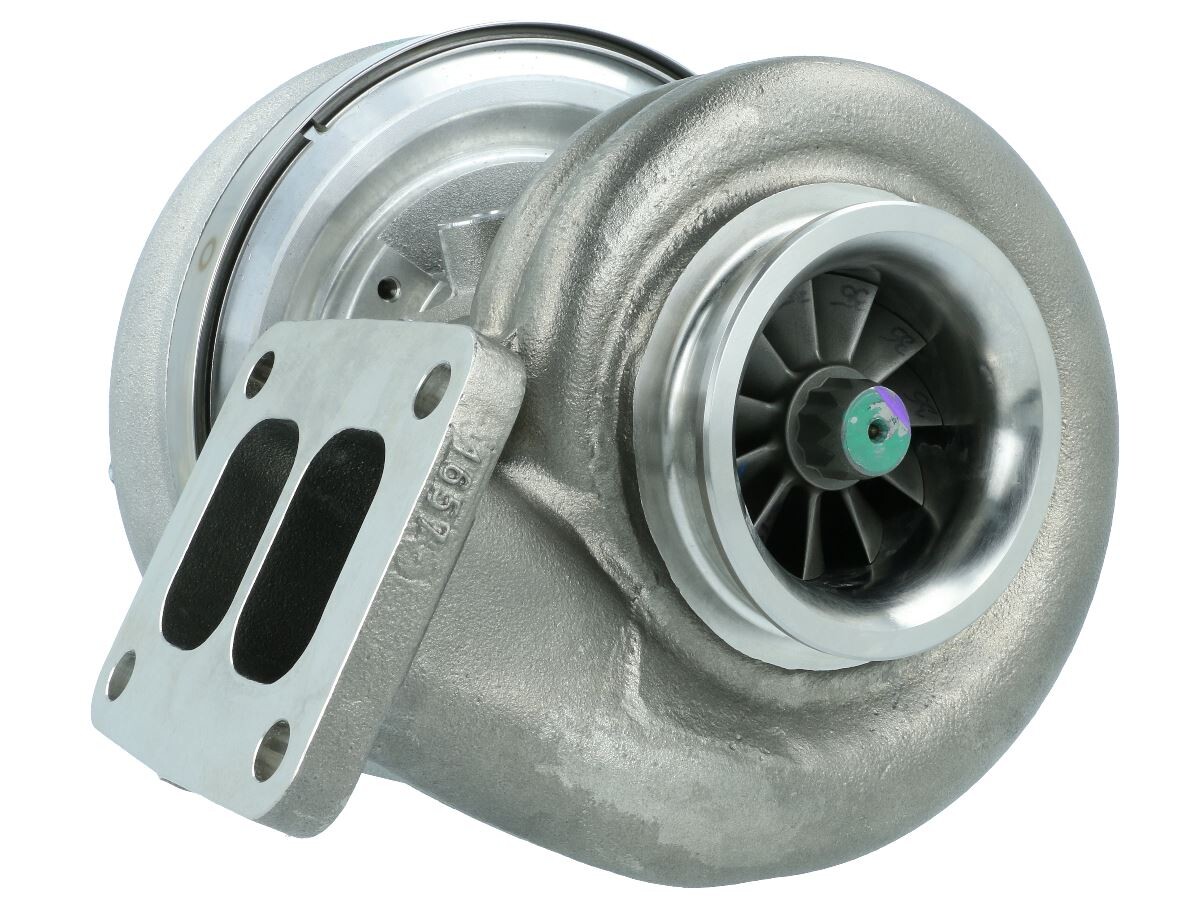

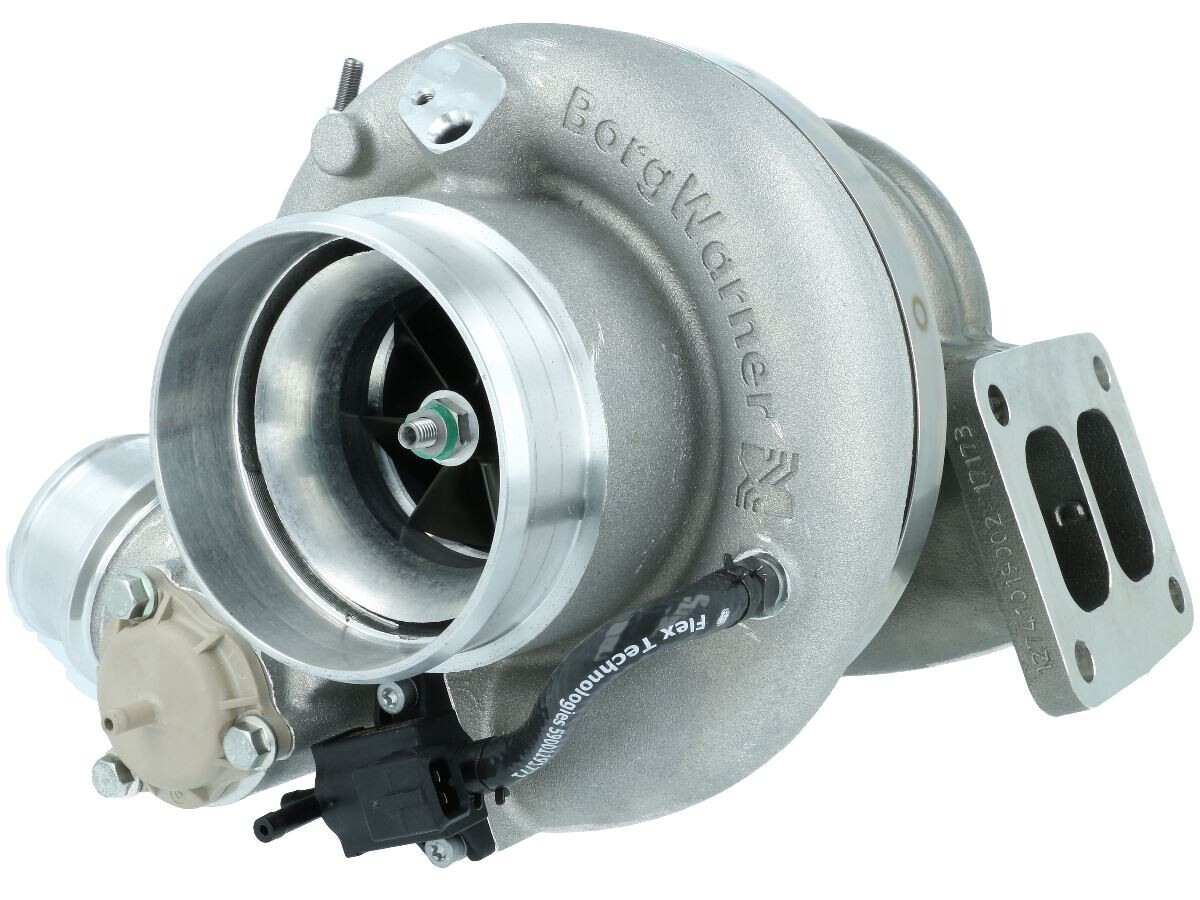

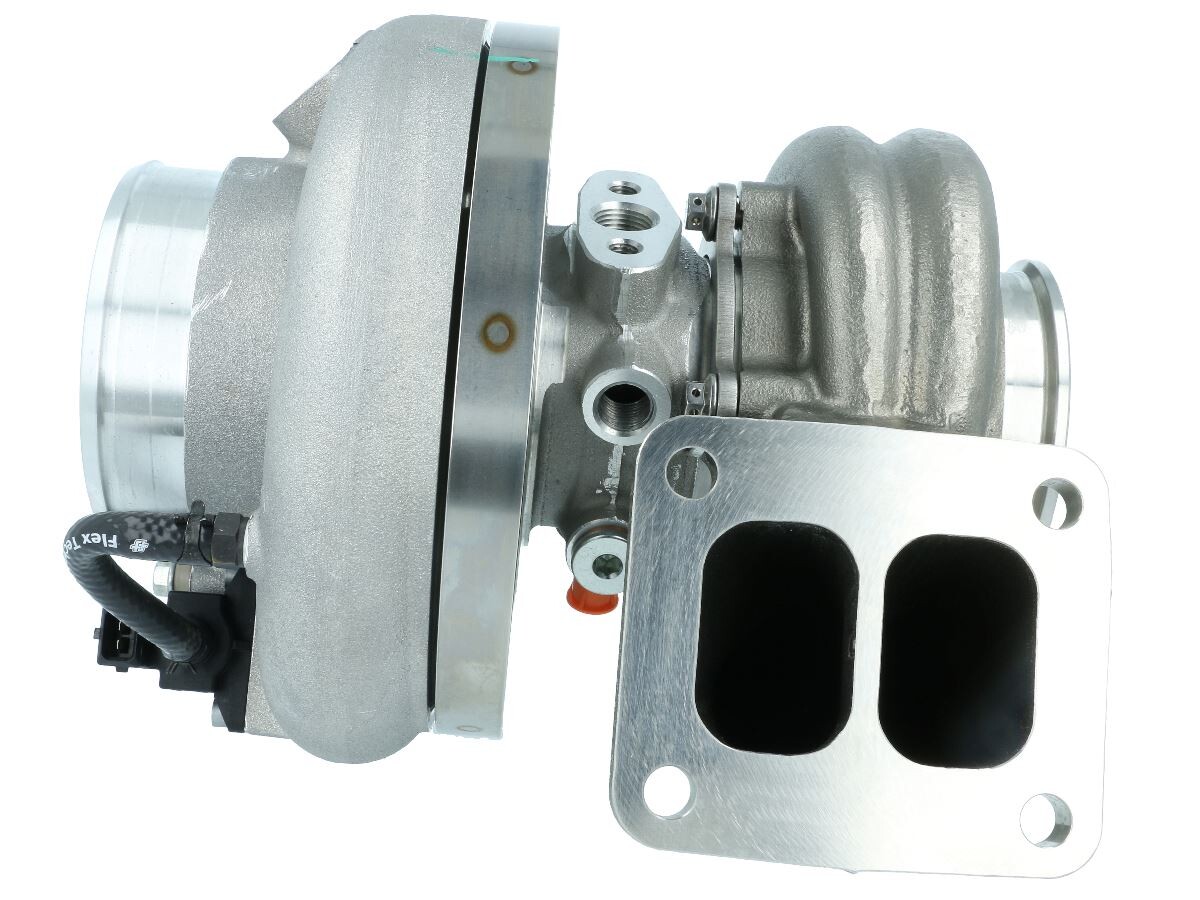

Pictures for reference only!
The largest and highest power EFR turbo ever created!
More Flow, more HP, more Performance but same series sizes. Along with increasing the wheel size, the compressor wheel blade shape and contour have been optimized to maximize flow while minimizing efficiency hits. BorgWarner also created a distinct compressor cover contour profile to maximize the air flow through the turbocharger. The new compressor wheels have been anodized black for visual impact and to differentiate the new models from existing EFR Series products. With the design changes to the compressor wheel and cover, the company's latest aftermarket parts will provide up to an extra 200 horsepower (hp) than was previously possible.BorgWarner EFR turbocharger has been developed with only one goal in mind: to dominate road, racetrack and quartermile. BorgWarner EFR turbocharger are equipped with state of the art high-tech features for unbeaten performance.
EFR Turbos are available in different sizes and different turbine housings, covering performance ratings from 250 to 1100HP.
The combination of a high-efficiency compressor wheel, Gamma-Titanaluminid Turbine wheel, with ceramic ball bearing technology dramatically raises the bar for motorsports turbochargers and is state of the art in terms of turbocharger technology:

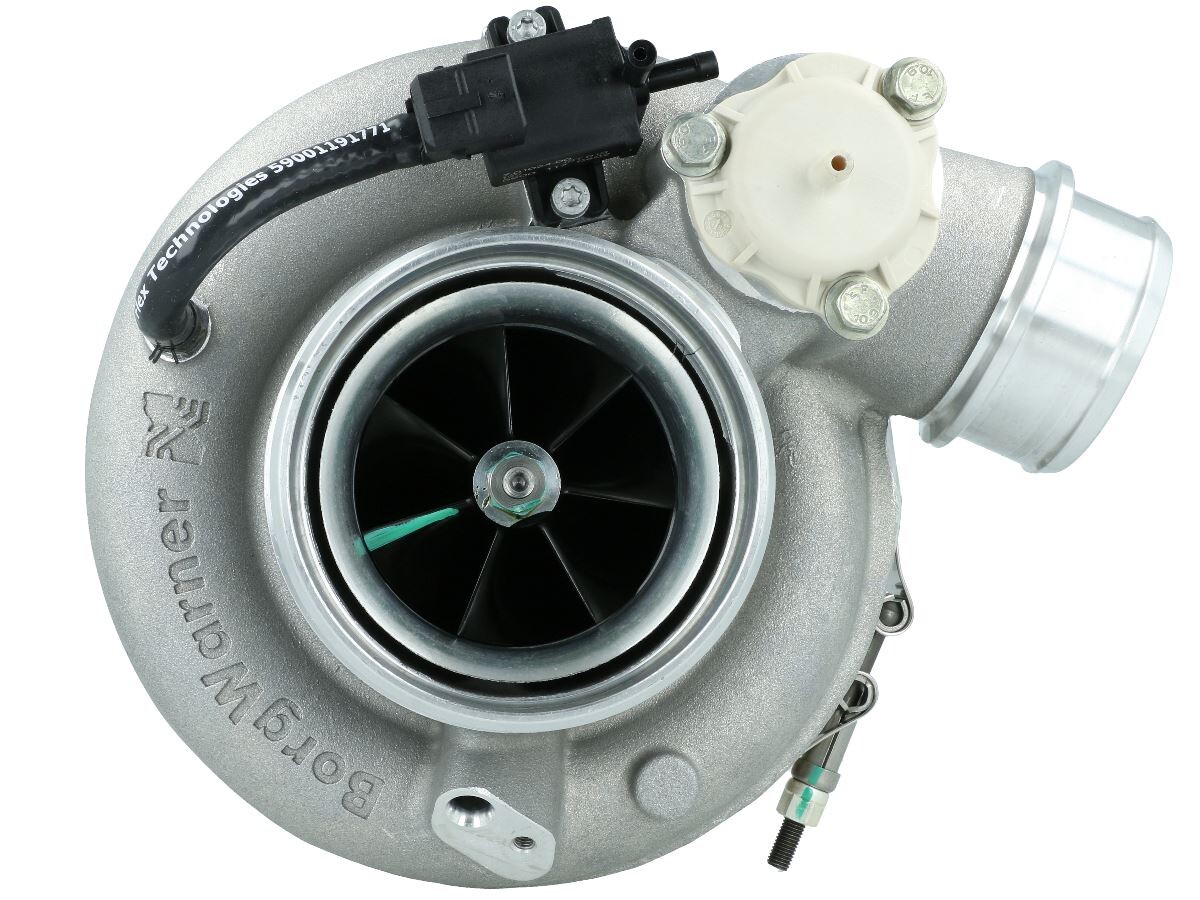

Compressor:

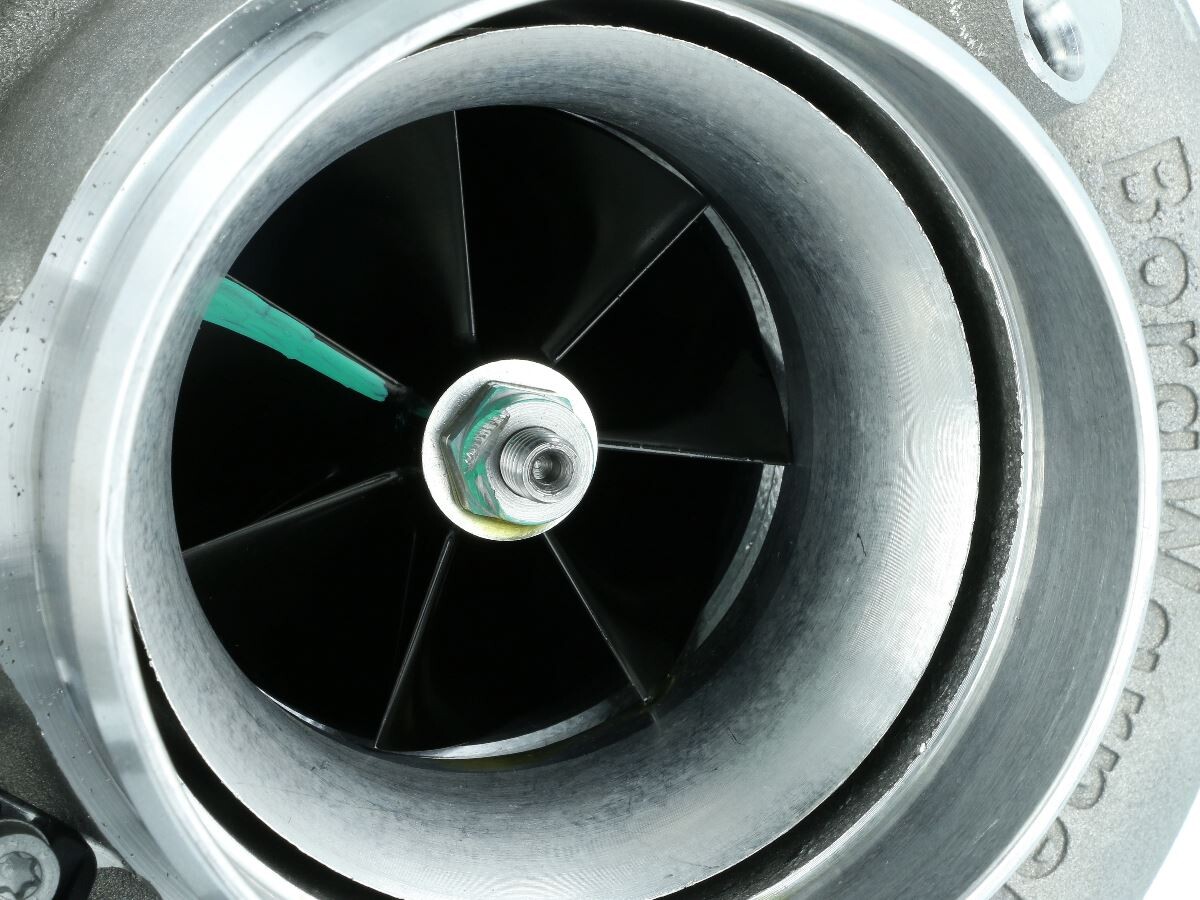

- black anodized forged and milled compressor wheel, extremely lightweight and resistant to highest boost levels, Extended tip technology
- integrated blow off valve
- integrated boost solenoid
- 360° rotation via V-band technology
- prepared socket for speed sensor (optionally available) to monitor compressor wheel speed. Thereby compressor efficiency can be calculated.
Core assembly:
- dual ceramic ball bearing with metal cage
- integrated oil restrictor
- water cooled
Turbine housing:
- stainless steel turbine housing
- Gamma-Titanaluminid turbine wheel and shaft, 50% lighter than comparable Inconel Turbine wheel and extremely heat resistant up to 1050°C (for comparison: Garrett only up to 950°C)
- high-flow wastegate port
- internal wastegate (also available for Twinscroll turbine housings!)
Video
Turbocharger selection made easy: Try our TurboGuide
BorgWarner EFR 8474, EFR 9274 & EFR 9280 turbochargers now available
What are the advantages of a turbo with ball bearings? Better than journal bearings? | Turbocharger simply explained
Which turbocharger is better? BorgWarner, Garrett or another one?
What does T25, T3, T4 flange mean? | Turbocharger simply explained
What does the A/R value mean - more power vs. response | Turbocharger simply explained
TwinScroll vs SingleScroll housing | Turbocharger simply explained
What should I pay attention when installing a motorsport turbocharger?
Internal and external wastegate + actuators | Turbocharger simply explained
Water cooling or oil cooling on the turbo | Turbocharger simply explained
Which oil restrictor do I need?
Extended tip technology on the compressor wheel of the turbocharger | Turbocharger simply explained
PDF
BorgWarner EFR B2 Series frame dimensions

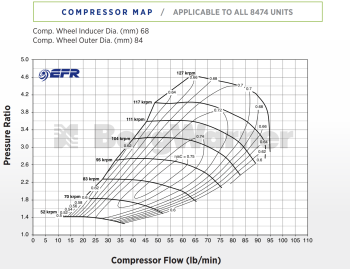

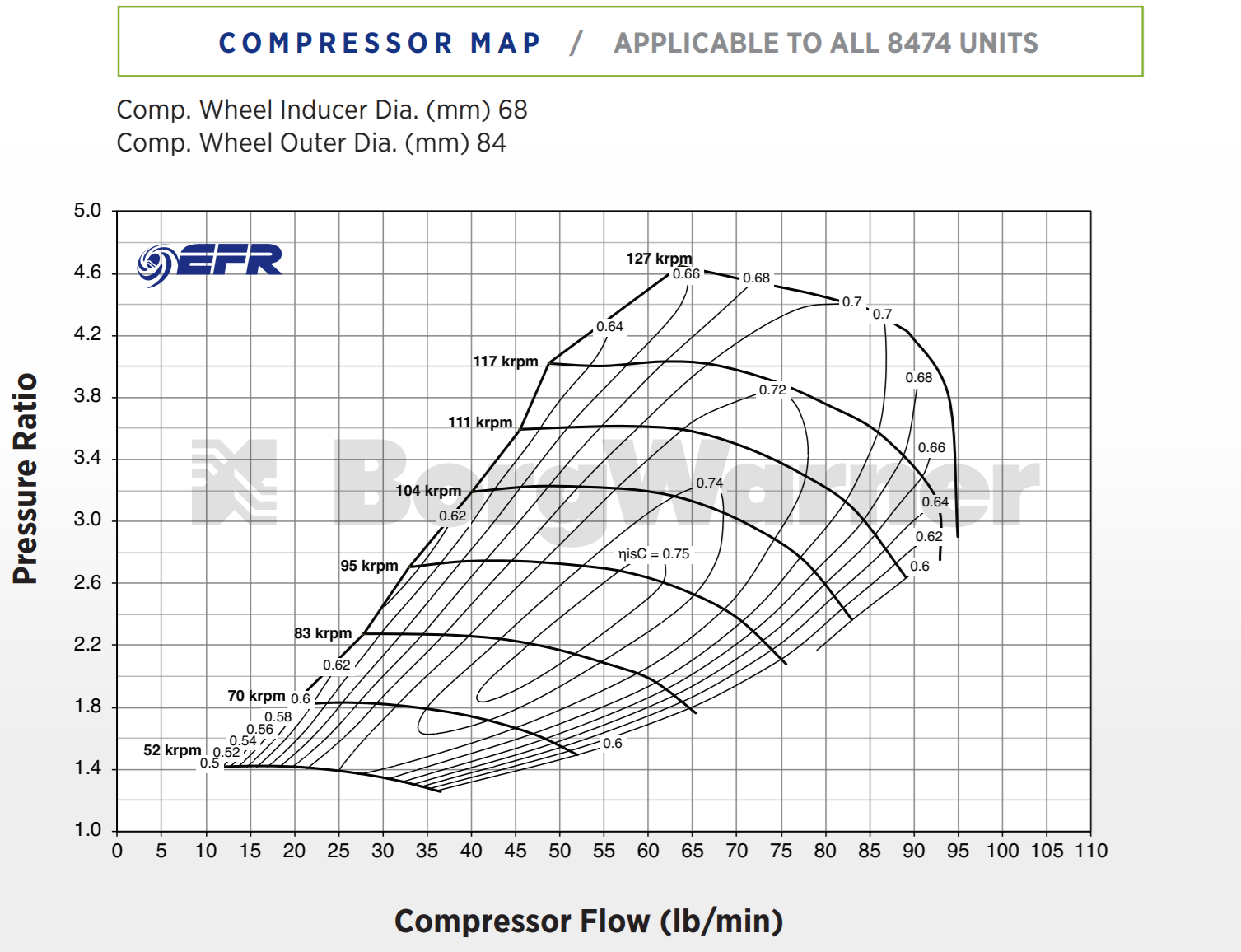

Compressor Map
Features
- Flange type: T4 divided / TwinScroll
- a/r Value: 1.05ar
- Turbocharger: EFR 8474
- Model: external WastegateBall bearing
