BorgWarner AirWerks S500SX-E Turbo SuperCore - 94mm 120/110 - 15009097002 aka S594X-E

  • Item-No.: 464446
  • Manufacturer-No.: 15009097002
  • Manufacturer: BorgWarner Airwerks
BorgWarner Airwerks
Compressor wheel - Turbine wheel
£ 1,757.16
excl. 20% VAT , Free shipping
£ 2,108.59
incl. 20% VAT , Free shipping
seen cheaper?
seen cheaper?
Stk
Status:
will be reordered for you
ETA
ca. 3 Monate (more information)

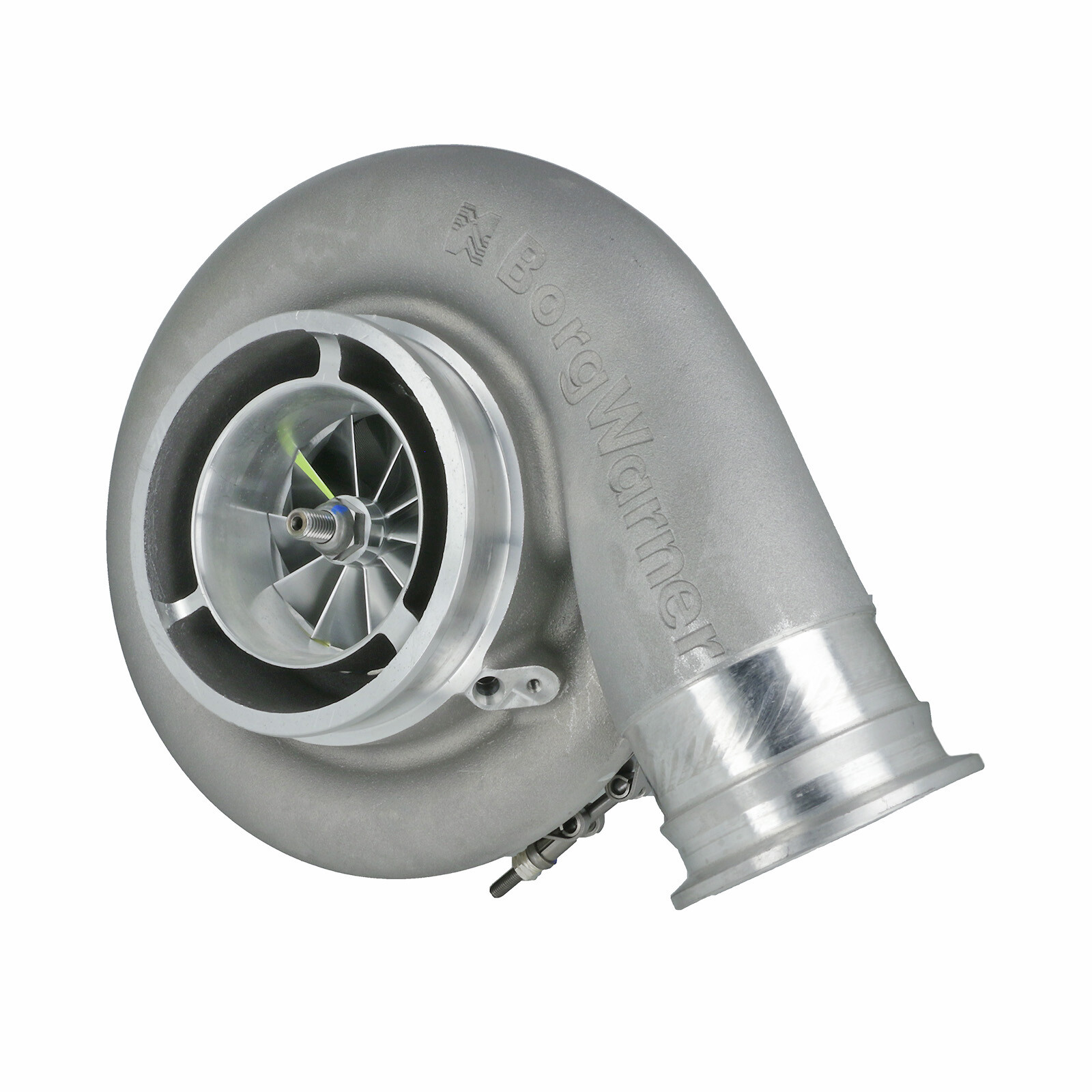

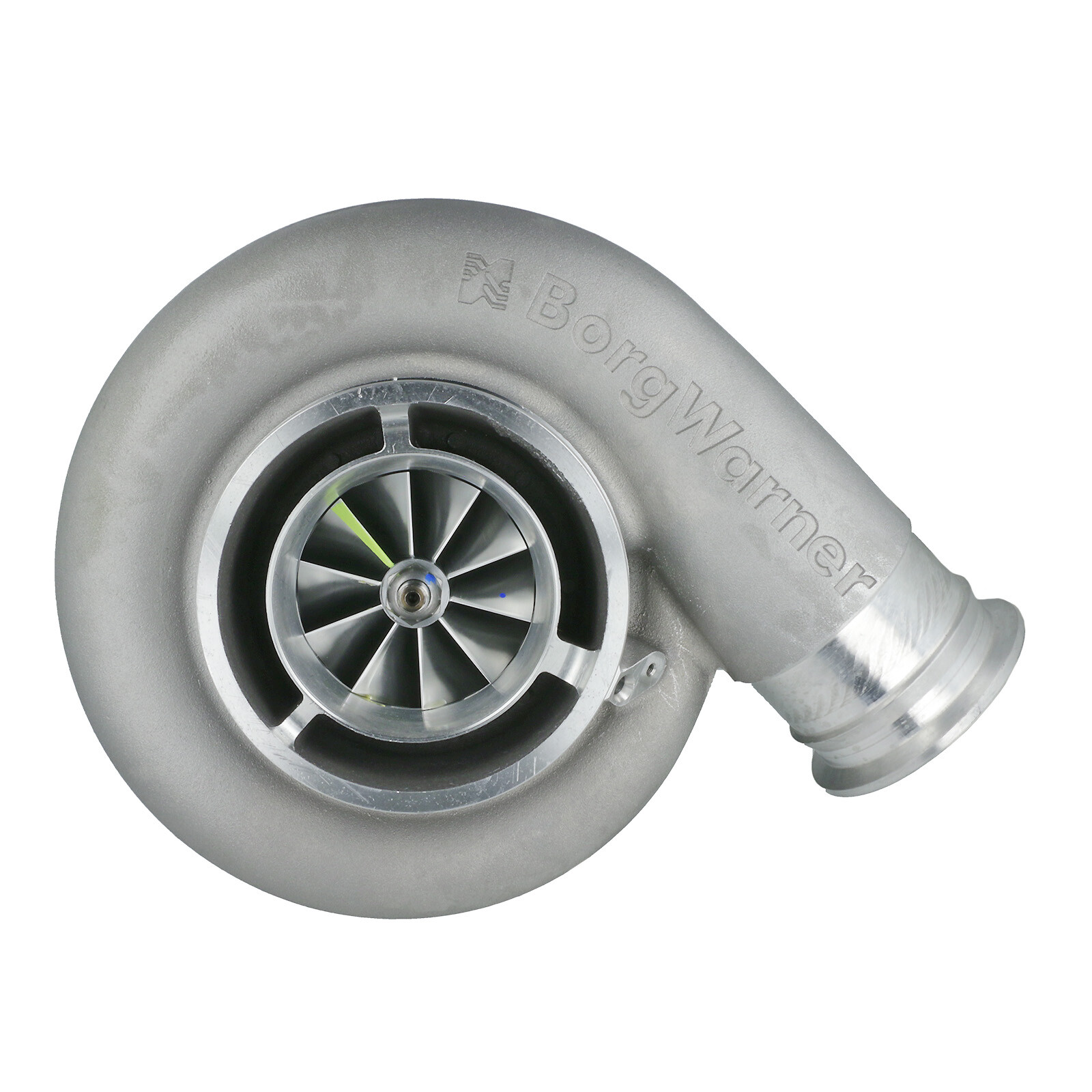

BorgWarner AirWerks S500SX-E Turbo - 94mm 120/110

BW part number 15009097002 aka S594SX-E

Genuine BorgWarner AirWerks turbocharger

AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.

Performance rating: 900 - 1875 HP
Compressor housing: intake 152mm / pressure side 107mm (V-Band flange)
Compressor wheel: inducer 120mm / exducer 93,80mm
Turbine housing: no
Turbine wheel: inducer 110mm (exakter Wert ist 109,73mm) / exducer 99,08mm

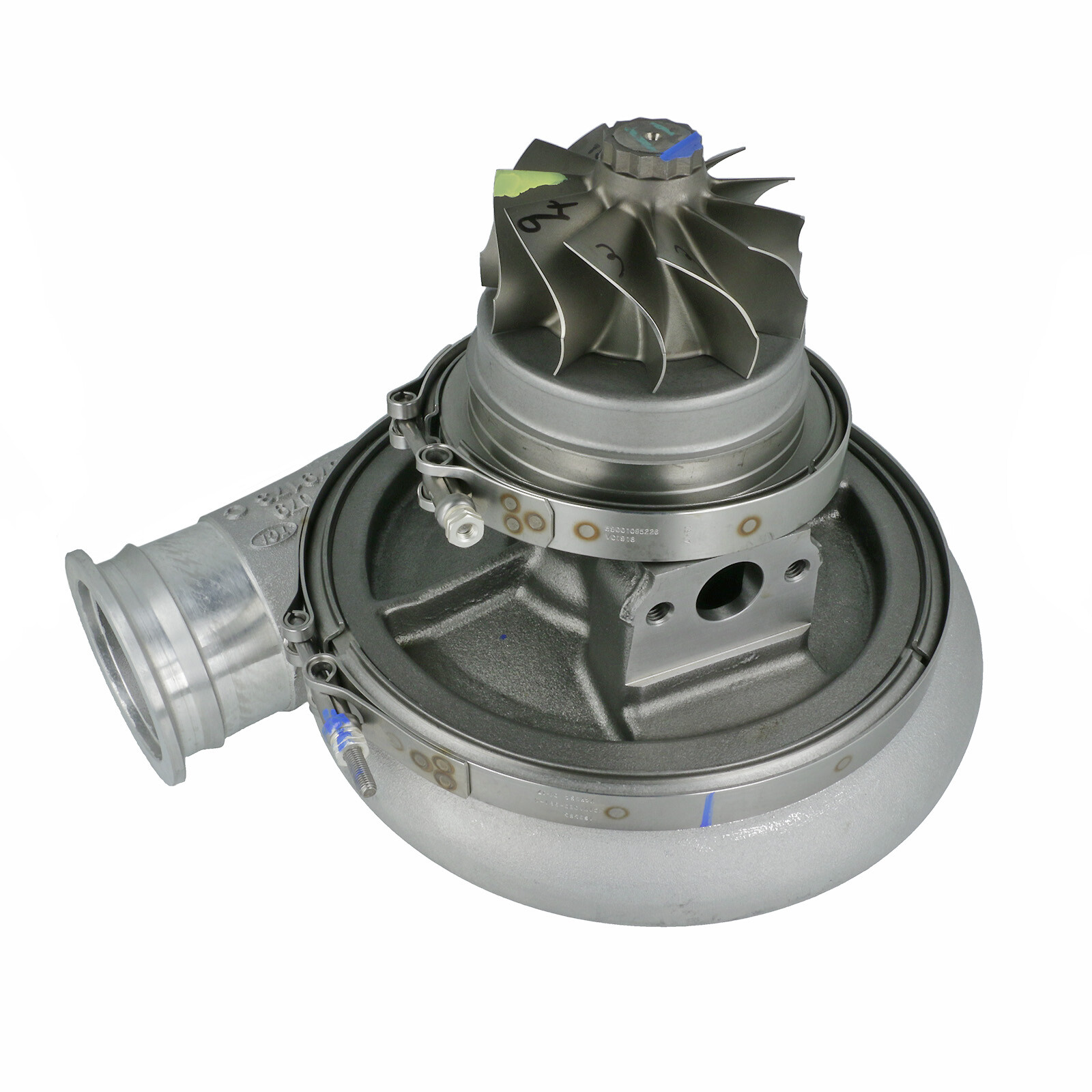

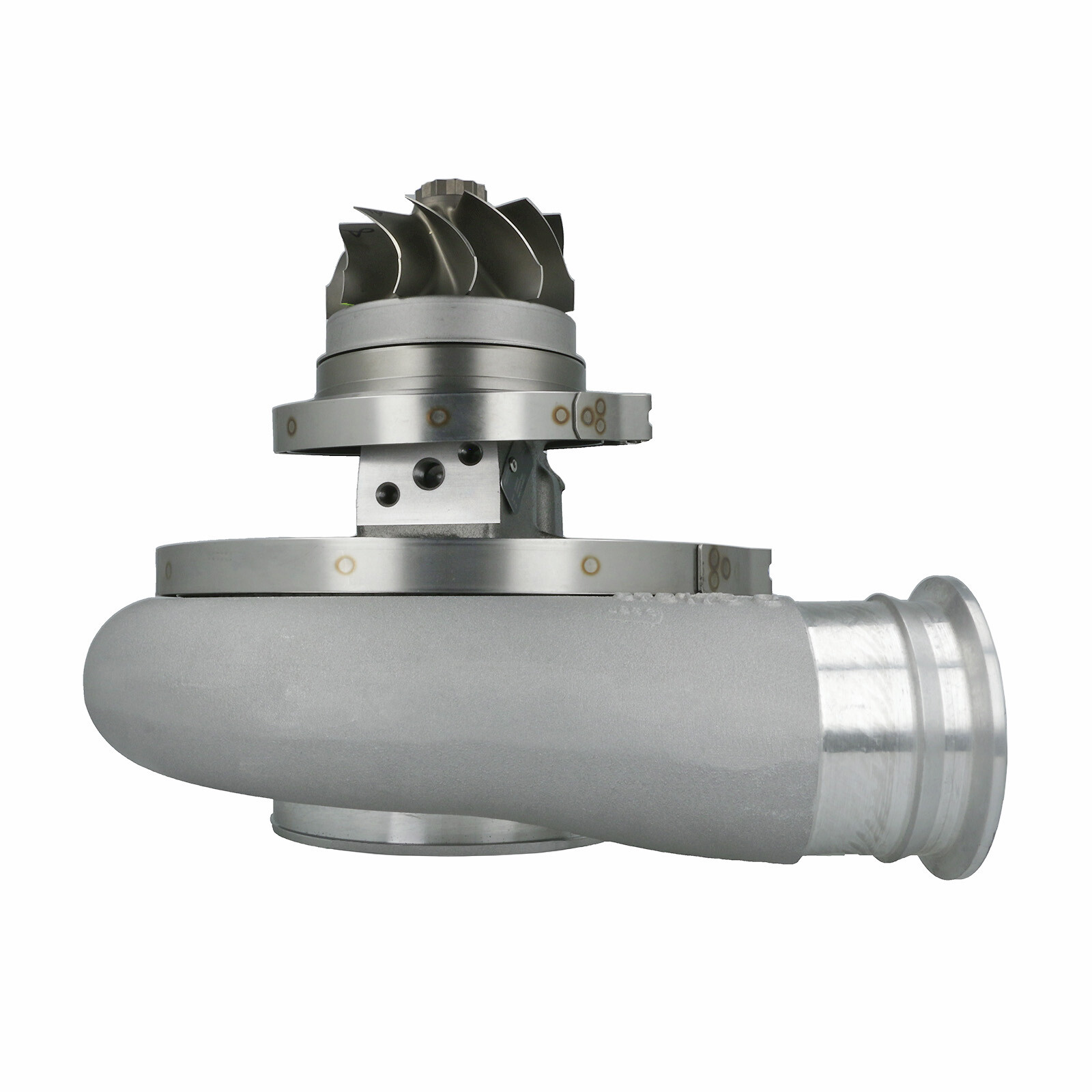

- Only Super Core with mounting kit for turbine housing, the turbine housing must be purchased separately

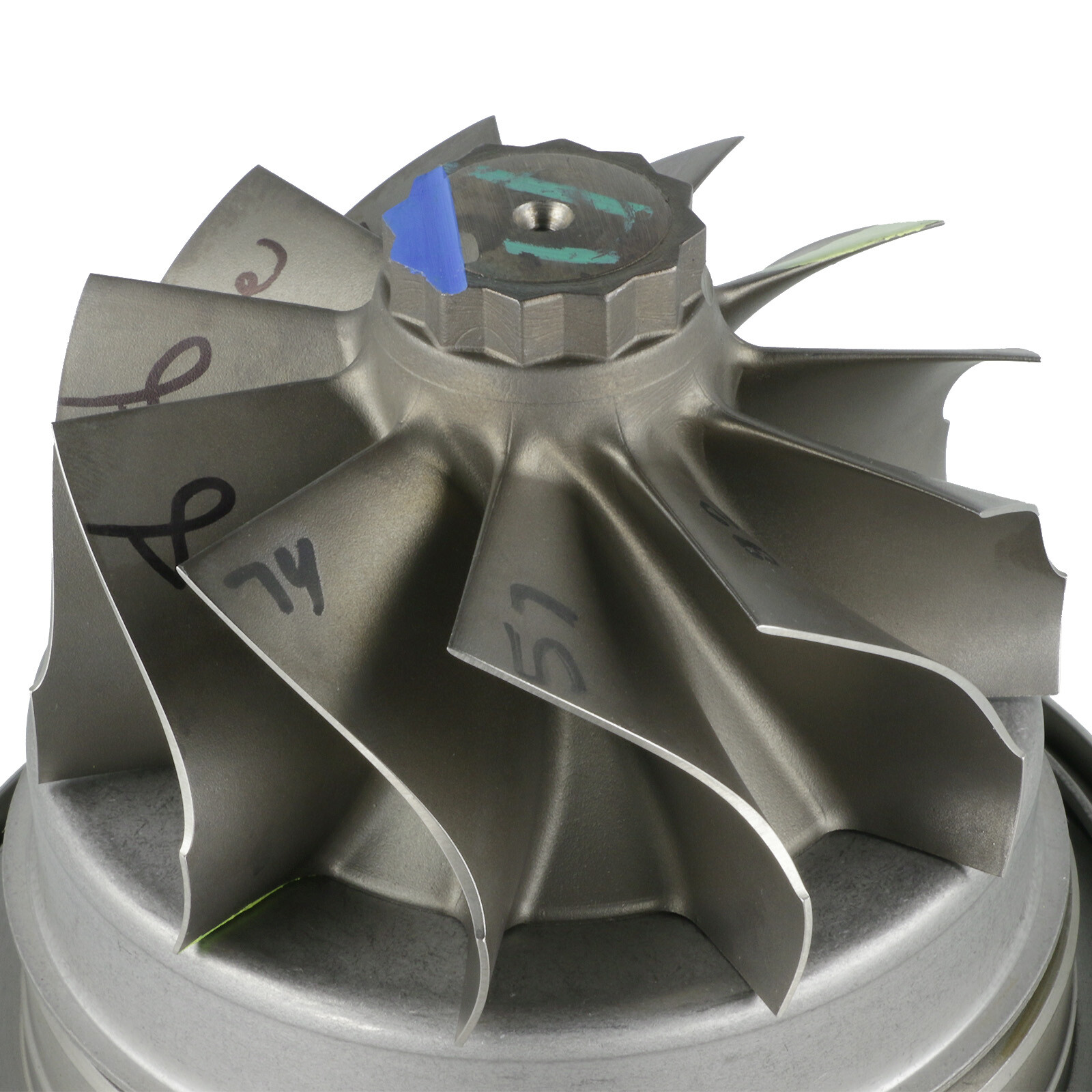

- Forged milled aluminum compressor wheel with extented tip technology
- Integrated speed sensor port
- High Flow compressor housing
- Fits for BorgWarner AirWerks S500SX / S500SX-E turbine housings

Turbine housing must be purchased separately.
