BorgWarner AirWerks S200 Turbo 0.76 A/R - 80/74
BW part number 317246
Genuine BorgWarner AirWerks turbocharger
AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.
performance rating: 320 - 580 HP

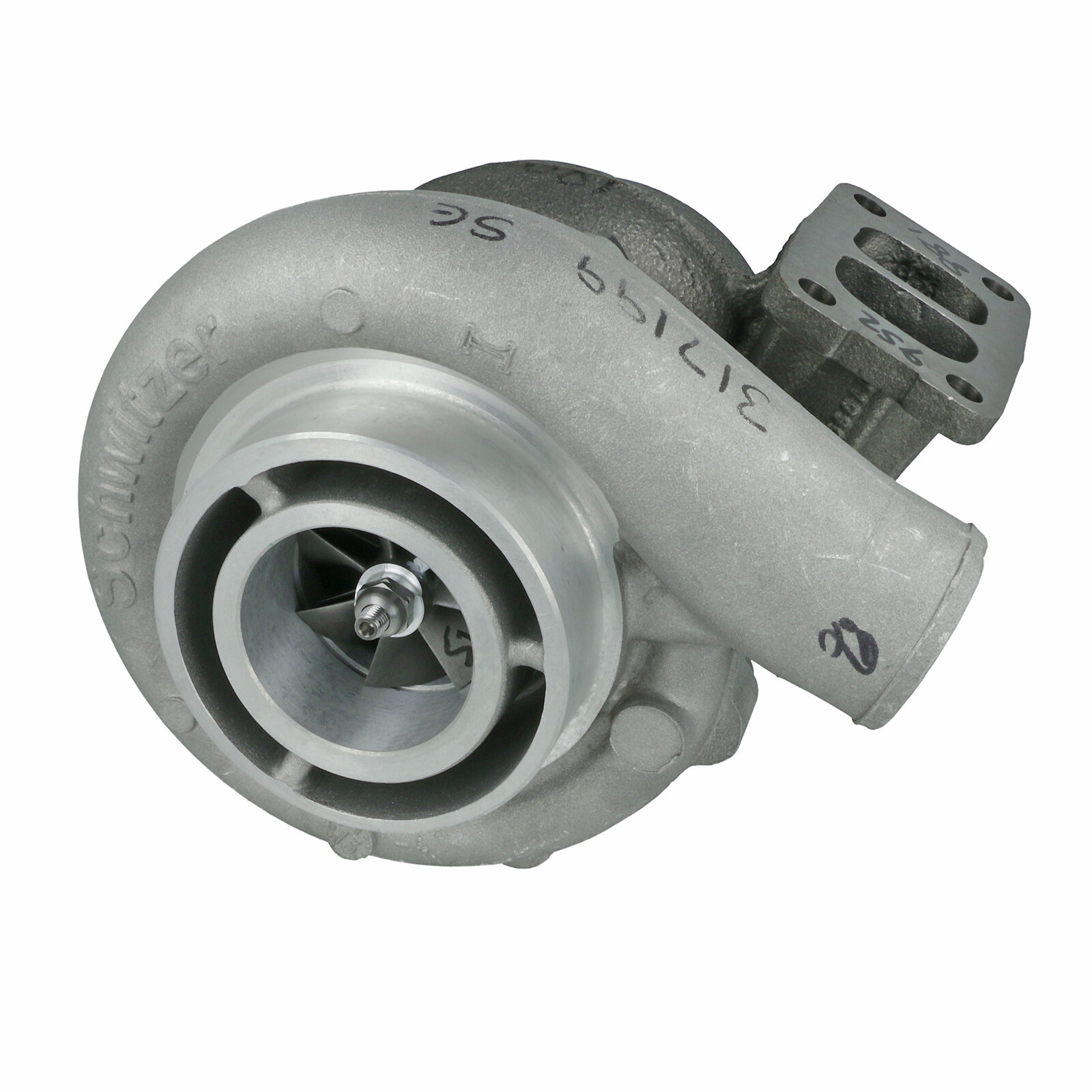

compressor housing: intake 101mm / pressure side 51mm

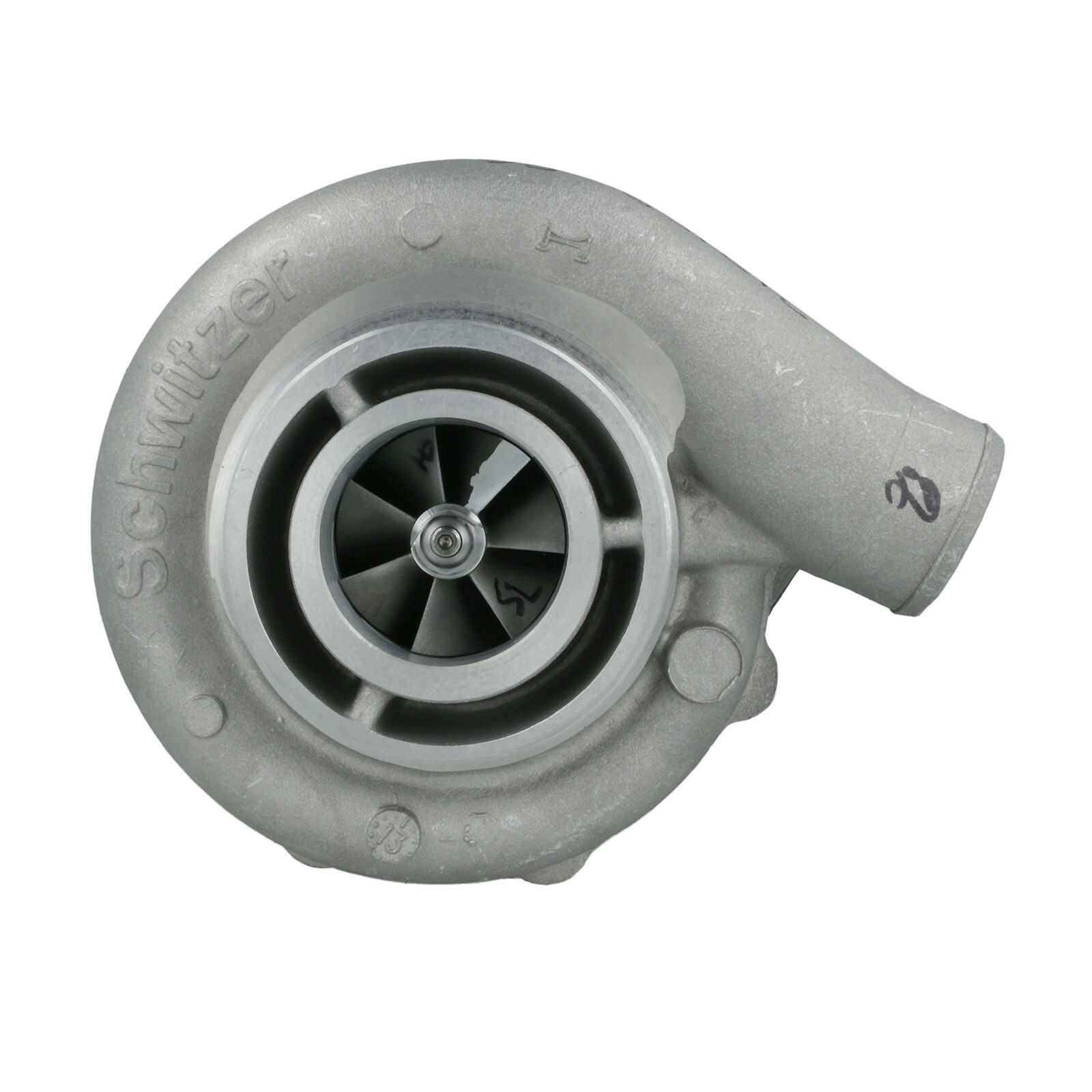

compressor wheel: inducer 56mm / exducer 79,7mm

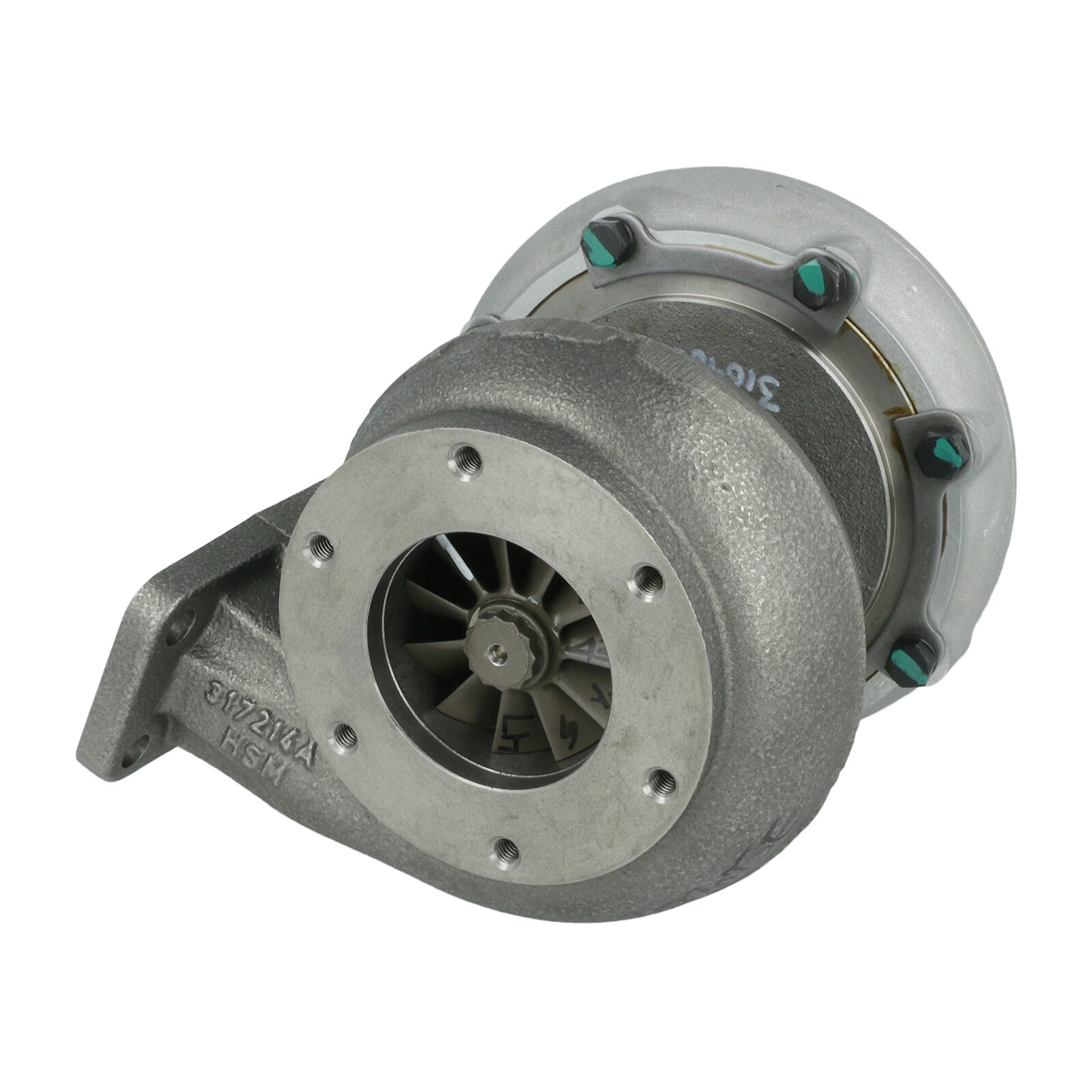

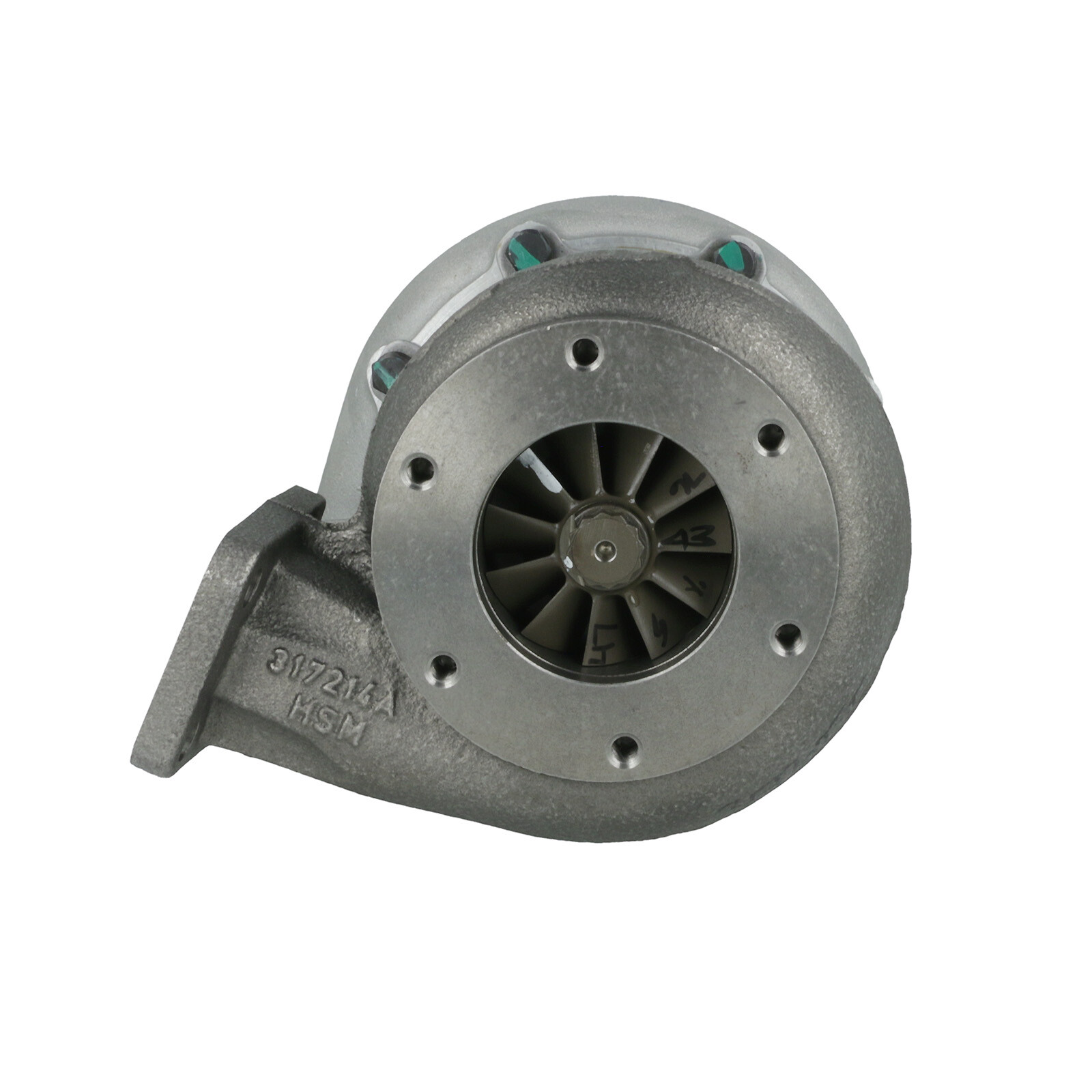

turbine housing: 0.76 AR / header flange T3 Twin Scroll (T3 divided) / turbine outlet BorgWarner 6-bolt round
turbine wheel: inducer 74mm / exducer 65mm / external wastegate
- dual hydrodynamic journal bearing
- extended tip technology
- Twin Scroll turbine housing
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
Different A/R ratio?
If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.

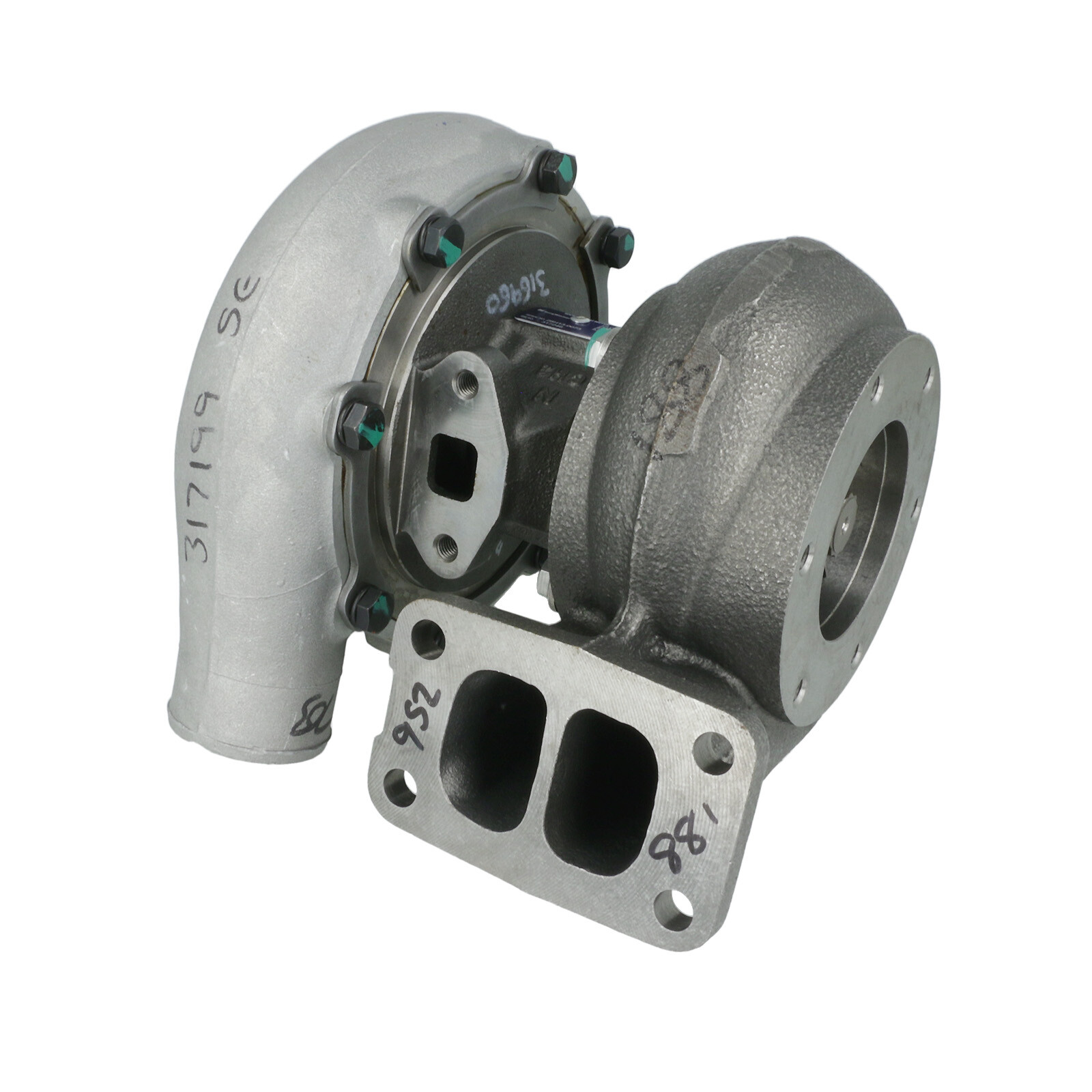

- Flange type: T3 divided / TwinScroll
- a/r Value: 0.76ar
- Availability: to order
- Turbocharger: AirWerks S200S200
- Model: external WastegateJournal bearing
