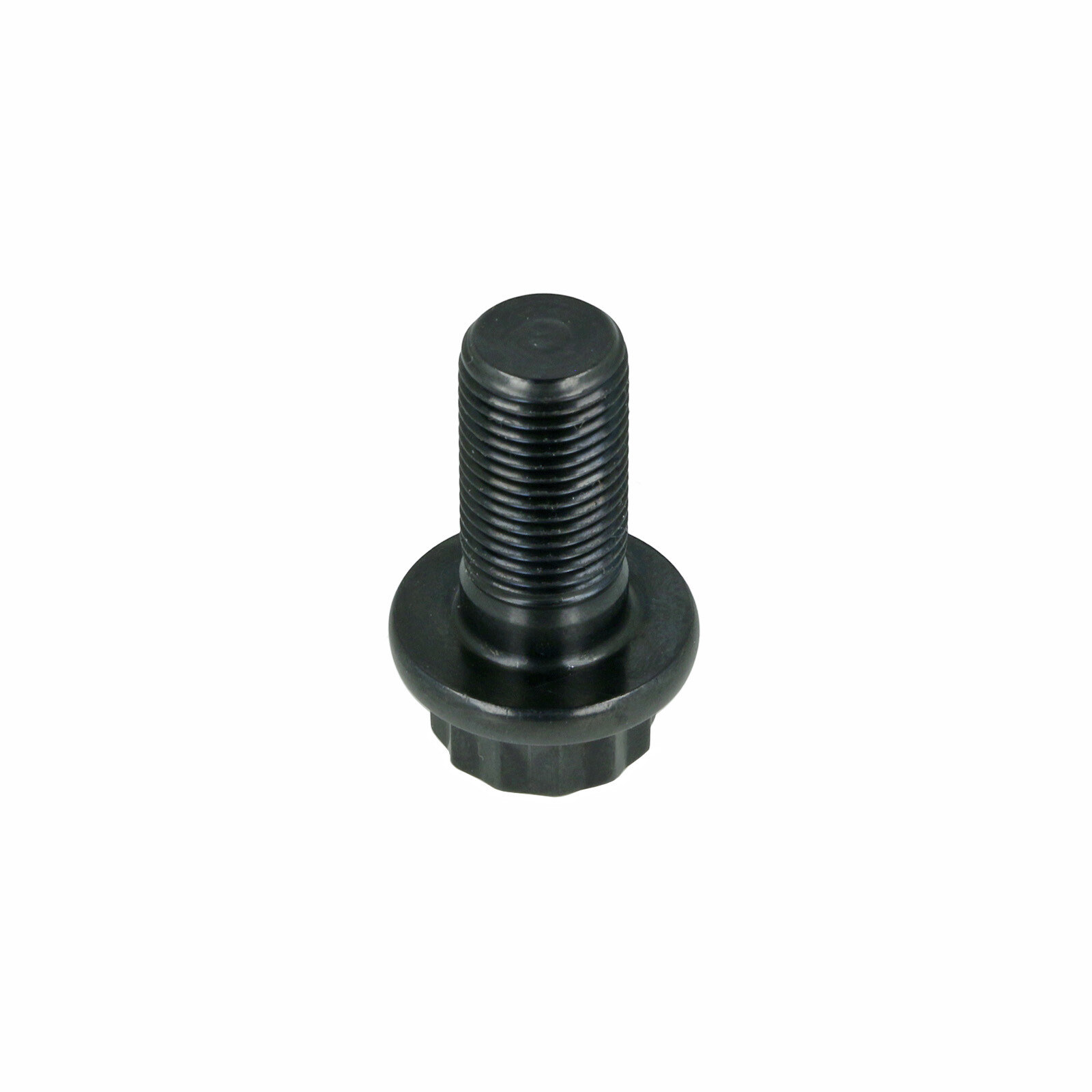

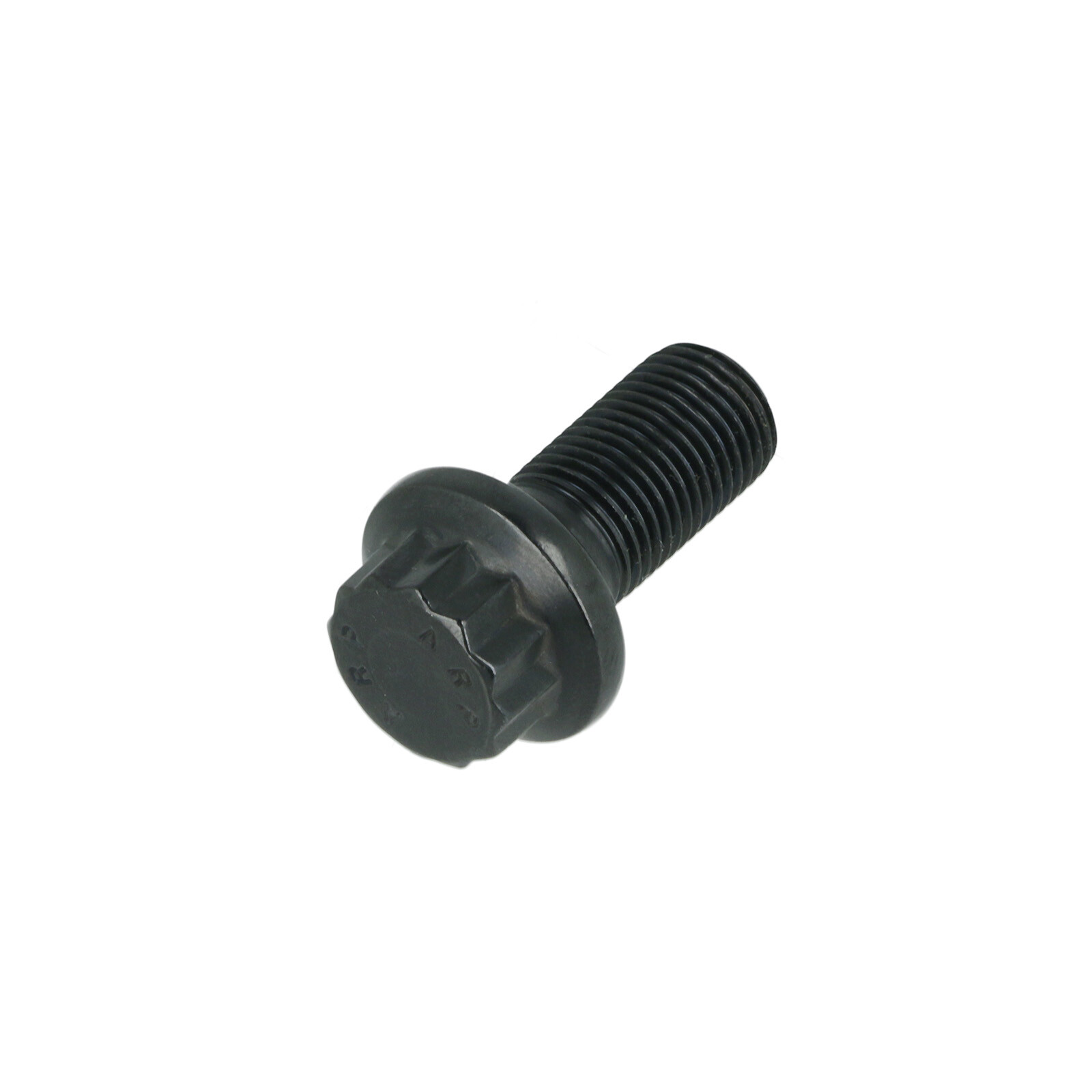

ARP Pro Series high strength M10x22x1mm bolt
Premium Pro Series bolt for engines, transmissions, etc.
Made from heat-treated, high-strength molybdenum alloy steel
ARP Pro Series flywheel bolts are made from heat-treated, high-strength molybdenum alloy steel. These reinforced bolts are highly recommended for performance-enhanced engines, as OEM bolts may loosen under increased power and/or RPM. ARP bolts can also be reused after installation.
Technical Specifications:
- Thread: M10x1mm
- Thread length: 16.7mm
- Head height with flange: 9.25mm
- Shaft length: 4mm
- Shaft diameter: 9.90mm
- Tensile strength: Approximately 1310 N/mm²
- Tool head: 12-point 13mm
Included in Delivery:
- 1x ARP Bolt M10x22x1mm
Note: We also offer ARP Ultra-Torque assembly lubricant, TZ part number: 496204
