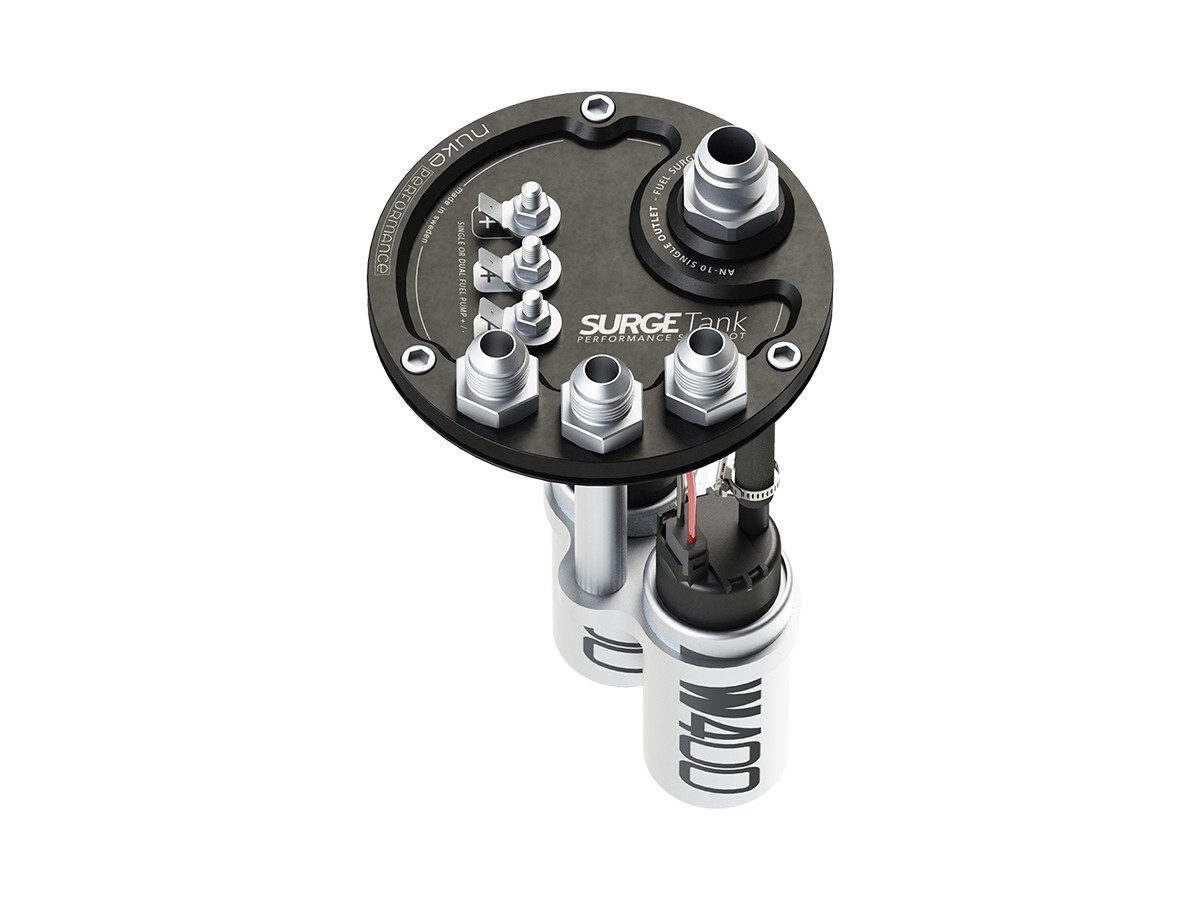

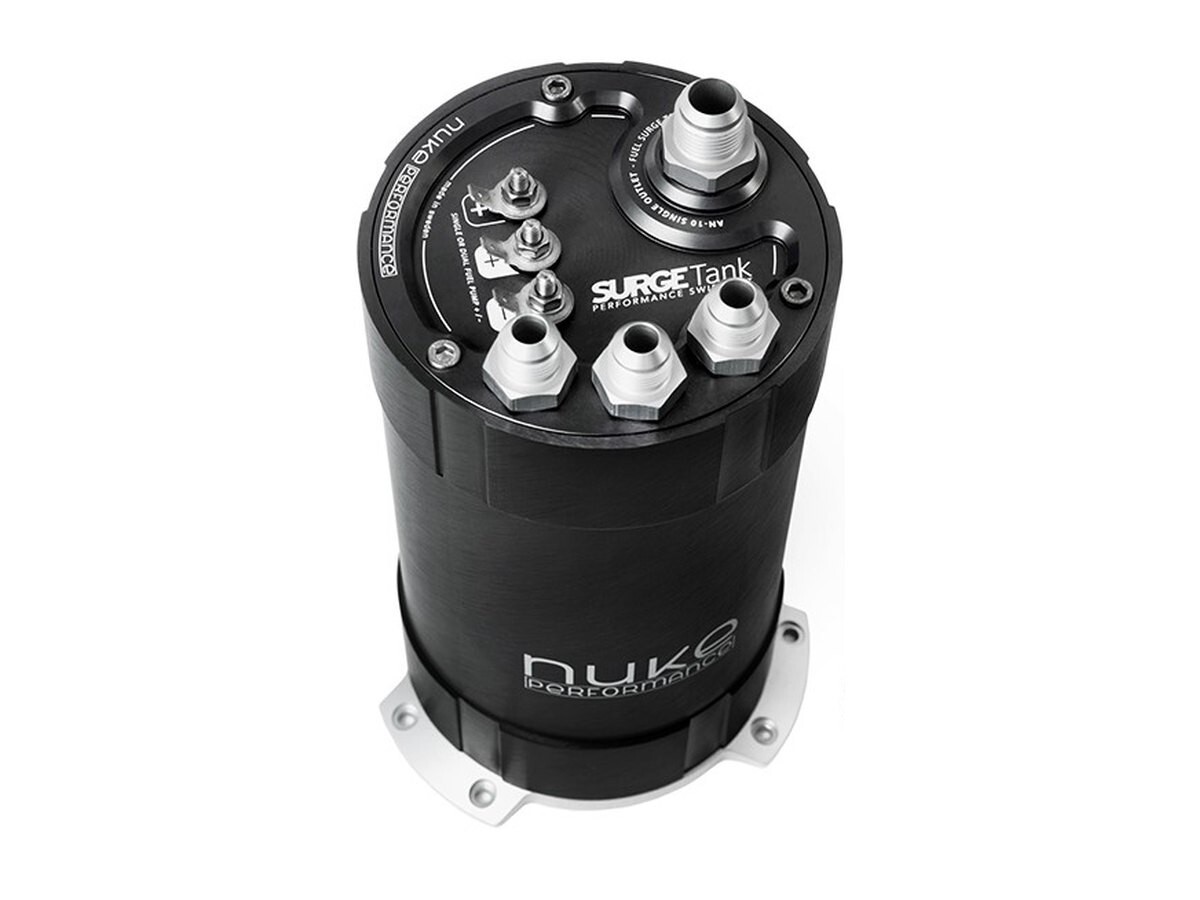

2G Fuel Surge Tank 3l for two internal DW400 fuel pumps
Fits for Deatschwerks DW400 pumps
Eletrical fuel pump control is now possible

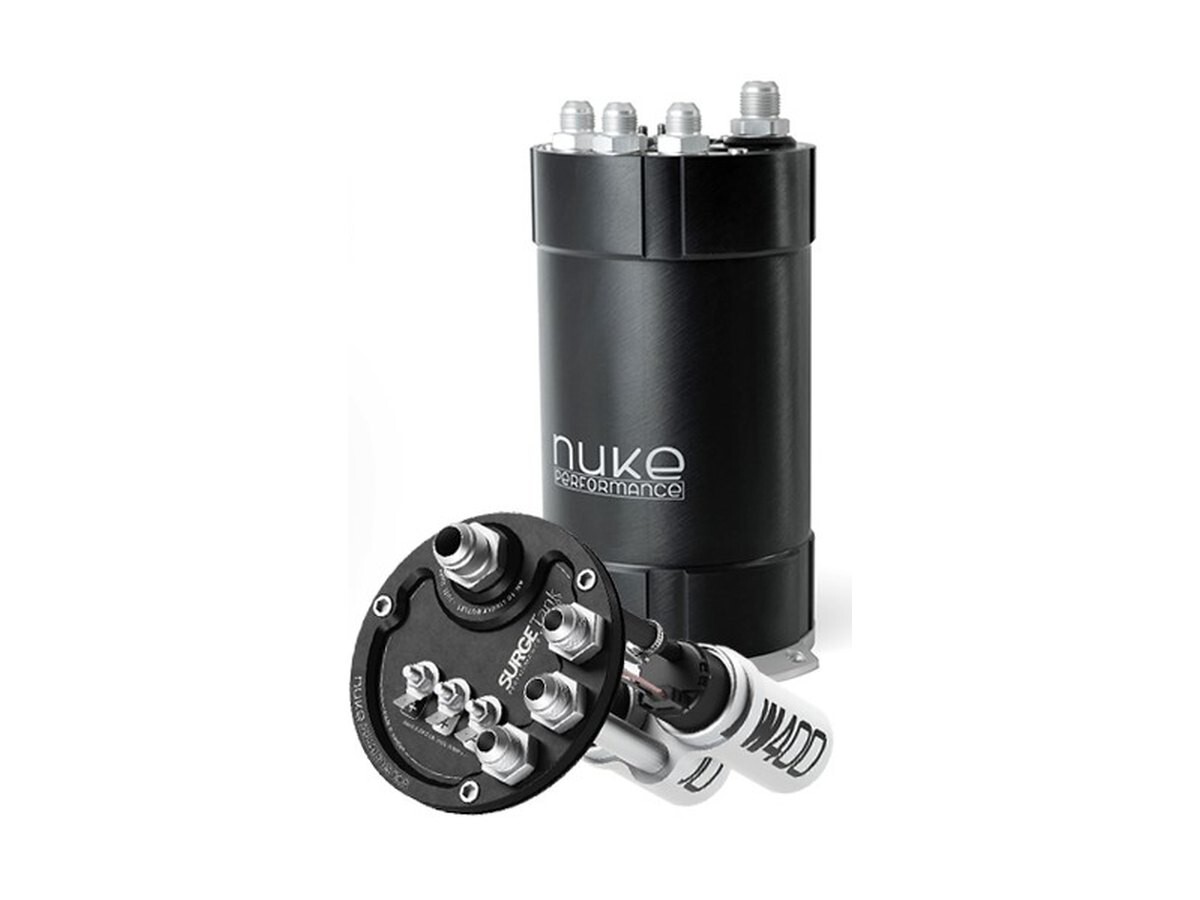

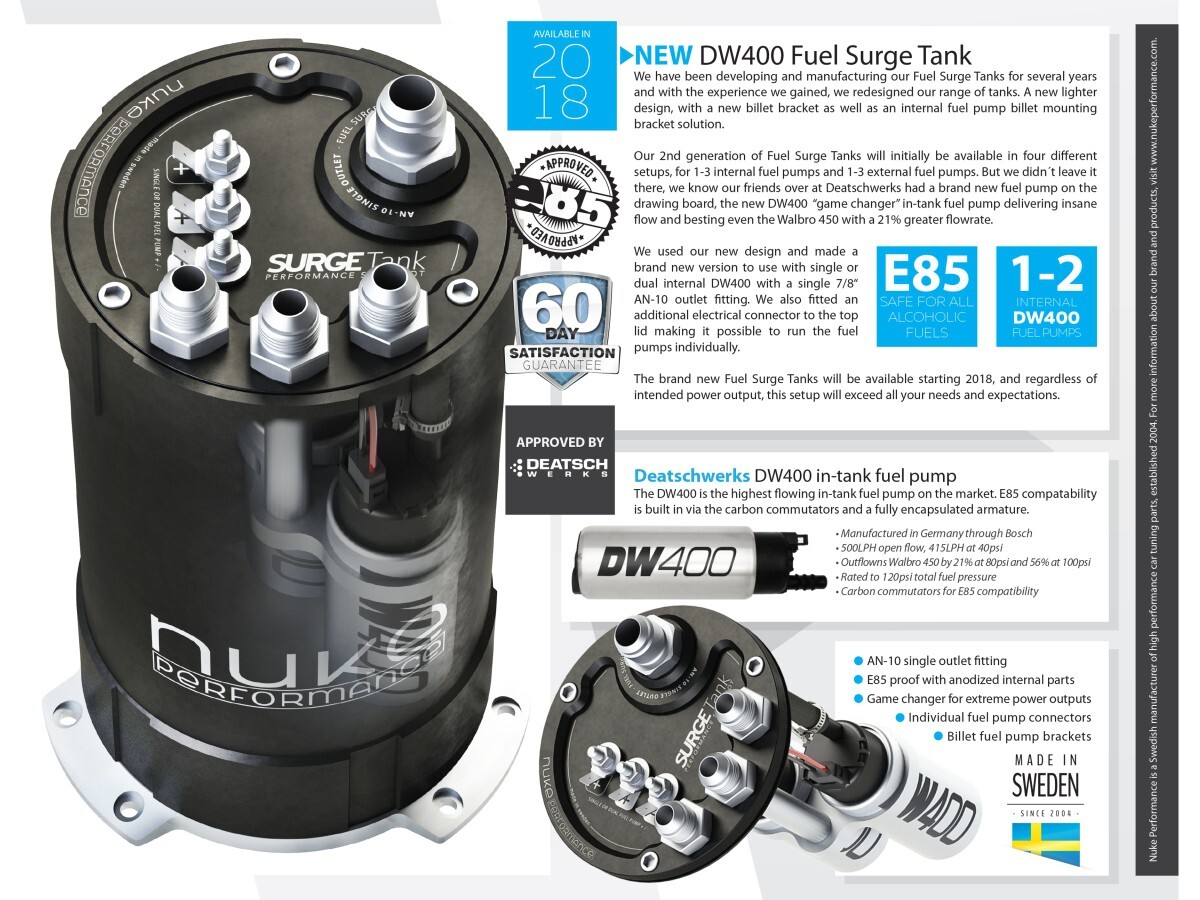

The brand new Nuke Performance fuel surge catch tank for use with one or two internal Deatschwerks DW400 fuel pumps. The internal DW400 fuel pump, delivers about 21% more than the Walbro 400! And thus outstrips all internal fuel pumps on the market.
The DW400 Fuel fuel surge catch tank is the new leader in quality and design and perfectly suited for use in turbo, supercharged, or naturally aspirated engines. Developed and manufactured for extreme performance requirements, in known NUKE performance quality.

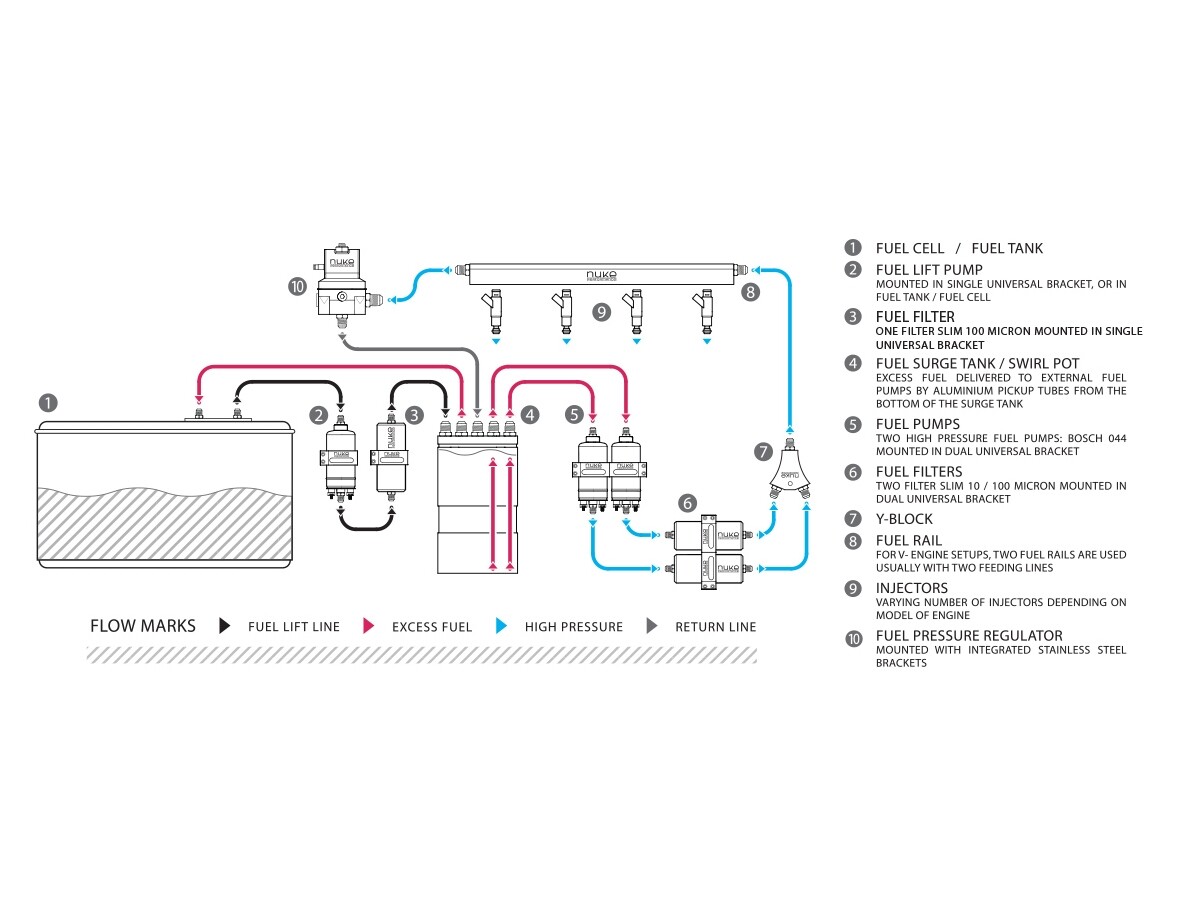

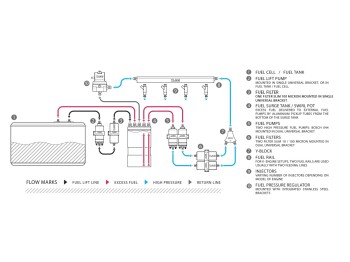

With the Nuke fuel surge catch tank you minimize the risk that the system will not suck in air in extremely hard driving maneuvers such as drift, dragracing, circuit or even on the road and this can lead to engine damage. The fuel catch tank works as a buffer so that the fuel pumps always deliver the necessary fuel quantity and pressure even under extreme conditions.
Also resistant to alcohol fuels, including methanol and ethanol.
The difference to the old version is in:
- Instead of two AN-8 there is now an ORB AN-10 outlet connection and one ORB AN-08 return connection
- Instead of two electrical connections, there are now three, so now a needs-based fuel pump control is possible!
- Newly developed pedestal
Technical Information:
- CNC Milled Aluminum Alloy 6063
- Stainless steel bolt for long durability
- Volume about 3 liters
- Terminals for the power supply
Complete Kit for Single or Double DW400 fuel pumps. The fuel pumps and fittings are not included!
Outlet fittings:
- AN-10 ORB to AN-6 Male Part: 700-04-108
- AN-10 ORB to AN-8 Male Part: 700-04-109
- AN-10 ORB to AN-10 Male Part: 700-04-110
- AN-10 ORB to AN-12 Male Part: 700-04-111
- AN-8 ORB to AN-6 Male Part: 700-04-104
- AN-8 ORB to AN-8 Male Part: 700-04-105
- AN-8 ORB to AN-10 Male Part: 700-04-106
- AN-8 ORB to AN-12 Male Part: 700-04-107
- Product Type: Catch-Tank
- Material: Aluminium
- Availability: to order
