Screw-in Adapter M10 x 1 to Dash 4 / -04 AN



Thread / Thread
£ 2.57
excl. 20% VAT , plus shipping costs
£ 3.24
£ 3.08
incl. 20% VAT , plus shipping costs
instead of: £ 3.24
Save 5%
more than 20
Status:
In stock

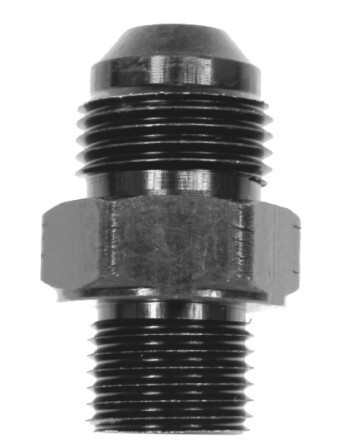

Screw-in Adapter M10 x 1 to Dash 4 / -04 AN

Hydraulic adapter metric to external thread dash

CNC milled aluminum, black anodized

With our screw-in adapters you have the option to build yourself of our hydraulic lines, also when there are only vehicle-specific metric connectivities. This is particularly the case with European vehicles. All adapters are machined CNC from aluminum and then black anodized. By anodizing the adapter can be used with all fluids (oil, fuel, E85, cooling water, etc.). When designing the adapter has been taken to achieve maximum drilling with maximum wall thickness. Thus, each adapter is sufficiently stable and has the greatest possible flow.

Material: aluminium
Colour: black anodized
Thread A: M10x1
Thread B: Dash 4 / -04 AN
Length overall: 34mm
Length thread A: 10mm
Length thread B: 14mm
Bore: 5mm

PDF

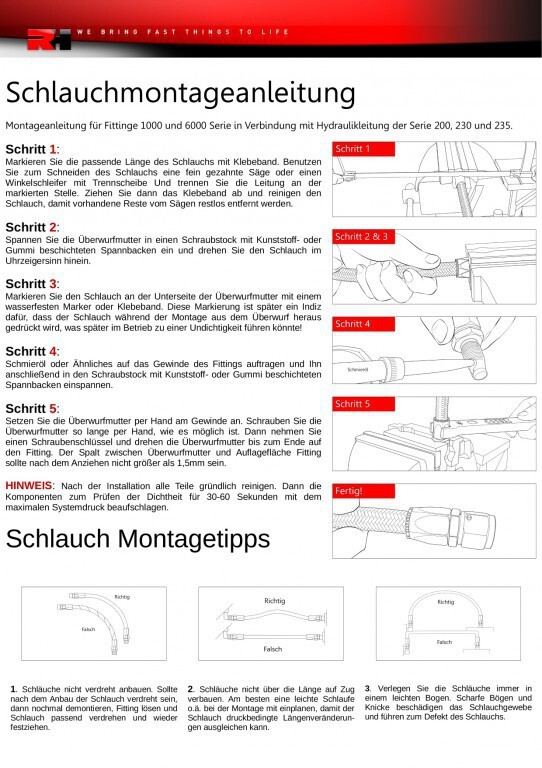

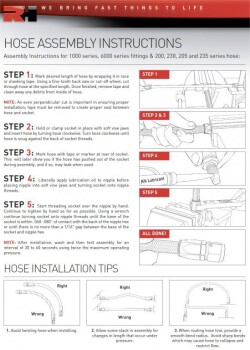

Installation instructions

Features
Accessory
