4-Cyl. Collector T3 Flange GTX / EFR / AirWerks

CNC machined turbo manifold collector with 38mm Wastegate port

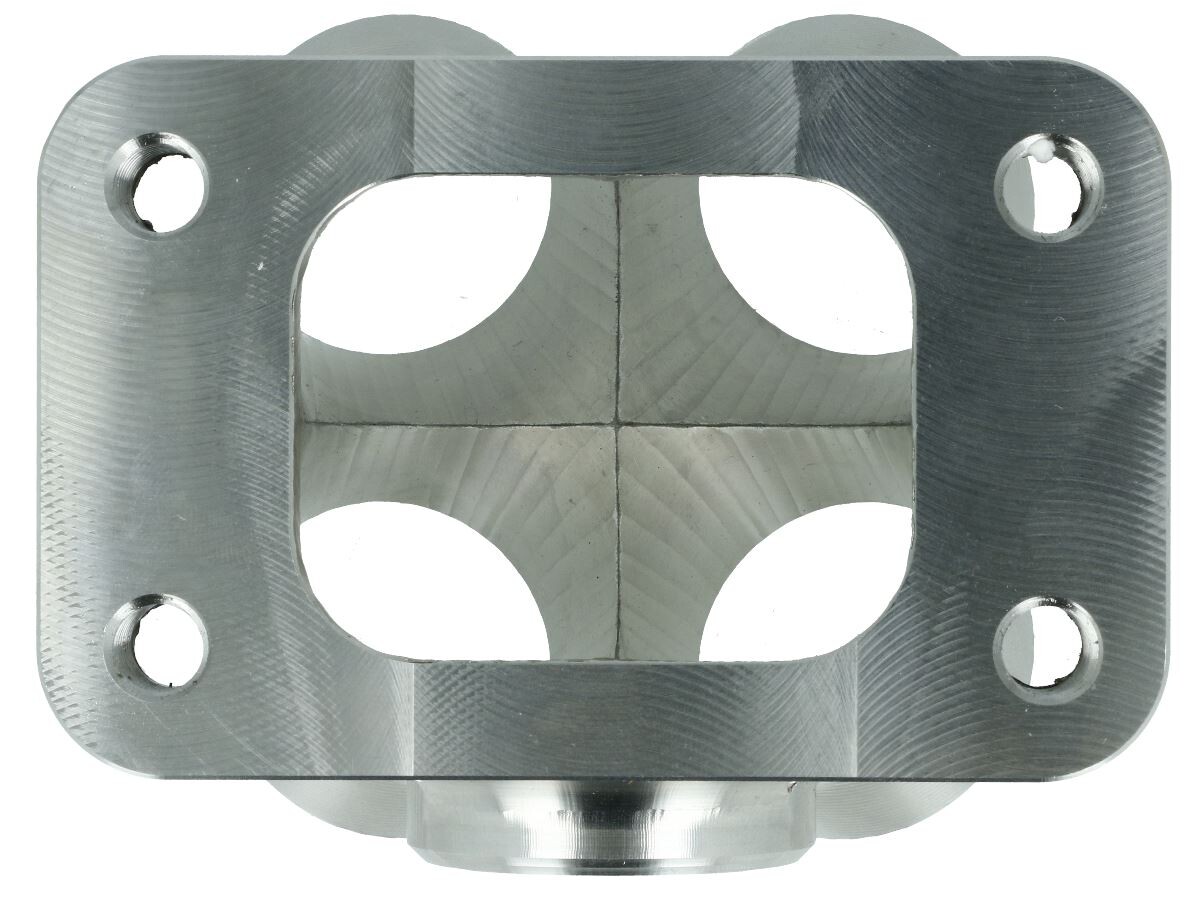

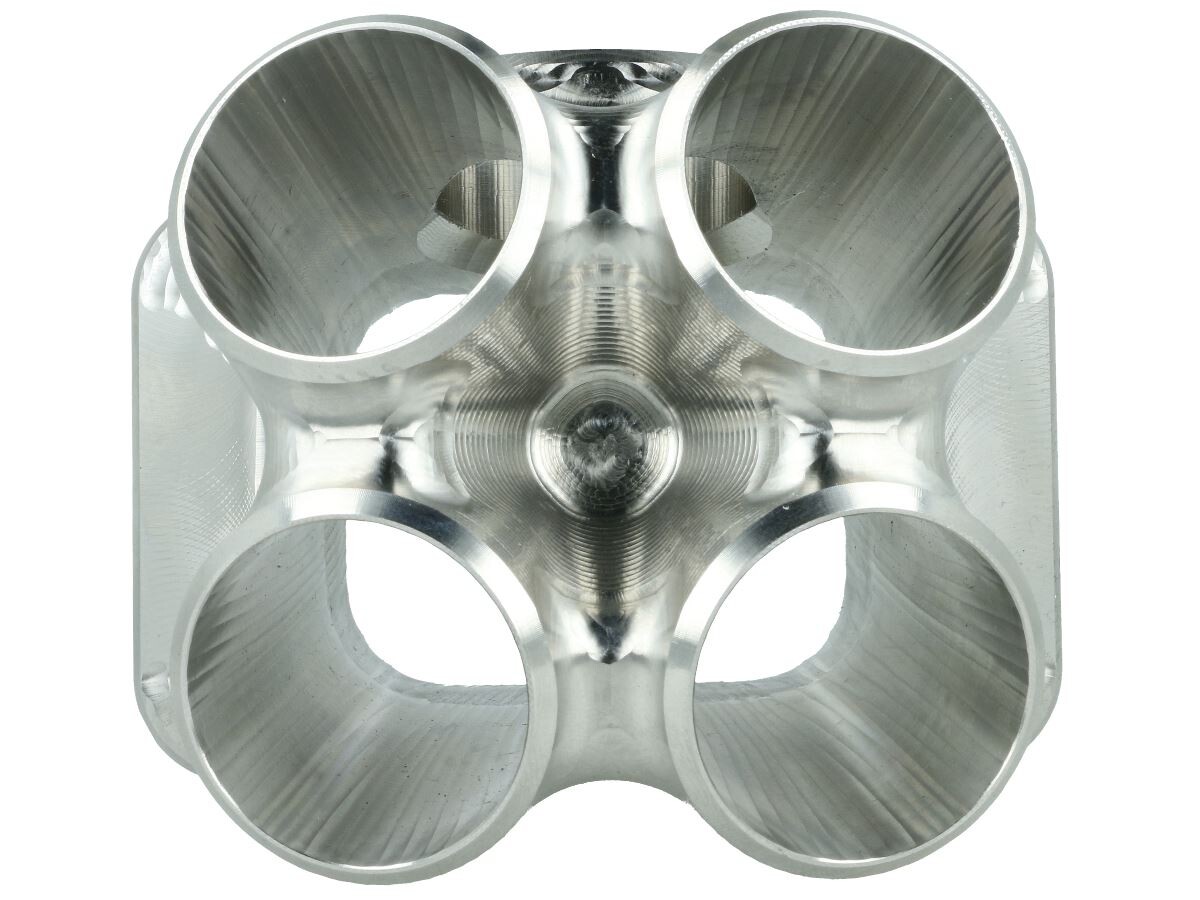

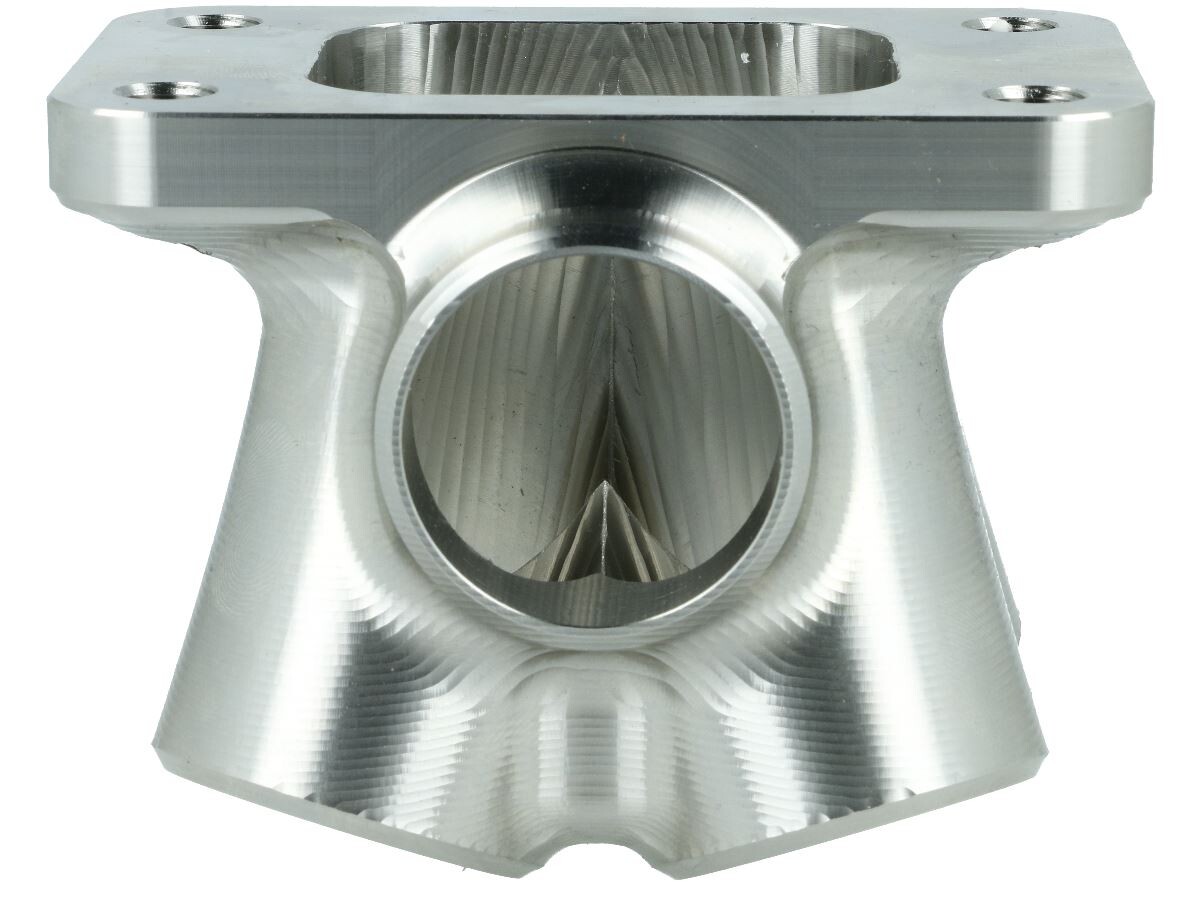

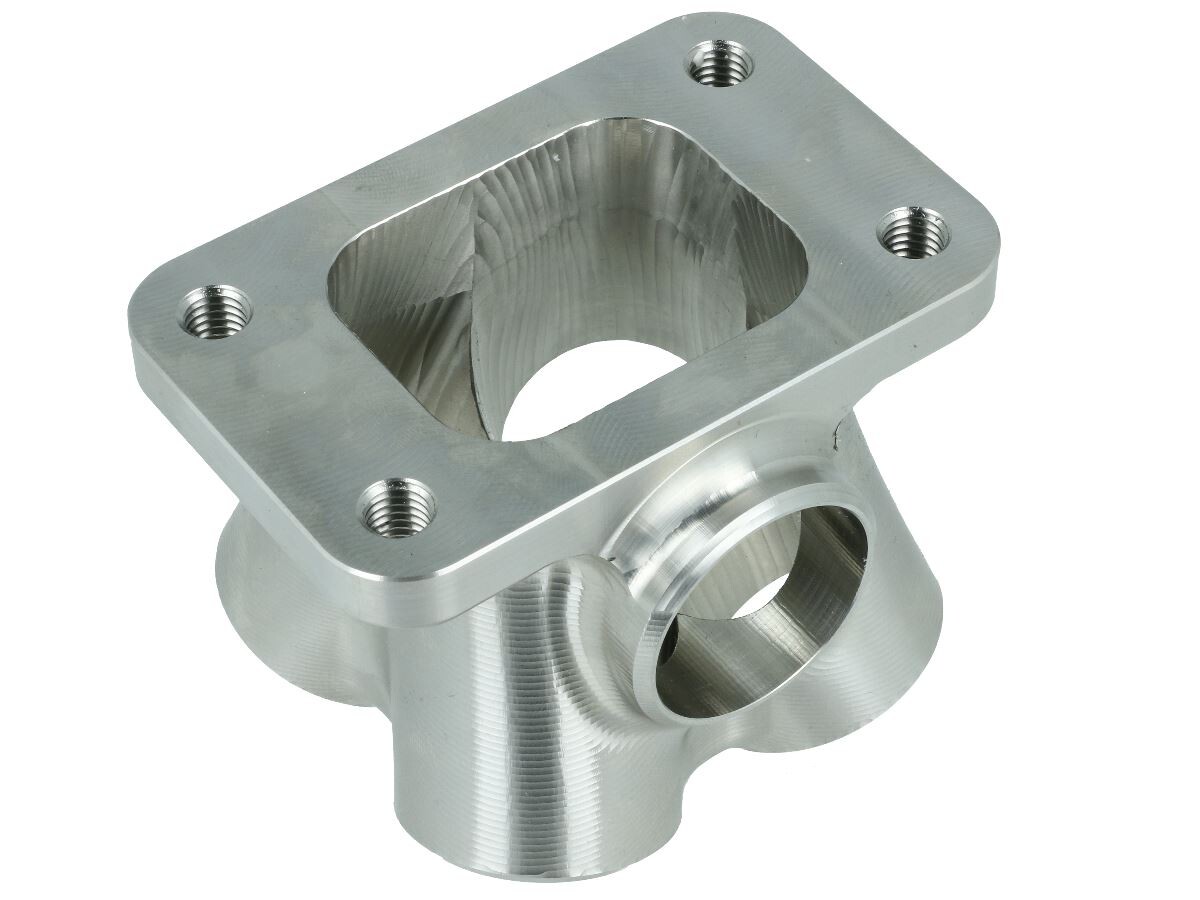

Turbo collector fully milled from stainless steel

Now available at TurboZentrum! Full CNC machined stainless steel turbo manifold collectors. Perfect for turbo manifolds to achieve maximum performance! A milled turbo collector offers unbeatable advantages:

- For manifold manufacturer: The manifold collector is always exactly the same, providing a 100% accurate repeatability in one gauge manufacturing. This was not always possible with welded collectors due to tolerances and distortion during welding.
- For maximum performance: Because the turbo collector is machined from one block of CNC, there are no swirling edges, chamfers or steps that can negatively impact flow behavior.
- For long durability: These stainless steel manifold turbo collectors can not tear because of their one-piece manufacturing. Thus, a long durability is guaranteed even under heavy weight turbochargers, downpipes and exhaust systems.

Suitable for:
4-cylinder manifolds and turbocharger with non divided (single-scroll) T3 flange turbine housing and external 38mm wastegate, for example T3 inlet turbine housings for Garrett GT / GTX / GTX / GEN1 / GEN2 / BorgWarner EFR / AirWerks turbos:

Garrett GTX2871 GEN I
Garrett GTX29 GEN I
Garrett GTX3071 GEN I und Gen II
Garrett GTX3076 GEN I und Gen II
Garrett GTX3576 GEN I und Gen II
Garrett GTX3582 GEN I und Gen II
Garrett G25 / G30-550
Garrett G25 / G30-660

BorgWarner EFR 7064 with TurboZentrum T3 flange exhaust housings
BorgWarner EFR 7670 with TurboZentrum T3 flange exhaust housings
BorgWarner EFR 8374 with TurboZentrum T3 flange exhaust housings
BorgWarner EFR 9174 with TurboZentrum T3 flange exhaust housings
BorgWarner EFR 9180 with TurboZentrum T3 flange exhaust housings

BorgWarner AirWerks S200 / S200SX-E with TurboZentrum T3 flange exhaust housings
BorgWarner AirWerks S300 / S300SX-E with TurboZentrum T3 flange exhaust housings

Technical data:
Diameter WG- port pipe: approx. 42,4mm inside, 48mm outside
Inside diameter collector pipes: approx. 36,8mm
Outer diameter collector pipes: approx. 42,4mm
Length Collector: approx. 80mm (largest passage)
Outer diameter collector: approx. 91mm (widest section)
